Spark plug access
09/14/19 at 10:03:57

Sometimes it's the little stuff that makes you crazy. Spark plug access on my bike is a bit annoying. Prob some manufacturing tolerances make some bikes easier than others.
I had already ditched the faux Panhead covers and ground off all the unnecessary mounting nubbins. Then I opened up the valve cover around where the plug is so be able to see what I'm doing. Even with the sheet metal spark plug tool, things were a bit tight.
Put a paper towel plug in the spark plug hole. Got a 6" carbide burr on my pneumatic grinder and started to open things up. Much noise and dust later and the plug and I are much more easily acquainted.

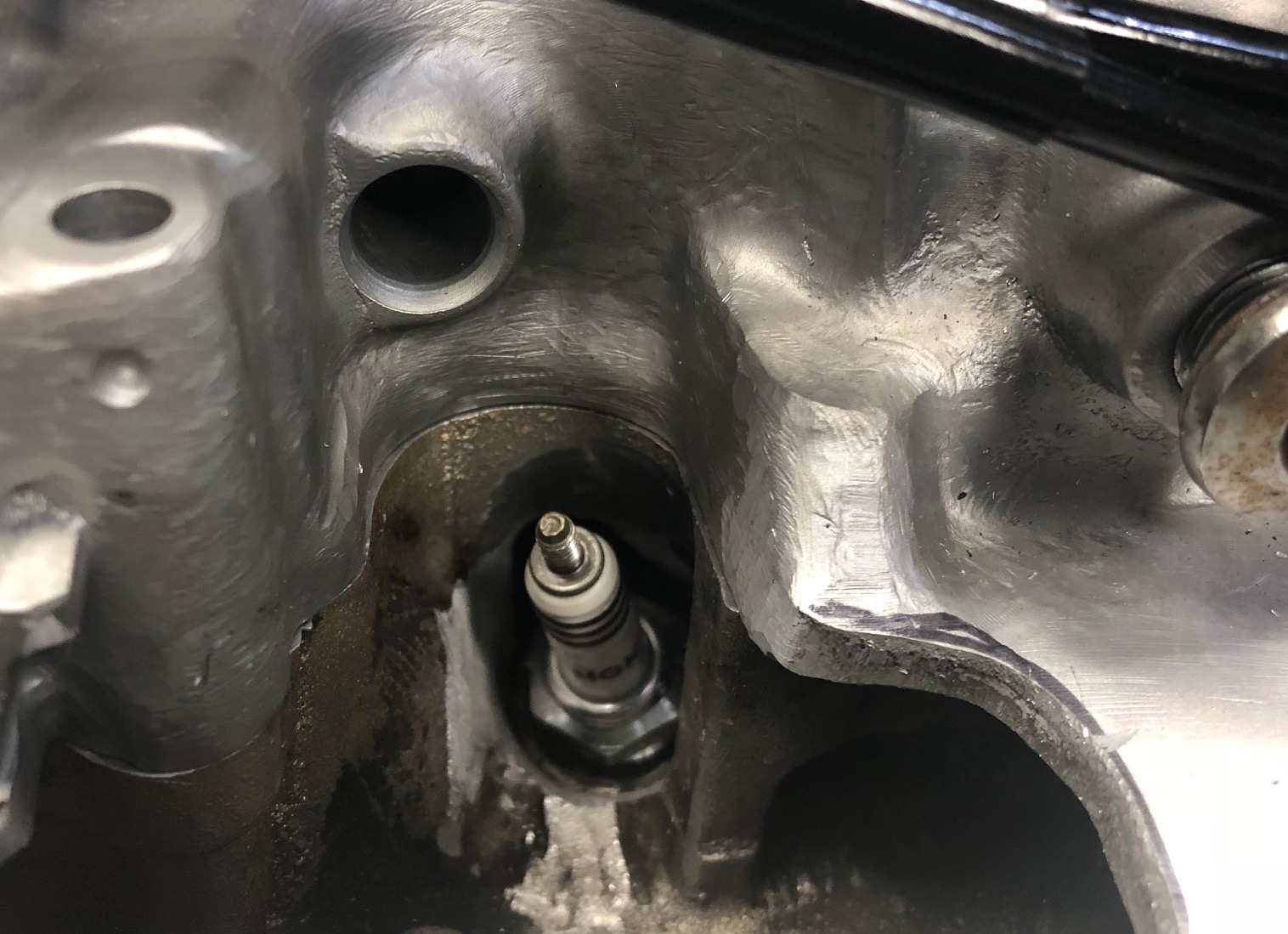

This is the head on the bike now. I have another one which will undergo all sorts of useless stuff and be installed with the 695 kit...


In theory, theory and reality are the same. In reality, they aren't...

IP Logged

DragBikeMike

Serious Thumper

Offline

SuzukiSavage.com
Rocks!

Posts: 4207
Honolulu

Re: Spark plug access
Reply #1 - 09/14/19 at 12:26:07

You didn't weigh the head/head cover before and after? I was hoping to see how many grams you shaved off. Wink

That plug is in a mighty tight spot. One thing I have noticed is that all the junk in the way has a tendency to keep my 18mm socket sort-of aligned so that I can get the thread started. But then, getting the loose plug out of the cavity can be a bit of a chore. I really need a rubber insert for my socket. A standard 18mm plug socket with an insert won't fit into my stock cavity. Have you tried a standard spark plug socket in your modified setup?

Knowledge is power.

IP Logged

batman Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 3806 osceola new york Gender:	Re: Spark plug access Reply #2 - 09/14/19 at 13:59:42 If you brake it loose , slide a piece of hose over the threads and turn it out/in? /cheap flex -head driver? add it to your tool kit.
Back to top	my old work mates called me MacGyver IP Logged

Armen Serious Thumper Offline Half-Witted Wrench-Jockey from Jersey Posts: 1432	Re: Spark plug access Reply #3 - 09/14/19 at 17:02:39 DBM Using the spark plug socket from an old XL250 Honda tool kit. Pretty long and thin, with a rubber insert. Works just peachy
Back to top	In theory, theory and reality are the same. In reality, they aren't... IP Logged

zipidachimp Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1392 surrey, b.c. Gender:	Re: Spark plug access Reply #4 - 09/14/19 at 23:20:57 the plug is magnetic! use a magnetic probe to fetch it in and out. cheers!
Back to top	IP Logged

Gary_in_NJ Serious Thumper Offline LS650 Cafe Racer Posts: 2628 Amongst the Twisty Roads	Re: Spark plug access Reply #5 - 09/15/19 at 06:12:08 You’re missing the point....he could always get the plug out.....now the bike is 7 grams lighter.
Back to top	A life-time student of motorcycling. LS650 Cafe, DRZ400SM, FZ6N, SV650S, CB900C, Ducati ST2, CB550F-SS My LS650=> http://suzukisavage.com/yabb2.2/Attachments/Left.JPG IP Logged
