Innards Of The Stock Muffler
06/13/19 at 22:54:54
Does the stock muffler have both packing and a baffle or is it just a baffle?
When I removed my stock muffler I noticed that it had been slightly modded. I'm curious to see what had been changed. It looks like the baffle plate had been cutout and roughly welded back in with a few extra holes drilled around the centre exhaust port. If there was any packing in the muffler, its gone now.
Back to top
IP Logged
Dave
YaBB Moderator
ModSquad
Offline
SuzukiSavage.com
Rocks!
Posts: 17822
Camp Springs, Kentucky
Gender:
Re: Innards Of The Stock Muffler
Reply #1 -
06/14/19 at 03:18:13
I don't believe there is any packing inside....just tubes and chambers.
http://jonline.org/savage/Tips___How-to_s/Hartman_Muffler_Mod_Details/hartman...
Back to top
Someday I will be old......But not today!
IP Logged
VortecCPI
Full Member
Offline
SuzukiSavage.com
Rocks!
Posts: 127
Re: Innards Of The Stock Muffler
Reply #2 -
06/14/19 at 11:45:18
Junker wrote
on 06/13/19 at 22:54:54:
Does the stock muffler have both packing and a baffle or is it just a baffle?
When I removed my stock muffler I noticed that it had been slightly modded. I'm curious to see what had been changed. It looks like the baffle plate had been cutout and roughly welded back in with a few extra holes drilled around the centre exhaust port. If there was any packing in the muffler, its gone now.
Packing is a "wear item" so factory bikes do not use it. In the dirt world packing only lasts about 8-12 hours before it must be replaced so OEMs don't want to deal with such nonsense. When the packing wears it causes midrange power loss:
https://www.fmfracing.com/?Content=http://wp.fmfracing.com/wordpress/rider-su...
Back to top
IP Logged
justin_o_guy2
Serious Thumper
Offline
What happened?
Posts: 55279
East Texas, 1/2 dallas/la.
Re: Innards Of The Stock Muffler
Reply #3 -
06/14/19 at 17:02:57
My packing went to crap years ago.
Back to top
The people never give up their liberties but under some delusion.- Edmund Burke.
IP Logged
DragBikeMike
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 4197
Honolulu
Re: Innards Of The Stock Muffler
Reply #4 -
06/15/19 at 18:09:58

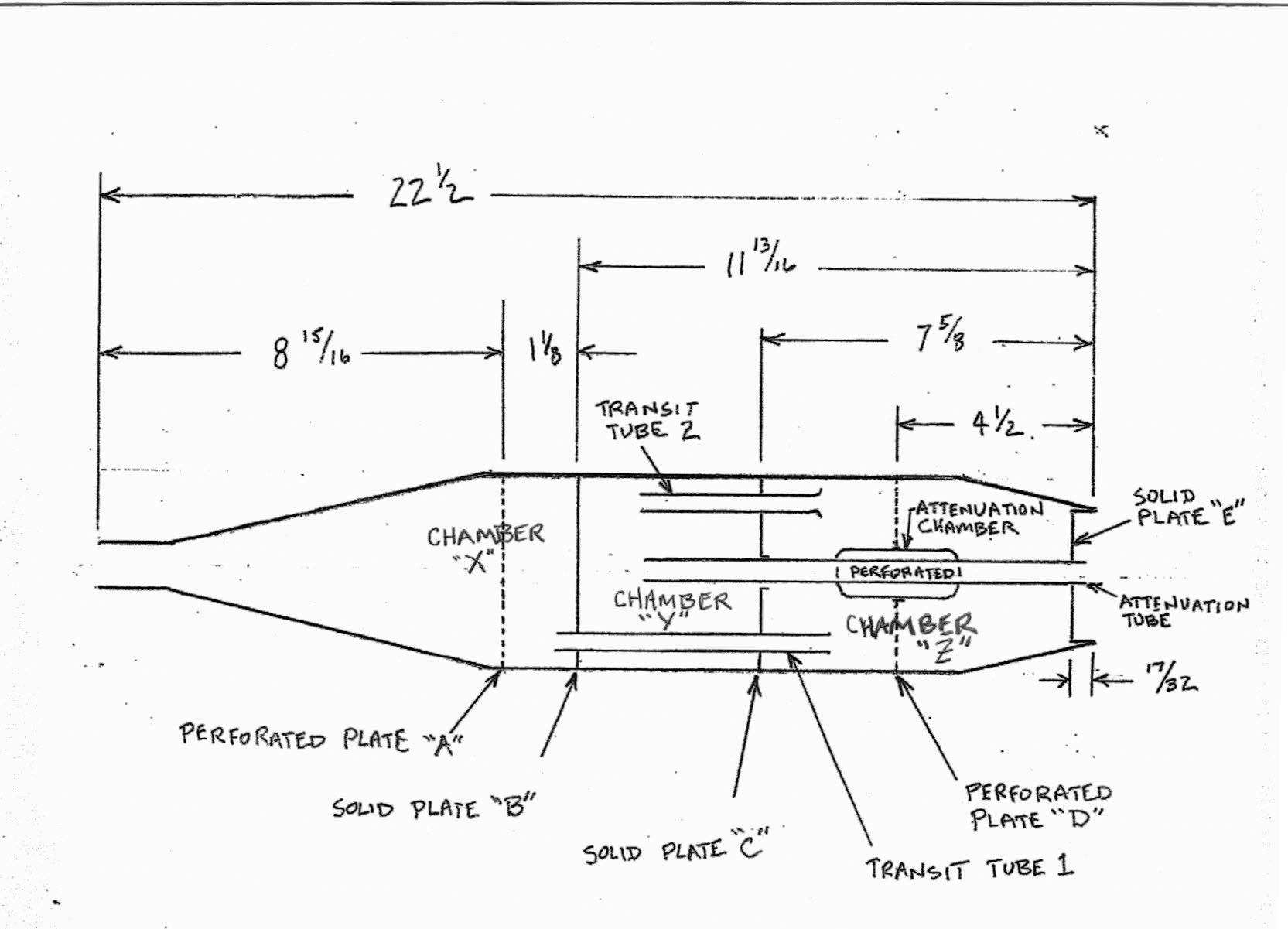

Junker, here is a dimensional diagram of the stock muffler. There is no packing.
Back to top
Knowledge is power.
IP Logged
DragBikeMike
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 4197
Honolulu
Re: Innards Of The Stock Muffler
Reply #5 -
06/15/19 at 18:13:21

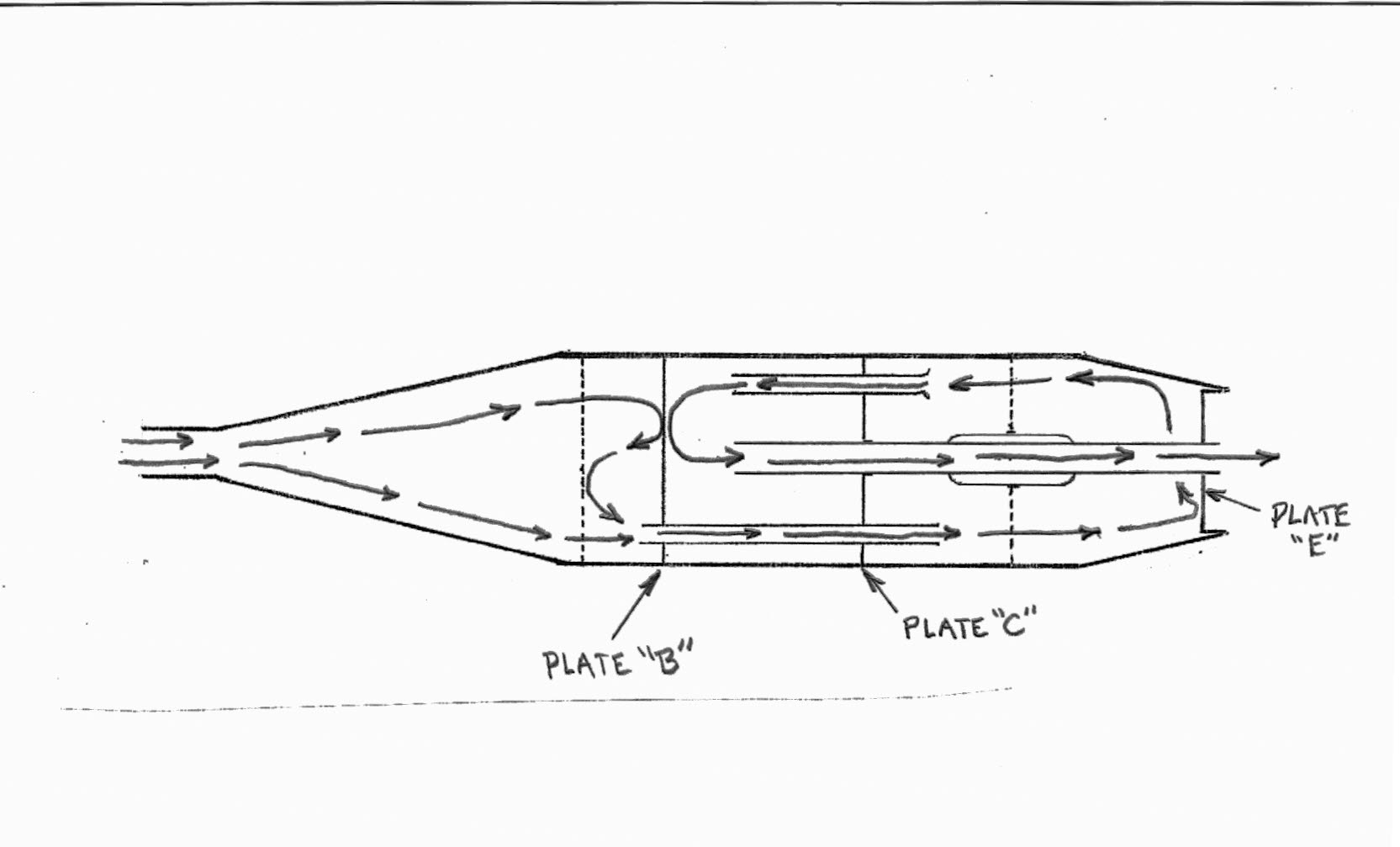

I also am attaching a flow path diagram. It's a complicated contraption. If you have any interest in improving the stock muffler's performance, see my post on page 25 of Rubber Side Down titled "Stock Muffler Eval & Upgrade". You can make the stock muffler perform pretty good.
Back to top
Knowledge is power.
IP Logged
Junker
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 43
Re: Innards Of The Stock Muffler
Reply #6 -
06/15/19 at 21:31:24
Hmmmm .. thanks for the replies guys.

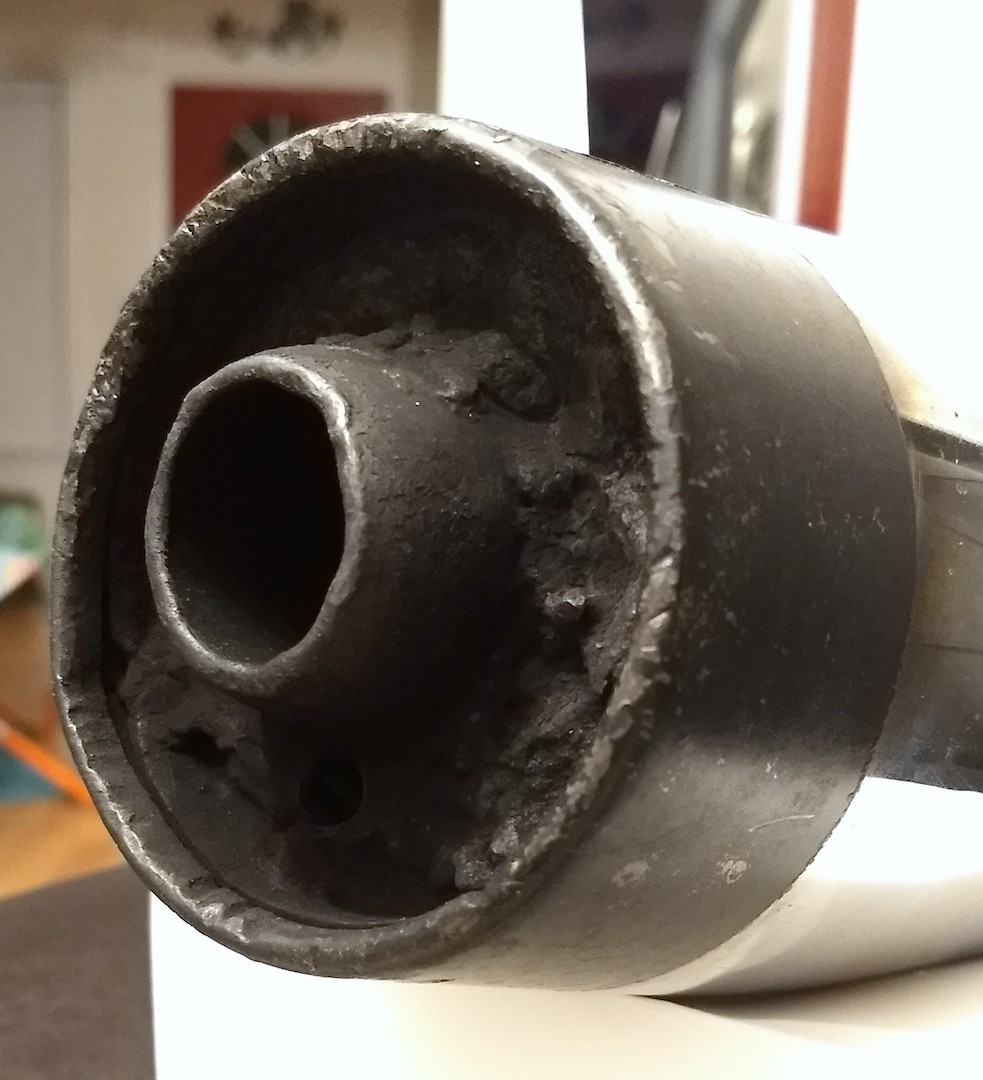

After a closer look, the muffler I have taken off my bike does have packing which looks to be wrapped around the exit end of main single open chamber that runs straight down the middle, from end to end.
The welds on the end plate look to be either filling in holes that have been drilled around the original exhaust port or reconnecting the back plate after having the pop rivets drilled out. Of the holes, 3 have been left open. I don't think they are stock due to the holes being unevenly drilled.
The muffler is a Suzuki / Sankei(?) model numbered Suzuki (x)24b4(x) Sankei 2237 off a 2001 US, non CA model.
Were different muffler designs released to correspond with the changes to USA noise regulations?
Back to top
IP Logged
Junker
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 43
Re: Innards Of The Stock Muffler
Reply #7 -
06/15/19 at 21:32:45

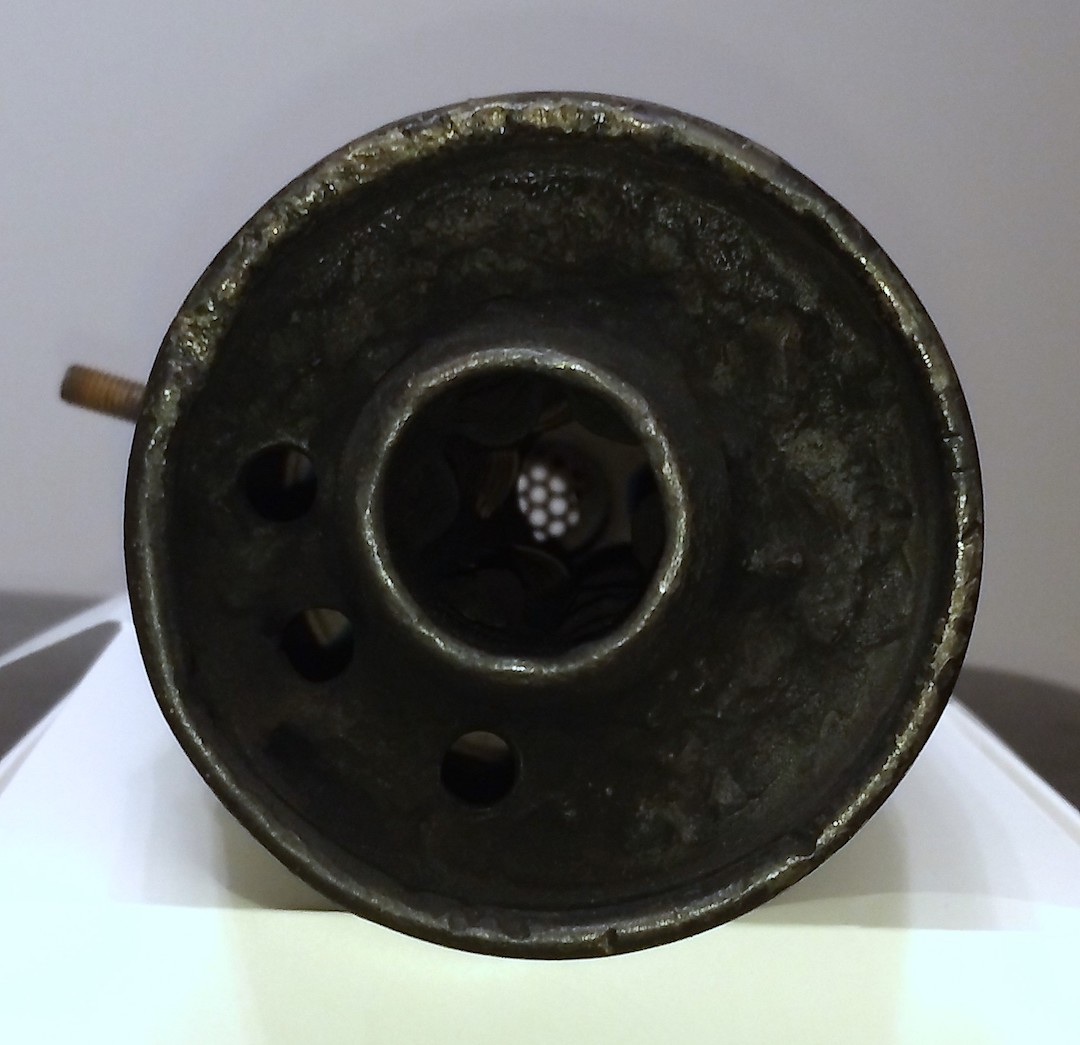

Another angle.
Back to top
IP Logged
DragBikeMike
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 4197
Honolulu
Re: Innards Of The Stock Muffler
Reply #8 -
06/16/19 at 17:10:03
I can assure you that the Sankei 2237 did not come from the factory with any sort of packing material inside. It's all baffles and tubes, no fiberglass of any sort. 100% metal parts. I will pull forward my prior post so you can get a look at exactly what should be inside a stock Sankei 2237.
Someone has obviously hacked your muffler up and modified the guts. You can't see all the way through a stock muffler.
Back to top
Knowledge is power.
IP Logged
Junker
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 43
Re: Innards Of The Stock Muffler
Reply #9 -
06/17/19 at 18:49:20
I wasn't doubting you DBM. I was just inquiring to see if others had seen something similar and if they would be able to shed a little light on it.
Back to top
IP Logged
batman
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 3806
osceola new york
Gender:
Re: Innards Of The Stock Muffler
Reply #10 -
06/20/19 at 08:16:38
I'd be hunting up a stock Dyna muffler if I were you .
Back to top
my old work mates called me MacGyver
IP Logged
