IS THIS FAMOUS OIL LEAK
04/25/19 at 13:40:09

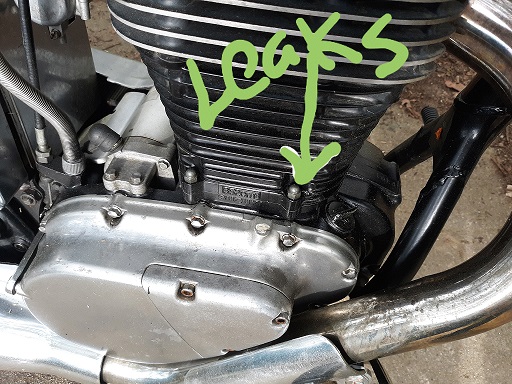

So tried to replace the clutch cover gasket that my husband told me it was leaking from which I knew better but what the hell he opened it and guideline for timing chain was broke off and floating around so plus side that cant mess up anything else but still leaking from the nut on right side of engine just wondering I have a 2002 650 runs fines just leaks like crazy


IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28833 L.A. California Gender:	Re: IS THIS FAMOUS OIL LEAK Reply #1 - 04/25/19 at 14:12:19 That area is next to an oil flow channel, so if there is a leak, it will be crazy. Guide for timing chain broke? picture?
Back to top	Versey's Place Tech Section Index IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: IS THIS FAMOUS OIL LEAK Reply #2 - 04/25/19 at 14:36:49 My rear guide broke when the clutch throw out broke.
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

batman

Serious Thumper

Offline

SuzukiSavage.com
Rocks!

Posts: 3806
osceola new york
Gender: male

Re: IS THIS FAMOUS OIL LEAK
Reply #3 - 04/25/19 at 17:47:22

Check a Clymer's book ,there are three bolts that hold the side cover on that pass through oil channels and thus need seals under their bolt heads, One of those is directly below the arrow in your picture. remove it to check if it has a washer shaped seal ,if not you may have swapped it to a wrong location when replacing the cover.

my old work mates called me MacGyver

IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: IS THIS FAMOUS OIL LEAK Reply #4 - 04/25/19 at 17:58:48 Easy puzzle dodge Draw the outline of the part with a buncha bolts in it. Put a slot in the cardboard for each bolt as you go around. Poke each bolt in a slot. Works for side covers and head cover
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

Girlridesavage2002 YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 4	Re: IS THIS FAMOUS OIL LEAK Reply #5 - 04/25/19 at 20:03:22 Gonna try a head nut gasket if I can find one to fit probably an o ring from the shop if my husband can find one. Sorry I have no pictures of the inside where timing chain guide broke I was to excited to get the bike back together
Back to top	IP Logged

Girlridesavage2002 YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 4	Re: IS THIS FAMOUS OIL LEAK Reply #6 - 04/26/19 at 12:03:39 Ok guys took off the instant gasket my husband tried an omg there is a tiny hole in the head I guess something had punctured it so quick steel and go 1hour wait time to see if it fixes it arkansas ingenuity gotta love it
Back to top	IP Logged
