Building a DIY tachometer
04/05/19 at 04:54:23

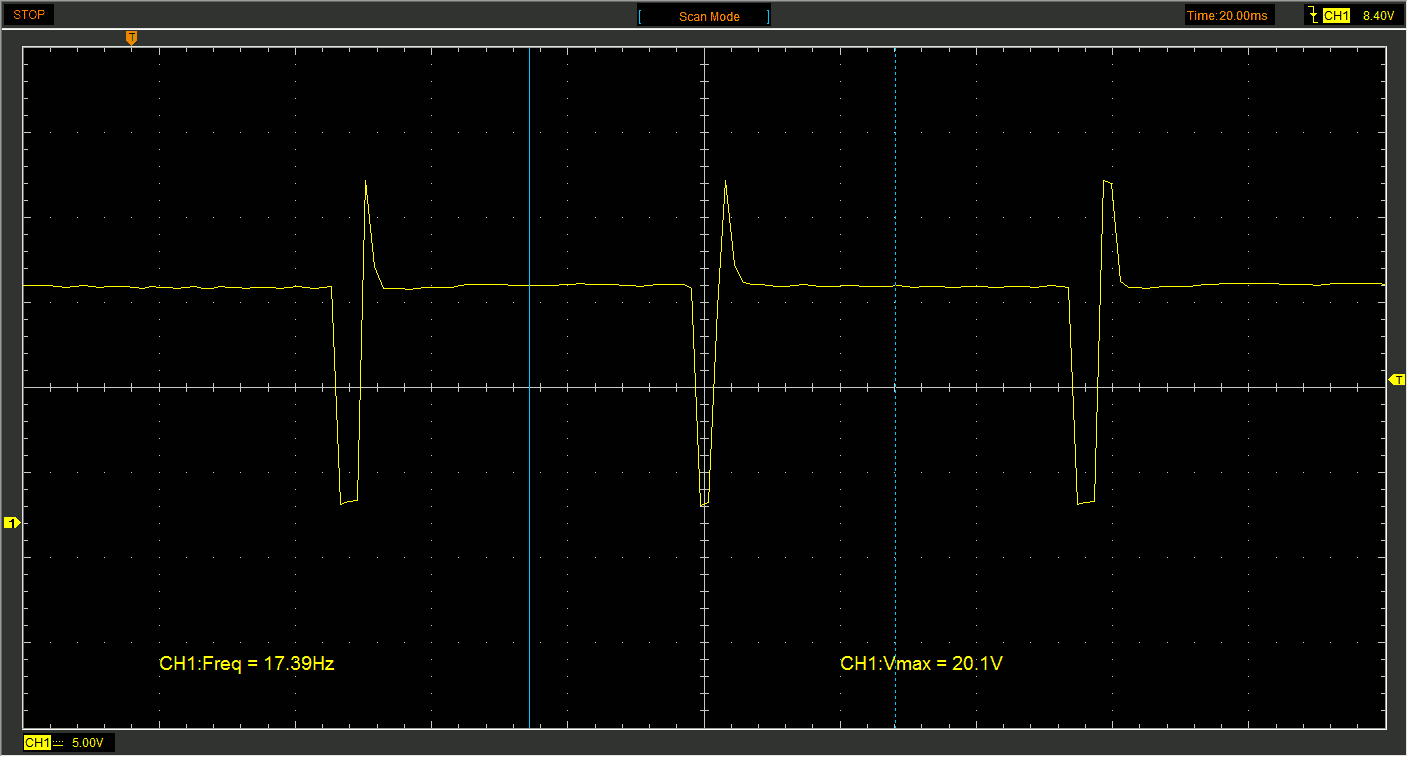

I thoiught it would be fun and educational to build my own arduino-based tachometer so a few weeks ago I hooked up my oscilloscope (Hantek 1008) to the bike and let it idle for a couple of seconds. The signal looked VERY good and I though "hey, this is a usable signal".

A couple of days ago I had made what I believed to a working code which I uploaded to my arduino but it did not work as expected. I got very weird numbers so I hooked up my oscilloscope again and this time things did not look as "clean" as before so at first I was afraid I had broke something, but the I realized my time base was different. The bandwidth of the 1008 is quite low so when I "zoomed" in on the ignition pulse the first time the resolution was very low and as a result the signal looked way smoother than it actually was. Now I have a better view of the ignition pulse so my question is: How do people clean up/filter the pulse? My guess would be some kind of LC-filter, but care must be taken so it wont mess up reading at higher rpms.

Back to top


IP Logged

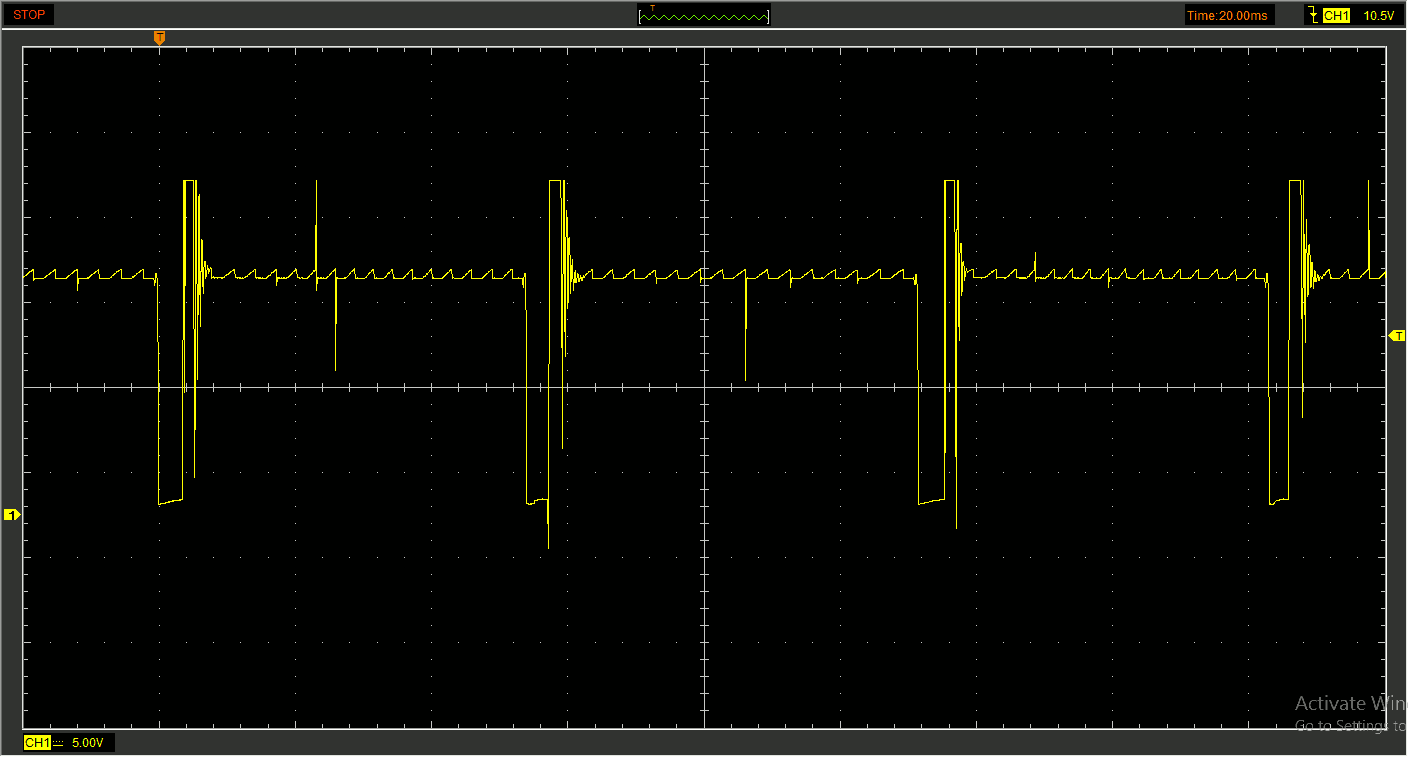

RocketScienceSmurf Senior Member Offline SuzukiSavage.com Rocks! Posts: 268 Sweden Gender:	Re: Building a DIY tachometer Reply #1 - 04/05/19 at 04:55:47 Oscilloscope view with proper 20ms time base. The first image looks like a 20ms also, but the actual time base was 500ms
Back to top	savage_idle_20190331_3_20ms.png IP Logged

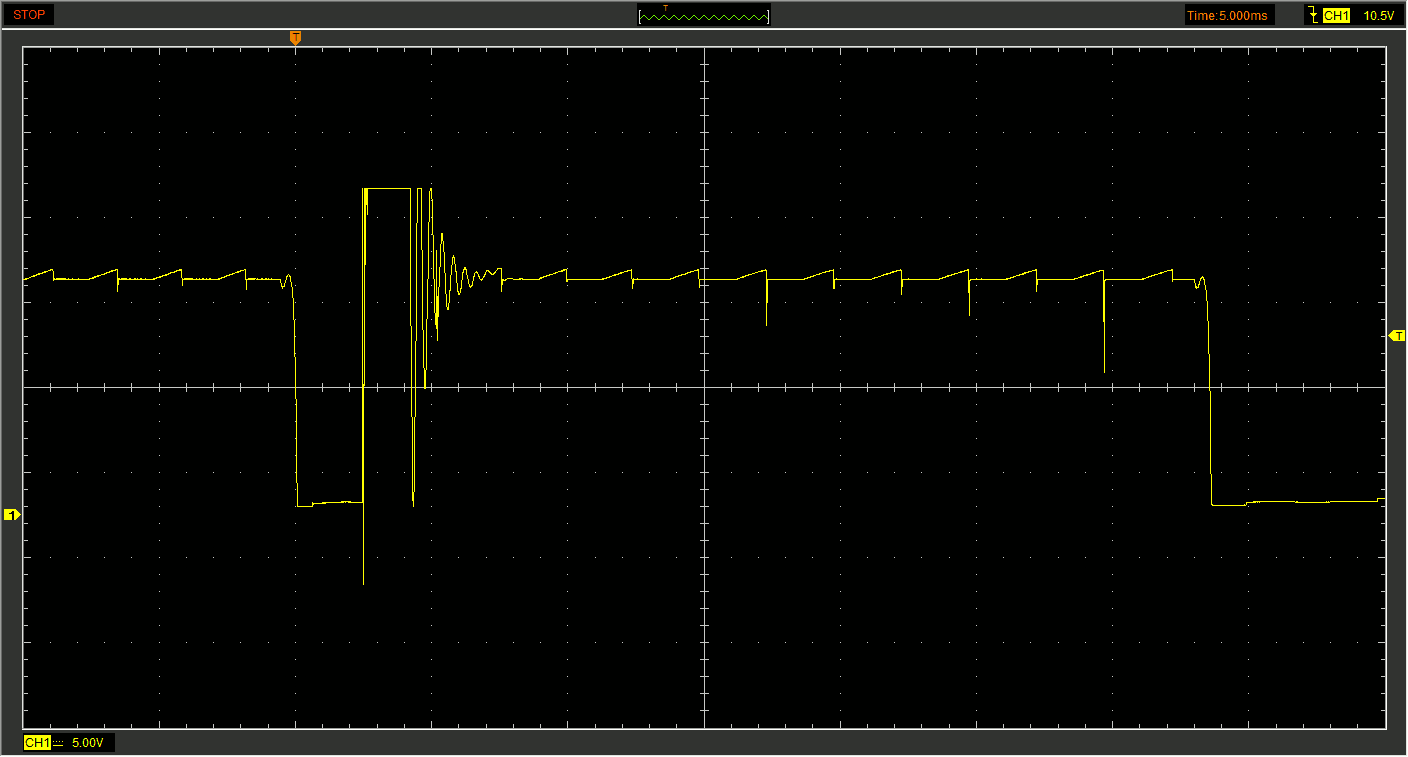

RocketScienceSmurf Senior Member Offline SuzukiSavage.com Rocks! Posts: 268 Sweden Gender:	Re: Building a DIY tachometer Reply #2 - 04/05/19 at 04:56:14 Closer look at the ignition pule
Back to top	savage_idle_20190330_5.png IP Logged

mmccarty YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 4	Re: Building a DIY tachometer Reply #3 - 04/10/19 at 23:50:33 An RC filter as a low pass filter, A resistor in series with the signal and a capacitor to ground. The values of the combination will set the cutoff frequency...
Back to top	IP Logged

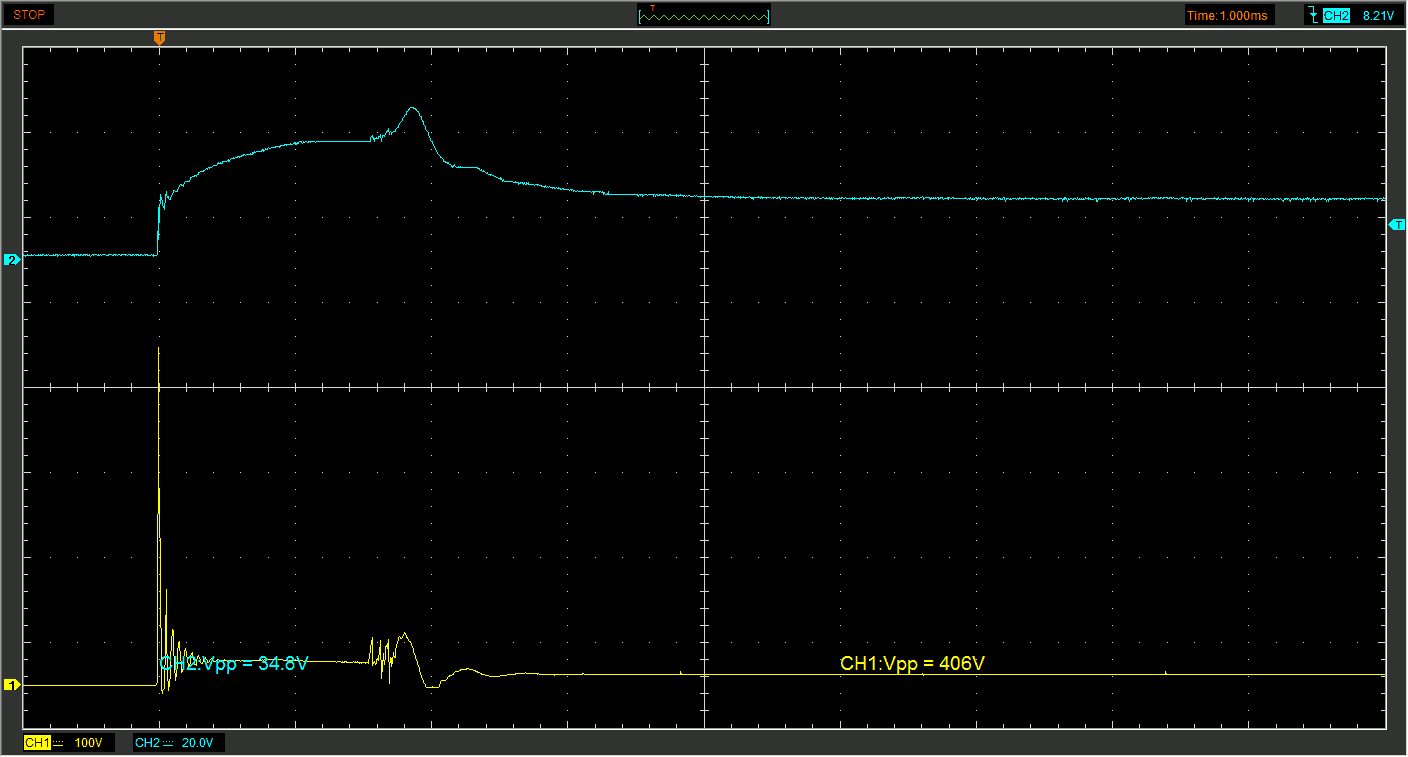

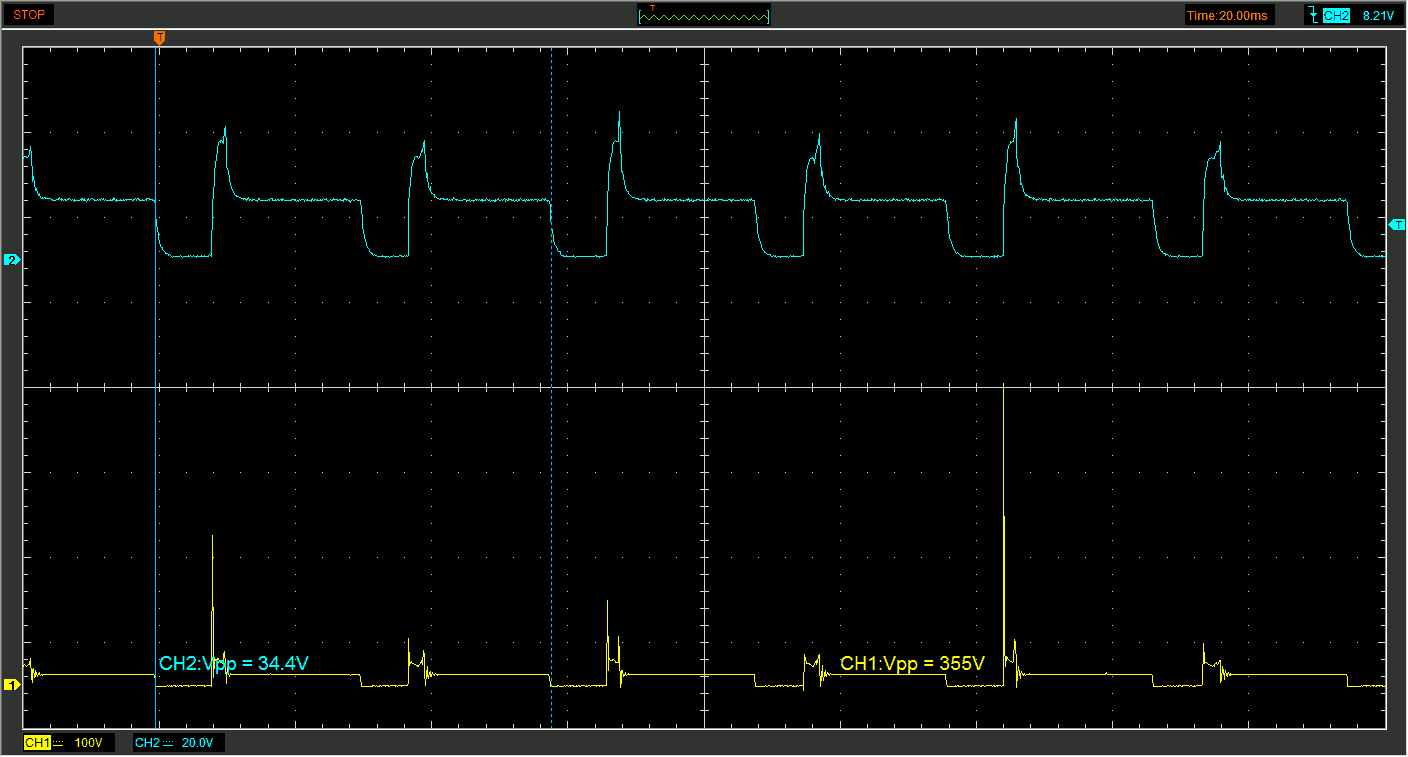

RocketScienceSmurf Senior Member Offline SuzukiSavage.com Rocks! Posts: 268 Sweden Gender:	Re: Building a DIY tachometer Reply #4 - 08/04/19 at 05:13:00 I think I have found the reason my old optocoupler died on me and why the "ceiling" of the signal looks so flat. There is a spike sometimes reaching over 400V when the ignition coil fires.
Back to top	20190804_3.gif IP Logged

RocketScienceSmurf

Senior Member

Offline

SuzukiSavage.com
Rocks!

Posts: 268
Sweden
Gender: male

Re: Building a DIY tachometer
Reply #5 - 08/04/19 at 05:17:53

I installed the only choke I had lying around, a Hammond 159ZB with an inductance value of 320mH and I put a 680 Ohm resistor to ground after the choke as a load.

Now the signal looks MUCH better. This choke is a bit too big but I think I have found an axial one of 100mH that will probably work.

I know a RC filter will probably work as well but I wanted to explore what a series inductor did to the signal. It has cleaned the signal up very well and completely eliminated the negative ringing on the signal.

Back to top


IP Logged

Matchless G11

Senior Member

Offline

SuzukiSavage.com
Rocks!

Posts: 451
Newfoundland NJ

Re: Building a DIY tachometer
Reply #6 - 08/04/19 at 05:36:46

I would be careful of that big of a choke, It might kick back into your Arduino and fry it. something like 2.5 mH might work better. (and even with that one might put a diode across it (like done in driving a relay) to protect it

Might I suggest running your signal into a buffer/ Schmitt trigger.
and on the input of the buffer use some Zener / tvs diodes to protect the buffer form the high voltage spikes.

What you don't want to do is kick back into you ignition module. I see you are trying to load it properly with the resistor. good luck.

Back to top

IP Logged

RocketScienceSmurf

Senior Member

Offline

SuzukiSavage.com
Rocks!

Posts: 268
Sweden
Gender: male

Re: Building a DIY tachometer
Reply #7 - 08/04/19 at 06:16:23

Great idea with the zeners. I actually just discussed that with a friend of mine. I think a ~15v zener after the choke will give a smoother signal to work with and probably remove the 30-40V peak. However the current choke has a DC resistance of only 7 Ohm so I think I will wait until I get the new choke that has a DC resistance of 75 Ohm. That will probably put less strain on the zener.

My plan is to connect the inductor to an optocoupler through a small constant current LED driver (and a resistor to take some load of the constant current driver).

Is there any risk of kick back to the CDI with my current setup? The arduino is not connected yet. I am trying to find a good way to clean the signal going to the ignition coil first.

This inductor I can get fairly easy. The only other value my supplier stock is 330uH which is probably not enough, but I can get both and see how they compare and perform.
https://www.mouser.com/ProductDetail/Vishay-Dale/IHD3EB104L?qs=qjrtsYR%2FpVXE...

Back to top

IP Logged

Matchless G11

Senior Member

Offline

SuzukiSavage.com
Rocks!

Posts: 451
Newfoundland NJ

Re: Building a DIY tachometer
Reply #8 - 08/04/19 at 07:39:35

Hi kamelryttarn.
I don't know your entire set up, nor am I knowledgeable with Suzuki's ignition box set up so I will be hesitant to say ya or nay on what is safe to hook to it.
having said that

1 be carful of reactive loads, high impedance resistive loading may be the best. You can always run some sort filter after a unity gain buffer amp.

2. Be leary of your voltage levels, and ground loops that might form.
the bike is twelve volts and the Arduino (does have a reg and I have run mine off of 9 volts,) but the board is 5 volts.

I would look at what other people are doing putting a tach on these bikes
just to be safe.

Back to top

IP Logged

batman Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 3806 osceola new york Gender:	Re: Building a DIY tachometer Reply #9 - 08/04/19 at 10:38:48 There is absolutely NO chance of kick back hurting the CDI ,with your present set up or any other, but ONLY because the bike doesn't have one. It has a TDI. While I have no knowledge of electronics I do find your project interesting.
Back to top	my old work mates called me MacGyver IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: Building a DIY tachometer Reply #10 - 08/04/19 at 10:52:55 It's over my head, but I certainly applaud the effort.
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

batman Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 3806 osceola new york Gender:	Re: Building a DIY tachometer Reply #11 - 08/04/19 at 12:44:52 JOG ,I think it would be something if they came up with a Tach we could build ourselves . I was lost too, the only thing that registered with me was when they mentioned, kick back.
Back to top	my old work mates called me MacGyver IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: Building a DIY tachometer Reply #12 - 08/04/19 at 18:04:32 I have a few more hours than required for an associates degree in electronics from the air force. I repaired copiers and cash registers for seven years. I'm still blown away by the knowledge these people are exhibiting.
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged
