After years of not being able to log onto the site... I'm back

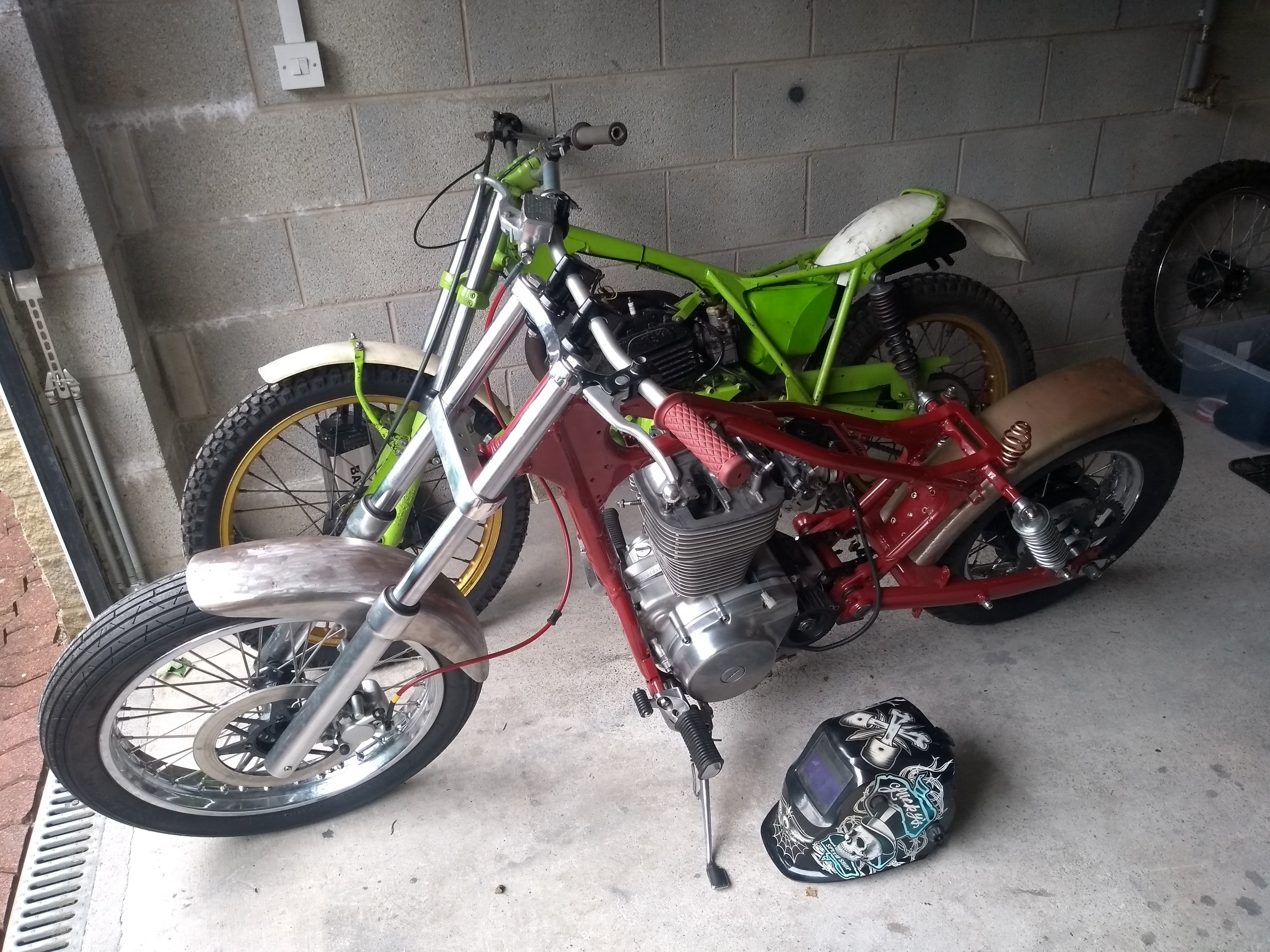

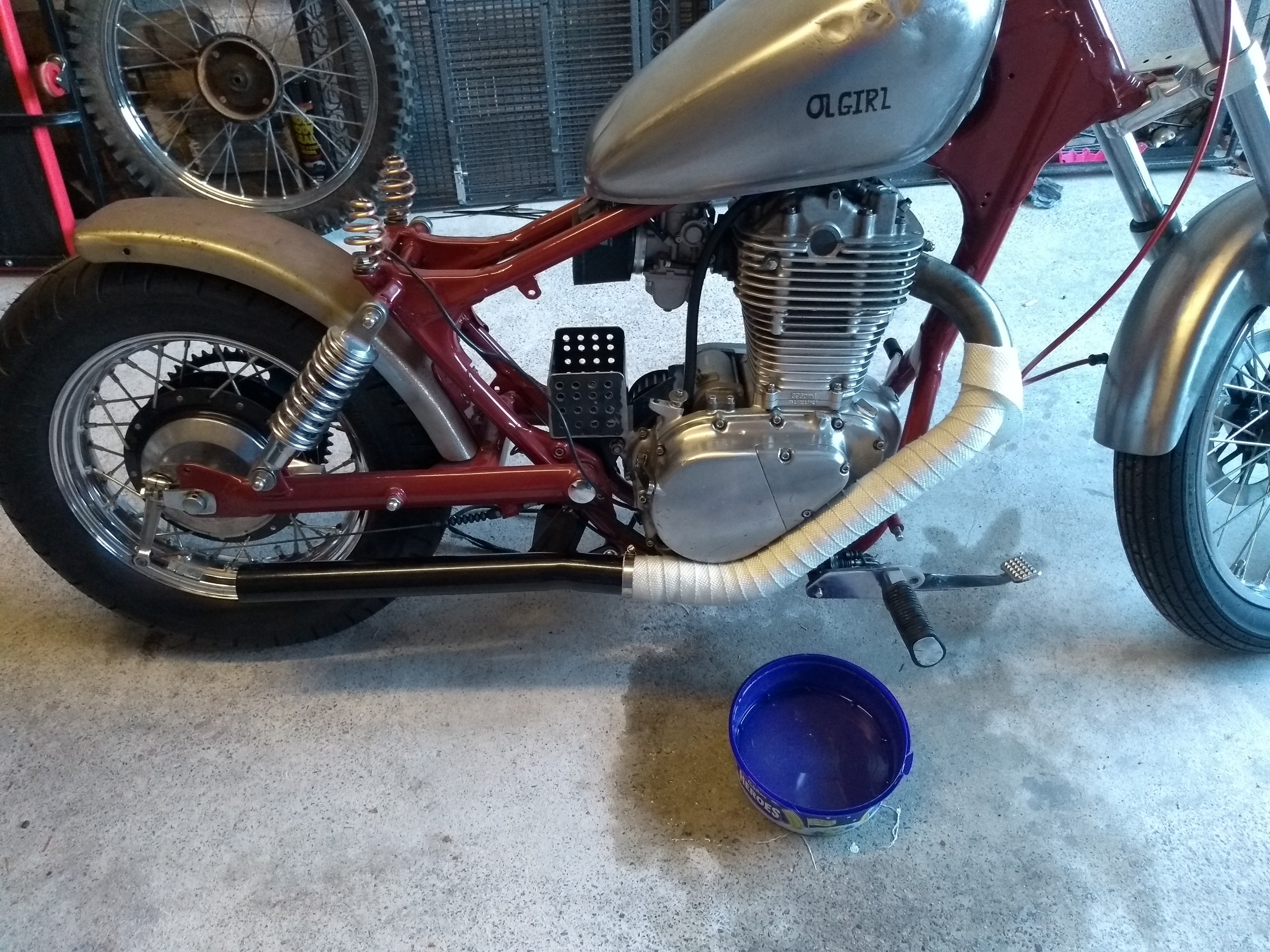

My bikes still off the road... Nearly 5 years now...
I have a re-wire to do which I'm about ready to attack as my original loom was buggered.... (It's a 400 not 650, the book doesn't match what's left of my loom) I'm attempting a motogadget install.
A few odds n ends and I should be done... I hope anyway

Can anyone tell me what these wires go to?

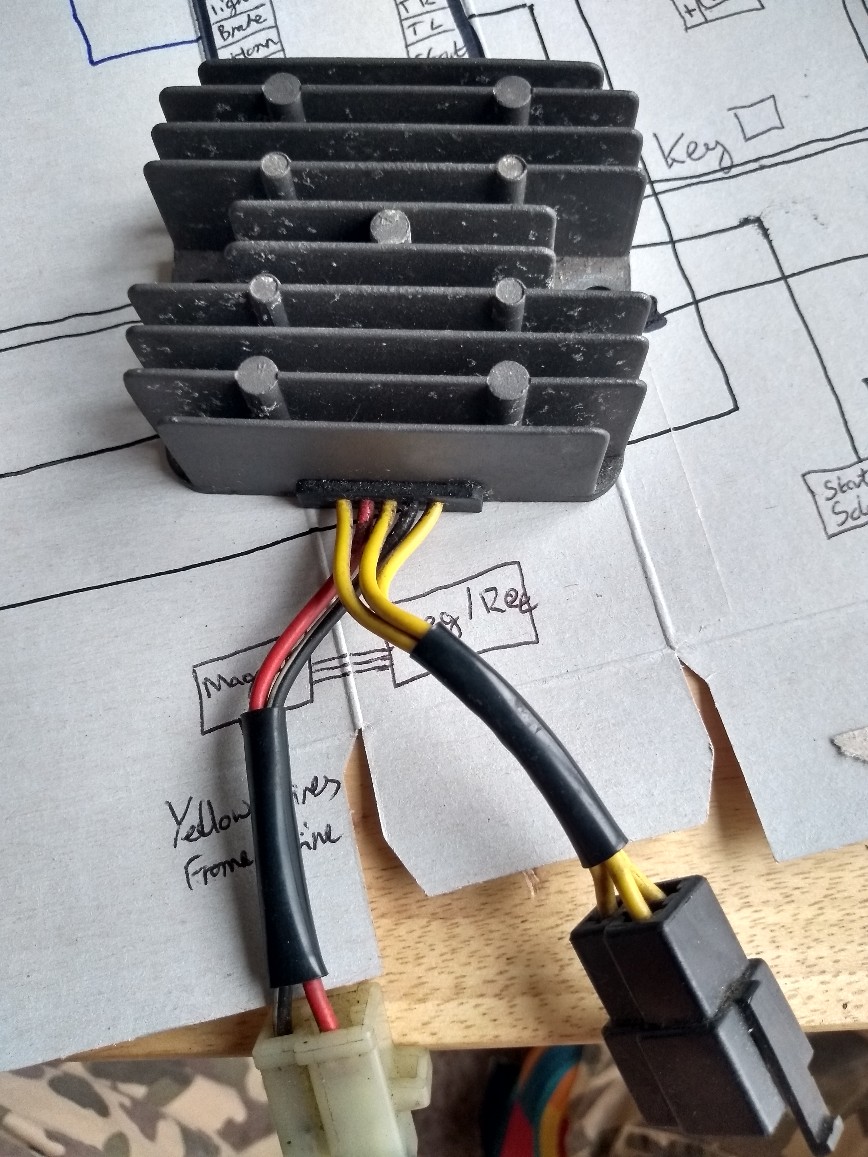

Reg/rectifier - red wire and black with white stripe? Black with white stripe I assume is an earth?

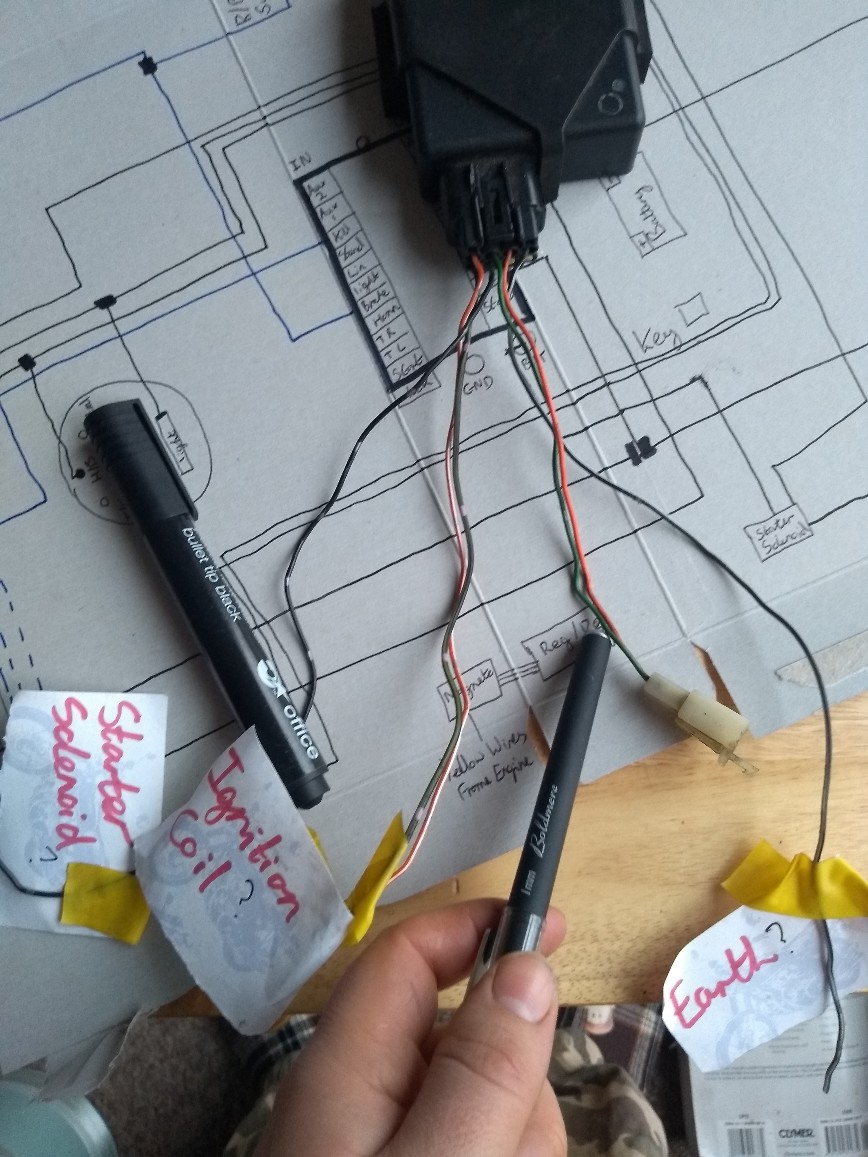

Black box-  orange and green wire both going into connection?

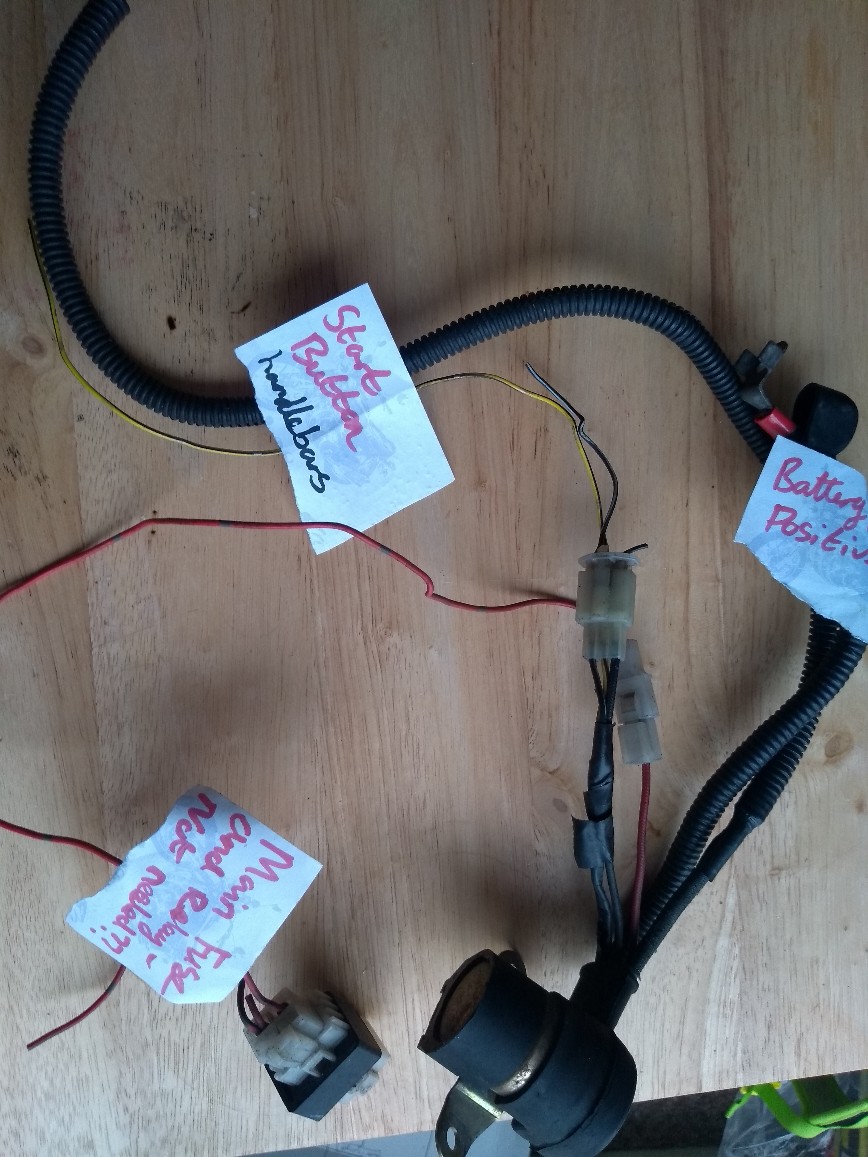

Starter solenoid- yellow and black wire I think goes to start button, I think black and white stripe is an earth, and black with grey dots goes to the black box?

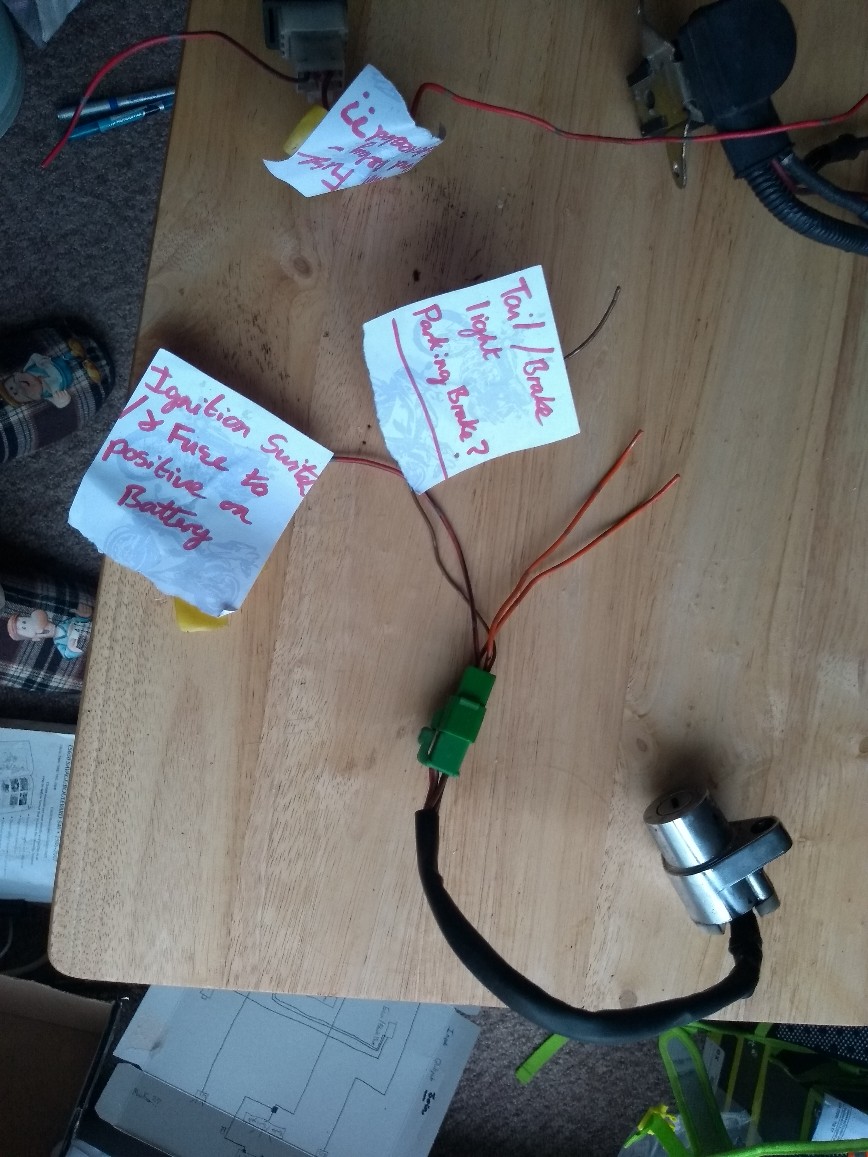

Ignition switch- red and black striped wire to main fuse then to starter solenoid, brown and grey dotted wire to tail/brake light possibly for parking lights, 2 orange wires?

Any help appreciated

Regards

Mike

.

.

.

Thanks verslagen,

That has helped a lot!!

On your diagram, the igniter has 2 wires going to the pickup coil? What is that? What does it look like?

Many thanks!

P.s it's good to see your still here, I was 1 of the 1st to order your cam chain tensioner
