verslagen1 YaBB Moderator ModSquad Online Where there's a will, I want to be in it. Posts: 28780 L.A. California Gender:	Keys 08/06/18 at 22:16:48 Anybody with a 2000 or a 2006 with a stock key? In fact any year will help somebody out there. Can you tell me the letter on your key?
Back to top	Versey's Place Tech Section Index IP Logged

GOF Full Member Offline SuzukiSavage.com Rocks! Posts: 216 Buffalo, NY	Re: Keys Reply #1 - 08/07/18 at 06:30:02 I have an '88. The letter id 'D'
Back to top	1988 Suzuki Savage 1987 Yamaha TW200 IP Logged

stewmills Serious Thumper Offline Imagination is more important than knowledge Posts: 2630 Auburn, AL Gender:	Re: Keys Reply #2 - 08/07/18 at 08:44:29 The blanks are different for that span of years. Here is 86-88 and 95-04:
Back to top	86-88_and_95_04_S40.jpg 2008 \| 152/52.5–Air Mix 3/4 \| RT6 w/Redline \| Seat Lift w/Sheepskin \| Speedo Rattle \| Rear Pulley Shim \| 140/90-15 Rear \| Kaw Front Pulley \| Relocated Rear Signals FREEDOM ISN'T FREE! IP Logged

stewmills

Serious Thumper

Offline

Imagination is more
important than
knowledge

Posts: 2630
Auburn, AL
Gender: male

Re: Keys
Reply #3 - 08/07/18 at 08:45:58

Ans here is what they say is for 05-17.

Not sure if they are really different or these are stock images...that's just what the website said where this came from. If it has them listed and categorized differently for these two different groups, something must be different. Images look exactly the same to me so this must be a "stock photo" situation.

Back to top


IP Logged

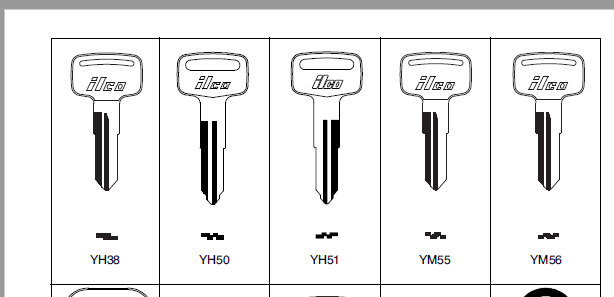

stewmills Serious Thumper Offline Imagination is more important than knowledge Posts: 2630 Auburn, AL Gender:	Re: Keys Reply #4 - 08/07/18 at 09:07:28 But...this is the actual ILCO list of some available blanks for our bikes...what we can't tell you is which blank YOUR bike is keyed for.
Back to top	keys2_002.PNG 2008 \| 152/52.5–Air Mix 3/4 \| RT6 w/Redline \| Seat Lift w/Sheepskin \| Speedo Rattle \| Rear Pulley Shim \| 140/90-15 Rear \| Kaw Front Pulley \| Relocated Rear Signals FREEDOM ISN'T FREE! IP Logged

verslagen1 YaBB Moderator ModSquad Online Where there's a will, I want to be in it. Posts: 28780 L.A. California Gender:	Re: Keys Reply #5 - 08/07/18 at 09:21:45 So, if I had to guess... 86 f 87 c 88 D Confirmed 89 e 90 f 91 c 92 d 93 e 94 f 95 C 96 F ilco YH49 97 d 98 e 99 f 00 c 01 d 02 e 03 f 04 c 05 D/E 06 e Silca DAT15DP 07 D 08 c 09 F "JMA" brand blank YAMA 20D thinned 10 d 11 E 12 f 13 c 14 d 15 e 16 E 17 c 18 d Capital letters are info from members. lower case are suspected sequence.
Back to top	« Last Edit: 08/10/18 at 07:32:37 by verslagen1 » Versey's Place Tech Section Index IP Logged

JAGGUY YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 27 Riverside Ca.	Re: Keys Reply #6 - 08/07/18 at 12:15:04 No markings on my oem key. I had an extra key made for my 09, smith used a "JMA" brand blank YAMA 20D. It was a little thick so I filed it a little thinner and works fine. Looks like a YH51 or an F series pictured above.
Back to top	2009 S40 Raptor, Dyna 52.5, 152, 2 spacers Socialism is like a Jedi mind trick...it only works on the weak minded. IP Logged

antmanbee Full Member Offline 4 Moto Guzzis and an S40 Posts: 101 NE Florida	Re: Keys Reply #7 - 08/07/18 at 17:45:26 No markings on my OEM keys but I have the little tag that came with it and the number starts with a D. This is on an 05.
Back to top	IP Logged

Panhead YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 21 Brandon, FL Gender:	Re: Keys Reply #8 - 08/07/18 at 19:21:37 My 95 came with ilco YH49. My 96 came with original F code. Hope this helps.
Back to top	IP Logged

batman Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 3806 osceola new york Gender:	Re: Keys Reply #9 - 08/08/18 at 09:34:07 my 95 stock key is a C code
Back to top	my old work mates called me MacGyver IP Logged

NucleaRR YaBB Newbies Offline Straight Shoota' Posts: 26 Murland	Re: Keys Reply #10 - 08/08/18 at 09:40:54 I see for 2005 you have D listed as the code. Mine is a 2005 and the key code starts with an E.
Back to top	2005 S40, Raptor mod, flipped risers, Biltwell grips. Her name is Maila Nurmi but when I am done with her she will be Vampira. IP Logged

Papa Bear Senior Member Offline Posts: 476 Canada ... near the Motor City Gender:	Re: Keys Reply #11 - 08/09/18 at 05:18:22 My 2011 is an "E"
Back to top	~~2011 Fox Orange S40~~ SOLD Check out http://www.hogsforhospice.com/ IP Logged

Gary YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 15	Re: Keys Reply #12 - 08/09/18 at 06:38:01 The little tag with my 07 has D on it but no marks on the keys. Gary
Back to top	IP Logged

elricfate Junior Member Offline SuzukiSavage.com Rocks! Posts: 88	Re: Keys Reply #13 - 08/09/18 at 10:03:51 My OEM key is at the house but the local locksmith made a handful of keys for me using a Silca DAT15DP blank for my 2006. I actually prefer them over my OEM.
Back to top	IP Logged

verslagen1 YaBB Moderator ModSquad Online Where there's a will, I want to be in it. Posts: 28780 L.A. California Gender:	Re: Keys Reply #14 - 08/09/18 at 10:32:44 stewmills wrote on 08/07/18 at 09:07:28: But...this is the actual ILCO list of some available blanks for our bikes...what we can't tell you is which blank YOUR bike is keyed for. The picture of the Keys says YH48/49/50/51 for C/D/E/F which doesn't agree with the ilco list.
Back to top	Versey's Place Tech Section Index IP Logged
