Re: Tachometer.
Reply #15 - 11/24/17 at 00:32:37

norm92de wrote on 11/23/17 at 21:48:51:

Is that a bitter and expensive memory? Grin

Hahaha ... no! it is the result of researching on this site while tuning my carb!! In fact, as far as I understand, the little Savage can't generate enough power to blow it's own top. However I wouldn't want to drop down a gear accidentally while testing top speed! .... I have missed a shift a couple of times though! Cool

Back to top

S40, 2014, Dyna, Raptor, 52.5/152.5, spacer mod, sea level, cat-eye LED tail light, bullet style halogen turn signals, 'Superbars' with custom 40mm risers, modified stock seat, Metzeler tyres.

IP Logged

Todd James Full Member Offline SuzukiSavage.com Rocks! Posts: 238 Mansfield, Ohio Gender:	Re: Tachometer. Reply #16 - 11/27/17 at 22:44:28 Note to norm92de: I updated my post with the instructions and pictures for installing the RYCA tachometer. They are the ones that IslandRoad used for his installation in the picture above. Here's the link to my post: http://suzukisavage.com/cgi-bin/YaBB.pl?num=1409022095/0#0 Let IslandRoad or myself know if you have any questions.
Back to top	2007 S40, Dyna, 52.5/150, .073 Spacer, 2 Turns 2007 Sportster 1200, V&H Pipes IP Logged

batman Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 3806 osceola new york Gender:	Re: Tachometer. Reply #17 - 11/28/17 at 05:54:33 Low compression(8.5:1) and valve float if you over rev , makes the chance of blowing the engine ,zero.(but I wouldn't make it a habit)
Back to top	my old work mates called me MacGyver IP Logged

norm92de Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1180 El Paso TX Gender:	Re: Tachometer. Reply #18 - 11/28/17 at 17:25:11 FWIW, Wiring in to the horn is not necessary since the positive side of the ignition coil is as positive as it gets. The only problem is the number of wires involved.
Back to top	2014 S40. Raptor. idle mixture adj.Needle raised one notch. 4000' altitude. Stock jets. Shell Rotella synthetic. IP Logged

IslandRoad

Serious Thumper

Offline

It doesn't vibrate,
it purrs!

Posts: 1147
The Kiewa Valley, Australia
Gender: male

Re: Tachometer.
Reply #19 - 11/28/17 at 19:56:00

norm92de wrote on 11/28/17 at 17:25:11:

FWIW,
Wiring in to the horn is not necessary since the positive side of the ignition coil is as positive as it gets. The only problem is the number of wires involved.

Hi Norm, I commented in the other tach thread also. I'm really curious about your comment. Is there a simpler way to install? Would be good to know 😉

Back to top

S40, 2014, Dyna, Raptor, 52.5/152.5, spacer mod, sea level, cat-eye LED tail light, bullet style halogen turn signals, 'Superbars' with custom 40mm risers, modified stock seat, Metzeler tyres.

IP Logged

norm92de

Serious Thumper

Offline

SuzukiSavage.com
Rocks!

Posts: 1180
El Paso TX
Gender: male

Re: Tachometer.
Reply #20 - 11/28/17 at 21:03:46

Islandroad,
B+ is all over the bike. the two nearest are the horn, as you used, and the plus side of the ignition coil. I don't think it matters much which is used.

I have made a bracket but am going to try it a bit before I decide on the final location. Mine mounts on the handlebar clamps, either fore or aft of the bars. A little high but I can easily make a lower mount if I want to.

Back to top

2014 S40. Raptor. idle mixture adj.Needle raised one notch. 4000' altitude. Stock jets. Shell Rotella synthetic.

IP Logged

Todd James Full Member Offline SuzukiSavage.com Rocks! Posts: 238 Mansfield, Ohio Gender:	Re: Tachometer. Reply #21 - 11/28/17 at 21:16:26 To norm92de: Can you share a picture of your bracket with us ? Thanks !
Back to top	2007 S40, Dyna, 52.5/150, .073 Spacer, 2 Turns 2007 Sportster 1200, V&H Pipes IP Logged

norm92de Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1180 El Paso TX Gender:	Re: Tachometer. Reply #22 - 11/29/17 at 10:08:18 Todd, If PPhoto Bucket will let me. I won't have time today, very busy, but will get to it soon.
Back to top	2014 S40. Raptor. idle mixture adj.Needle raised one notch. 4000' altitude. Stock jets. Shell Rotella synthetic. IP Logged

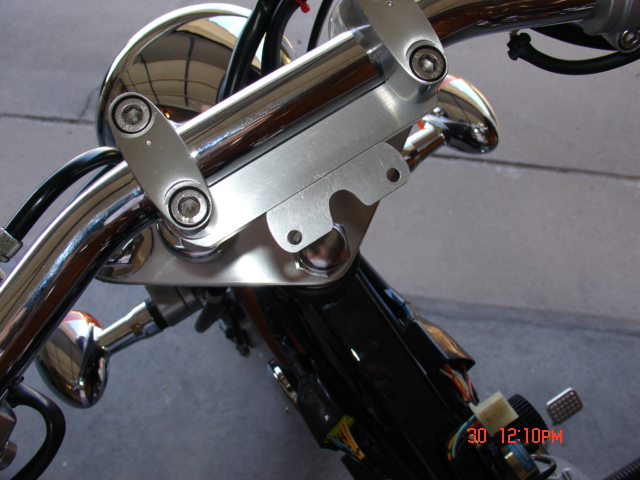

norm92de Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1180 El Paso TX Gender:	Re: Tachometer. Reply #23 - 11/30/17 at 13:49:34 Here is picture of my tach. bracket. It is not much, I just happened to have some scrap alloy hanging around. It is a little high but not as high as it looks, wide angle lens and all that. It can be mounted in front of or behind the bars. Will probably make a lower one when I can get a better piece of alloy.
Back to top	DSC00401.JPG 2014 S40. Raptor. idle mixture adj.Needle raised one notch. 4000' altitude. Stock jets. Shell Rotella synthetic. IP Logged

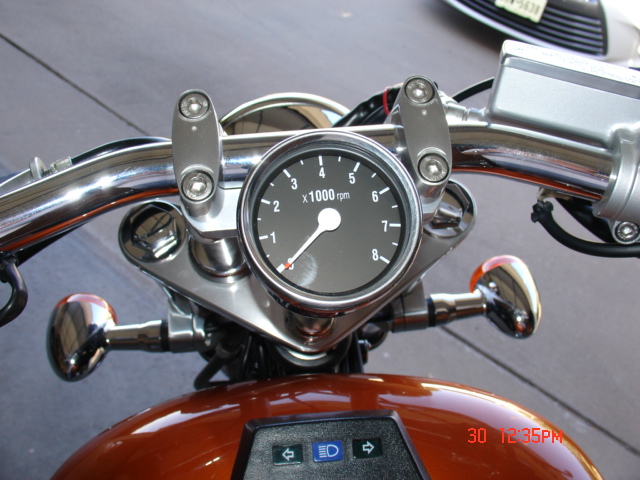

norm92de Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1180 El Paso TX Gender:	Re: Tachometer. Reply #24 - 11/30/17 at 13:51:10 Here is a picture of the instrument mounted.
Back to top	DSC00404.JPG 2014 S40. Raptor. idle mixture adj.Needle raised one notch. 4000' altitude. Stock jets. Shell Rotella synthetic. IP Logged

norm92de Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1180 El Paso TX Gender:	Re: Tachometer. Reply #25 - 11/30/17 at 14:03:48 Also a picture of Versy's shortened risers 3".
Back to top	riser_001.jpg 2014 S40. Raptor. idle mixture adj.Needle raised one notch. 4000' altitude. Stock jets. Shell Rotella synthetic. IP Logged

Todd James

Full Member

Offline

SuzukiSavage.com
Rocks!

Posts: 238
Mansfield, Ohio
Gender: male

Re: Tachometer.
Reply #26 - 11/30/17 at 16:19:17

Thanks for sharing those pictures, Norm.

That's a simple, sturdy bracket that anyone should be
able to make and it provides a couple of mounting options.

Nice work.

Suggest you add the pictures to the Tachometer Installation
thread in the Technical section so others will see them.

http://suzukisavage.com/cgi-bin/YaBB.pl?num=1409022095/0

Back to top

2007 S40, Dyna, 52.5/150, .073 Spacer, 2 Turns
2007 Sportster 1200, V&H Pipes

IP Logged

norm92de Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1180 El Paso TX Gender:	Re: Tachometer. Reply #27 - 11/30/17 at 17:30:50 My bracket was only designed that way because I had the metal available. A piece of 3/32' thick aluminum 1.5" x 5" long would be great. Only 4 holes to drill. very simple. It could be mounted in front of or behind the handlebars. And below the handlebar cross member on top of the risers as desired.
Back to top	2014 S40. Raptor. idle mixture adj.Needle raised one notch. 4000' altitude. Stock jets. Shell Rotella synthetic. IP Logged

renzo ramone YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 13 Houston Gender:	Re: Tachometer. Reply #28 - 12/02/17 at 15:42:22 Adding a Tach is an awesome Idea. I always thought the 650 needed another instrumentation device or two.
Back to top	IP Logged

IslandRoad

Serious Thumper

Offline

It doesn't vibrate,
it purrs!

Posts: 1147
The Kiewa Valley, Australia
Gender: male

Re: Tachometer.
Reply #29 - 12/02/17 at 22:32:32

renzo ramone wrote on 12/02/17 at 15:42:22:

Adding a Tach is an awesome Idea. I always thought the 650 needed another instrumentation device or two.

I thought the same thing. So I added a tach. Once I learned a bit about the bike, especially from the readout from the tach, I discovered its not really
necessary. Although, it does look good!

I wish the bike had a fuel gauge!
