norm92de Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1180 El Paso TX Gender:	Re: Noob jet question Reply #15 - 04/10/17 at 14:55:31 That is one of the joys of buying a used bike. A highly skilled PO.
Back to top	2014 S40. Raptor. idle mixture adj.Needle raised one notch. 4000' altitude. Stock jets. Shell Rotella synthetic. IP Logged

Kris01 Serious Thumper Offline Eat, sleep, RIDE! Posts: 3767 Tennessee Gender:	Re: Noob jet question Reply #16 - 04/10/17 at 18:56:05 Lancer, are you saying the 230 is stock, just in the wrong place?
Back to top	There's no problem that a full tank of gas and a sunny day can't fix! 2008 S40, Rotella T 15W-40 w/ZDDP added, Dyna, 140/90-15, Battery Tender Jr., Seat lift, #52.5/150/3 washers, Raptor IP Logged

batman Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 3806 osceola new york Gender:	Re: Noob jet question Reply #17 - 04/11/17 at 20:44:23 Lancer , nice catch ! I guess none of us has ever bothered to look at what size the jets were under the diaphragm.
Back to top	my old work mates called me MacGyver IP Logged

Kenny G Serious Thumper Offline SuzukiSavage.com The Singles Club...LOL Posts: 1754 Robson Ranch, Denton, Texas Gender:	Re: Noob jet question Reply #18 - 04/11/17 at 21:18:12 Would there be any reason to change the jets under the diaphragm? Does any one actually know what the above mentioned jets do? Kenny G
Back to top	IP Logged

Dave

YaBB Moderator
ModSquad

Online

SuzukiSavage.com
Rocks!

Posts: 17867
Camp Springs, Kentucky
Gender: male

Re: Noob jet question
Reply #19 - 04/12/17 at 02:15:09

Kenny G wrote on 04/11/17 at 21:18:12:

Would there be any reason to change the jets under the diaphragm?

Does any one actually know what the above mentioned jets do?

Kenny G Undecided

There is no reason to change the jets under the diaphragm....you can do any adjustment you need with the jets in the float bowl.

The jets up top are the air jets....they control the amount of air that mixes with the fuel that goes through the pilot jet, the choke and the TEV.

Back to top

Someday I will be old......But not today!

IP Logged

tinkleFury

YaBB Newbies

Offline

SuzukiSavage.com
Rocks!

Posts: 22

Re: Noob jet question
Reply #20 - 04/13/17 at 17:51:50

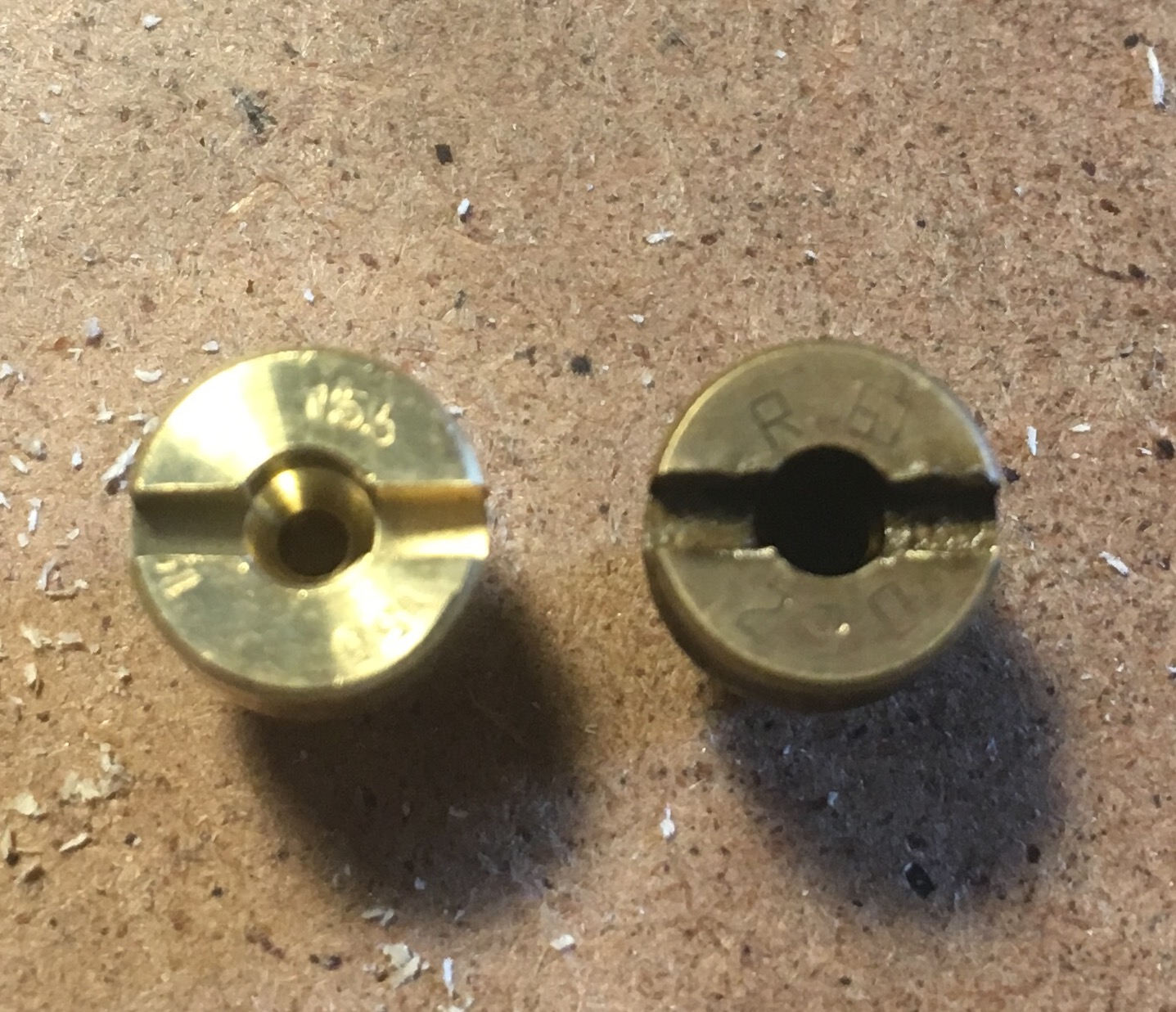

Well, I had the local bike shop order me a 155 and picked it up. Pulled the carb and popped it in. I had hesitated before to pull the diaphragm. It felt like I'd tear it. But on popping by the top off this time the funny integrated o-ring thingy unseated itself and looked robust enough to peel out. The 2 jets in there were a 145 and a 45. Not sure what that means!

Was just getting ready to try and fire her up when plans changed. Am now sitting in a hospital possibly about to see our 3rd child born! Hopefully it's false labor and they send us home.

Back to top


1996 LS650 bobber rat - window bars - peanut tank - solo seat - flat rear fender - straight pipe - terribly abused

IP Logged

Kris01 Serious Thumper Offline Eat, sleep, RIDE! Posts: 3767 Tennessee Gender:	Re: Noob jet question Reply #21 - 04/13/17 at 18:41:08 Those are stock jets and CONGRATULATIONS!!!!!!!!!!
Back to top	There's no problem that a full tank of gas and a sunny day can't fix! 2008 S40, Rotella T 15W-40 w/ZDDP added, Dyna, 140/90-15, Battery Tender Jr., Seat lift, #52.5/150/3 washers, Raptor IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28804 L.A. California Gender:	Re: Noob jet question Reply #22 - 04/13/17 at 18:43:47 How rude, tell her to hold it, you're working on a mystery. 155 is probably too big, 150, but I don't know what else you got.
Back to top	Versey's Place Tech Section Index IP Logged

Kris01 Serious Thumper Offline Eat, sleep, RIDE! Posts: 3767 Tennessee Gender:	Re: Noob jet question Reply #23 - 04/13/17 at 18:43:51 http://suzukisavage.com/cgi-bin/YaBB.pl?board=tech;action=display;num=1098869040
Back to top	There's no problem that a full tank of gas and a sunny day can't fix! 2008 S40, Rotella T 15W-40 w/ZDDP added, Dyna, 140/90-15, Battery Tender Jr., Seat lift, #52.5/150/3 washers, Raptor IP Logged

Dave

YaBB Moderator
ModSquad

Online

SuzukiSavage.com
Rocks!

Posts: 17867
Camp Springs, Kentucky
Gender: male

Re: Noob jet question
Reply #24 - 04/14/17 at 03:43:59

tinkleFury wrote on 04/13/17 at 17:51:50:

The 2 jets in there were a 145 and a 45. Not sure what that means!

What that most likely means....and Lancer was the one who "supposed it"....somebody goofed and switched the #230 which is supposed to be on the top.......with the #145 main jet which is supposed to be on the bottom.

Put the #230 up to where it belongs......when you get done with your childbirth chores.

Back to top

Someday I will be old......But not today!

IP Logged

batman Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 3806 osceola new york Gender:	Re: Noob jet question Reply #25 - 04/14/17 at 07:24:01 Yes 230 in the top, and I'd go with the 155 for the main (may be a little to big, but the 145 will be way to small because of your cone filter and straight pipe).You may need to do the spacer mod. on the needle jet if you have surging at steady speeds.
Back to top	my old work mates called me MacGyver IP Logged

tinkleFury

YaBB Newbies

Offline

SuzukiSavage.com
Rocks!

Posts: 22

Re: Noob jet question
Reply #26 - 04/14/17 at 16:36:01

Ok! so no baby for a bit (we hope).

I should have read the whole thread over again before popping n the 155. I pulled the carb out again and put that 230 jet in where it belongs (on top, where the 145 was hiding). Got things back together and took it for a spin. Am excited to think this will help with the plug fouling and milage issues. Mostly excited about being able to start it reliably (clean plug).

While I was mystified why someone would put so weird a main jet in, I get how they could get mixed up if not careful or aware.

Going to leave the 155 in for now and see how it does. Has to be better than the 230 right? Happy to be in the right ball park for that.

Will muck about with the pilot setting next.

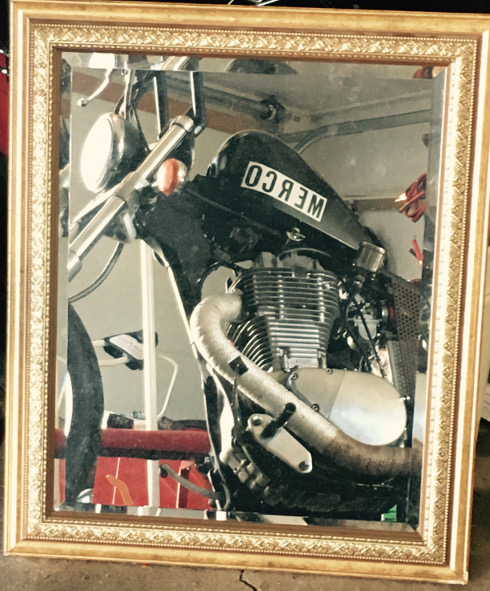

Thanks, all of you, for your advice. Think we're ready for some summer! When I was done I caught her looking at me through an old mirror I need to put away...

Think she winked too.

Back to top


1996 LS650 bobber rat - window bars - peanut tank - solo seat - flat rear fender - straight pipe - terribly abused

IP Logged

IslandRoad Serious Thumper Offline It doesn't vibrate, it purrs! Posts: 1147 The Kiewa Valley, Australia Gender:	Re: Noob jet question Reply #27 - 04/14/17 at 20:21:54 Not sure if it's been mentioned, but there's a brass washer that goes in with the main jet ... it's important.
Back to top	S40, 2014, Dyna, Raptor, 52.5/152.5, spacer mod, sea level, cat-eye LED tail light, bullet style halogen turn signals, 'Superbars' with custom 40mm risers, modified stock seat, Metzeler tyres. IP Logged
