How to remove the seat and fuel tank
02/19/17 at 02:36:18

Removing the seat, and especially the fuel tank is a big step for someone new to maintaining their Savage/S40. It is also necessary for many mods here on the site. I looked through the entire Technical section and there is no set of complete instructions for how to do it.

Six months ago I hadn't sat on a motorcycle, and until three months ago I had never lifted a tool to a bike. Taking off the tank for the first time was actually nerve-wracking. I gleaned the various information that was scattered throughout various threads about other things to find the information I needed. I can now have both off in under five minutes.

I hope this thread will give confidence to beginners like me, to have a go. And provide a resource that experienced guys can link to when describing a mod that begins with "First remove the seat and the tank".

I was prompted to make this guide because I plan to write two more technical guides which both begin with that sentence  Smiley

Comments, correction and suggestions are welcome.


The seat is very straightforward to remove. The stock seats vary from year to year and are either a two piece seat or a one piece seat.

Basically they have a connection point on the rear fender just behind the centre of the passenger seat, a connection on either side near the shockers, and the front has a plastic tab that hooks into a bracket just behind the tank.

I have provided photos of mine which is a one-piece seat with an Allen head screw at the back, and a 10 mm bolt on each side. Undo all three an the seat will lift off.

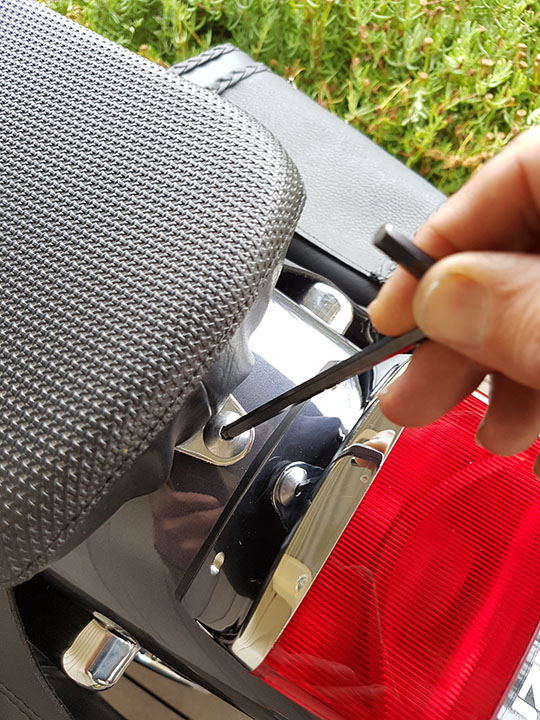

Here's the rear:
Back to top



S40, 2015, Dyna, Raptor, 52.5/152.5, spacer mod, sea level, cat-eye LED tail light, bullet style halogen turn signals, 31" drag bars with custom risers, modified stock seat, Metzeler tyres.
  IP Logged
IslandRoad
Serious Thumper
*****
Offline

It doesn't vibrate,
it purrs!

Posts: 967
Phillip Island, Australia
Gender: male
Re: How to remove the seat and fuel tank
Reply #1 - 02/19/17 at 02:37:00

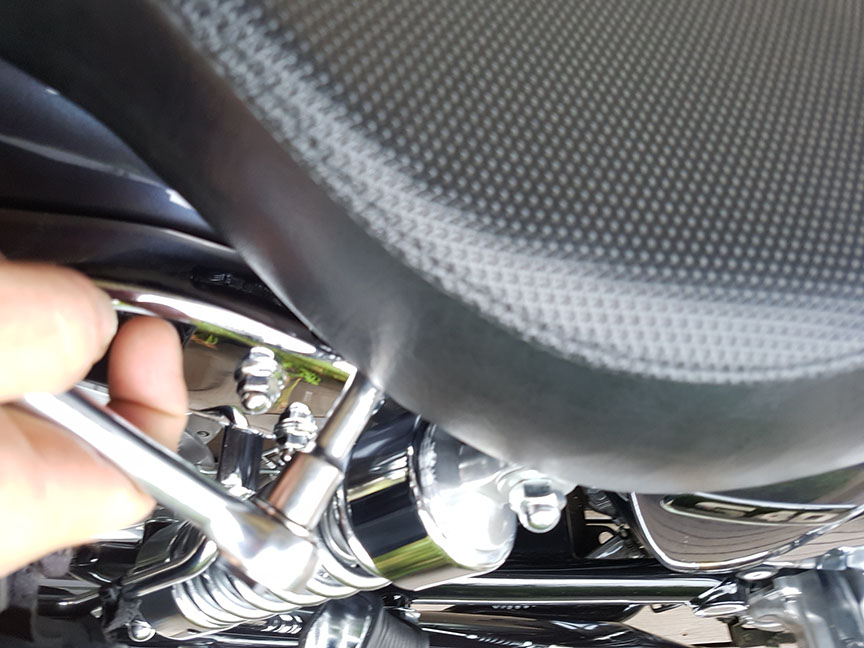

Here's one of the sides (apologies for the poor quality picture):
Back to top



S40, 2015, Dyna, Raptor, 52.5/152.5, spacer mod, sea level, cat-eye LED tail light, bullet style halogen turn signals, 31" drag bars with custom risers, modified stock seat, Metzeler tyres.
  IP Logged
IslandRoad
Serious Thumper
*****
Offline

It doesn't vibrate,
it purrs!

Posts: 967
Phillip Island, Australia
Gender: male
Re: How to remove the seat and fuel tank
Reply #2 - 02/19/17 at 02:38:02

Removing the fuel tank can seem daunting to someone without experience, but itís actually really simple.

You need to:

1. Set the fuel switch
2. Undo two bolts
3. Disconnect two hoses
4. Disconnect the speedo cable
5. Lift the tank and prop it on the frame
6. Unplug one electrical plug (for the speedo and indicator lights etc)
7. Place the tank somewhere while you work
Back to top



S40, 2015, Dyna, Raptor, 52.5/152.5, spacer mod, sea level, cat-eye LED tail light, bullet style halogen turn signals, 31" drag bars with custom risers, modified stock seat, Metzeler tyres.
  IP Logged
IslandRoad
Serious Thumper
*****
Offline

It doesn't vibrate,
it purrs!

Posts: 967
Phillip Island, Australia
Gender: male
Re: How to remove the seat and fuel tank
Reply #3 - 02/19/17 at 02:39:12

1. Set the fuel switch (petcock) so that no fuel will run out when you unplug the fuel line. If you have the stock petcock on the bike then just set it to your normal operating position (On). It is a vacuum controlled device and no fuel will come out unless the engine is running (do not set it to prime, and donít ask me how I know!)

If you have a Raptor 660 manual petcock, then set it to off.
Back to top



S40, 2015, Dyna, Raptor, 52.5/152.5, spacer mod, sea level, cat-eye LED tail light, bullet style halogen turn signals, 31" drag bars with custom risers, modified stock seat, Metzeler tyres.
  IP Logged
IslandRoad
Serious Thumper
*****
Offline

It doesn't vibrate,
it purrs!

Posts: 967
Phillip Island, Australia
Gender: male
Re: How to remove the seat and fuel tank
Reply #4 - 02/19/17 at 02:39:39

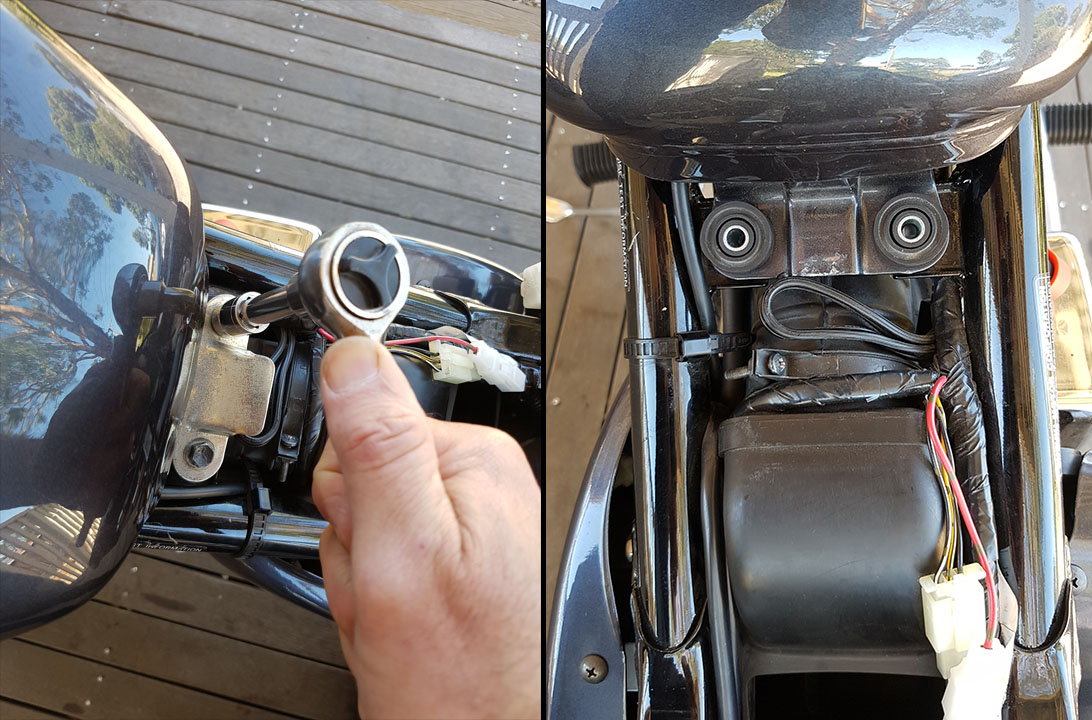

2. Undo these two bolts and remove the bracket for the seat. During the process be careful not to lose the rubber stoppers.
Back to top



S40, 2015, Dyna, Raptor, 52.5/152.5, spacer mod, sea level, cat-eye LED tail light, bullet style halogen turn signals, 31" drag bars with custom risers, modified stock seat, Metzeler tyres.
  IP Logged
IslandRoad
Serious Thumper
*****
Offline

It doesn't vibrate,
it purrs!

Posts: 967
Phillip Island, Australia
Gender: male
Re: How to remove the seat and fuel tank
Reply #5 - 02/19/17 at 02:45:59

3. Disconnect the fuel line and the vacuum line from the carb. (For the raptor Petcock there is no vacuum line). I have a Raptor on mine so where I have a small rubber cap, the stock petcock will have a rubber tube wrapped in a silver coil. For both lines use pointy nosed pliers to move the clips and then just pull the hoses off the carb. They can take a little persuasion.

A little bit of fuel will most likely dribble from the fuel line so I normally put a rag under there to catch it.

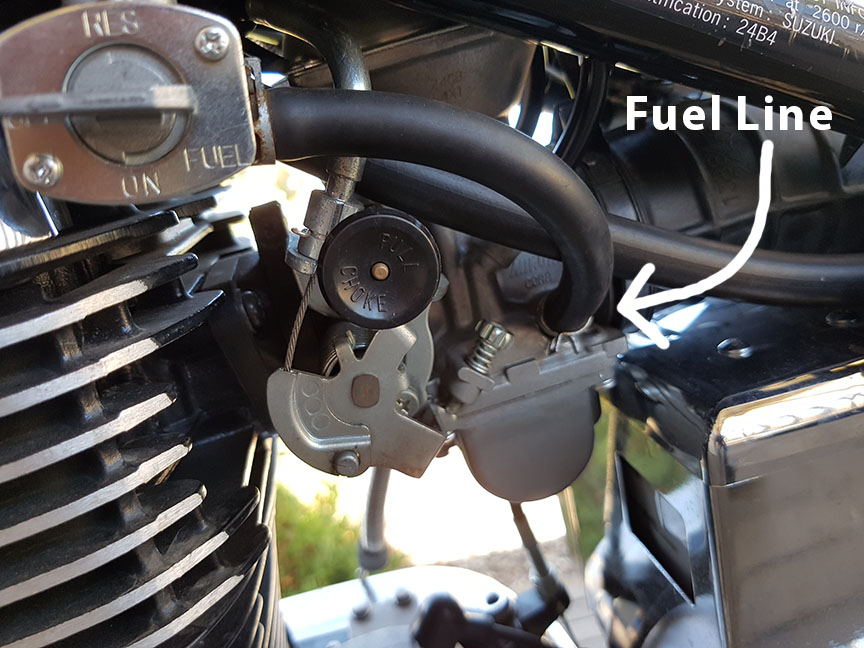

Here's the fuel line:
Back to top



S40, 2015, Dyna, Raptor, 52.5/152.5, spacer mod, sea level, cat-eye LED tail light, bullet style halogen turn signals, 31" drag bars with custom risers, modified stock seat, Metzeler tyres.
  IP Logged
IslandRoad
Serious Thumper
*****
Offline

It doesn't vibrate,
it purrs!

Posts: 967
Phillip Island, Australia
Gender: male
Re: How to remove the seat and fuel tank
Reply #6 - 02/19/17 at 02:47:10

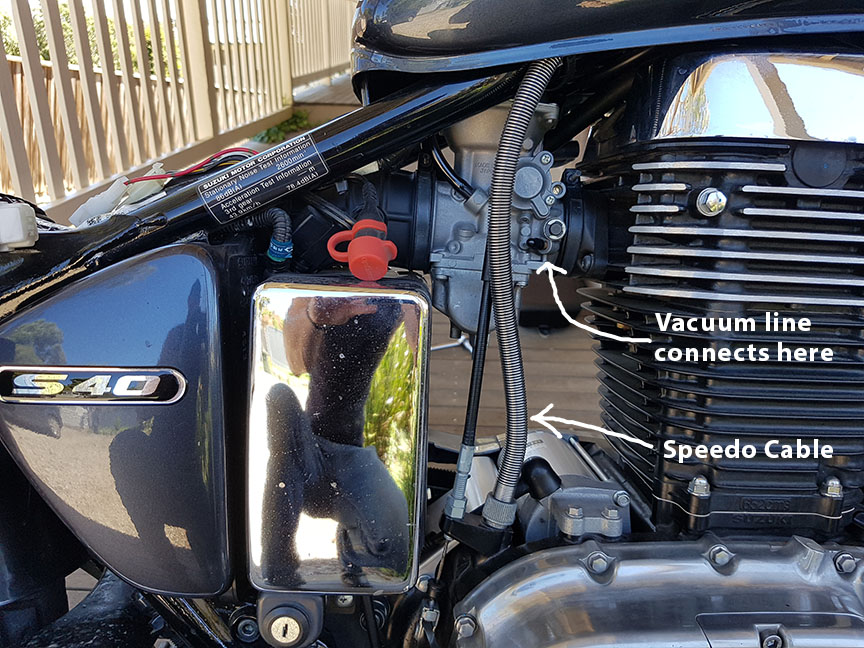

Here is the where the vac line attaches with a stock petcock:

And the speedo cable:
Back to top



S40, 2015, Dyna, Raptor, 52.5/152.5, spacer mod, sea level, cat-eye LED tail light, bullet style halogen turn signals, 31" drag bars with custom risers, modified stock seat, Metzeler tyres.
  IP Logged
IslandRoad
Serious Thumper
*****
Offline

It doesn't vibrate,
it purrs!

Posts: 967
Phillip Island, Australia
Gender: male
Re: How to remove the seat and fuel tank
Reply #7 - 02/19/17 at 02:48:42

4. Use a pair of pliers to loosen the connector at the base of the speedo cable and then it just screws off.

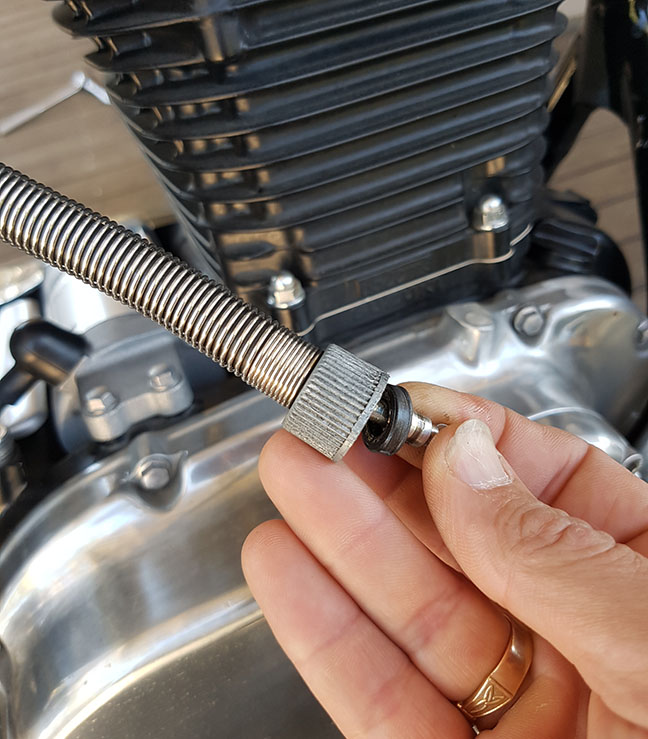

There is a rubber washer/grommet in there. I suggest taking it out and putting it somewhere safe because it will likely fall out while youíre moving the tank around. Take a note of the way it is placed in there. The side with grooves faces downward:
Back to top



S40, 2015, Dyna, Raptor, 52.5/152.5, spacer mod, sea level, cat-eye LED tail light, bullet style halogen turn signals, 31" drag bars with custom risers, modified stock seat, Metzeler tyres.
  IP Logged
IslandRoad
Serious Thumper
*****
Offline

It doesn't vibrate,
it purrs!

Posts: 967
Phillip Island, Australia
Gender: male
Re: How to remove the seat and fuel tank
Reply #8 - 02/19/17 at 02:52:51

5. Raise the back of the tank and begin to pull it backwards, and wriggle it. It sits on two round mounts at the front. You'll hear some squeaking as it rubs on the rubber mounts and some of the rubber boots that cover the wiring. You wonít hurt it. Set your feet so that you are balanced, to make sure you don't topple backwards if it suddenly gives.

With the stock petcock on there you will need to also yank it a bit to the left so the petcock can clear the bike frame. It WILL scratch the frame on the way out, I'm afraid you just have to live with that. I scratched mine a few times. With the Raptor petcock the tank will lift straight out.

When the tank is off, just place it up on the frame. Some more fuel may dribble from the fuel line so just make sure to have a rag around the area where it might run.

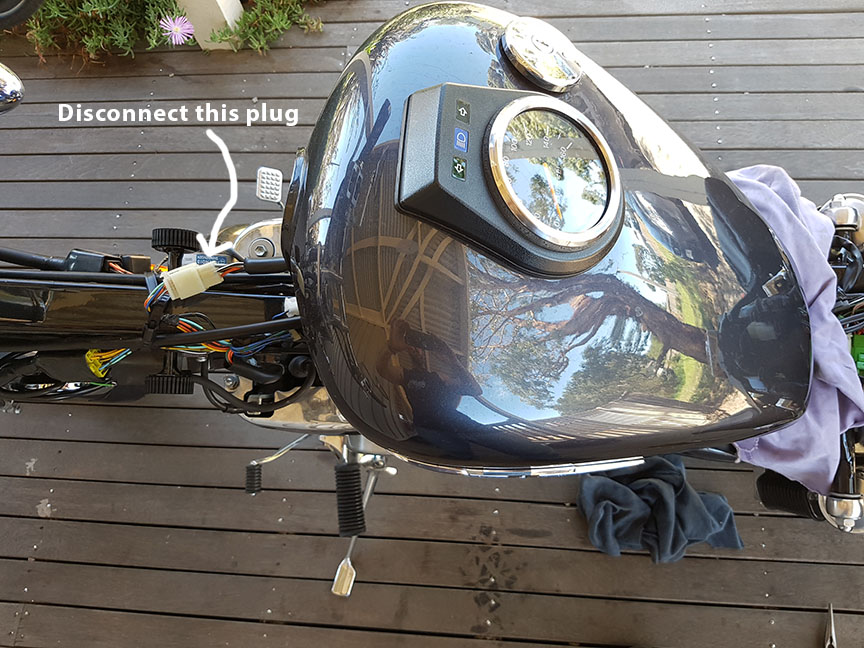

6. Thereís a white plug in the centre of the frame, under the tank, Thatís the wiring for the lights, and dial, on top of the tank. Disconnect that one:
Back to top



S40, 2015, Dyna, Raptor, 52.5/152.5, spacer mod, sea level, cat-eye LED tail light, bullet style halogen turn signals, 31" drag bars with custom risers, modified stock seat, Metzeler tyres.
  IP Logged
IslandRoad
Serious Thumper
*****
Offline

It doesn't vibrate,
it purrs!

Posts: 967
Phillip Island, Australia
Gender: male
Re: How to remove the seat and fuel tank
Reply #9 - 02/19/17 at 02:53:28

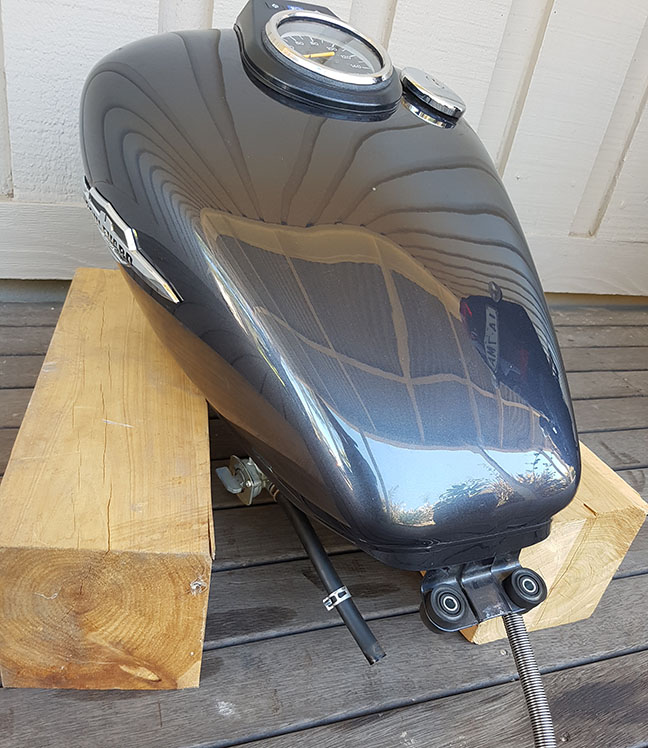

7. You can now place the tank somewhere. I usually prop it up so that it is not putting weight on the petcock or the fuel line:
Back to top



S40, 2015, Dyna, Raptor, 52.5/152.5, spacer mod, sea level, cat-eye LED tail light, bullet style halogen turn signals, 31" drag bars with custom risers, modified stock seat, Metzeler tyres.
  IP Logged
IslandRoad
Serious Thumper
*****
Offline

It doesn't vibrate,
it purrs!

Posts: 967
Phillip Island, Australia
Gender: male
Re: How to remove the seat and fuel tank
Reply #10 - 02/19/17 at 02:57:22

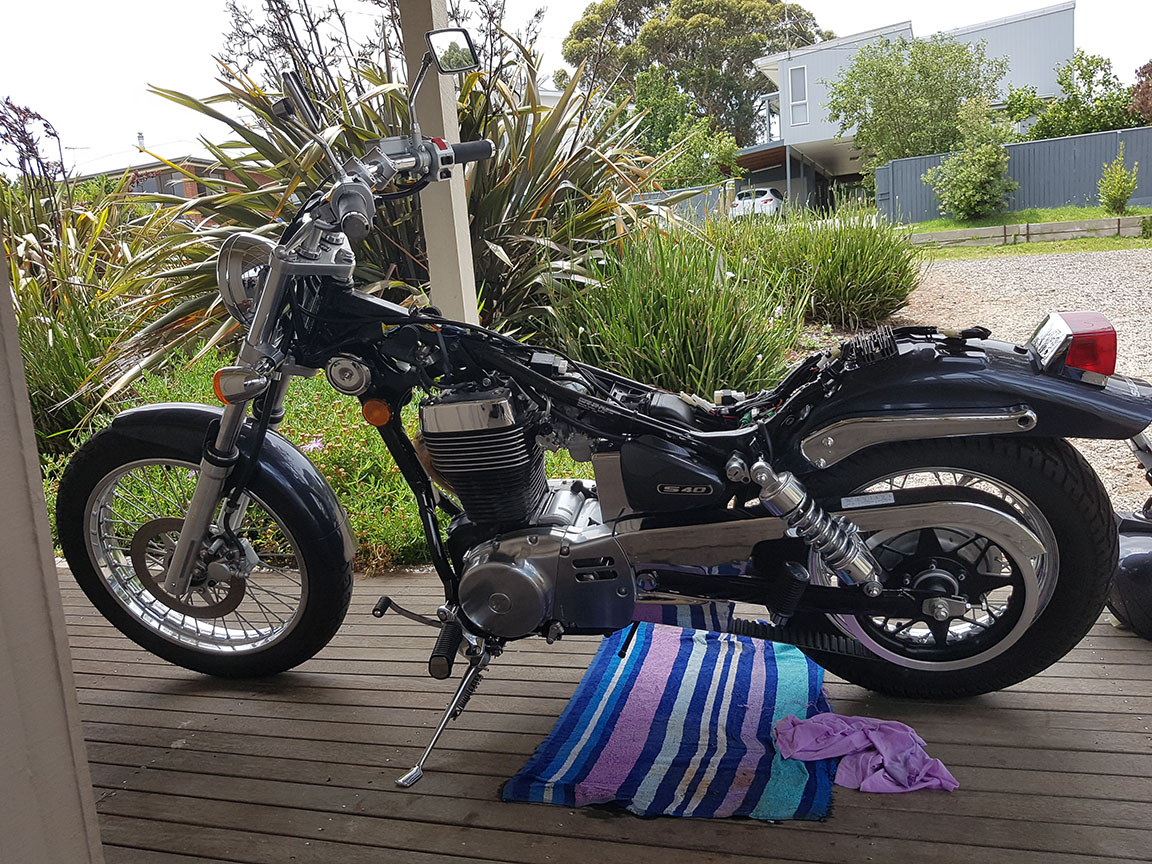

Your bike will look a lot like this:
Back to top



S40, 2015, Dyna, Raptor, 52.5/152.5, spacer mod, sea level, cat-eye LED tail light, bullet style halogen turn signals, 31" drag bars with custom risers, modified stock seat, Metzeler tyres.
  IP Logged
IslandRoad
Serious Thumper
*****
Offline

It doesn't vibrate,
it purrs!

Posts: 967
Phillip Island, Australia
Gender: male
Re: How to remove the seat and fuel tank
Reply #11 - 02/19/17 at 03:00:17

When you're done with whatever you're doing, put it all back in reverse order.

When fitting the speedo cable back in, don't forget the rubber washer, and have a look for the flat bit on the side of the cable-end. It slots into a groove down the hole. It should just slip straight in there when it's lined up.
