Saddle bag installation (Read 183 times)
T140V
Full Member
***
Offline



Posts: 116
Turlock California
Gender: male
Saddle bag installation
02/18/17 at 03:01:34

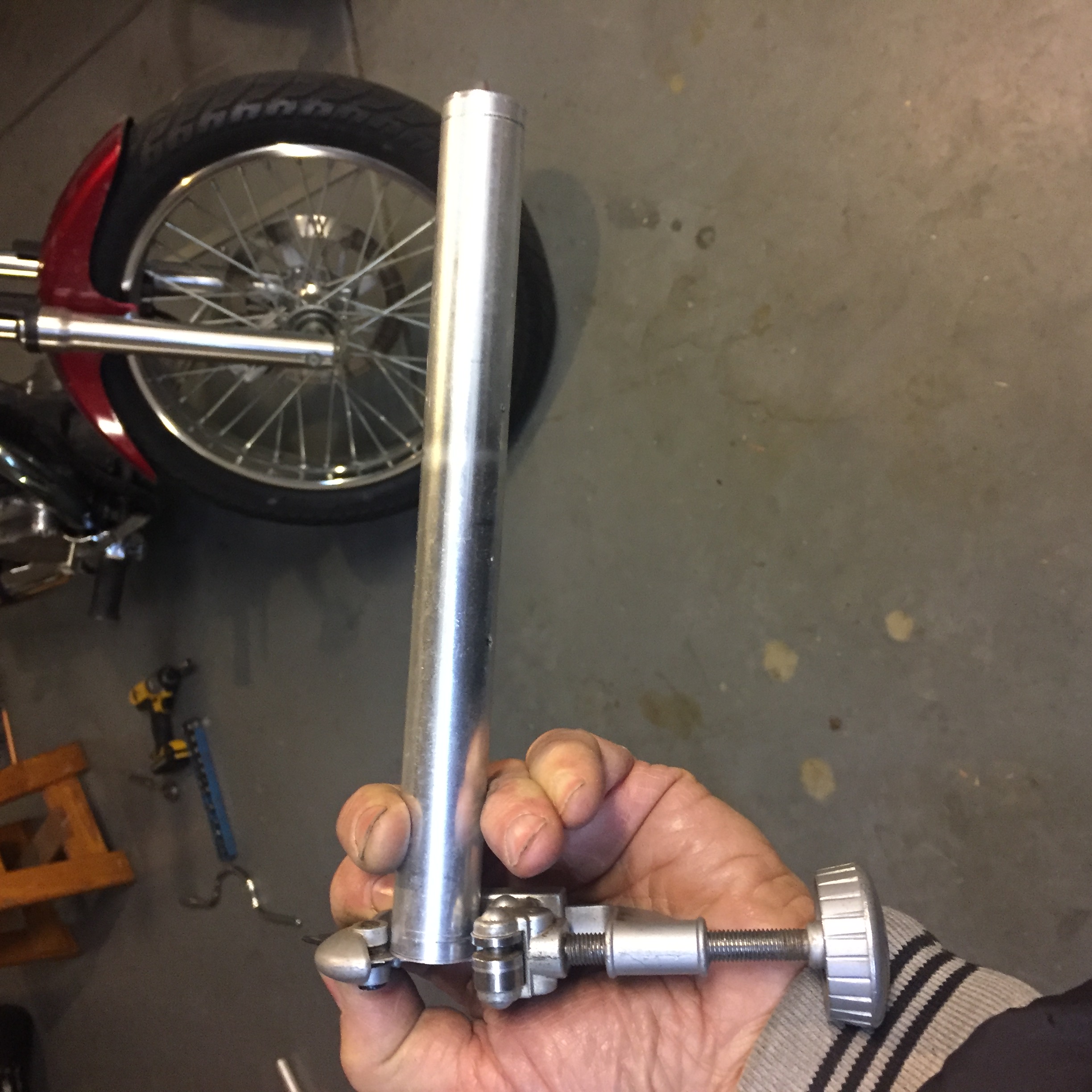

I found some saddle bags on auction for $50.00. †I wanted to mount them low and out of the way so if anyone is interested I started by relocating the tail lights. I had some †7/8" OD 3/4" ID aluminum †tubing the tail lights would fit inside. I drilled holes in the tubing in order to hold the taillight in and holes that lined up with the rear reflector mount. Then I polished the tubing to give it a finished look.
Back to top
« Last Edit: 02/21/17 at 11:20:57 by T140V »


If at first you donít succeed destroy all evidence that you ever tried.
  IP Logged
T140V
Full Member
***
Offline



Posts: 116
Turlock California
Gender: male
Re: Saddle bag installation
Reply #1 - 02/18/17 at 03:04:29

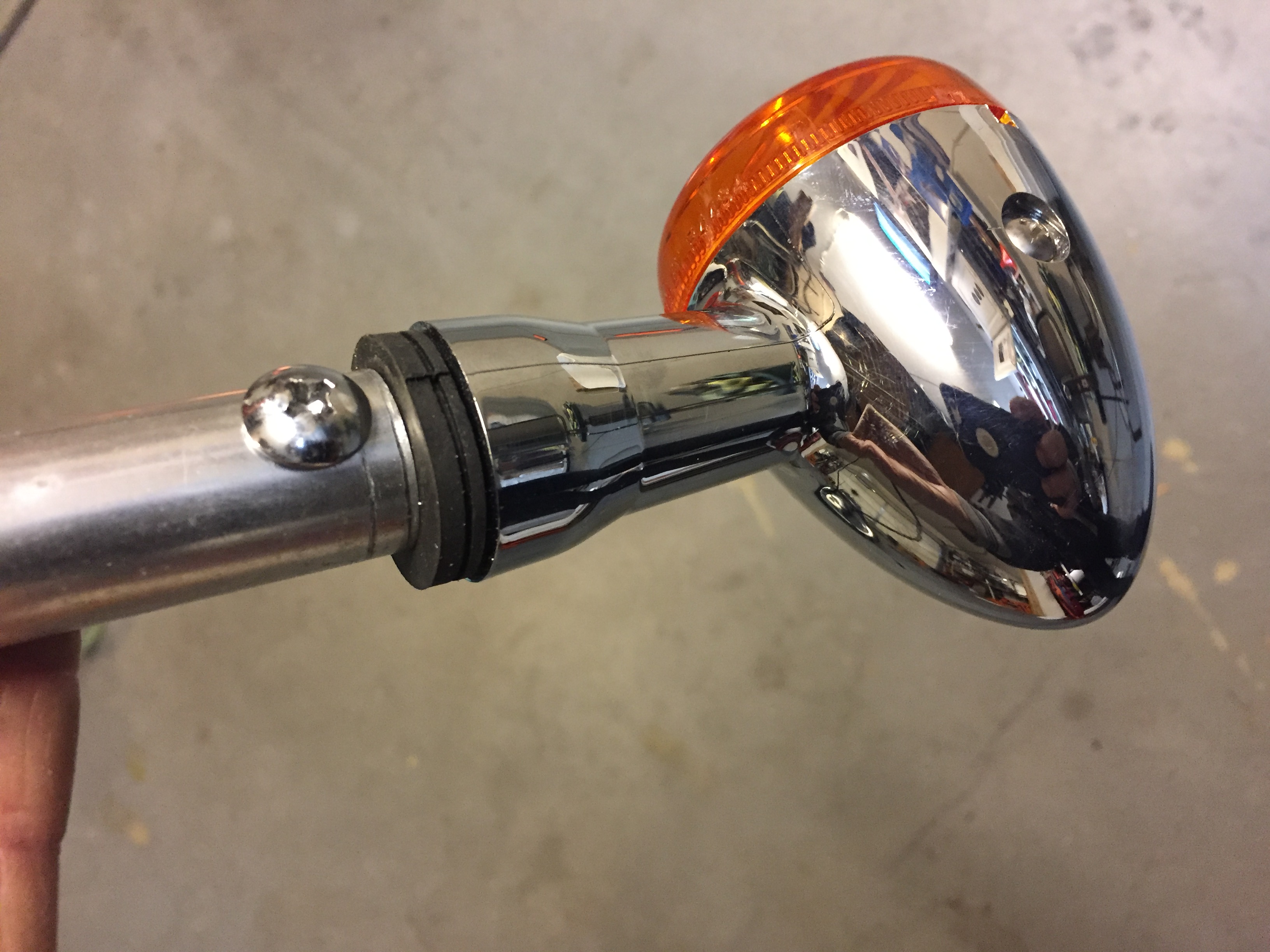

Drilled hole to hold in tail lights
Back to top



If at first you donít succeed destroy all evidence that you ever tried.
  IP Logged
T140V
Full Member
***
Offline



Posts: 116
Turlock California
Gender: male
Re: Saddle bag installation
Reply #2 - 02/18/17 at 03:06:04

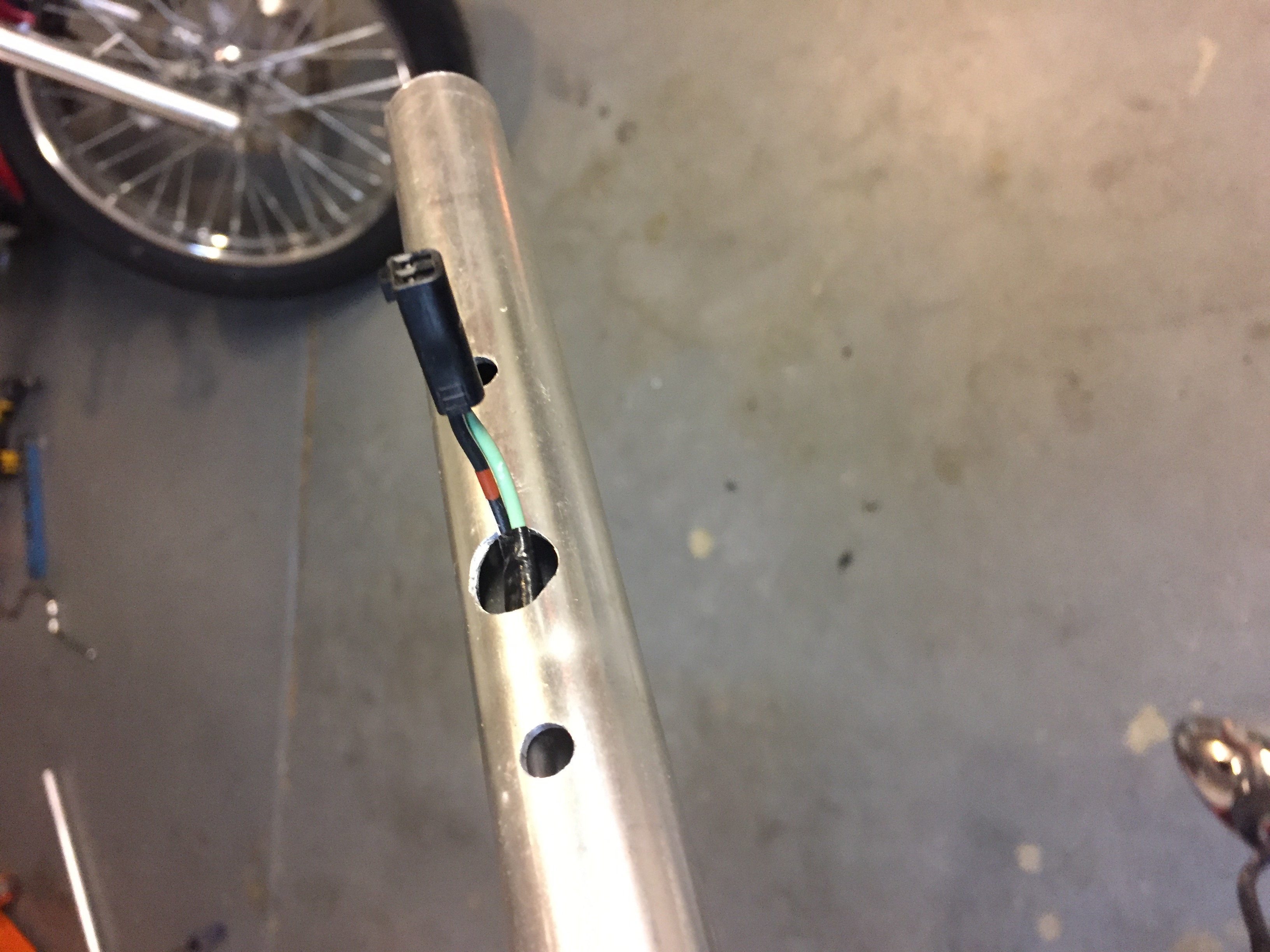

Drilled holes for wires
Back to top



If at first you donít succeed destroy all evidence that you ever tried.
  IP Logged
T140V
Full Member
***
Offline



Posts: 116
Turlock California
Gender: male
Re: Saddle bag installation
Reply #3 - 02/18/17 at 03:09:25

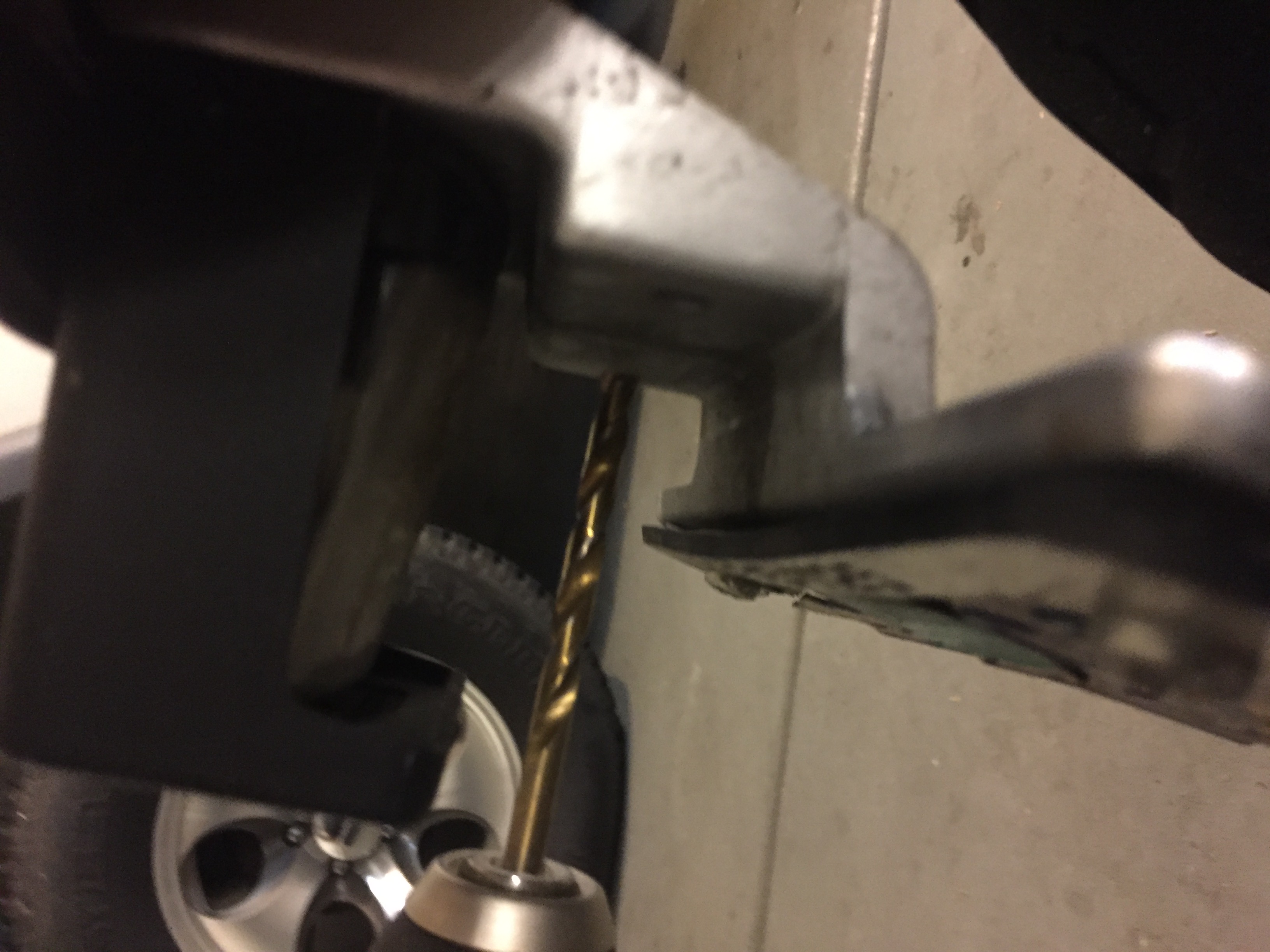

Mounted to reflector bracket and drilled hole for the wire
Back to top



If at first you donít succeed destroy all evidence that you ever tried.
  IP Logged
T140V
Full Member
***
Offline



Posts: 116
Turlock California
Gender: male
Re: Saddle bag installation
Reply #4 - 02/18/17 at 03:11:12

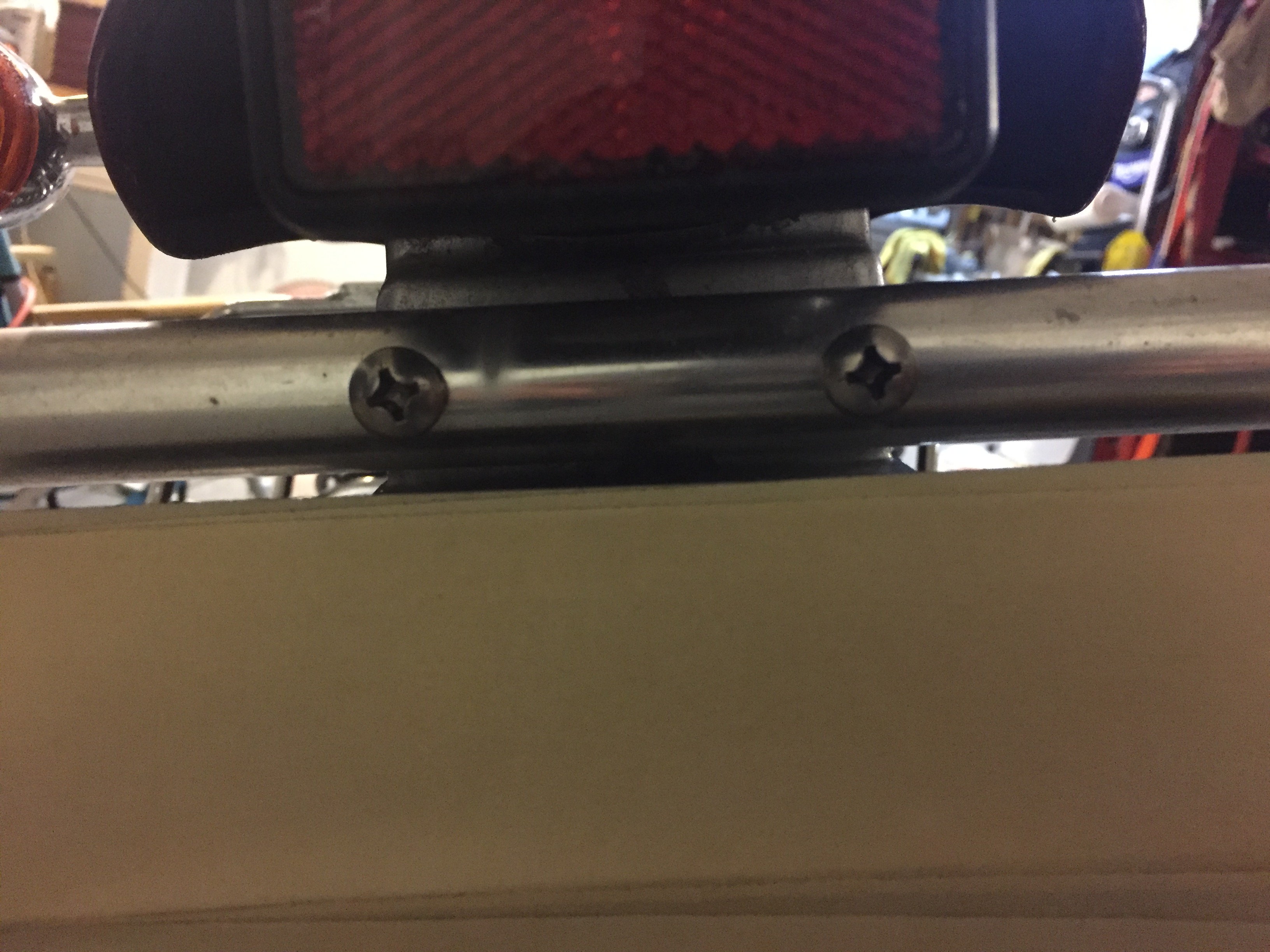

Mounted with lock nuts
Back to top



If at first you donít succeed destroy all evidence that you ever tried.
  IP Logged
T140V
Full Member
***
Offline



Posts: 116
Turlock California
Gender: male
Re: Saddle bag installation
Reply #5 - 02/18/17 at 03:12:48

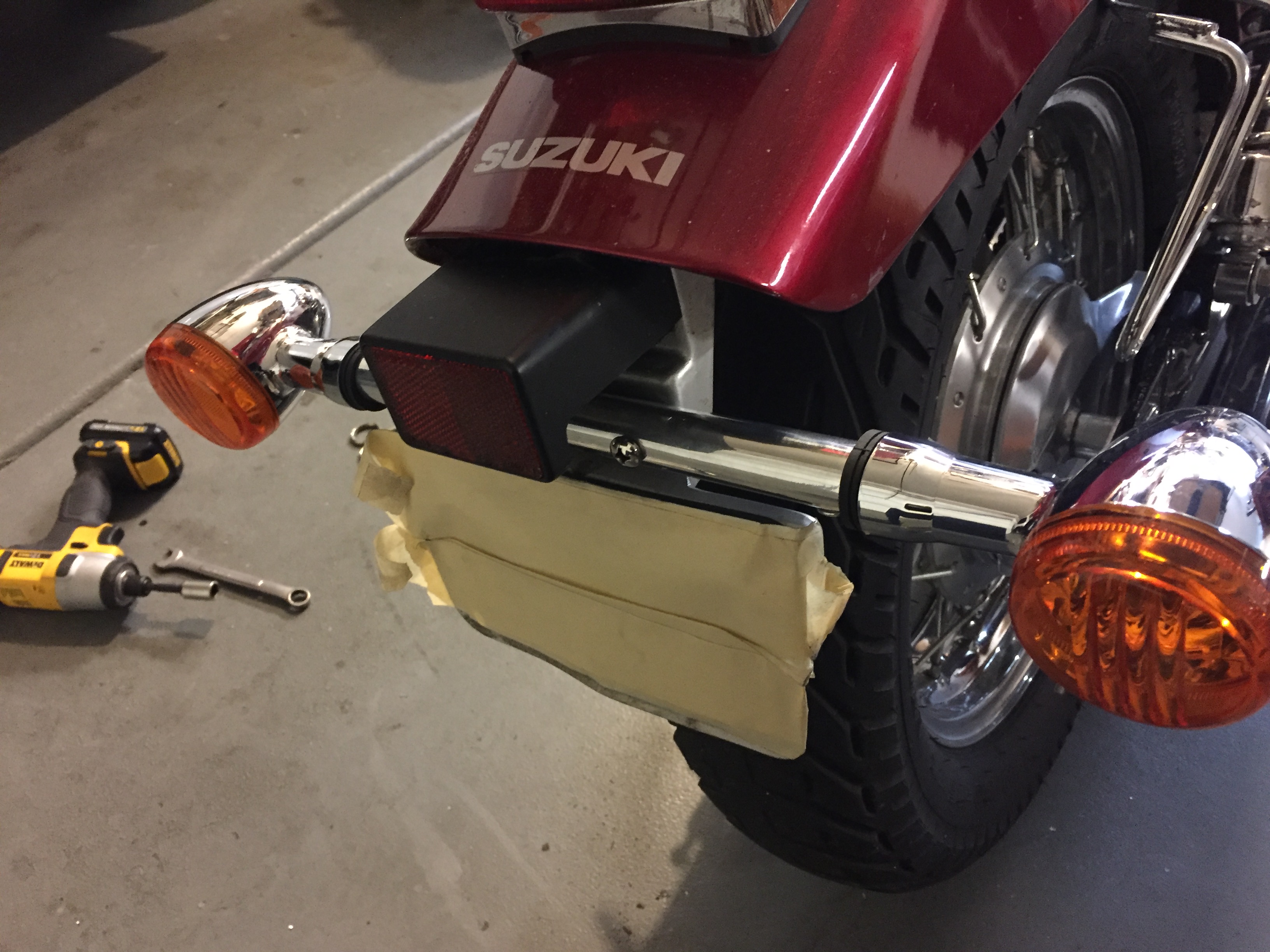

After polishing all done with the lights. I did have to extend the wires using solder and heat shrink tubing
Back to top
« Last Edit: 02/21/17 at 11:22:01 by T140V »


If at first you donít succeed destroy all evidence that you ever tried.
  IP Logged
T140V
Full Member
***
Offline



Posts: 116
Turlock California
Gender: male
Re: Saddle bag installation
Reply #6 - 02/18/17 at 03:16:23

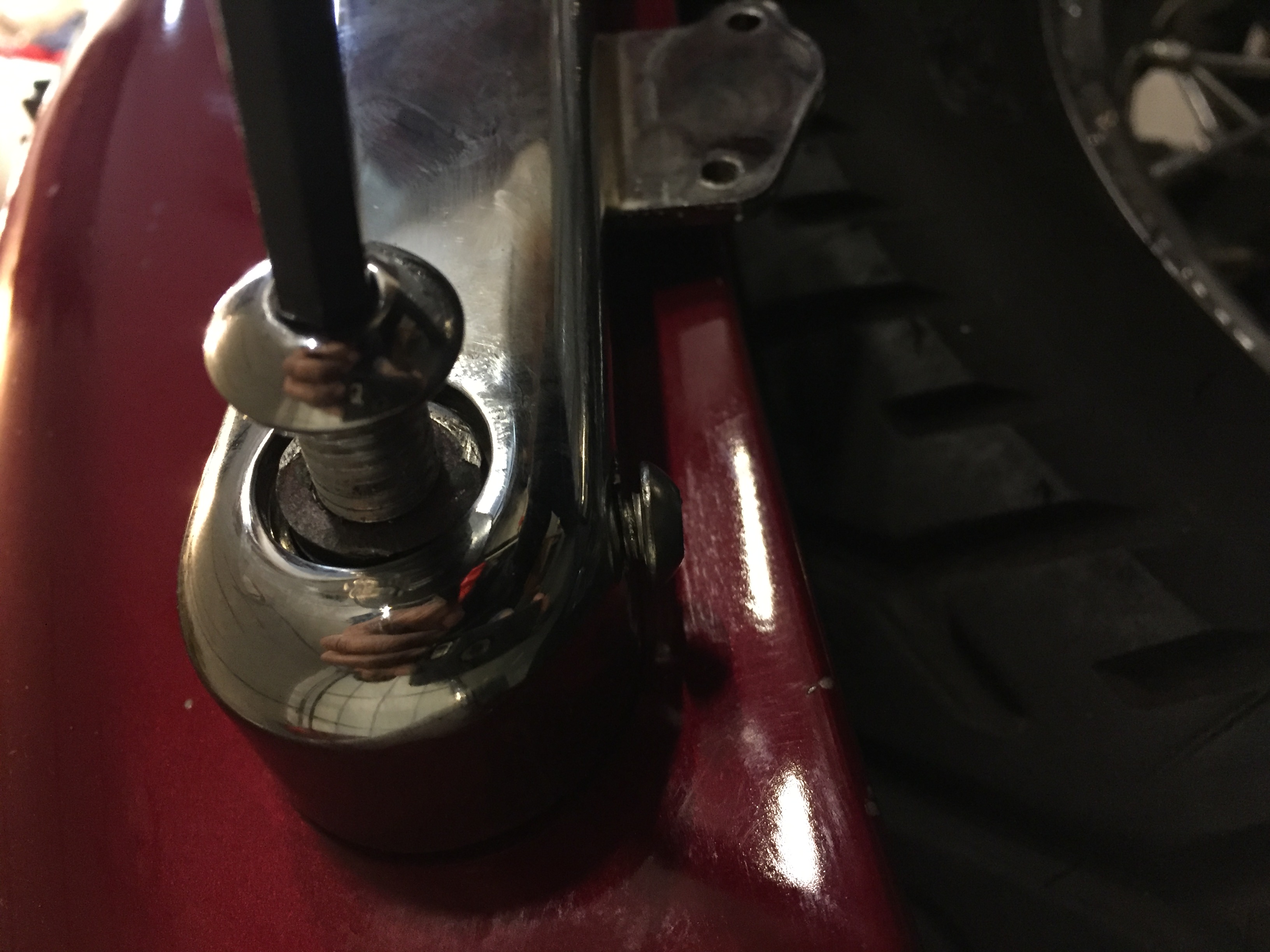

Next I made the mounts for the saddlebags . I used 5/8 inch steel rod to make an insert where the lights used to be.
Back to top



If at first you donít succeed destroy all evidence that you ever tried.
  IP Logged
T140V
Full Member
***
Offline



Posts: 116
Turlock California
Gender: male
Re: Saddle bag installation
Reply #7 - 02/18/17 at 03:18:43

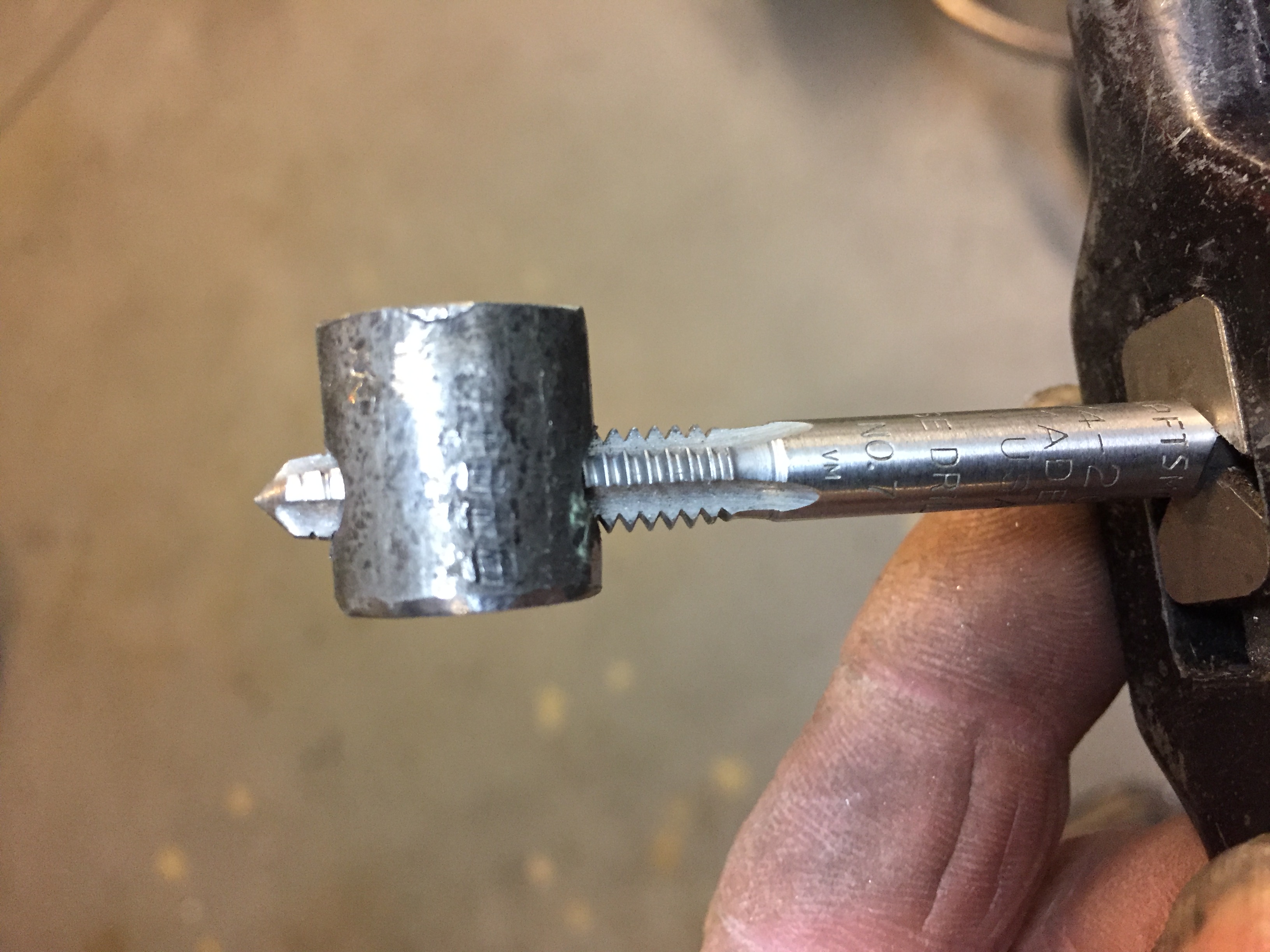

I cut the rod with a hacksaw to fit in the hole. I drilled it out on the bottom side and tapped the hole to 1/4" X 20  so I could bolt it on.
Back to top
« Last Edit: 02/21/17 at 12:05:41 by T140V »


If at first you donít succeed destroy all evidence that you ever tried.
  IP Logged
T140V
Full Member
***
Offline



Posts: 116
Turlock California
Gender: male
Re: Saddle bag installation
Reply #8 - 02/18/17 at 03:22:33

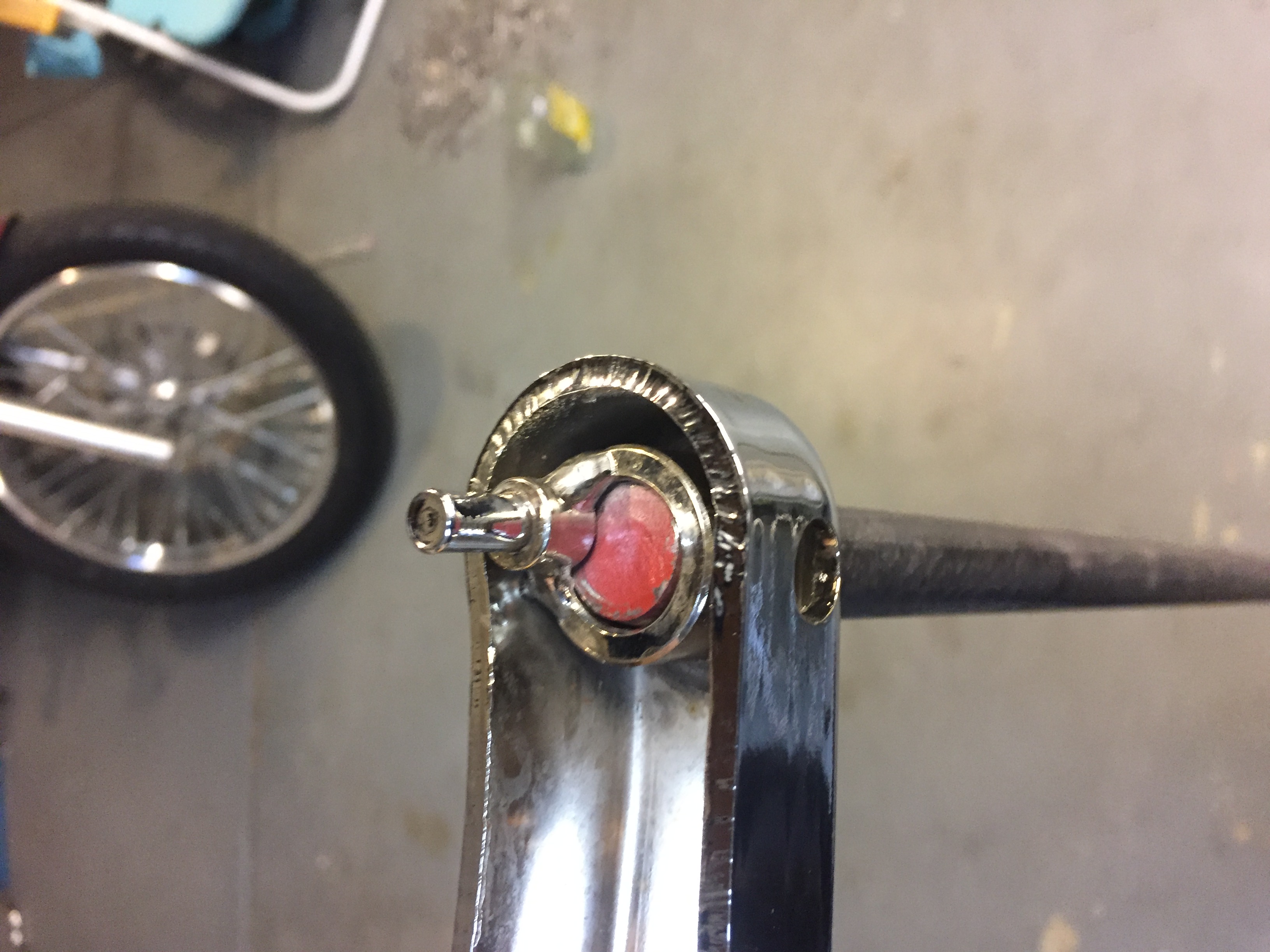

Then I drilled the center out and tapped it to fit some screws I had in the garage.
Back to top



If at first you donít succeed destroy all evidence that you ever tried.
  IP Logged
T140V
Full Member
***
Offline



Posts: 116
Turlock California
Gender: male
Re: Saddle bag installation
Reply #9 - 02/18/17 at 03:25:37

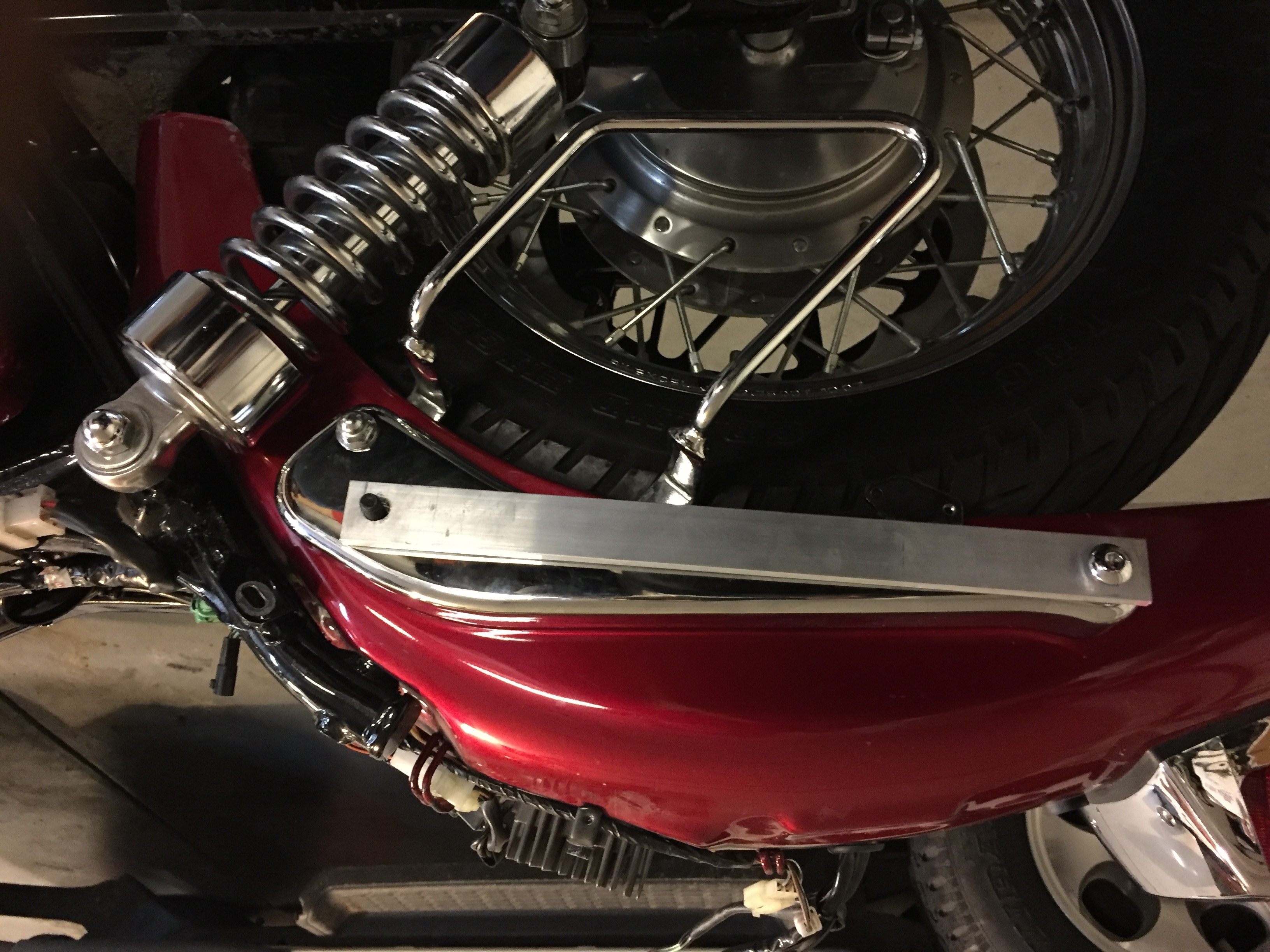

Next I used 1/4" X 1" aluminum flat bar with washers behind it to space it out from the chrome fender covers (so the chrome wouldn't get scratched).
Back to top



If at first you donít succeed destroy all evidence that you ever tried.
  IP Logged
T140V
Full Member
***
Offline



Posts: 116
Turlock California
Gender: male
Re: Saddle bag installation
Reply #10 - 02/18/17 at 03:29:08

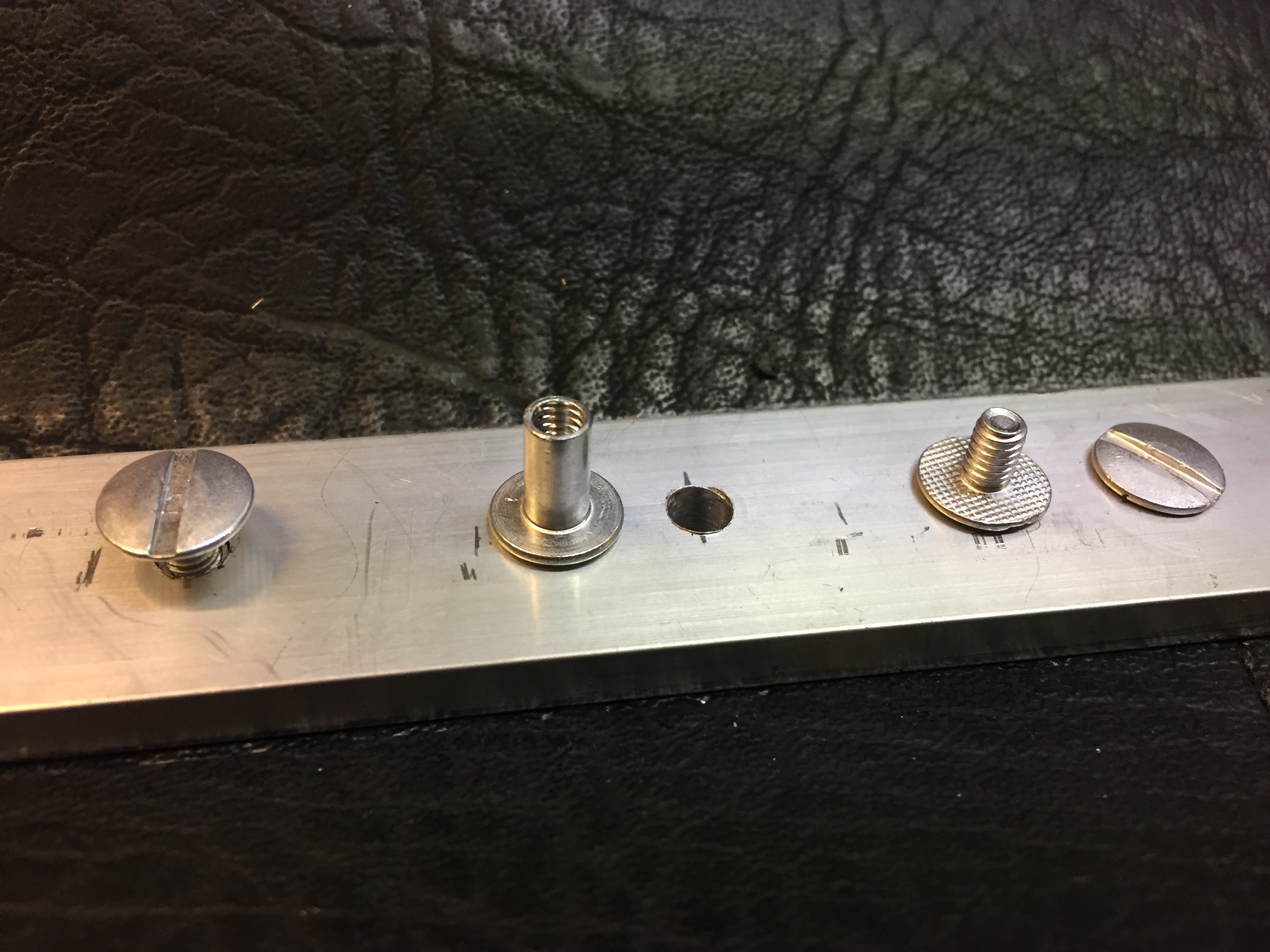

I drilled some holes in the flatbar and cut the saddle bags to the length I thought looked good and used threaded rivets to hold them on.
Back to top



If at first you donít succeed destroy all evidence that you ever tried.
  IP Logged
T140V
Full Member
***
Offline



Posts: 116
Turlock California
Gender: male
Re: Saddle bag installation
Reply #11 - 02/18/17 at 03:33:42

I might mention the offset of the pulley tends to hold one saddle bag out to side more than the other. Nature of the beast.
Back to top



If at first you donít succeed destroy all evidence that you ever tried.
  IP Logged
T140V
Full Member
***
Offline



Posts: 116
Turlock California
Gender: male
Re: Saddle bag installation
Reply #12 - 02/18/17 at 03:36:31

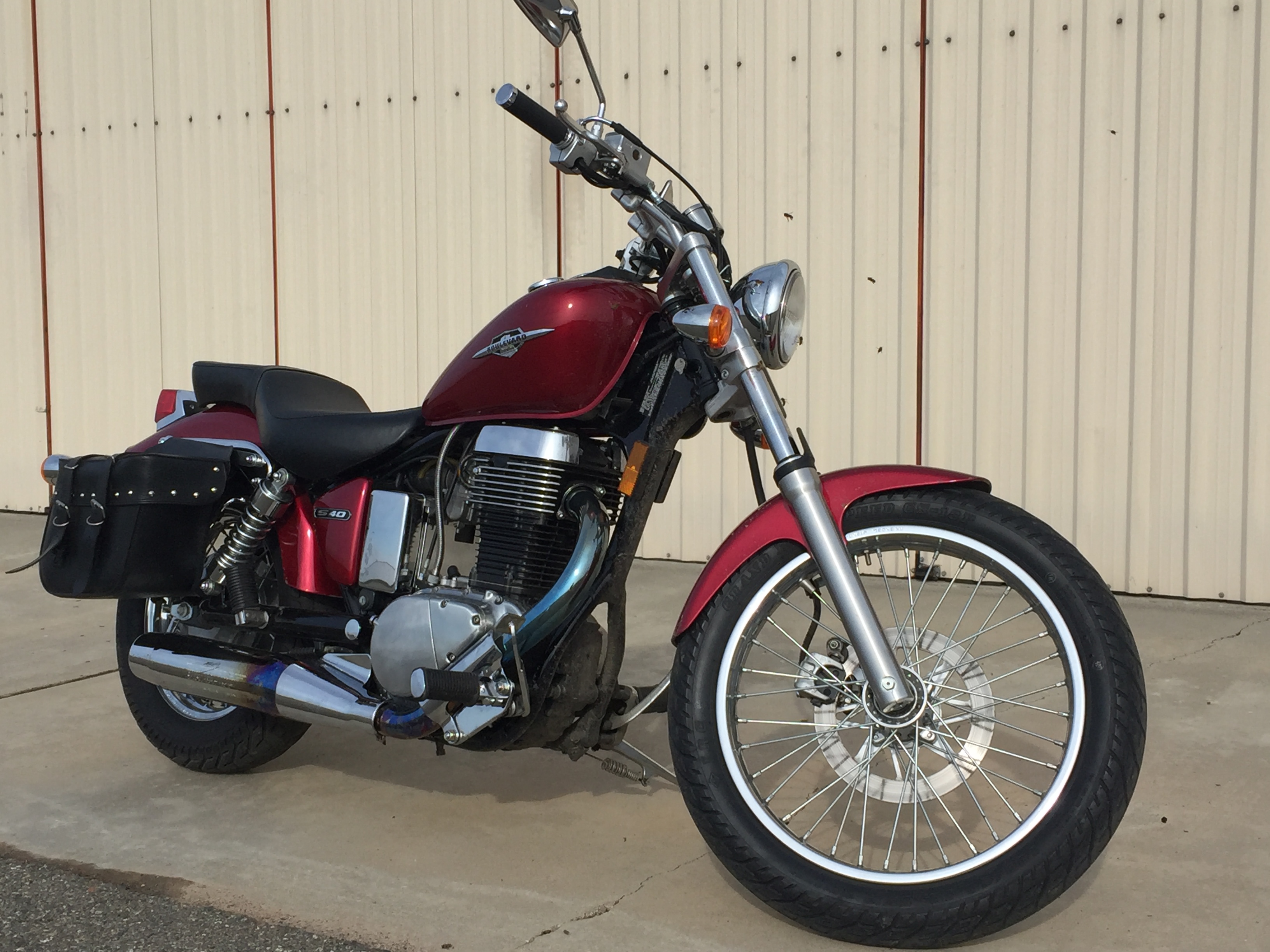

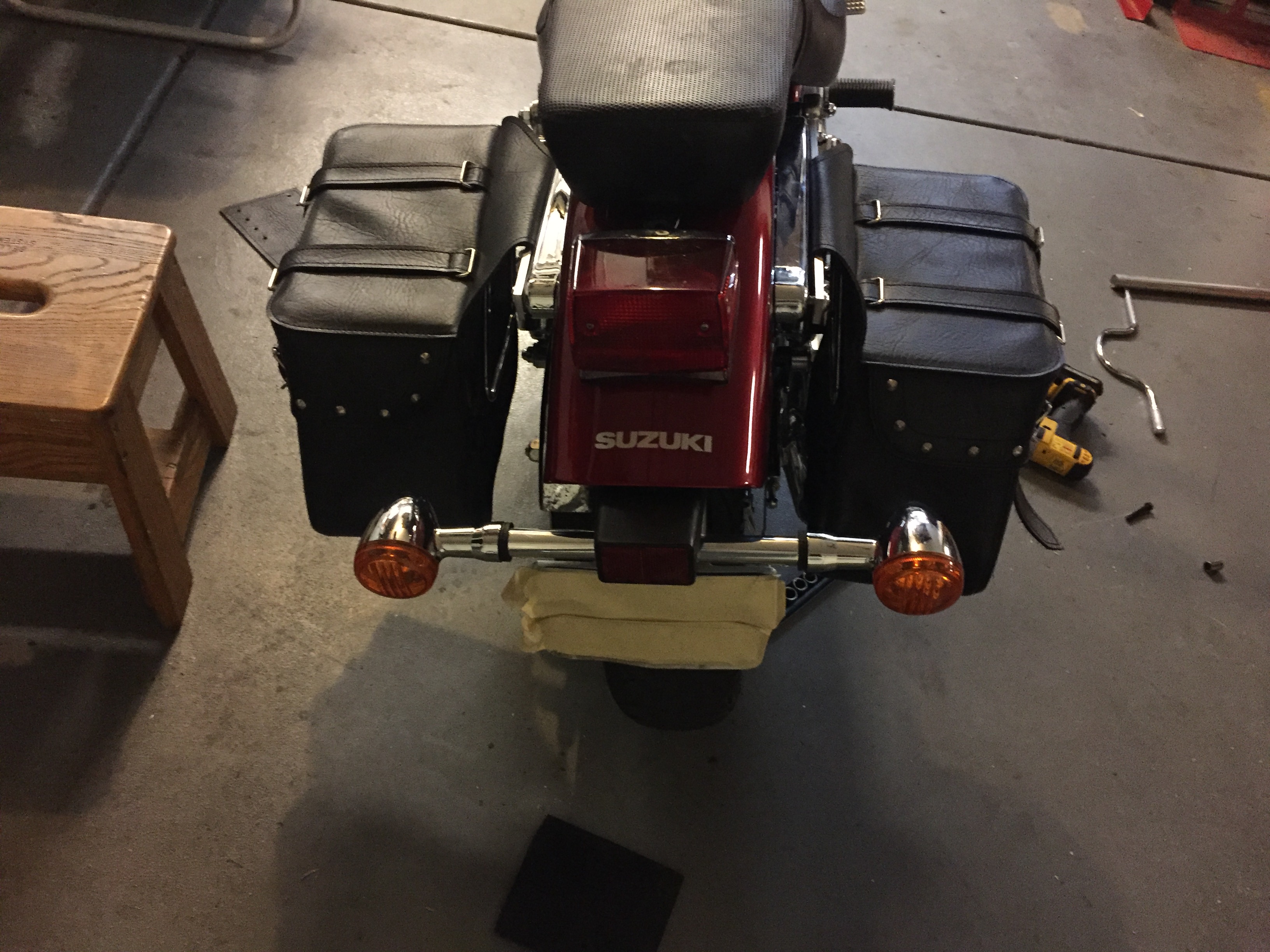

Next I rounded the edges with a sander and polished them up. This is how they turned out. It wasn't real complicated and I like the look. I hope this will give somebody an idea who can't make a decision on what to do about their bags.  Cheesy
Back to top



If at first you donít succeed destroy all evidence that you ever tried.
  IP Logged
Kenny G
Serious Thumper
*****
Offline

SuzukiSavage.com The
Singles Club...LOL

Posts: 1754
Robson Ranch, Denton, Texas
Gender: male
Re: Saddle bag installation
Reply #13 - 02/18/17 at 07:01:33

T140,

Good Job!

Do you recall what size the aluminum tubing is?

Kenny
Back to top


  IP Logged
IslandRoad
Serious Thumper
*****
Offline

It doesn't vibrate,
it purrs!

Posts: 1116
The Kiewa Valley, Australia
Gender: male
Re: Saddle bag installation
Reply #14 - 02/18/17 at 18:47:23

They came up looking great!

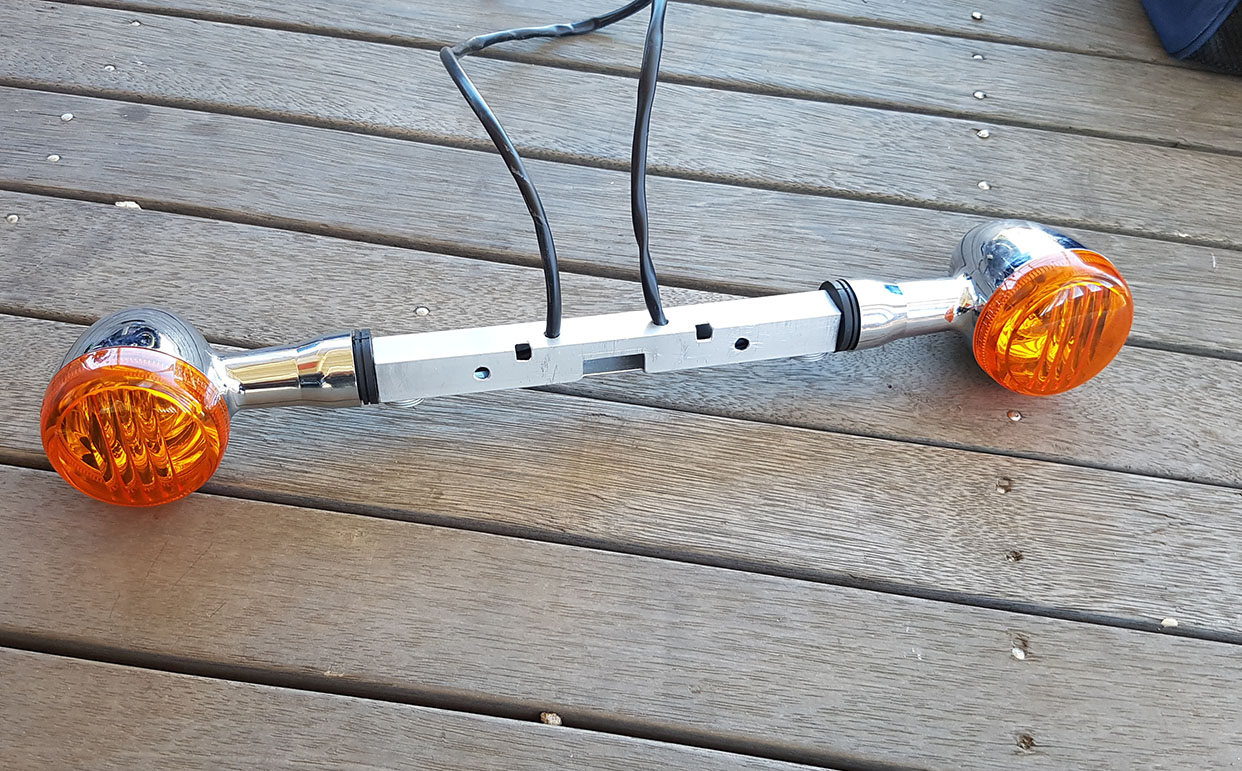

I found some square section aluminium which the turn signal mount fitted into (with one washer to snug it up). †Mounting to the licence plate bracket tilted them up a bit, which bothered me at first, but hey, at least they point straight at the driver behind me Wink

Back to top



S40, 2014, Dyna, Raptor, 52.5/152.5, spacer mod, sea level, cat-eye LED tail light, bullet style halogen turn signals, 'Superbars' with custom 40mm risers, modified stock seat, Metzeler tyres.
  IP Logged
