Main jet advice (Read 491 times)
stewmills
Serious Thumper
*****
Offline

Imagination is more
important than
knowledge

Posts: 2635
Auburn, AL
Gender: male
Re: Main jet advice
Reply #15 - 11/02/16 at 16:09:46

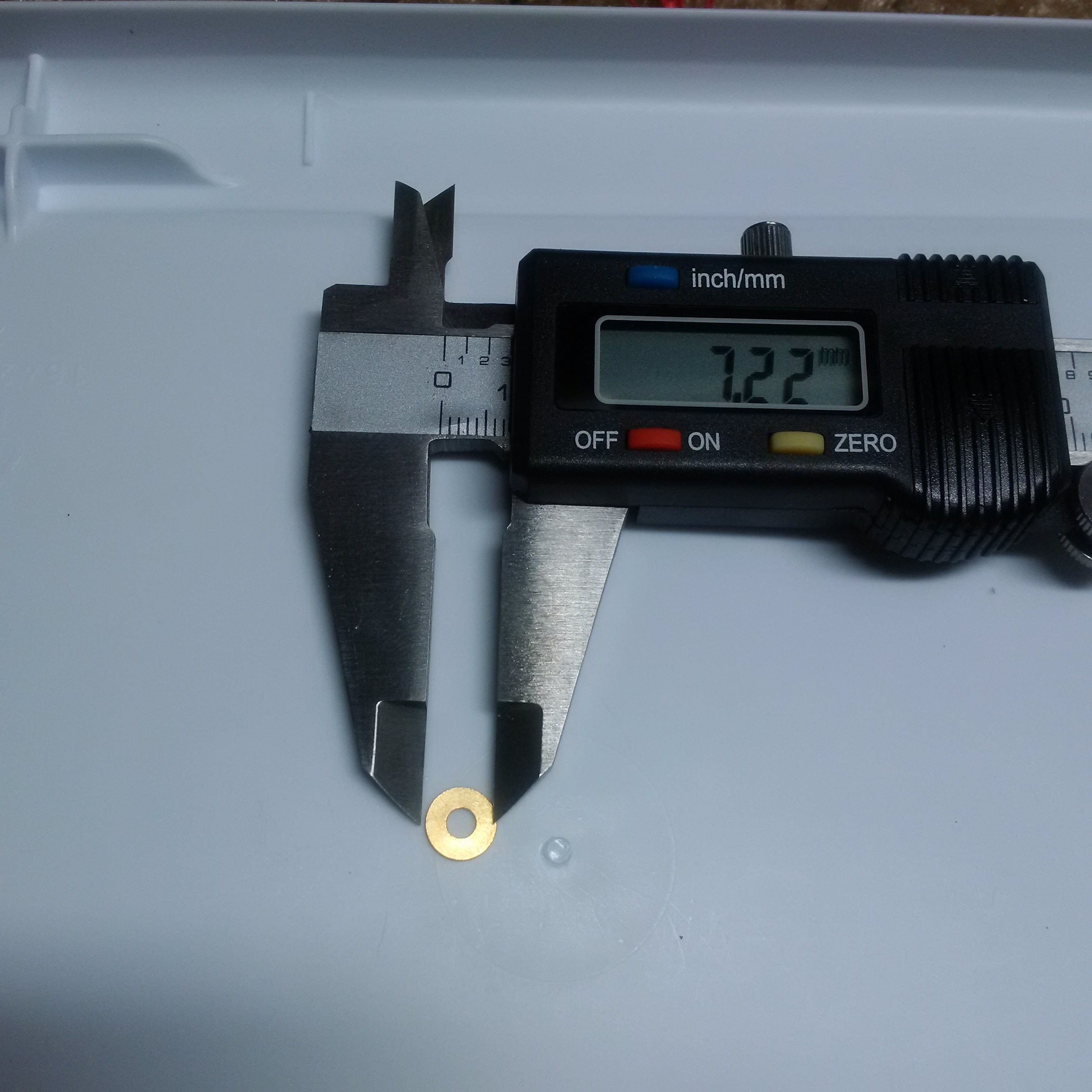

I found brass #4 washers. If this is the correct #4, mm measurements are below. Note that the measurements are exact, I just had to lay it down in the first image and it just looks like an inaccurate position.
Back to top



2008 | 152/52.5–Air Mix 3/4 | Rotella T4 | Seat Lift w/Sheepskin | Speedo Rattle | Rear Pulley Shim | 140/90-15 Rear | Kaw Front Pulley | Relocated Rear Signals

FREEDOM ISN'T FREE!
  IP Logged
stewmills
Serious Thumper
*****
Offline

Imagination is more
important than
knowledge

Posts: 2635
Auburn, AL
Gender: male
Re: Main jet advice
Reply #16 - 11/02/16 at 16:10:16

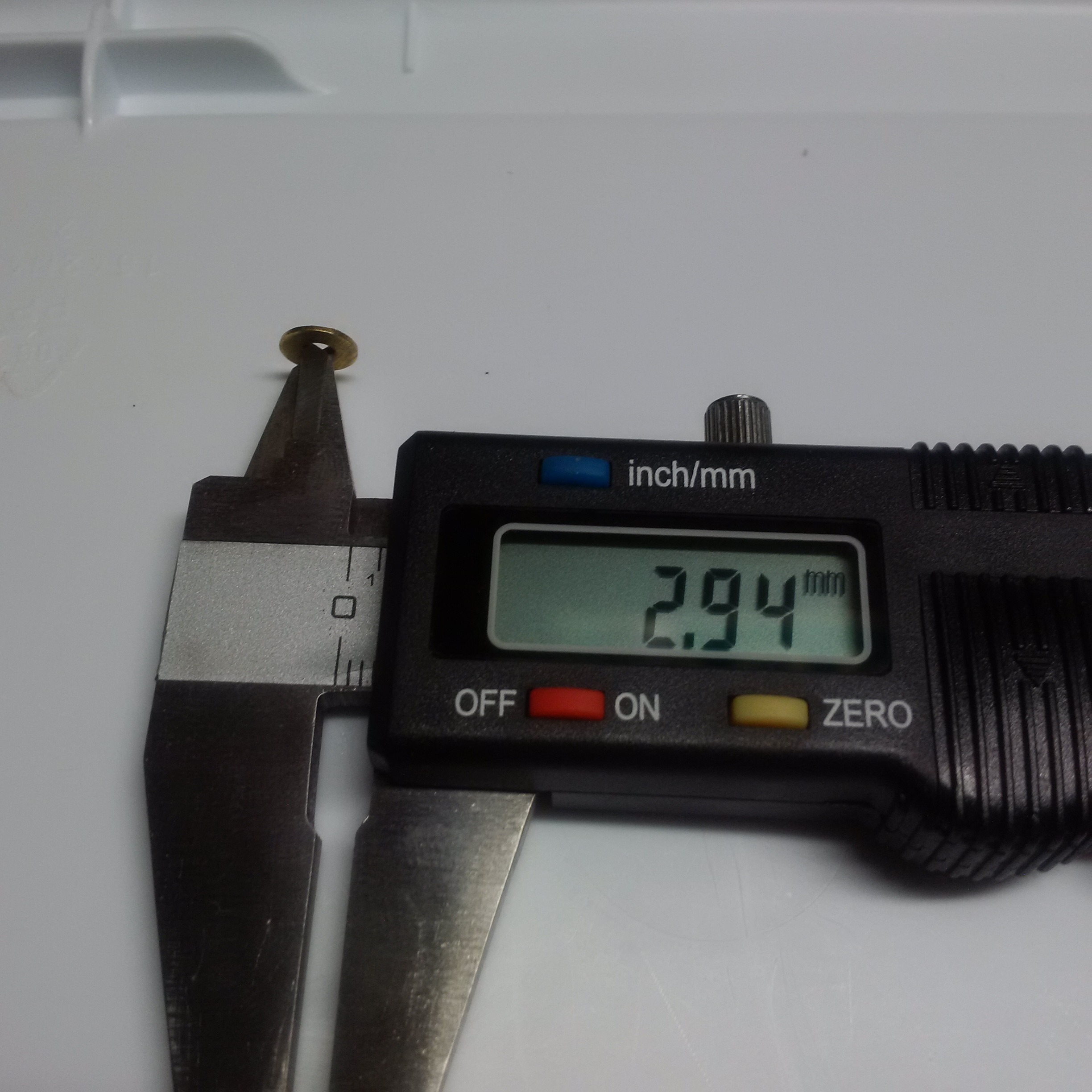

Inside
Back to top



2008 | 152/52.5–Air Mix 3/4 | Rotella T4 | Seat Lift w/Sheepskin | Speedo Rattle | Rear Pulley Shim | 140/90-15 Rear | Kaw Front Pulley | Relocated Rear Signals

FREEDOM ISN'T FREE!
  IP Logged
stewmills
Serious Thumper
*****
Offline

Imagination is more
important than
knowledge

Posts: 2635
Auburn, AL
Gender: male
Re: Main jet advice
Reply #17 - 11/02/16 at 16:11:14

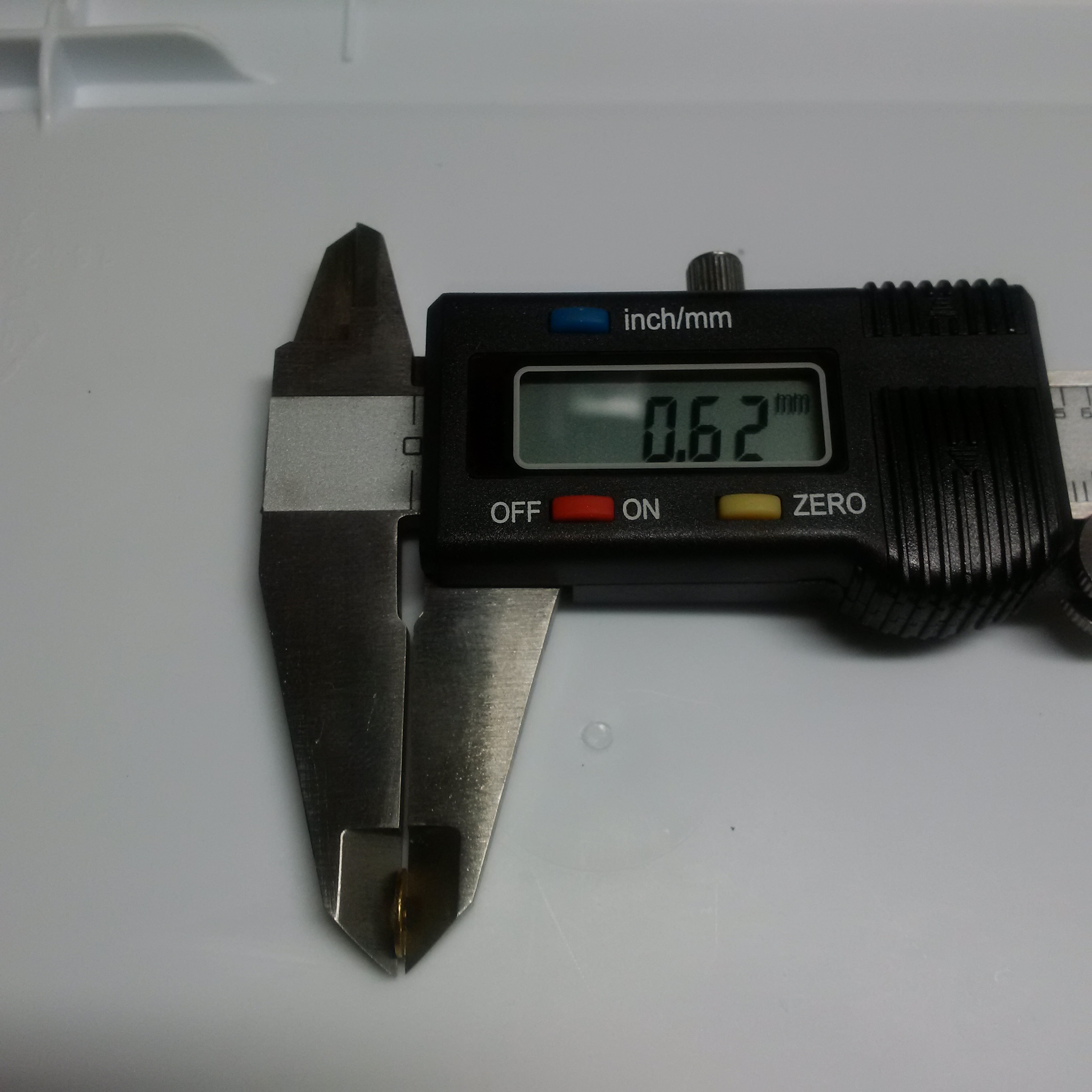

Thickness
Back to top



2008 | 152/52.5–Air Mix 3/4 | Rotella T4 | Seat Lift w/Sheepskin | Speedo Rattle | Rear Pulley Shim | 140/90-15 Rear | Kaw Front Pulley | Relocated Rear Signals

FREEDOM ISN'T FREE!
  IP Logged
Mekh
Full Member
***
Offline

Suzuki Savage Rocks!

Posts: 128
Denmark
Gender: male
Re: Main jet advice
Reply #18 - 11/02/16 at 22:48:41

Thanks a lot.
/thumbsup

Seems like a 3mm metric washer should work:
ID: 3,2 mm
OD: 7 mm
t: 0,5 mm
Back to top


  IP Logged
LANCER
Serious Thumper
Alliance Member
*****
Offline

Savage Beast
Performance Parts

Posts: 10620
Oklahoma
Gender: male
Re: Main jet advice
Reply #19 - 11/05/16 at 19:52:57

Mekh wrote on 11/02/16 at 22:48:41:
Thanks a lot.
/thumbsup

Seems like a 3mm metric washer should work:
ID: 3,2 mm
OD: 7 mm
t: 0,5 mm


Yes I do sell washers like these and the jets you need.
If you have not already found them and want a set just PM me.
Back to top


  IP Logged
Mekh
Full Member
***
Offline

Suzuki Savage Rocks!

Posts: 128
Denmark
Gender: male
Re: Main jet advice
Reply #20 - 11/06/16 at 01:00:04

I'm considering and investigating possibilities right now...  Cam shaft and rocker being busted and all.
I'm seriously considering getting the cam from you,  but dasm customs taxes may make it too expensive.  Sad
Back to top


  IP Logged
Mekh
Full Member
***
Offline

Suzuki Savage Rocks!

Posts: 128
Denmark
Gender: male
Re: Main jet advice
Reply #21 - 11/06/16 at 01:39:12

Customs example:
Assuming a combined price of repaired cam and, jets, washers etc at around 2500 DKK... and 200 DKK for freight.



Customs calculator with setting for motorcycle parts:


Resulting price (Given that it's caught in customs):


Back to top


  IP Logged
LANCER
Serious Thumper
Alliance Member
*****
Offline

Savage Beast
Performance Parts

Posts: 10620
Oklahoma
Gender: male
Re: Main jet advice
Reply #22 - 11/06/16 at 05:17:02

It is my understanding that the fees and taxes are all based on the insured and declared value on my end.
I have, at the request of others, decreased that declared/insured value, and as far as I know that decreased what they had to pay.
The downside is that if for some reason the package was lost in transit the reembersement would be for that lower insured value.
That is very slight risk as I have never lost a package yet in more than 10 years of sending packages all over the world to every continent except Africa.
If you want to do that I will do it.
I don't have an issue doing that because the Performance Camshaft is made using a used cam, and I can claim it as a used part in all good conscience even though it has been repaired Better than New.
Back to top


  IP Logged
justin_o_guy2
Serious Thumper
*****
Offline

What happened?

Posts: 55279
East Texas, 1/2 dallas/la.
Re: Main jet advice
Reply #23 - 11/06/16 at 19:08:55

Regardless of condition, it Is a refurbished, Used part.
Lumpier and shinier than the old one.
Back to top



The people never give up their liberties but under some delusion.- Edmund Burke.
  IP Logged
LANCER
Serious Thumper
Alliance Member
*****
Offline

Savage Beast
Performance Parts

Posts: 10620
Oklahoma
Gender: male
Re: Main jet advice
Reply #24 - 11/06/16 at 22:23:50

justin_o_guy2 wrote on 11/06/16 at 19:08:55:
Regardless of condition, it Is a refurbished, Used part.
Lumpier and shinier than the old one.



Yep, that's what I said. 😁😎
Back to top


  IP Logged
ohiomoto
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 2711
WTF is JOG?
Re: Main jet advice
Reply #25 - 11/07/16 at 04:43:42

Are we still talking main jets here????   Huh Huh
Back to top


  IP Logged
Dave
YaBB Moderator
ModSquad
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 17893
Camp Springs, Kentucky
Gender: male
Re: Main jet advice
Reply #26 - 11/07/16 at 04:49:07

ohiomoto wrote on 11/07/16 at 04:43:42:
Are we still talking main jets here????   Huh Huh


The last few posts have jumped to the damaged camshaft....and the cost/tariffs required to ship the parts to Denmark....as discussed in this thread.
http://suzukisavage.com/cgi-bin/YaBB.pl?num=1478354612
Back to top



Someday I will be old......But not today!

  IP Logged
d3adrock
Full Member
***
Offline



Posts: 111

Re: Main jet advice
Reply #27 - 12/20/19 at 11:34:02

Can this bike be rejet without taking the carb out?
Back to top


  IP Logged
verslagen1
YaBB Moderator
ModSquad
*****
Offline

Where there's a
will, I want to be
in it.

Posts: 28834
L.A. California
Gender: male
Re: Main jet advice
Reply #28 - 12/20/19 at 11:45:43

d3adrock wrote on 12/20/19 at 11:34:02:
Can this bike be rejet without taking the carb out?

yes, both the main and the pilot jet can be replaced by removing the bowl while the carb is on the bike.
You may need a little more room to drop the bowl.  And you can do that with a ratchet strap around the bat box to pull it back a little.
Back to top


WWW   IP Logged
IslandRoad
Serious Thumper
*****
Offline

It doesn't vibrate,
it purrs!

Posts: 1147
The Kiewa Valley, Australia
Gender: male
Re: Main jet advice
Reply #29 - 12/20/19 at 16:16:47

I'm gonna add a little tip here for removing the jets with the carb in place:

The jets are soft brass, and the slot for the screwdriver runs across the hole in the jet, and they can stick, and you need to get the screwdriver into a narrow channel. I'd suggest making sure you have a small screwdriver that is in good condition (a clean edge). I bought one that is also narrow (it doesn't have the flare on the end that most do). I only use it for replacing jets. My girlfriend picked it up one day to undo a screw on a door or something - that was the day she learned the rules about my tools  Grin

It might seem like a small thing, but if you're going top poke around in the carb in situ, you don't want to bodgy anything up, otherwise you'll be removing it anyway to repair the stuff you mashed outta shape. Cool

Aaaand ... as others have said before, swap the carb-bowl screws with some SS allen key screws (and put some anti-seize on them) while you're there. It makes life easier later.
Back to top



S40, 2014, Dyna, Raptor, 52.5/152.5, spacer mod, sea level, cat-eye LED tail light, bullet style halogen turn signals, 'Superbars' with custom 40mm risers, modified stock seat, Metzeler tyres.
  IP Logged
