Air/Mix Screw Picture (Read 84 times)

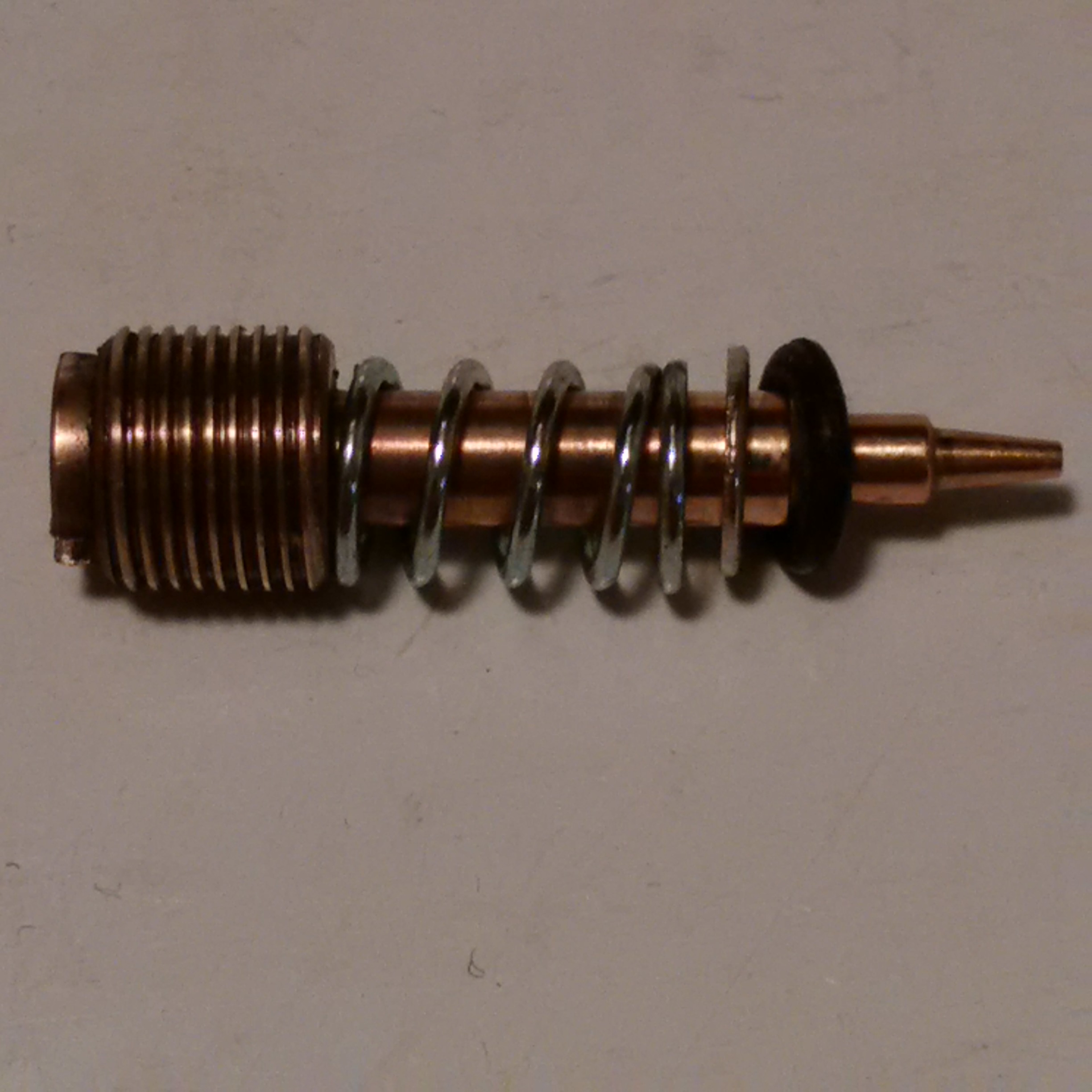

stewmills Serious Thumper Offline Imagination is more important than knowledge Posts: 2630 Auburn, AL Gender:	Air/Mix Screw Picture 10/06/16 at 17:03:47 I don't think I have seen one here before, so here is a picture of your air mix screw. I had to pull mine today so I thought I would share. Note there are 4 parts (in order from R to L, the order the parts go in): - rubber o ring - flat washer - spring - screw Hope this helps!
Back to top	IMG_20161006_182230.jpg 2008 \| 152/52.5–Air Mix 3/4 \| RT6 w/Redline \| Seat Lift w/Sheepskin \| Speedo Rattle \| Rear Pulley Shim \| 140/90-15 Rear \| Kaw Front Pulley \| Relocated Rear Signals FREEDOM ISN'T FREE! IP Logged

engineer Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 872 Gender:	Re: Air/Mix Screw Picture Reply #1 - 10/06/16 at 18:02:17 Thanks for the picture, I've never seen one. The end is sturdier than I thought it would be. I had assumed that it tapered to a fairly sharp point.
Back to top	2005 S40, Intruder shocks, Dyna, 52.5/150, 3 washers, 2 turns, modified seat, Raptor IP Logged

Kris01 Serious Thumper Offline Eat, sleep, RIDE! Posts: 3767 Tennessee Gender:	Re: Air/Mix Screw Picture Reply #2 - 10/06/16 at 18:43:59 FWIW, turning the screw CCW will pull the tapered end out of its orifice allowing more room for fuel to flow. In other words, CCW=richer. CW=leaner.
Back to top	There's no problem that a full tank of gas and a sunny day can't fix! 2008 S40, Rotella T 15W-40 w/ZDDP added, Dyna, 140/90-15, Battery Tender Jr., Seat lift, #52.5/150/3 washers, Raptor IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: Air/Mix Screw Picture Reply #3 - 10/06/16 at 19:56:54 engineer wrote on 10/06/16 at 18:02:17: Thanks for the picture, I've never seen one. The end is sturdier than I thought it would be. I had assumed that it tapered to a fairly sharp point. I was pretty sure it was a very pointed thing. I have been WRONG,, or, that is messed up.
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

stewmills Serious Thumper Offline Imagination is more important than knowledge Posts: 2630 Auburn, AL Gender:	Re: Air/Mix Screw Picture Reply #4 - 10/06/16 at 20:20:50 I was surprised too, but that's it. Not smushed by me. Flat on the end.
Back to top	2008 \| 152/52.5–Air Mix 3/4 \| RT6 w/Redline \| Seat Lift w/Sheepskin \| Speedo Rattle \| Rear Pulley Shim \| 140/90-15 Rear \| Kaw Front Pulley \| Relocated Rear Signals FREEDOM ISN'T FREE! IP Logged

Dave YaBB Moderator ModSquad Offline SuzukiSavage.com Rocks! Posts: 17831 Camp Springs, Kentucky Gender:	Re: Air/Mix Screw Picture Reply #5 - 10/07/16 at 04:12:39 And.....when you open your fuel mixture screw - don't go beyond 3 turns from lightly seated. At 3 turns the screw is so far out of the hole that no additional fuel will flow if you open the screw any farther. If you can't get the mixture rich enough at 3 turns....it is time to install a larger pilot jet.
Back to top	Someday I will be old......But not today! IP Logged
