SuzukiSavage.com - Fork Brace Recommendations

Kenny G Serious Thumper Offline SuzukiSavage.com The Singles Club...LOL Posts: 1754 Robson Ranch, Denton, Texas Gender:	Re: Fork Brace Recommendations Reply #15 - 07/26/16 at 09:44:11 Stew, Where I found the T-Kat brace of most benefit is on roads that have the asphalt snakes running the same direction as the roadway. In North Texas that is virtually every road that I ride on. Before I had a lot of wiggle on the snakes, after no perceivable wiggle. Kenny G
Back to top	IP Logged

Paladin. Serious Thumper Offline Hamster Posts: 4929 Sunny Southern California Gender:	Re: Fork Brace Recommendations Reply #16 - 07/26/16 at 17:18:59 T-Kat is functional, the Superbrace is smoother. Both do the same job. I don't push the bike, but definitely noticed the bike was stabler with the brace.
Back to top	IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: Fork Brace Recommendations Reply #17 - 07/26/16 at 17:29:36 Mine was so stable I stopped using the sidestand when the wind wasn't over twenty MPH.
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

old.indian Serious Thumper Offline Fighting Foreign Terrorism since 1492 Posts: 975 Central New Mexico Gender:	Re: Fork Brace Recommendations Reply #18 - 07/26/16 at 17:40:27 justin_o_guy2 wrote on 07/26/16 at 17:29:36: Mine was so stable I stopped using the sidestand when the wind wasn't over twenty MPH. I see that you neglected to take your meds AGAIN...
Back to top	Lectron carb, modified head, stage 3 cam, Wiseco piston, header and Dyna, Varsi's cam chain adjuster, head plug and drilled rotor, Tkat, 12" shocks and 17/43 chain conversion.EdL's 4"FCs IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: Fork Brace Recommendations Reply #19 - 07/26/16 at 18:44:48 I'll get back on them First thing in the morning Chief, Scouts Honor...
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

stewmills

Serious Thumper

Offline

Imagination is more
important than
knowledge

Posts: 2641
Auburn, AL
Gender: male

Re: Fork Brace Recommendations
Reply #20 - 07/26/16 at 19:55:47

So it looks like to install the tkat we have to remove the plastic fork shields, right? I was out measuring my forks per the tkat measure guide and it seems like the shields cover up the area that I need some measurements on but I don't want to just rip them off.

Is there a way to remove the shields safely or do I have to cut a slit in the back so I can peel them off?

Also, did those of you that got the tkat have to give detailed measurements or just your make, model, year and he took care of it? Said he has been making these for 30 years so I want to think he has a stockpile of measurements and knows what he's doing.

Back to top

IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28903 L.A. California Gender:	Re: Fork Brace Recommendations Reply #21 - 07/26/16 at 20:04:26 I understand someone knocked them off with a piece of wood.
Back to top	Versey's Place Tech Section Index IP Logged

stewmills Serious Thumper Offline Imagination is more important than knowledge Posts: 2641 Auburn, AL Gender:	Re: Fork Brace Recommendations Reply #22 - 07/26/16 at 20:15:23 verslagen1 wrote on 07/26/16 at 20:04:26: I understand someone knocked them off with a piece of wood. You're not referring to jog`s head are you?
Back to top	2008 \| 152/52.5–Air Mix 3/4 \| Rotella T4 \| Seat Lift w/Sheepskin \| Speedo Rattle \| Rear Pulley Shim \| 140/90-15 Rear \| Kaw Front Pulley \| Relocated Rear Signals FREEDOM ISN'T FREE! IP Logged

old.indian Serious Thumper Offline Fighting Foreign Terrorism since 1492 Posts: 975 Central New Mexico Gender:	Re: Fork Brace Recommendations Reply #23 - 07/26/16 at 20:23:05 stewmills wrote on 07/26/16 at 20:15:23: verslagen1 wrote on 07/26/16 at 20:04:26: I understand someone knocked them off with a piece of wood. You're not referring to jog`s head are you? Indubitably ....
Back to top	Lectron carb, modified head, stage 3 cam, Wiseco piston, header and Dyna, Varsi's cam chain adjuster, head plug and drilled rotor, Tkat, 12" shocks and 17/43 chain conversion.EdL's 4"FCs IP Logged

Kenny G

Serious Thumper

Offline

SuzukiSavage.com The
Singles Club...LOL

Posts: 1754
Robson Ranch, Denton, Texas
Gender: male

Re: Fork Brace Recommendations
Reply #24 - 07/26/16 at 20:36:43

Stew,

I just told him I had a 2013 S40 and he shipped the correct fork brace.

I split the seal protectors with a brand new utility knife blade and I could contact cement them back on if I ever removed the fork brace.

If you buy the brace make sure you cover the fender with cardboard when doing the installation to prevent scratching the paint.

Off topic, I am now using your rubber thingy on my rear wheel. I had a flat tire on an almost new rear tire on a hundred degree day.....

Kenny G

Back to top

IP Logged

Dave

YaBB Moderator
ModSquad

Offline

SuzukiSavage.com
Rocks!

Posts: 18137
Camp Springs, Kentucky
Gender: male

Re: Fork Brace Recommendations
Reply #25 - 07/27/16 at 03:37:12

Yep....a small block of wood with a nice square corner, and a tap from a hammer will knock them out of the retaining grooves. You will have to work your way around before you drive any one side up very far. Work them up a little at a time.

Then....you need to decide if you want to cut them off so they aren't dangling around - or remove the fork tubes from the triple clamp so you can save the shields.

Back to top

Someday I will be old......But not today!

IP Logged

stewmills

Serious Thumper

Offline

Imagination is more
important than
knowledge

Posts: 2641
Auburn, AL
Gender: male

Re: Fork Brace Recommendations
Reply #26 - 07/27/16 at 05:35:35

Thanks folks! That makes me feel better as I was not sure I was measuring very well.

I'll probably cut the shields off delicately to save them...I don't want to have to start taking apart the forks, etc.

KennyG, I hope the shim is working well for you. Hate to hear about the flat. I had a new rear last year with about 600 miles on it and picked up a nail. Rode too far to feel safe with the damage to the tire and had to buy a new tire and tube. Sad

Back to top

IP Logged

stewmills

Serious Thumper

Offline

Imagination is more
important than
knowledge

Posts: 2641
Auburn, AL
Gender: male

Re: Fork Brace Recommendations
Reply #27 - 08/11/16 at 12:28:15

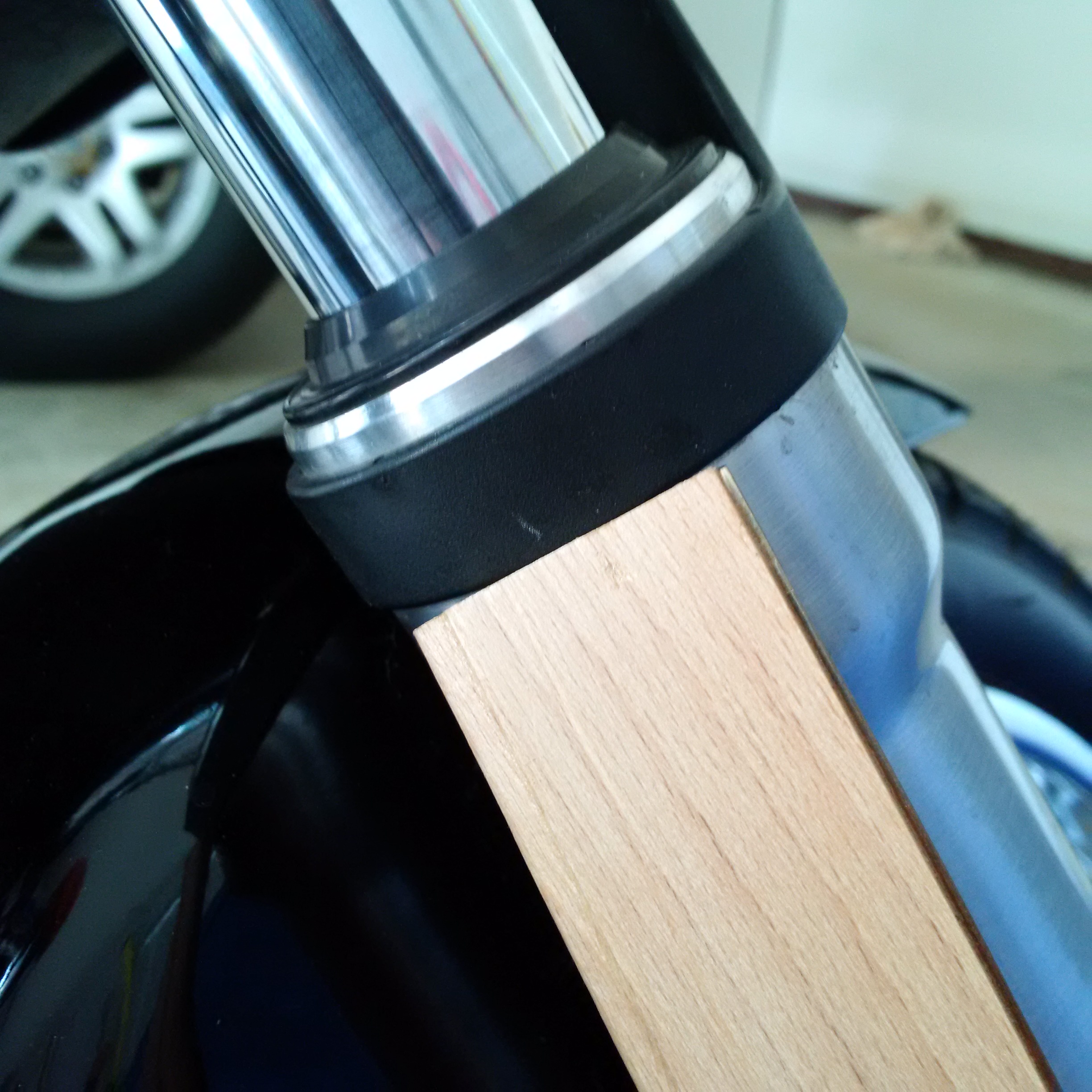

So I got my TKAT in the mail today. For those that have had to remove the fork guards, did you just use a piece of wood like this (see image) and give it a few whacks at the bottom lip of the plastic and it will then jump out of the groove? My goal is to carefully split it down the middle (backside) to remove it from the fork so if I ever need to, I can snap it back on with a little glue and it still look nice. I thought cutting it first with a utility knife right there in the groove but I am trying to avoid scoring a line in the fork...and my hand Shocked

Thanks!

Back to top


IP Logged

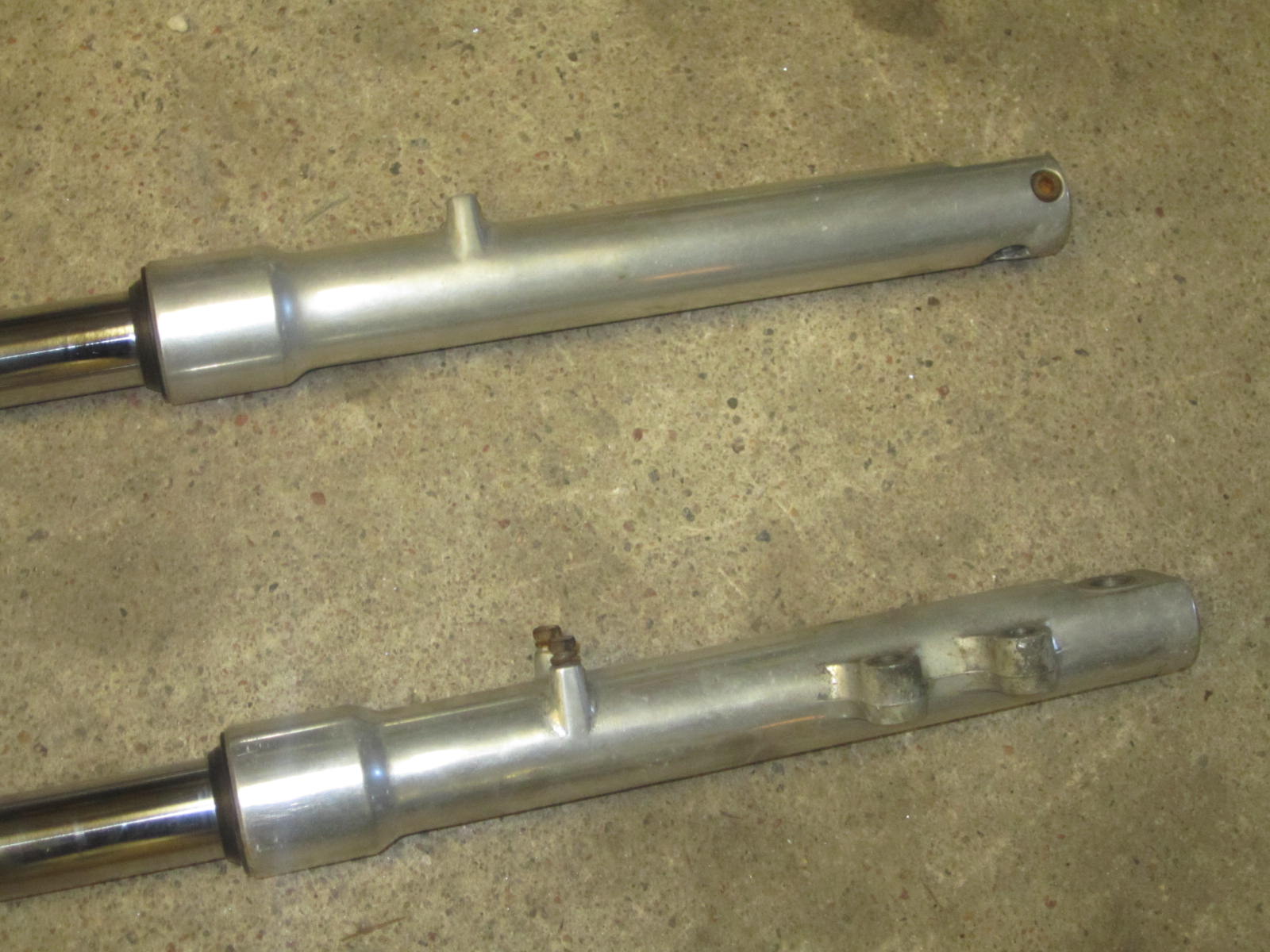

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28903 L.A. California Gender:	Re: Fork Brace Recommendations Reply #28 - 08/11/16 at 12:44:55 I found an image with the fork protectors removed. It shows a locating notch on the inside next to the fender. I think that's where I'd go after it. Remove the fender, and wheel, put the wood there and give it a smack. At least, this would be a hidden place in case YOU screw up.
Back to top	Versey's Place Tech Section Index IP Logged

stewmills Serious Thumper Offline Imagination is more important than knowledge Posts: 2641 Auburn, AL Gender:	Re: Fork Brace Recommendations Reply #29 - 08/11/16 at 12:59:32 Now...these are reportedly from a 1987, but I see no indents? I presume it is different on the 2008 model?
Back to top	Suzuki_LS650_Etu_putket.JPG 2008 \| 152/52.5–Air Mix 3/4 \| Rotella T4 \| Seat Lift w/Sheepskin \| Speedo Rattle \| Rear Pulley Shim \| 140/90-15 Rear \| Kaw Front Pulley \| Relocated Rear Signals FREEDOM ISN'T FREE! IP Logged
