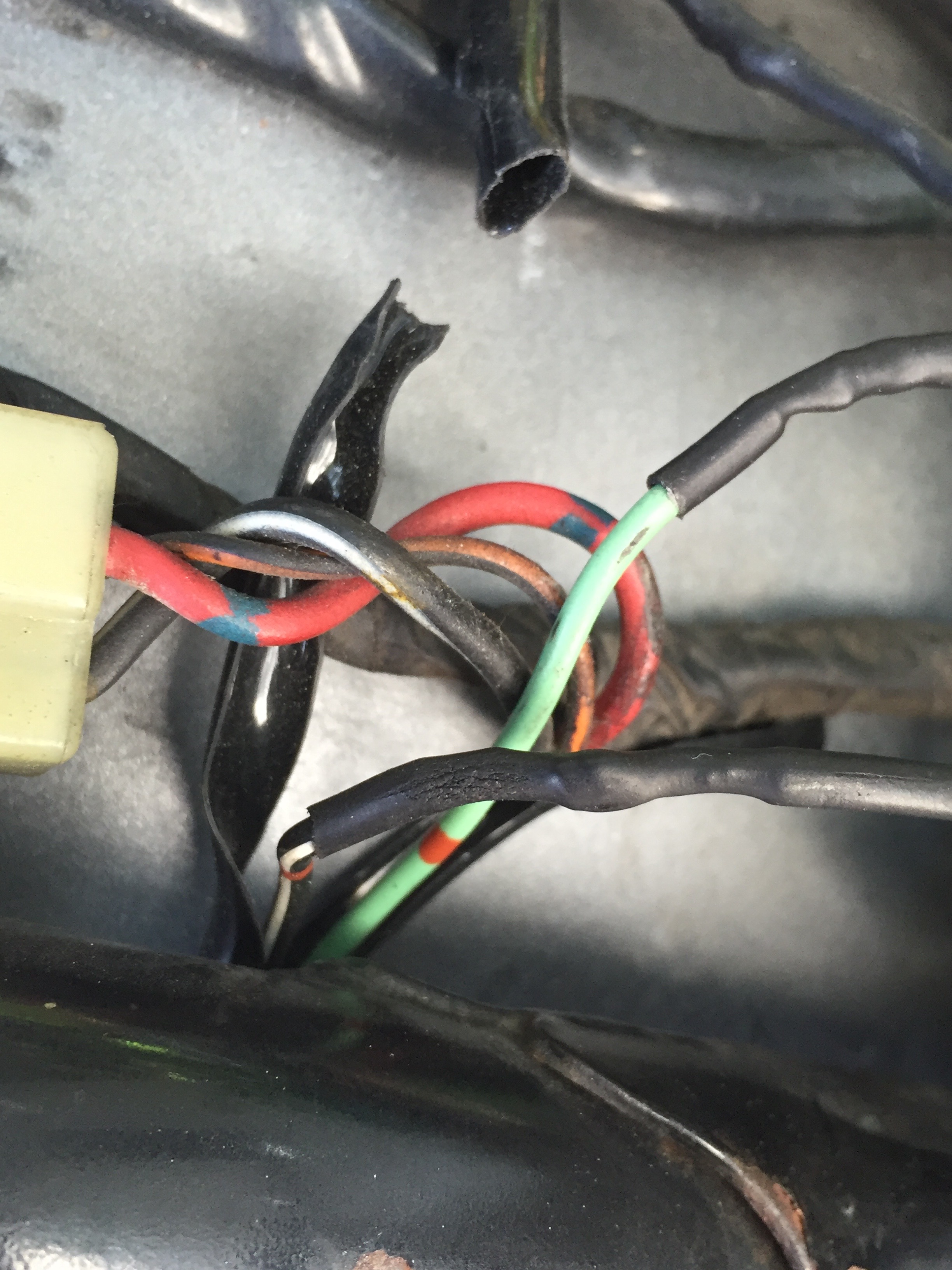

The turn signal splice that i described in the last post..

For anyone still lying awake at night wondering if i found the issue...
So I ran through all of my connections/contact areas, cleaned, sprayed, and greased all of them from front to back.  On a few other sites/threads I noticed a handful of riders complaining about the same issue with the melted terminals.  And almost all of them mentioned how a loose connection to the battery might cause this type of problem.  So I went out and got a new battery, cleaned the terminals made sure the contact with the battery was 100%.  And i also cut a piece of my cone filter out to insure an unobstructed air flow.  pulled the carb, cleaned it.  Started her up with ease, ran great.  I knew i didnt find the problem so i was very reluctant to even ride it.  Next day i ran through all the wiring AGAIN couldnt..find anything.
Yesterday I had my handlebars apart so i could lengthen my risers.  As im turning the handle bars left and right i notice i dont hear the tapping of the stopper (the two stoppers on the triple tree that stop the handle bars) when i turn to the right.  low and behold one of my turnsignal wires made its way in between and was getting smashed apart.  A tiny pinhole sized breech in my wire was causing my short circuit.  Taped it up for now till i have some time to patch it.  Havent had a problem since.

Thanks again for all your input

Them sparkens cause shorten and melten.
