Saddlebag Support Bracket Clearance (Read 203 times)
stewmills
Serious Thumper
Offline
Imagination is more
important than
knowledge
Posts: 2630
Auburn, AL
Gender:
Saddlebag Support Bracket Clearance
05/06/16 at 06:35:30

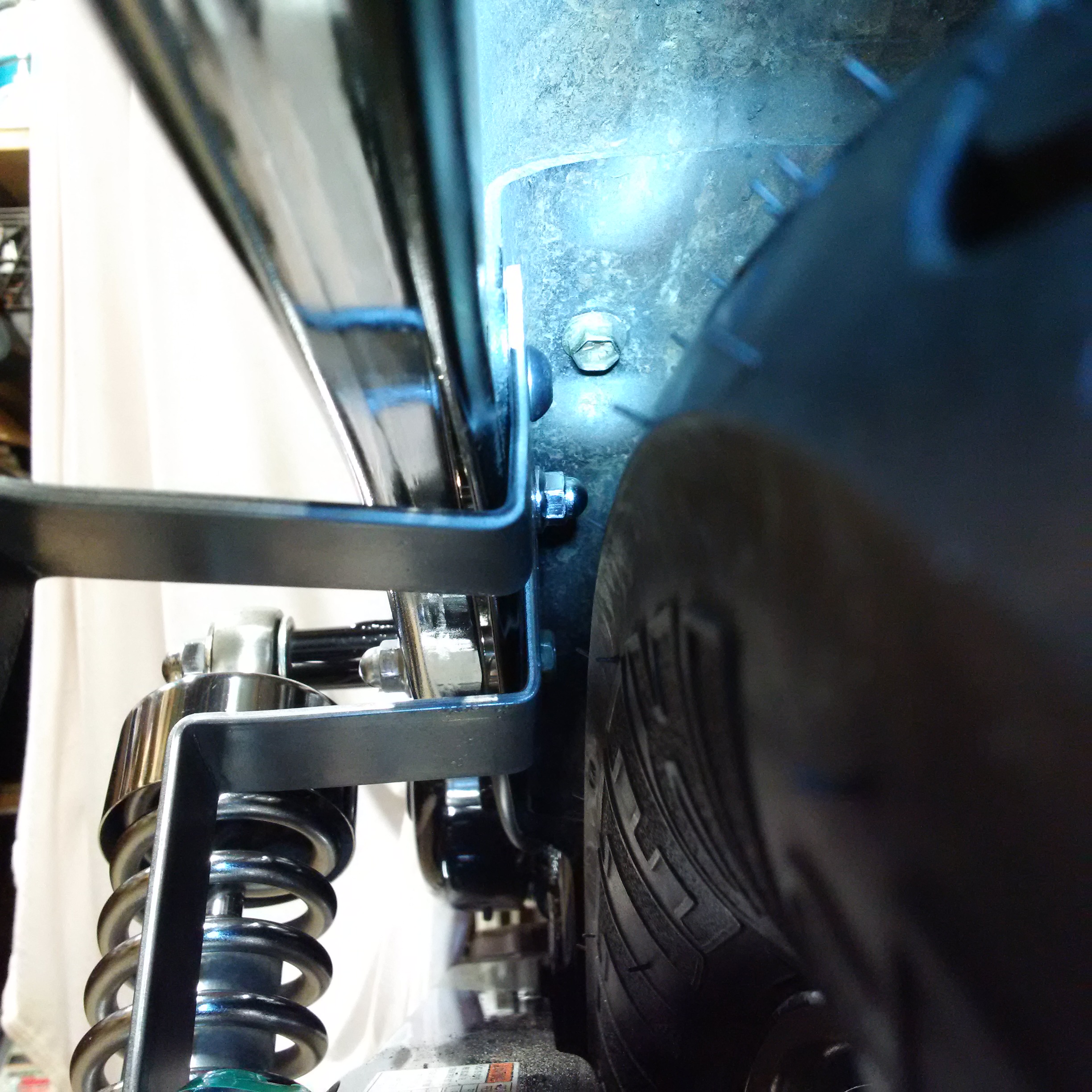

I am having to fabricate support brackets for my new saddlebags (the stock supports don't give enough support) and when I check the clearance it seems that there is roughly 3/8" to 1/2" clearance from the far outer edge of the tire to the near most point on the bracket and/or allen head bolt. See picture.
I thought this may be too close for comfort, but when I check the stock bracket on the other side that I have not removed yet it's nearly identical.
Anyone ever had issues with support bracket rubbing the tire? I guess as long as there is not lateral movement in the tire it's all good? It has never rubbed before. And if there is that much play in the rear tire I probably have worse things to worry about?
Thanks!
Back to top
2008 | 152/52.5–Air Mix 3/4 | RT6 w/Redline | Seat Lift w/Sheepskin | Speedo Rattle | Rear Pulley Shim | 140/90-15 Rear | Kaw Front Pulley | Relocated Rear Signals
FREEDOM ISN'T FREE!
IP Logged
stewmills
Serious Thumper
Offline
Imagination is more
important than
knowledge
Posts: 2630
Auburn, AL
Gender:
Re: Saddlebag Support Bracket Clearance
Reply #1 -
05/06/16 at 06:35:59

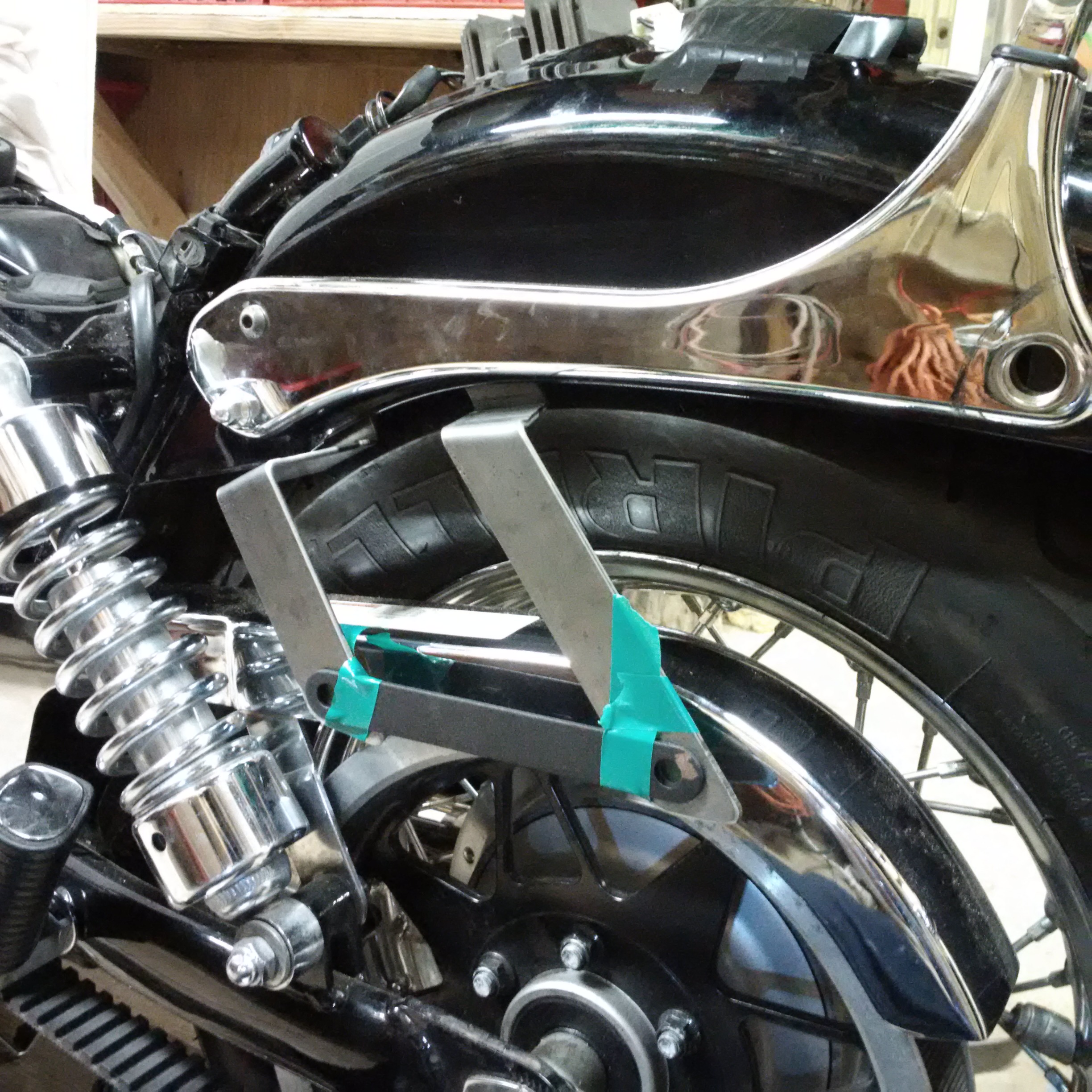

Just another side view of what I am mocking up.
Back to top
2008 | 152/52.5–Air Mix 3/4 | RT6 w/Redline | Seat Lift w/Sheepskin | Speedo Rattle | Rear Pulley Shim | 140/90-15 Rear | Kaw Front Pulley | Relocated Rear Signals
FREEDOM ISN'T FREE!
IP Logged
oldNslow
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 2679
Rochester, NY
Gender:
Re: Saddlebag Support Bracket Clearance
Reply #2 -
05/06/16 at 06:55:23
I have the OEM brackets. With a 140/90 Shinko 712 I had a problem with rubbing on one side of the tire even after switching to flat headed allen head bolts. I think it was the belt side of the bike but I'm not sure now.The edge of the bracket, not the bolt head, was touching the tire when I hit bumps. I moved the saddlebag brackets to the outside of the fender, between the fender and the chrome decorations.
Back to top
IP Logged
stewmills
Serious Thumper
Offline
Imagination is more
important than
knowledge
Posts: 2630
Auburn, AL
Gender:
Re: Saddlebag Support Bracket Clearance
Reply #3 -
05/06/16 at 07:39:20
Thanks, and good point to note. I do have the 140 90/15 rear tire as well which makes the gap a little less than the stock tire I guess. I think (hope) I am OK as it has never rubbed before. Going outside the fender is always an option, I am just hoping to not to have to do that because I know that my homemade brackets will rub every stitch of paint off the fender where it makes contact.
Back to top
2008 | 152/52.5–Air Mix 3/4 | RT6 w/Redline | Seat Lift w/Sheepskin | Speedo Rattle | Rear Pulley Shim | 140/90-15 Rear | Kaw Front Pulley | Relocated Rear Signals
FREEDOM ISN'T FREE!
IP Logged
Art Webb
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 3007
columbus, Texas
Gender:
Re: Saddlebag Support Bracket Clearance
Reply #4 -
05/06/16 at 07:45:48
When I put the 140/90 on my Savage, it rubbed a bit during cornering with bumpy pavement
After a while it just...didn't, anymore
Back to top
IP Logged
stewmills
Serious Thumper
Offline
Imagination is more
important than
knowledge
Posts: 2630
Auburn, AL
Gender:
Re: Saddlebag Support Bracket Clearance
Reply #5 -
05/06/16 at 08:04:48
Art Webb wrote
on 05/06/16 at 07:45:48:
When I put the 140/90 on my Savage, it rubbed a bit during cornering with bumpy pavement
After a while it just...didn't, anymore
Maybe once you rub a little off, there isn't enough rubber left on there to rub anymore?
I have my shocks set closer to the stiff side and I am about 160lbs, so hopefully that minimizes the bounciness.
Back to top
2008 | 152/52.5–Air Mix 3/4 | RT6 w/Redline | Seat Lift w/Sheepskin | Speedo Rattle | Rear Pulley Shim | 140/90-15 Rear | Kaw Front Pulley | Relocated Rear Signals
FREEDOM ISN'T FREE!
IP Logged
old.indian
Serious Thumper
Offline
Fighting Foreign
Terrorism since 1492
Posts: 975
Central New Mexico
Gender:
Re: Saddlebag Support Bracket Clearance
Reply #6 -
05/06/16 at 09:47:34
Stock supports, 200 pound rider, notch 4 on stock shocks, 140/90-15 Michelin @ 36 psi and no problem. (Yes. The rear does bottom out on occasion, but still clearance...)
Back to top
Lectron carb, modified head, stage 3 cam, Wiseco piston, header and Dyna, Varsi's cam chain adjuster, head plug and drilled rotor, Tkat, 12" shocks and 17/43 chain conversion.EdL's 4"FCs
IP Logged
Kenny G
Serious Thumper
Offline
SuzukiSavage.com The
Singles Club...LOL
Posts: 1754
Robson Ranch, Denton, Texas
Gender:
Re: Saddlebag Support Bracket Clearance
Reply #7 -
05/06/16 at 10:47:31
Stew,
Are you going to sell the stock brackets?
Kenny G
Back to top
IP Logged
stewmills
Serious Thumper
Offline
Imagination is more
important than
knowledge
Posts: 2630
Auburn, AL
Gender:
Re: Saddlebag Support Bracket Clearance
Reply #8 -
05/06/16 at 12:47:56
Kenny G,
I may pass them along once I know for certain that I have this thing licked with my new brackets and I for sure don't need them. They are knicked and dinged and have had some pounding on one of them to realign it since one seemed to be bent (from the PO or POx2). So cosmetically they aren't a beauty but structurally they are fine. I'll keep you in mind once I get this all figured out.
Back to top
2008 | 152/52.5–Air Mix 3/4 | RT6 w/Redline | Seat Lift w/Sheepskin | Speedo Rattle | Rear Pulley Shim | 140/90-15 Rear | Kaw Front Pulley | Relocated Rear Signals
FREEDOM ISN'T FREE!
IP Logged
Kenny G
Serious Thumper
Offline
SuzukiSavage.com The
Singles Club...LOL
Posts: 1754
Robson Ranch, Denton, Texas
Gender:
Re: Saddlebag Support Bracket Clearance
Reply #9 -
05/06/16 at 14:01:45
Stew,
Thank you.
I can probably get then powder coated.
Kenny
Back to top
IP Logged
stewmills
Serious Thumper
Offline
Imagination is more
important than
knowledge
Posts: 2630
Auburn, AL
Gender:
Re: Saddlebag Support Bracket Clearance
Reply #10 -
05/10/16 at 20:32:58
Kenny G wrote
on 05/06/16 at 14:01:45:
Stew,
Thank you.
I can probably get then powder coated.
Kenny
Kenny G,
My homemade brackets seem to be doing the trick. I am going to confirm that at the Dragon this weekend and if no issues, we'll get my old brackets to you maybe next week. Stay tuned
Back to top
2008 | 152/52.5–Air Mix 3/4 | RT6 w/Redline | Seat Lift w/Sheepskin | Speedo Rattle | Rear Pulley Shim | 140/90-15 Rear | Kaw Front Pulley | Relocated Rear Signals
FREEDOM ISN'T FREE!
IP Logged
Kenny G
Serious Thumper
Offline
SuzukiSavage.com The
Singles Club...LOL
Posts: 1754
Robson Ranch, Denton, Texas
Gender:
Re: Saddlebag Support Bracket Clearance
Reply #11 -
05/10/16 at 20:56:13
Stew,
Cool.
Let me know so I can give you my PayPal information.
I really like the supports that you designed and made.
Kenny G
Back to top
IP Logged
stewmills
Serious Thumper
Offline
Imagination is more
important than
knowledge
Posts: 2630
Auburn, AL
Gender:
Re: Saddlebag Support Bracket Clearance
Reply #12 -
05/17/16 at 07:45:50
Kenny,

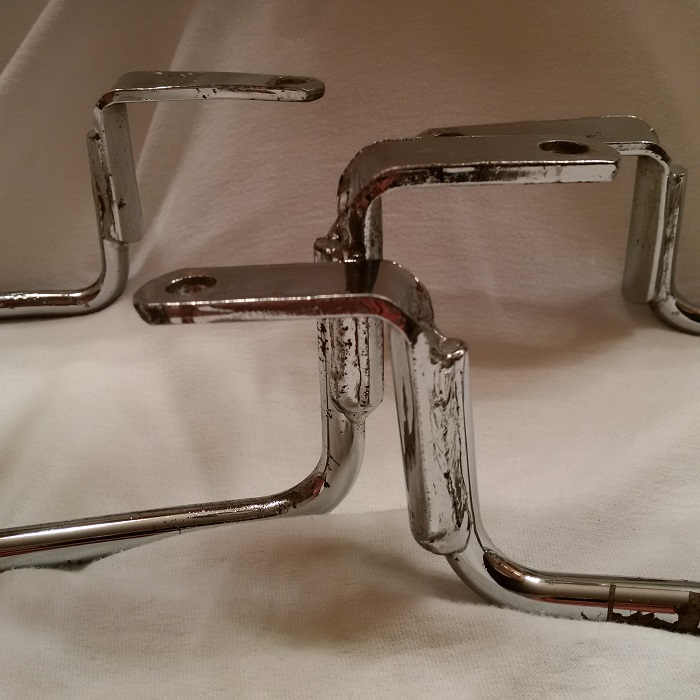

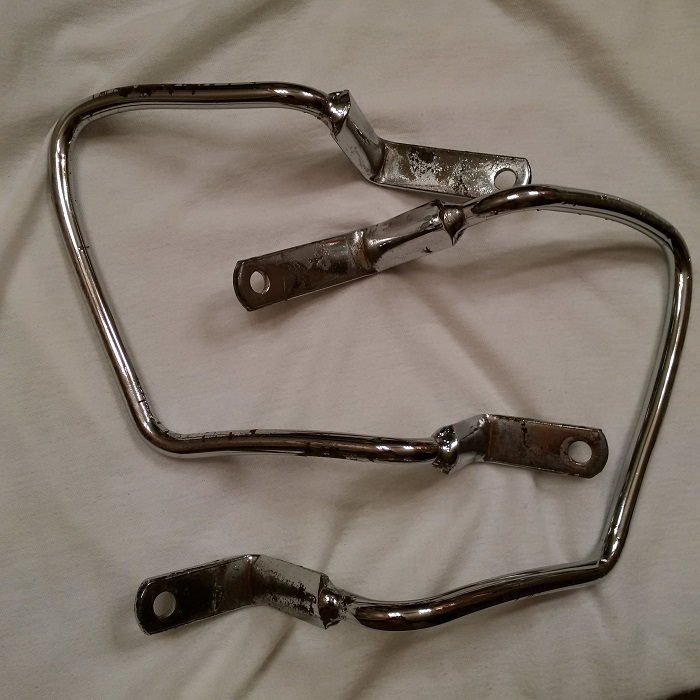

Support brackets are yours if you still want them. Here are a couple of images. Note that the L side bracket is offset more than the R side because of the L rear shock position. Obvious dings, marring, scratches, etc. as mentioned previously.
PM me for further discussion on arrangements.
Stew
Back to top
2008 | 152/52.5–Air Mix 3/4 | RT6 w/Redline | Seat Lift w/Sheepskin | Speedo Rattle | Rear Pulley Shim | 140/90-15 Rear | Kaw Front Pulley | Relocated Rear Signals
FREEDOM ISN'T FREE!
IP Logged
stewmills
Serious Thumper
Offline
Imagination is more
important than
knowledge
Posts: 2630
Auburn, AL
Gender:
Re: Saddlebag Support Bracket Clearance
Reply #13 -
05/17/16 at 07:46:07
side view
Back to top
2008 | 152/52.5–Air Mix 3/4 | RT6 w/Redline | Seat Lift w/Sheepskin | Speedo Rattle | Rear Pulley Shim | 140/90-15 Rear | Kaw Front Pulley | Relocated Rear Signals
FREEDOM ISN'T FREE!
IP Logged
DesertRat
Serious Thumper
Offline
I love rat bikes!
Posts: 1569
Arizona
Re: Saddlebag Support Bracket Clearance
Reply #14 -
05/17/16 at 07:56:04
are your new bags heavier or hardcase or something?
those stock hangers look beefy enough, a bit confused, as I tossed the ones that were on the bike when I bought it, BY ACCIDENT ...
Back to top
-The silence of indifference makes cowards of men.
-
http://www.pipeburn.com/home/category/rat
IP Logged
