Hi All,

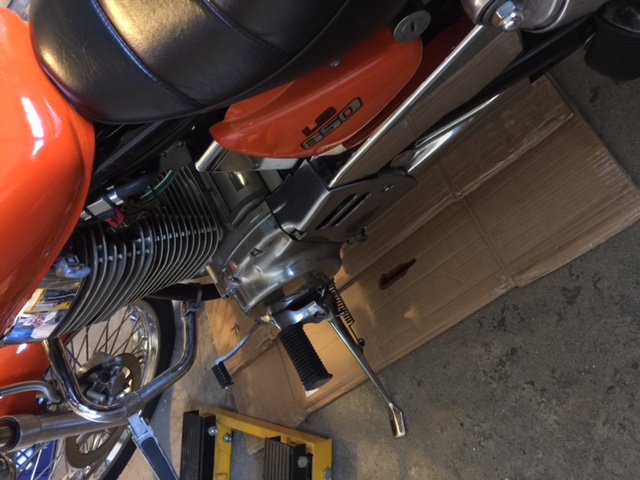

I posted a couple of pictures to try to explain myself.  There is a small leak (bike's been parked for 3 days) underneath where the kickstand attaches to the frame.  Looked underneath and everything looks dry.  The fuel valve is closed and it seems viscous, so it's got to be oil or something.

Worst part is, I picked this bike up just two weeks ago and I'm sort of scared to ride it to the shop to see if I can get things sorted out because I'm not sure if there's a bigger issue.  She's in dry dock for now.

Any thoughts?

One of the bolts for the footpeg mount is acually a really long bolt that goes through the entire engine case and holds the engine case halves together.

If that bolt is loose, oil can seep out of the seam between the cases, travel across the bolt because of the sidestand angle, then exit at the footpeg. When tightening, make sure you have a wrench on each end of the bolt. Otherwise it will probably just spin and not tighten up.

This is a fairly common problem when someone removes the right side footpeg mount when messing with the exhaust system.

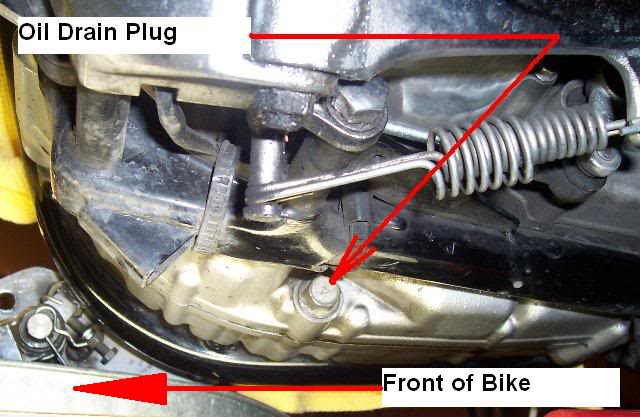

if it's not what bobert suggested, check to see if the puke tube is missing the cap.  This is the small-diameter tube that hangs under the bike to vent gunk and should be drained when you do your oil change.

JPSavage wrote on 03/09/16 at 11:08:15:


Yup, that's it.  Could easily be the through bolts as suggested.  If so, you want to get those tightened before riding too much.

I see oil on the head fins, this could mean you need a new head plug, if thats the issue then make sure to get a verslavy head plug and not just the original replaced with some goop.

If you want to take it to the shop, get someone to sit on the bike upright while you look in the oil window on the back of the right rear crankcase cover. if the oil level is between the two marks you should be fine. If you cant get someone get a piece of 6x6" wood about 2 3/4" thick and put the kickstand on that, be careful walking around the bike, by kneeling down to look in the oil level window, you can check your oil level. If the engine is cold, allow a minute or so before making your reading.

Ruttly wrote on 03/09/16 at 20:11:33:


Suzuki uses a very good RTV product.  You can't and shouldn't use much of it....because when you tighten the cases together it squeezes out from between the machined surfaces (you don't want thick globs of sealant hanging out the seam.  The product sets up a little bit slower than the common store bought stuff.....and it lasts a lot longer in the toolbox.  Every time I try to use my store bought stuff,  there is a hardened plug of RTV in the end no matter how carefully I put the cap on....the Suzuki stuff never gets that hardened stuff in the tube.  A tube of it may seem a bit expensive - but if you only use a little at a time it will outlast 10 tubes of the store bought stuff.

http://www.rcsperformanceonline.com/Suzuki_Bond_p/suzuki%20bond.htm


It is very common for the cases to leak when the footpeg bolts are loose - or you remove them while doing other work.  Nearly all of them stop leaking once you put the footpeg bolts back in and tighten them up (although they may continue to weep for a little while until the oil trapped in the bolt holes weeps out).

Thanks everyone,

I will give all of these a shot over the weekend. Too busy at the moment with work.

Cheers!  Keep the shiny side up!
