Adjuster check by external means
11/29/15 at 20:06:05

Tell me what you guys think.

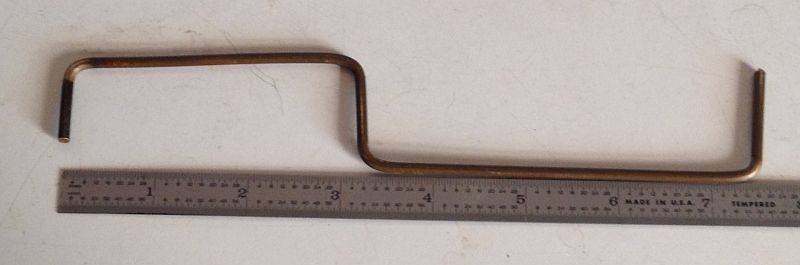

Make a calibrated bent wire to measure the extension of the adjuster.

You can hook the tensioner guide thru the oil port and with marks will be able to get a reading on the position of the plunger.

1st try looks promising.

I didn't have any music wire, maybe 1/8" or 3/16"

for this try I had some 1/8" brass wire handy.

all 90° bends

1st bend 3/4" long
2nd bend 3" but I think 2.5" will work better
3rd bend 1"
4th bend 4"
then cut off a 1" length

you should end up with long skinny S that'll sit flat on a table.

Back to top


Versey's Place
Tech Section Index

IP Logged

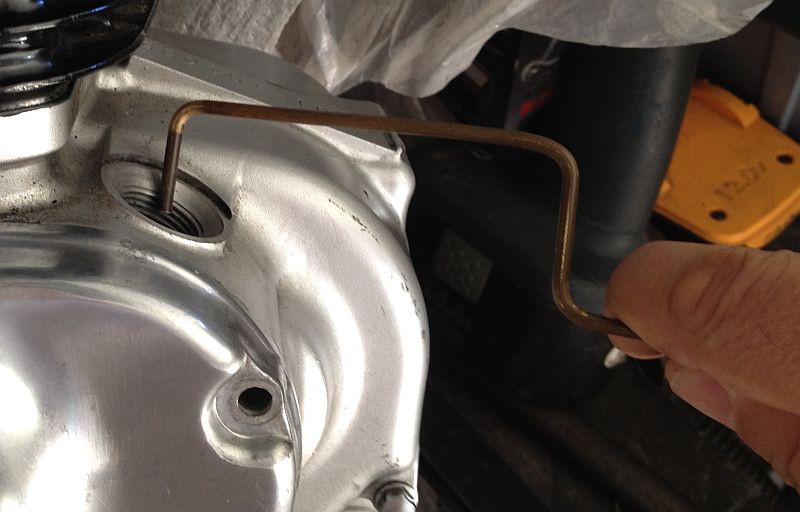

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28780 L.A. California Gender:	Re: Adjuster check by external means Reply #1 - 11/29/15 at 20:07:16 1. Stick the end in the oil filler port
Back to top	insert1.jpg Versey's Place Tech Section Index IP Logged

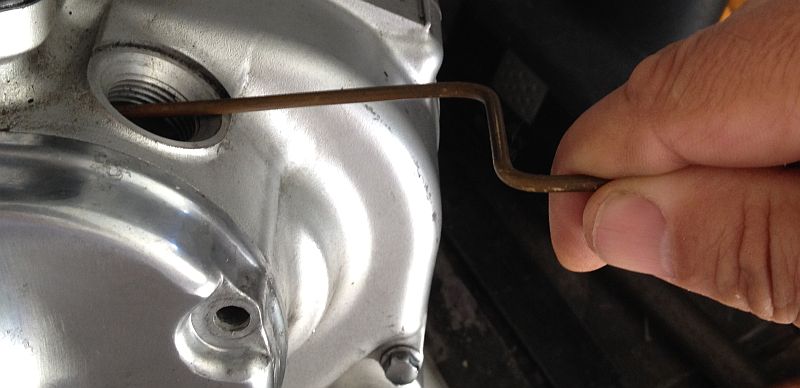

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28780 L.A. California Gender:	Re: Adjuster check by external means Reply #2 - 11/29/15 at 20:31:17 2. turn it to the left and go in a bit
Back to top	insert2.jpg Versey's Place Tech Section Index IP Logged

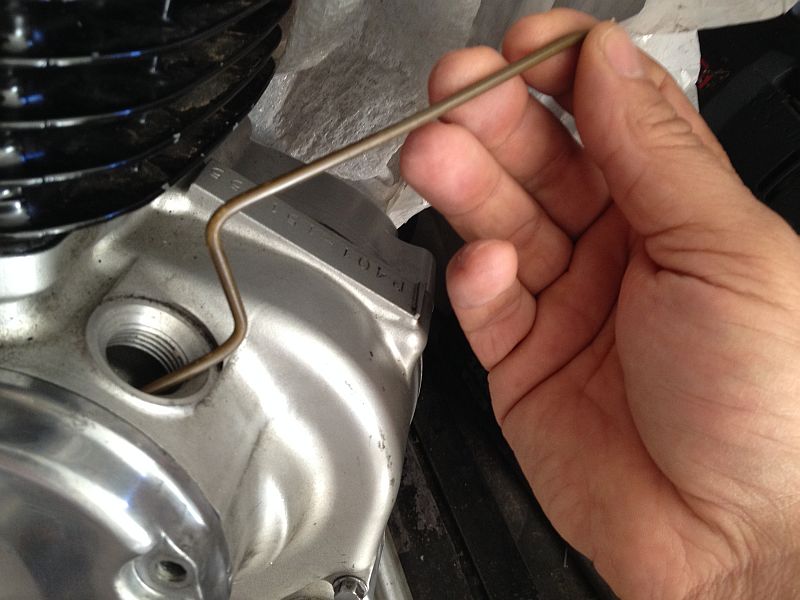

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28780 L.A. California Gender:	Re: Adjuster check by external means Reply #3 - 11/29/15 at 20:31:47 3. turn it 90° CW up and go in a bit
Back to top	insert3.jpg Versey's Place Tech Section Index IP Logged

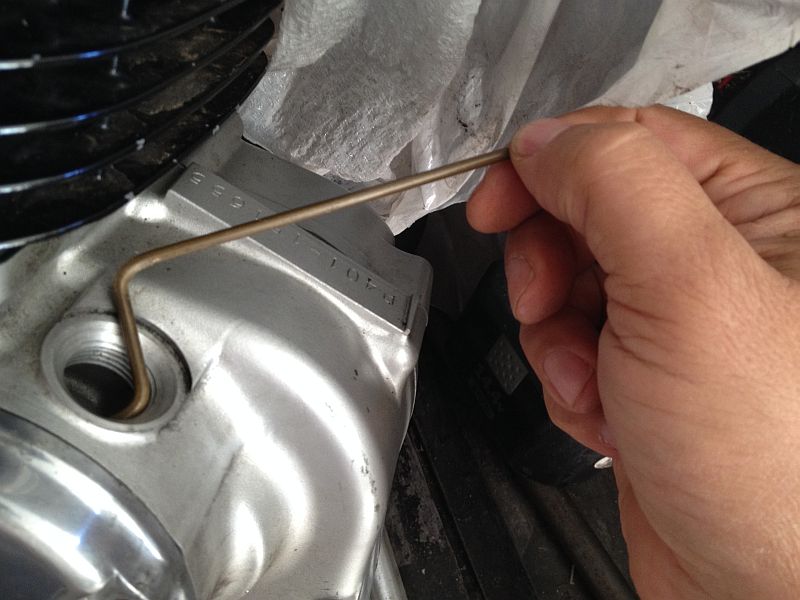

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28780 L.A. California Gender:	Re: Adjuster check by external means Reply #4 - 11/29/15 at 20:32:14 4. then turn it so the middle goes in
Back to top	insert4.jpg Versey's Place Tech Section Index IP Logged

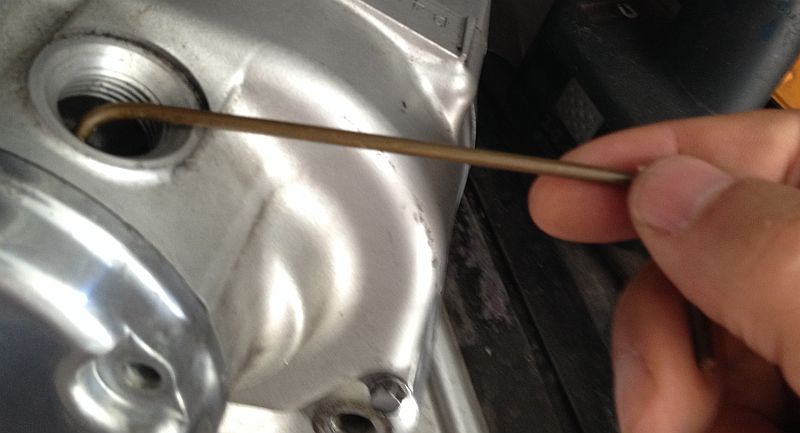

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28780 L.A. California Gender:	Re: Adjuster check by external means Reply #5 - 11/29/15 at 20:32:35 5. keep it rubbing the inside of the cover
Back to top	insert5.jpg Versey's Place Tech Section Index IP Logged

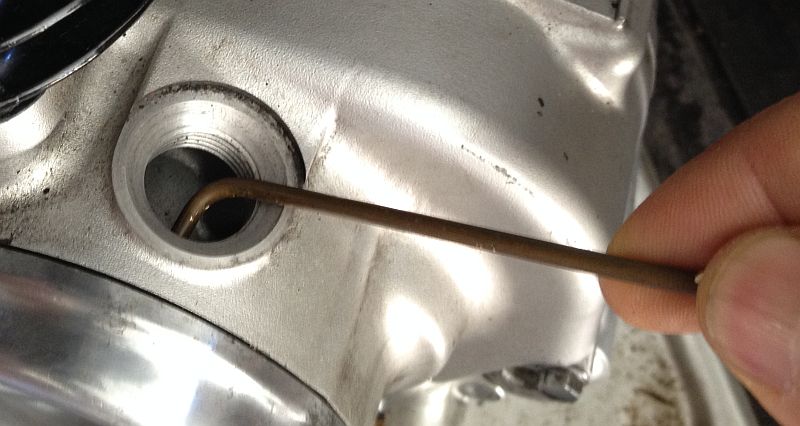

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28780 L.A. California Gender:	Re: Adjuster check by external means Reply #6 - 11/29/15 at 20:32:56 6. push it in till the middle of the S hits the oil deflector
Back to top	insert6.jpg Versey's Place Tech Section Index IP Logged

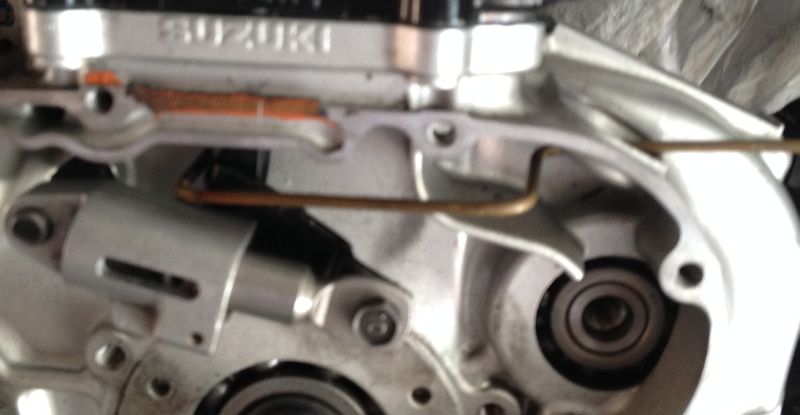

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28780 L.A. California Gender:	Re: Adjuster check by external means Reply #7 - 11/29/15 at 20:33:17 7. then swing it in away from the cover and hook the tensioner. the middle of the S should hit the wall visible thru the oil filler port.
Back to top	insert7.jpg Versey's Place Tech Section Index IP Logged

Serowbot

YaBB Moderator
ModSquad

Offline

OK.... so what's the
speed of dark?

Posts: 28385
Tucson Az
Gender: male

Re: Adjuster check by external means
Reply #8 - 11/29/15 at 21:39:48

"...then You do the hokey pokey
And you turn yourself around
That's what it's all about""... Grin

...

This is a great idea... but, I'm not clear on step 7...
What,.. are we hooking?...
Is that the chain, itself?... or the leeward tensioner?...

Can we get a closer view of that point?...

Can we call it,.. the Versy diviner?... Grin

...
Maybe a name contest will be better... Huh

...

Back to top

Ludicrous Speed !... ... Huh

...

IP Logged

verslagen1

YaBB Moderator
ModSquad

Offline

Where there's a
will, I want to be
in it.

Posts: 28780
L.A. California
Gender: male

Re: Adjuster check by external means
Reply #9 - 11/29/15 at 21:48:55

Serowbot wrote on 11/29/15 at 21:39:48:

This is a great idea... but, I'm not clear on step 7...
What,.. are we hooking?...
Is that the chain, itself?... or the leeward tensioner?...

that's the backside of the tensioner guide
there's no chain in that pic to protect the innocent. Wink

Quote:

Can we get a closer view of that point?...

Can we call it,.. the Versy diviner?... Grin

...
Maybe a name contest will be better... Huh

...

that last pic is quite blurry, I'll have to update it later.

wouldn't you need 2 sticks to call it that? Huh

Back to top

Versey's Place
Tech Section Index

IP Logged

Serowbot YaBB Moderator ModSquad Offline OK.... so what's the speed of dark? Posts: 28385 Tucson Az Gender:	Re: Adjuster check by external means Reply #10 - 11/29/15 at 22:04:29 verslagen1 wrote on 11/29/15 at 21:48:55: wouldn't you need 2 sticks to call it that? It's a thumper... two would be redundant.... ...
Back to top	Ludicrous Speed !... ... ... IP Logged

Gus Senior Member Offline Thumpers Rock! Posts: 491 Minnesota Gender:	Re: Adjuster check by external means Reply #11 - 11/30/15 at 06:52:27 LOL! Serowbot wrote on 11/29/15 at 22:04:29: verslagen1 wrote on 11/29/15 at 21:48:55: wouldn't you need 2 sticks to call it that? It's a thumper... two would be redundant.... ...
Back to top	1994 BMW K75S 2011 s40 1979 Honda CT90 Trail 1964 Honda CT200 Trail One cylinder - one carburetor. Life is good! Retired/Minnesota IP Logged

hotprops Full Member Offline SuzukiSavage.com Rocks! Posts: 180 fort myers fl	Re: Adjuster check by external means Reply #12 - 11/30/15 at 07:43:37 wow if you could perfect this than do a video with cover on and off with min/max values mass produce. every one would buy. what a headache solver for people who still have oem adjuster, and are past the7k mark keep working on it ,it will sell like mad
Back to top	IP Logged

norm92de Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1180 El Paso TX Gender:	Re: Adjuster check by external means Reply #13 - 11/30/15 at 08:07:32 Great idea! I thought of using a bore scope until I found out what they cost. I'm not sure how you actually measure the extension but it looks like a terrific way to save quite a bit of work.
Back to top	2014 S40. Raptor. idle mixture adj.Needle raised one notch. 4000' altitude. Stock jets. Shell Rotella synthetic. IP Logged

verslagen1

YaBB Moderator
ModSquad

Offline

Where there's a
will, I want to be
in it.

Posts: 28780
L.A. California
Gender: male

Re: Adjuster check by external means
Reply #14 - 11/30/15 at 08:21:18

With casting tolerances there is nothing to measure from reliably.
One person maybe on the flat part of the guide, another maybe on the rivet.

At this point in time, the best we can do is mark a starting point and measure from there.

Of course, someone that has the cover off can precisely measure the extension of the plunger and mark a reference point on the "diviner" and know how far they have to go.

I'll have to get some more wire and play around with the bends to see what works best. Right now I'm more concerned with a design that's reproducible than ease of use.
