A question for Ryca kit owners? (Read 114 times)
trevorw
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 26
A question for Ryca kit owners?
10/17/15 at 17:06:06
Hi guys,
So I am working on my bike and due to another chosen one being added to the family funds are tight so my goal on this build is to build as much as I can myself. I am doing a similar build to the Ryca bike and I was wondering if anyone that has purchased the kit would mind sharing some dimensions?
I am building my own rear set bracket and need to know length of the square tube and if possible some measurements for the part where the rear set actually mounts.
The other thing I am looking for is the metal seat pan dimensions.
If anyone has some spare time and would not mind sending those off to me I would greatly appreciate it! I will be starting a build thread soon!
Back to top
IP Logged
BSTON
Full Member
Offline
Posts: 218
Milwaukee, WI
Re: A question for Ryca kit owners?
Reply #1 -
10/19/15 at 11:09:44
I'm supposed to be getting my kit in a couple weeks. I can help you out then if no one else chimes in before that.
Back to top
IP Logged
trevorw
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 26
Re: A question for Ryca kit owners?
Reply #2 -
10/19/15 at 17:30:22
That would be great thanks!
I actually started on my seat pan today, I decided I am just going to wing it and see what I can come up with but would really appreciate the rear set dimensions!
Back to top
IP Logged
v-pilot
Senior Member
Offline
Loud bikes rule!
Posts: 257
Rexford NY
Gender:
Re: A question for Ryca kit owners?
Reply #3 -
10/19/15 at 18:24:00
Hey Trev, the pan is 334mm long by 156mm wide with a 17mm high edge. The welded nuts are 72 mm center to center and 25mm from the end to center and 41mm from edge to center. The front mount is 30mm high by 153mm across and 30mm wide where the slotted holes are. The slots are 60mm center too center, 20mm long and 8mm across. They are 46mm from the edge and 3mm from the front. Pic is the top...there is a slight curve in the front by the three spot welds
Back to top
Suzuki DR650, aprilia RSVR, aprilia Falco, Bimota DB4(2x)
Moto Guzzi V10, Ducati 900ss, Triumph Trident, Suzuki LS650
Moto Guzzi Le Mans SE(2x), Moto Guzzi V50, Benelli 250, Ducati 250
IP Logged
v-pilot
Senior Member
Offline
Loud bikes rule!
Posts: 257
Rexford NY
Gender:
Re: A question for Ryca kit owners?
Reply #4 -
10/19/15 at 18:24:40
underside
Back to top
Suzuki DR650, aprilia RSVR, aprilia Falco, Bimota DB4(2x)
Moto Guzzi V10, Ducati 900ss, Triumph Trident, Suzuki LS650
Moto Guzzi Le Mans SE(2x), Moto Guzzi V50, Benelli 250, Ducati 250
IP Logged
v-pilot
Senior Member
Offline
Loud bikes rule!
Posts: 257
Rexford NY
Gender:
Re: A question for Ryca kit owners?
Reply #5 -
10/19/15 at 18:27:24

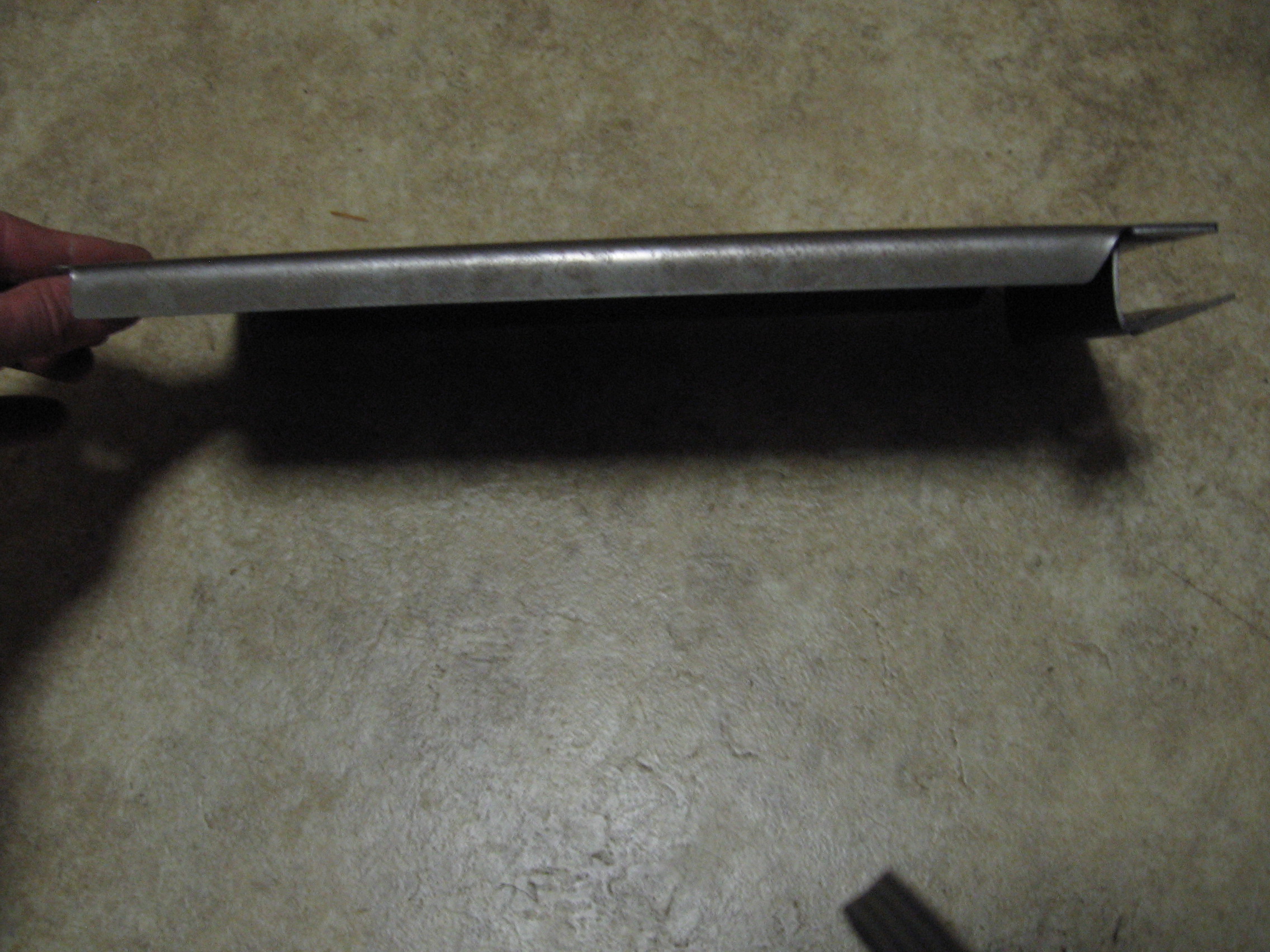

side
Back to top
Suzuki DR650, aprilia RSVR, aprilia Falco, Bimota DB4(2x)
Moto Guzzi V10, Ducati 900ss, Triumph Trident, Suzuki LS650
Moto Guzzi Le Mans SE(2x), Moto Guzzi V50, Benelli 250, Ducati 250
IP Logged
v-pilot
Senior Member
Offline
Loud bikes rule!
Posts: 257
Rexford NY
Gender:
Re: A question for Ryca kit owners?
Reply #6 -
10/19/15 at 18:28:43

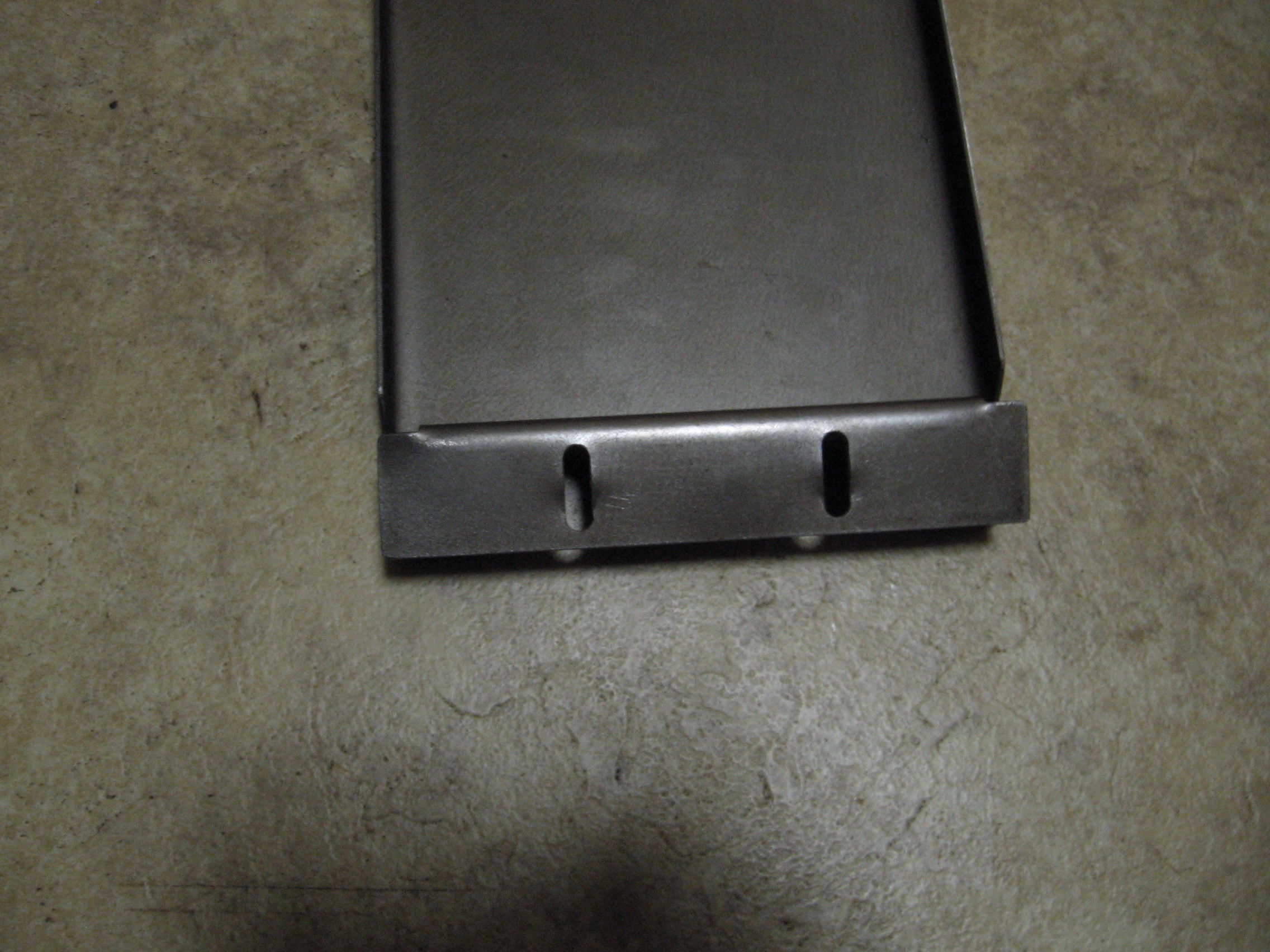

front mount
Back to top
Suzuki DR650, aprilia RSVR, aprilia Falco, Bimota DB4(2x)
Moto Guzzi V10, Ducati 900ss, Triumph Trident, Suzuki LS650
Moto Guzzi Le Mans SE(2x), Moto Guzzi V50, Benelli 250, Ducati 250
IP Logged
v-pilot
Senior Member
Offline
Loud bikes rule!
Posts: 257
Rexford NY
Gender:
Re: A question for Ryca kit owners?
Reply #7 -
10/19/15 at 18:29:24

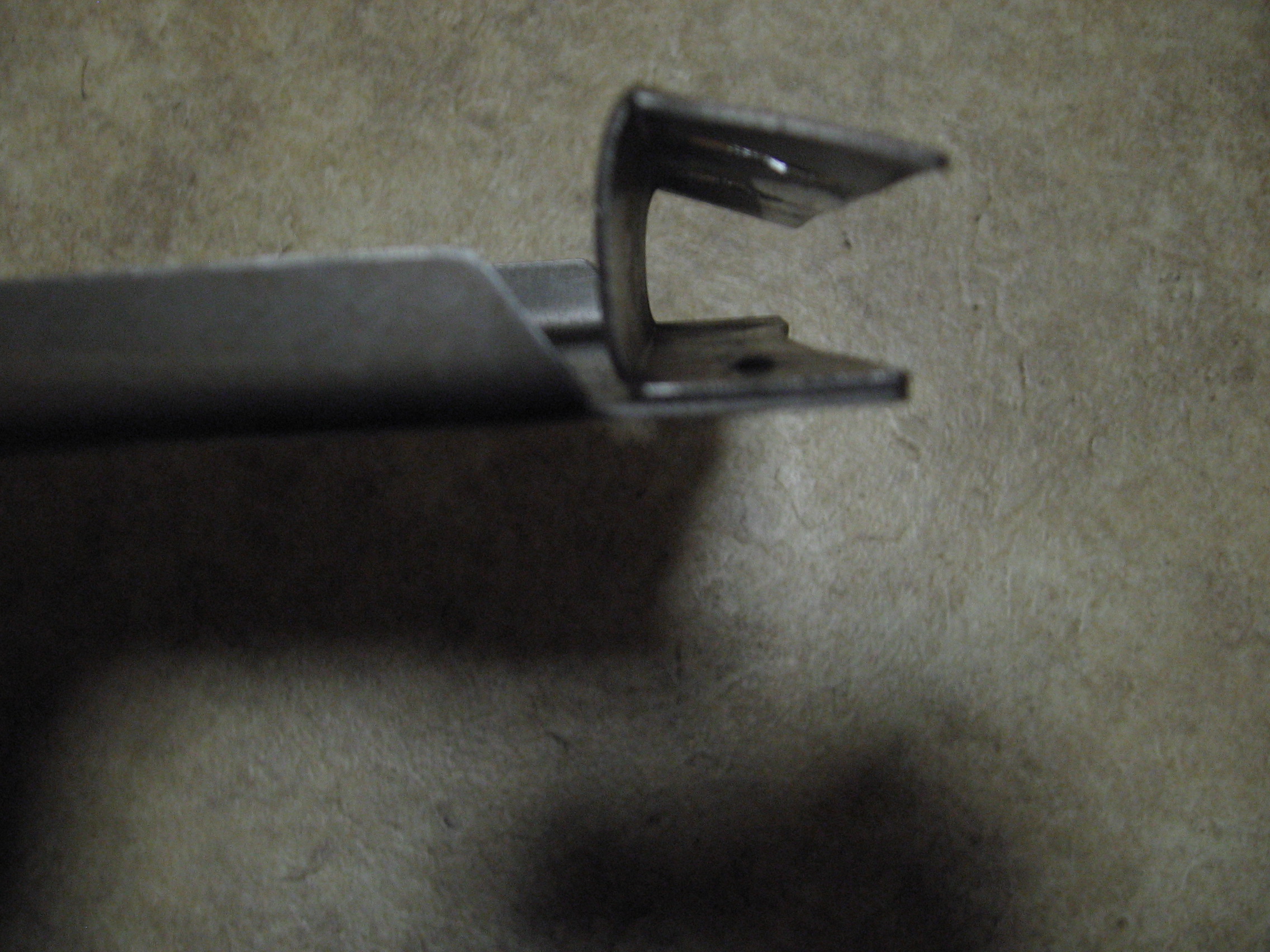

front mount side view
Back to top
Suzuki DR650, aprilia RSVR, aprilia Falco, Bimota DB4(2x)
Moto Guzzi V10, Ducati 900ss, Triumph Trident, Suzuki LS650
Moto Guzzi Le Mans SE(2x), Moto Guzzi V50, Benelli 250, Ducati 250
IP Logged
trevorw
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 26
Re: A question for Ryca kit owners?
Reply #8 -
10/21/15 at 11:09:48
v-pilot wrote
on 10/19/15 at 18:29:24:
front mount side view
Awesome, thank you so much, this helps me out a great deal!
