What electronics am I looking at? (Read 57 times)

Lucaisrussell Junior Member Offline SuzukiSavage.com Rocks! Posts: 55 Southern ca	What electronics am I looking at? 10/16/15 at 05:36:29 I put my suzuki on a diet and when it came to the wiring harness and other electrical components I quickly got discouraged. I don't run any directionals on the bike and I want to remove as much as I can. In the pictures below can someone tell me what these are for and can I remove them?
Back to top	image_326.jpg Kill bodies IP Logged

Lucaisrussell Junior Member Offline SuzukiSavage.com Rocks! Posts: 55 Southern ca	Re: What electronics am I looking at? Reply #1 - 10/16/15 at 05:37:55 Not a great picture but I still have no clue what this stuff is. So many wires!
Back to top	image_327.jpg Kill bodies IP Logged

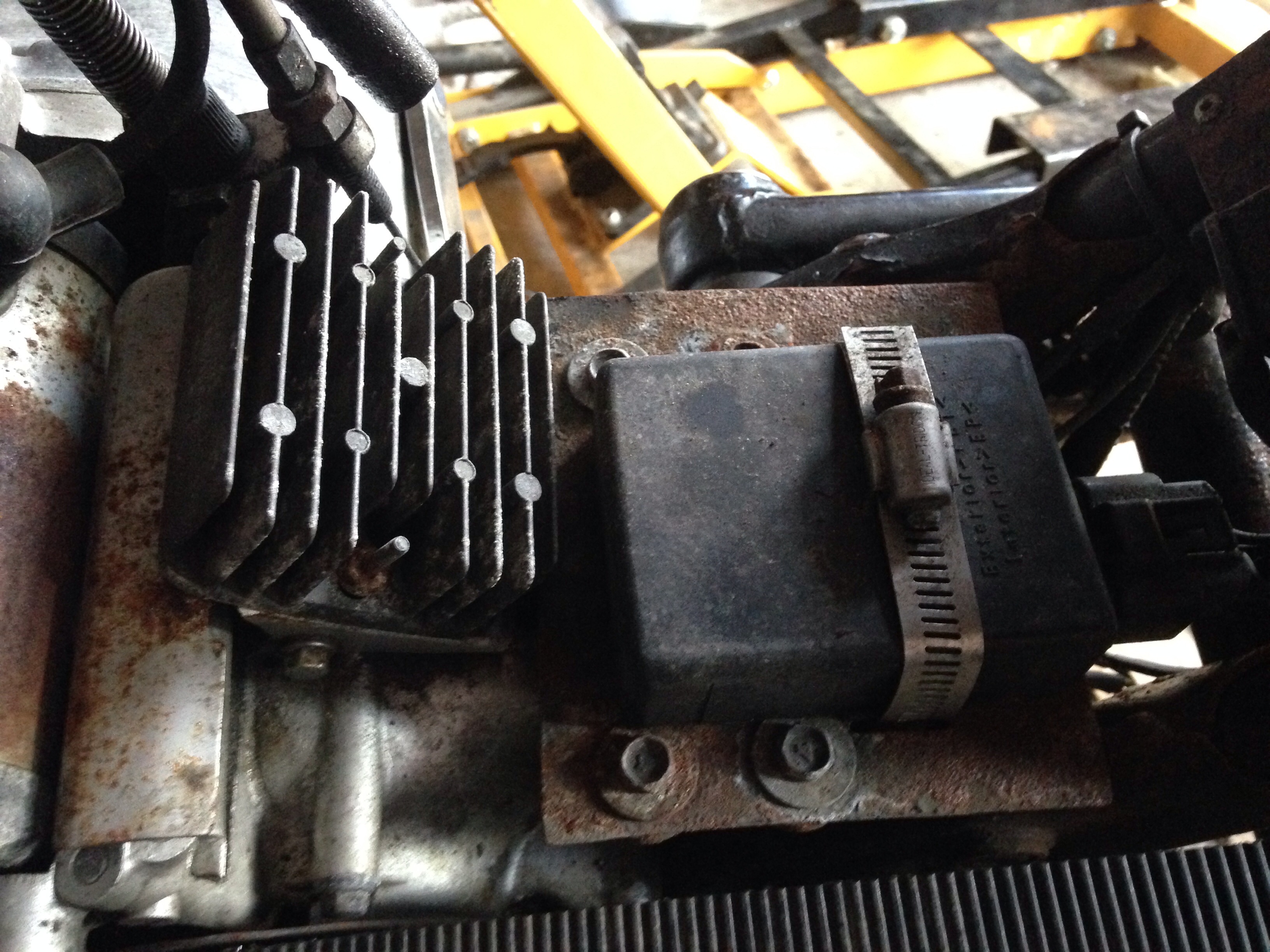

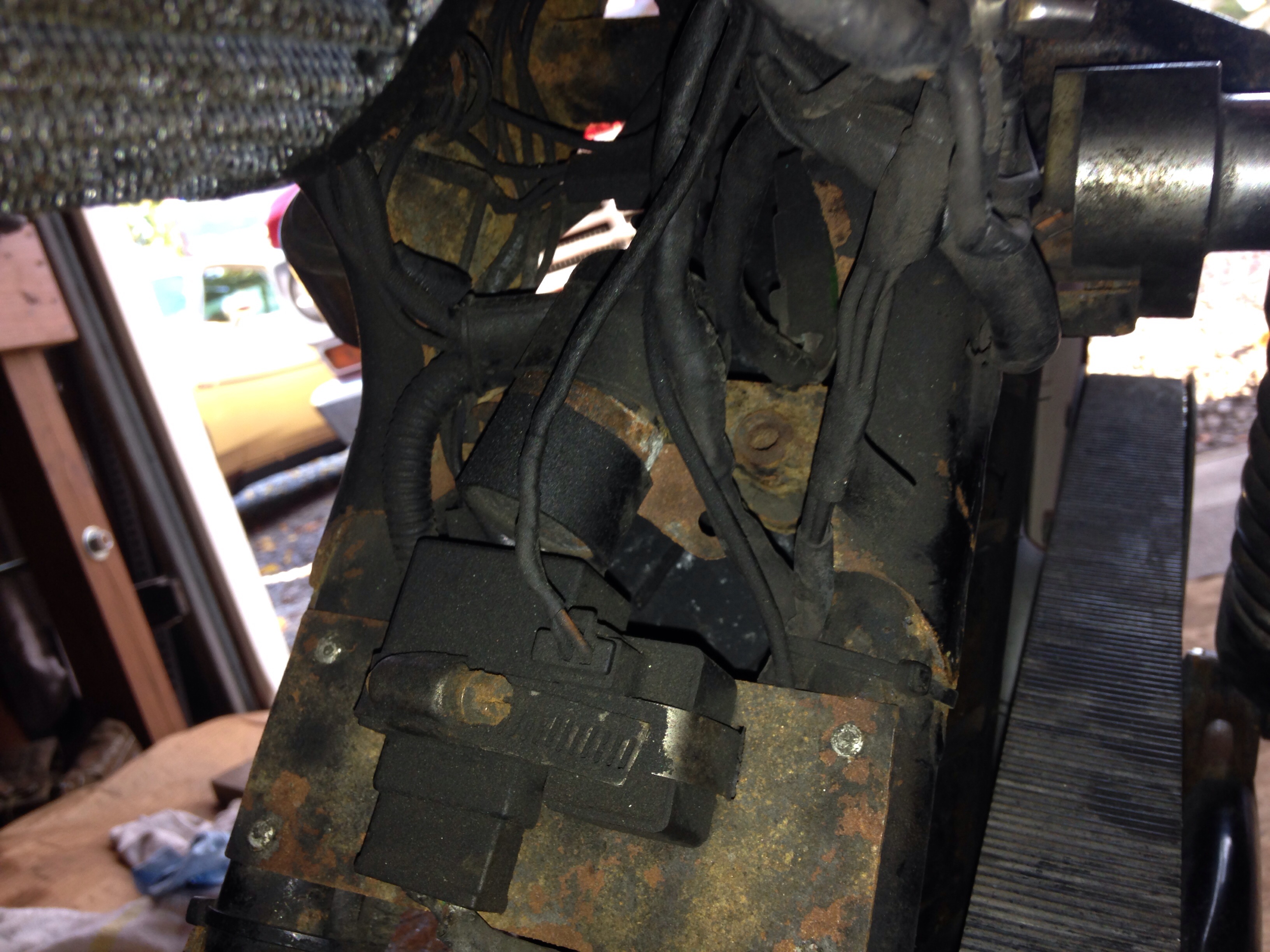

Gary_in_NJ Serious Thumper Offline LS650 Cafe Racer Posts: 2633 Amongst the Twisty Roads	Re: What electronics am I looking at? Reply #2 - 10/16/15 at 06:01:27 In the top photo you have the rectifier (left) and ignition box (right). In the second photo you have the decompression circuits and the turn indicator relay. Maybe more, but it's all covered in road grime. It's all a real mess and a bit of a cluster fluck. What are WE looking at here?
Back to top	A life-time student of motorcycling. LS650 Cafe, DRZ400SM, FZ6N, SV650S, CB900C, Ducati ST2, CB550F-SS My LS650=> http://suzukisavage.com/yabb2.2/Attachments/Left.JPG IP Logged

Dave

YaBB Moderator
ModSquad

Offline

SuzukiSavage.com
Rocks!

Posts: 18099
Camp Springs, Kentucky
Gender: male

Re: What electronics am I looking at?
Reply #3 - 10/16/15 at 06:01:31

http://suzukisavage.com/cgi-bin/YaBB.pl?board=tech;action=display;num=1099317926

Most likely the easiest thing for you to do is go to the YouTube site and look at the RYCA videos for the Cafe bike conversion. The videos show most of the components and you can then identify what they are. They give detailed instructions on how to remove the decompression solenoid and sidestand safety switch. (If you kept your decompression solenoid you need to keep the controller in the system).

Someday I will be old......But not today!
