Stranded vacuum line (Read 72 times)
Whoas
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 42
Stranded vacuum line
08/24/15 at 17:11:15

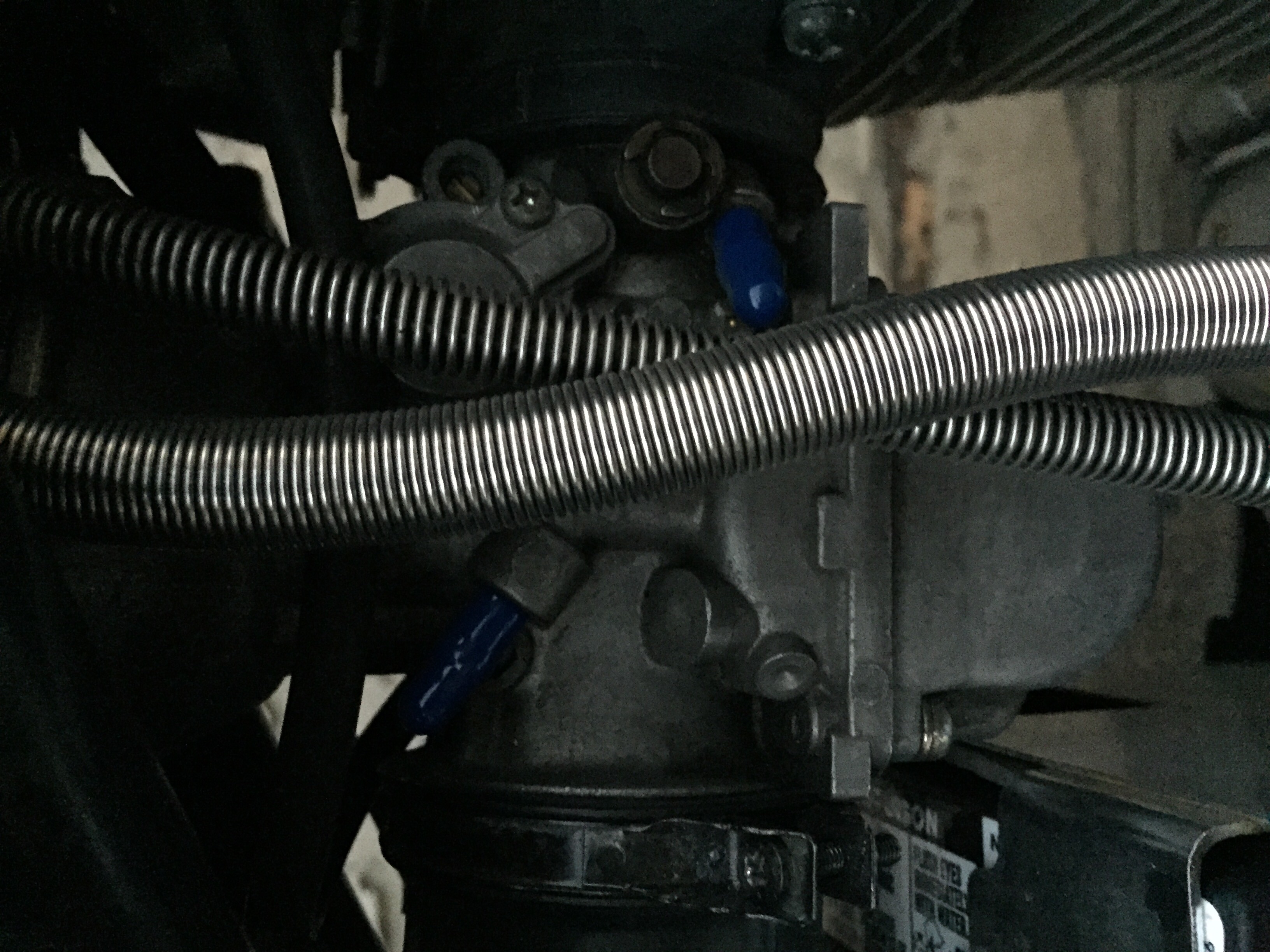

Hey guys, just did a petcock replacement on my 87 savage with the reccommended 660. Put about 100 miles on it with no issues and then realized that I had a spare vacuum line on the right side of the carb almost dead center.(I already capped the correct line located towards the bottom from of the carb) Can't seem to find a diagram or picture directing me on where this line goes, any input would help. I capped the line for now and seems to be running fine but not 100% sure that's the final solution. Thank you ahead for any help. * the cap on the left is the line in question*
Back to top
IP Logged
verslagen1
YaBB Moderator
ModSquad
Offline
Where there's a
will, I want to be
in it.
Posts: 28884
L.A. California
Gender:
Re: Stranded vacuum line
Reply #1 -
08/24/15 at 17:53:31
those top ports are vent lines, don't cap them, should have a hose on it that reaches up to the opening in the frame square tube.
Back to top
Versey's Place
Tech Section Index
IP Logged
Whoas
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 42
Re: Stranded vacuum line
Reply #2 -
08/25/15 at 13:46:03
Much appreciated
Back to top
IP Logged
Dave
YaBB Moderator
ModSquad
Offline
SuzukiSavage.com
Rocks!
Posts: 18098
Camp Springs, Kentucky
Gender:
Re: Stranded vacuum line
Reply #3 -
08/25/15 at 13:49:20
I would have tried to help....but the picture posts sideways on my computer. I wouldn't have known my up from my left or right from down!
Back to top
Someday I will be old......But not today!
IP Logged
verslagen1
YaBB Moderator
ModSquad
Offline
Where there's a
will, I want to be
in it.
Posts: 28884
L.A. California
Gender:
Re: Stranded vacuum line
Reply #4 -
08/25/15 at 13:59:36
I kept falling out my chair
then I copied, paste into a graphics editor.
then turned the monitor on its side.
