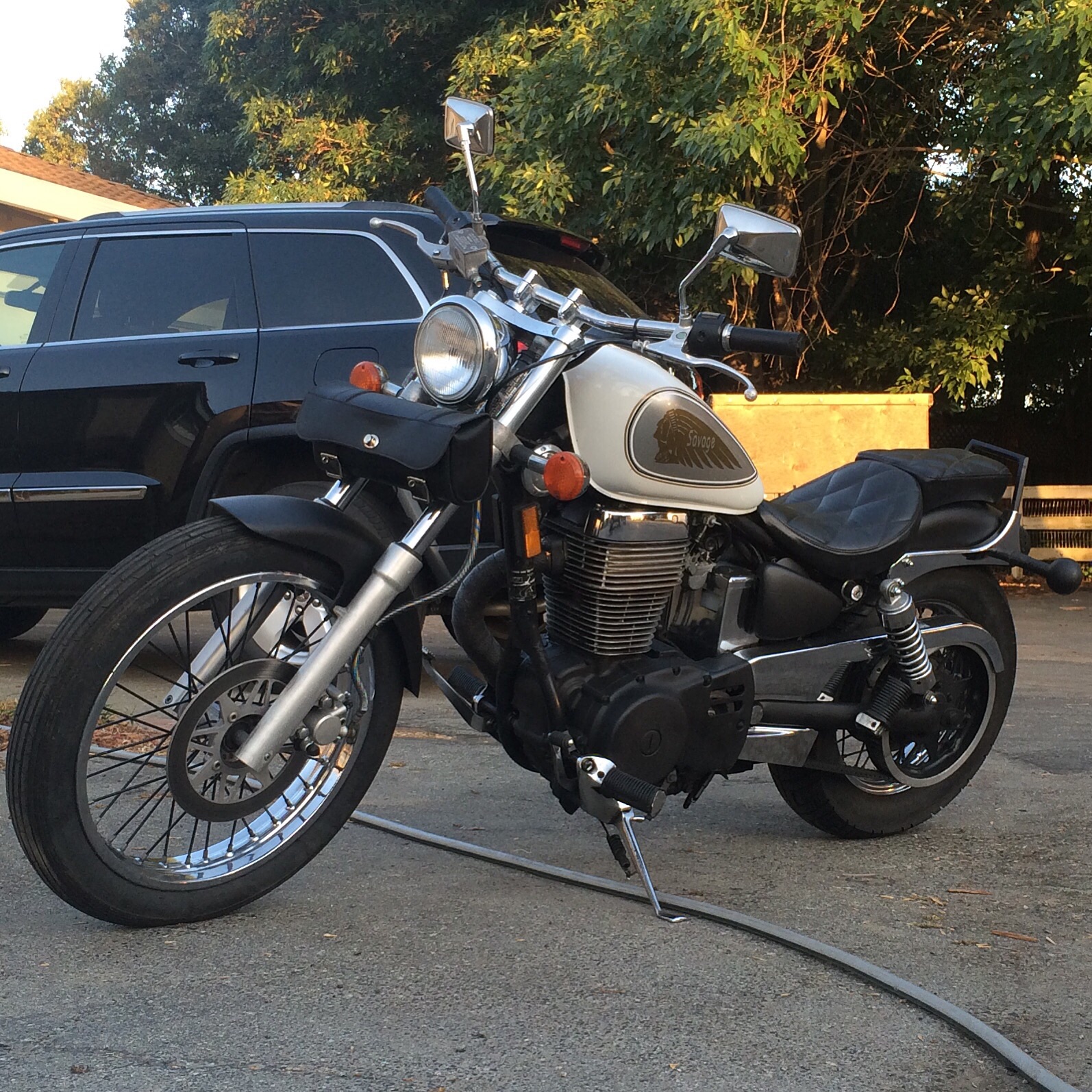

Daviddoesntgaf YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 2	Risers 07/29/15 at 10:31:24 Does anyone manufactor risers that are straight bolt on for our bikes? Also, are there very many changes over the years to these bikes because it doesn't seem much like it. And a picture of what I just bought 1988 with 14,7xx miles
Back to top	image_306.jpg IP Logged

JutMan Junior Member Offline SuzukiSavage.com Rocks! Posts: 96 Poconos Gender:	Re: Risers Reply #1 - 07/29/15 at 12:54:07 Check this post http://suzukisavage.com/cgi-bin/YaBB.pl?num=1437502105 There is a reference to using deep well sockets and longer bolts as an easy solution.
Back to top	2005 S40 / Jetted / Dyna / Raptor Petcock / Pegs, Signals and Grips Changed / Front Seat Lift Future: Repaint / Sportster Seat / Breaklight IP Logged

HovisPresley Serious Thumper Offline Good Vibrations! Posts: 991 Midlands, UK Gender:	Re: Risers Reply #2 - 07/29/15 at 15:38:20 I'm not sure but I seem to remember the nuts and bolts are metric fine thread as standard.
Back to top	'96 Bobbobbobber IP Logged

Boogie_with_Stu

Senior Member

Offline

Look Ma, no hands!

Posts: 280
Raleigh, NC
Gender: male

Re: Risers
Reply #3 - 07/29/15 at 19:39:00

Finding risers that have the correct 10mm thread on the bottom will be a chore. After long and exhaustive searches on Amazon, Ebay and online motorcycle shops...I have only found 2 with the right pattern (and they were butt ugly).

If you are handy with tools, you can get any riser you want with the standard american 1/2 in thread and just bore out the holes on the tree/dress washers. If you have 3 left hands like me, perhaps riser extensions are a better way to go. You will need new (longer) bolts, but they are readily available.

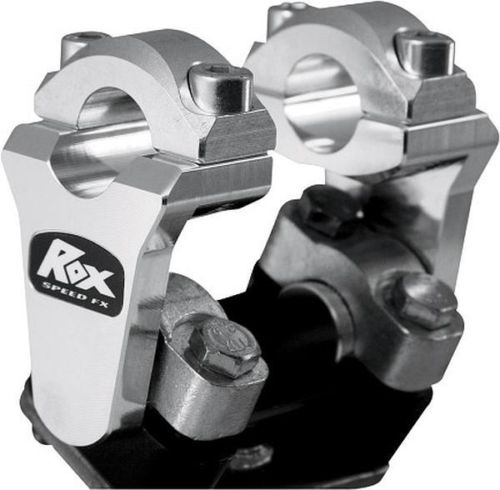

The EASIEST way to raise the bars is with one of these (not cheap though...at about $80)

Back to top


03 Savage, Pearl Novelty Black,Raptor mod, Boulevard seat, Rectifier mod -'07 Honda Nighthawk 250 stock

IP Logged

Boogie_with_Stu

Senior Member

Offline

Look Ma, no hands!

Posts: 280
Raleigh, NC
Gender: male

Re: Risers
Reply #4 - 07/29/15 at 19:47:08

Nice bike btw Cool

....and welcome to the Savage forums!

You are correct in assuming that very few changes have been made to the bike over the years. Starting in 2005, the bike was re-named the S40 Boulevard and the handlebars changed (along with the seat, fender, and a few small items).

So far as I know (and I'm NO expert by any means), virtually no changes were made to the bike from '86 to 2004. All of the mechanical parts should be interchangeable. Electrical?.....not sure.

You will find that this community has more knowledge about the Savage than you can find anywhere else in the world. If you need info, ask. Just a hint...the "search" function is set to "2 weeks" by default. Searching without changing that will yield you nada. Change the search time frame to at least 6 months.

Back to top

03 Savage, Pearl Novelty Black,Raptor mod, Boulevard seat, Rectifier mod -'07 Honda Nighthawk 250 stock

IP Logged

WD

Serious Thumper
2005 No Login

Offline

Professional
"scooter
trash".

Posts: 5207
Rosemark TN
Gender: male

Re: Risers
Reply #5 - 07/31/15 at 07:37:14

Boogie_with_Stu wrote on 07/29/15 at 19:47:08:

Nice bike btw Cool

....and welcome to the Savage forums!

You are correct in assuming that very few changes have been made to the bike over the years. Starting in 2005, the bike was re-named the S40 Boulevard and the handlebars changed (along with the seat, fender, and a few small items).

So far as I know (and I'm NO expert by any means), virtually no changes were made to the bike from '86 to 2004. All of the mechanical parts should be interchangeable. Electrical?.....not sure. 4 speed transmission 86-? Bike was not available in the USA for about 8 years, believe it went away in 88 and came back in 96. Was available rest of the globe those years. The ignition system is generation specific. See the tech section.

You will find that this community has more knowledge about the Savage than you can find anywhere else in the world. If you need info, ask. Just a hint...the "search" function is set to "2 weeks" by default. Searching without changing that will yield you nada. Change the search time frame to at least 6 months.

Back to top

On 2 wheels since 7/87

Black and Chrome 2003 1950s style custom

IP Logged

Boogie_with_Stu Senior Member Offline Look Ma, no hands! Posts: 280 Raleigh, NC Gender:	Re: Risers Reply #6 - 07/31/15 at 09:26:55 My bad WD, the "86" was a typo...should have been "96"
Back to top	03 Savage, Pearl Novelty Black,Raptor mod, Boulevard seat, Rectifier mod -'07 Honda Nighthawk 250 stock IP Logged

12Bravo Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 628 Mid-Missouri Gender:	Re: Risers Reply #7 - 07/31/15 at 09:36:44 There are adapter bolts available to go from 10mm to 1/2" which allows you to use more common HD style risers.
Back to top	No Child Should Live In Fear!!! 'Keepers of the children' http://www.bacaworld.org IP Logged

zipidachimp Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1393 surrey, b.c. Gender:	Re: Risers Reply #8 - 07/31/15 at 13:43:01 These studs allow almost all risers to be used from$30.00 up: part # SW001 http://www.scootworks.com/shop.cgi/page=partsstuds.htm/SID=PUT_SID_HERE metric 10 mm on bottom, sae 1/2" on top
Back to top	IP Logged

LANCER Serious Thumper Alliance Member Offline Savage Beast Performance Parts Posts: 10606 Oklahoma Gender:	Re: Risers Reply #9 - 08/02/15 at 04:57:24 I've got some risers; will take photos later today and post them.
Back to top	IP Logged

Daviddoesntgaf YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 2	Re: Risers Reply #10 - 08/02/15 at 11:11:15 Thanks for all the info everyone, trying to decide on how I want to spend my money or try to make my own.. Lancer are your risers for sale?
