Re: dies in 5th
Reply #15 - 05/24/15 at 21:45:19

Serowbot wrote on 05/24/15 at 20:02:22:

justin_o_guy2 wrote on 05/24/15 at 19:27:59:

I dunno hoot about the way the bike works, but all my cars had the highest intake manifold vacuum at idle. Vacuum drops as the carb opens. Maybe the bike is different,

No,.. it's same... but, if the higher gear drops you out of the torqueband, you will have to open the throttle to try to gain speed... and opening the throttle will drop the vacuum...
...(same as if you go 30mph in 5th gear, and wick open the throttle... it'll chuf and stumble, and maybe die... vacuum drops to nuttin' and can't pull fuel.)...

That's my theory, an' I'm stickin' to it...
...'till Dave or Versy tell me I'm a dope... Grin

...

Mmkay, you're one of the carb gurus, not me. The stuff I know, I'll plant my feet and hold my ground
I don't have the expertise on the carb. I thought you could twist on the handle and until the vacuum raised the slide, the vacuum didn't drop.
But, I don't really care, just as long as this guy gets fixed up.

His symptoms? I'm wanting more information.

Fire up,hit the road.
How long before trouble?
How long before it will start?
I'm really curious about fuel flow, just into a jug.
I would drain the bowl and see if it's dirty.

Back to top

The people never give up their liberties but under some delusion.- Edmund Burke.

IP Logged

Boogieman Senior Member Offline Bang! Bang! Posts: 284 NORCAL Gender:	Re: dies in 5th Reply #16 - 05/25/15 at 08:16:11 lol ya'll are rad. I will do all ya'll have suggested and report back. At that time i shud have all needed info if it's not cured.
Back to top	'03 LS 650 bobber - Highly modified...crashed it. IP Logged

Gary_in_NJ Serious Thumper Offline LS650 Cafe Racer Posts: 2633 Amongst the Twisty Roads	Re: dies in 5th Reply #17 - 05/25/15 at 12:21:13 This may have been mentioned (I blasted through the thread quickly) but the problem can be the float height. When you have the carb apart check the height as well as the distance of the full swing.
Back to top	A life-time student of motorcycling. LS650 Cafe, DRZ400SM, FZ6N, SV650S, CB900C, Ducati ST2, CB550F-SS My LS650=> http://suzukisavage.com/yabb2.2/Attachments/Left.JPG IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: dies in 5th Reply #18 - 05/25/15 at 17:00:52 clear tubing, any tubing, long as it fits the nipple on the carb bowl. Loosen drain screw, shove tubing on, the fuel level in the bowl will be obvious.
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

Kris01 Serious Thumper Offline Eat, sleep, RIDE! Posts: 3767 Tennessee Gender:	Re: dies in 5th Reply #19 - 05/25/15 at 19:23:40 Don't forget to raise the open end of the tube above the carb!
Back to top	There's no problem that a full tank of gas and a sunny day can't fix! 2008 S40, Rotella T 15W-40 w/ZDDP added, Dyna, 140/90-15, Battery Tender Jr., Seat lift, #52.5/150/3 washers, Raptor IP Logged

Steve H Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1223 Spartanburg, SC Gender:	Re: dies in 5th Reply #20 - 05/26/15 at 03:26:21 Anybody think about the little screen above the float valve?
Back to top	87 LS650, 2005 Ninja 250, 2009 Yamaha C3, 2001 Honda Reflex. On 2 wheels since 6/80. IP Logged

Boogieman

Senior Member

Offline

Bang! Bang!

Posts: 284
NORCAL
Gender: male

Re: dies in 5th
Reply #21 - 05/26/15 at 10:47:55

ok. i will post pics later when i have a sweet wifi connect,, im almost outta phone data.

There were bits of crap in my tank, stuck to the fuel valve screen, at the very bottom of the bowl (jst lttle specs that didnt come out when i drained it. had to wash em out). my carb was kinda dirty.

Main air jet 280
pilot air 45
152.5 main fuel
52.5 pilot
I'll have y'all look at the pics b4 i button it up and try again. Dont knw how to measure float heights. also there are few things I'm going to seal up and clamp down so there's no chance of any vacuum loss.

Back to top

'03 LS 650 bobber - Highly modified...crashed it.

IP Logged

Dave

YaBB Moderator
ModSquad

Offline

SuzukiSavage.com
Rocks!

Posts: 18098
Camp Springs, Kentucky
Gender: male

Re: dies in 5th
Reply #22 - 05/26/15 at 11:08:22

Boogieman wrote on 05/26/15 at 10:47:55:

ok. i will post pics later when i have a sweet wifi connect,, im almost outta phone data.

There were bits of crap in my tank, stuck to the fuel valve screen, at the very bottom of the bowl (jst lttle specs that didnt come out when i drained it. had to wash em out). my carb was kinda dirty.

Main air jet 280
pilot air 45
152.5 main fuel
52.5 pilot
I'll have y'all look at the pics b4 i button it up and try again. Dont knw how to measure float heights. also there are few things I'm going to seal up and clamp down so there's no chance of any vacuum loss.

Did you remove the seat for the float bowl needle and clean the screen on top of it?

Back to top

Someday I will be old......But not today!

IP Logged

Boogieman Senior Member Offline Bang! Bang! Posts: 284 NORCAL Gender:	Re: dies in 5th Reply #23 - 05/26/15 at 14:34:38 no i havent but i will...soon as i find it.
Back to top	'03 LS 650 bobber - Highly modified...crashed it. IP Logged

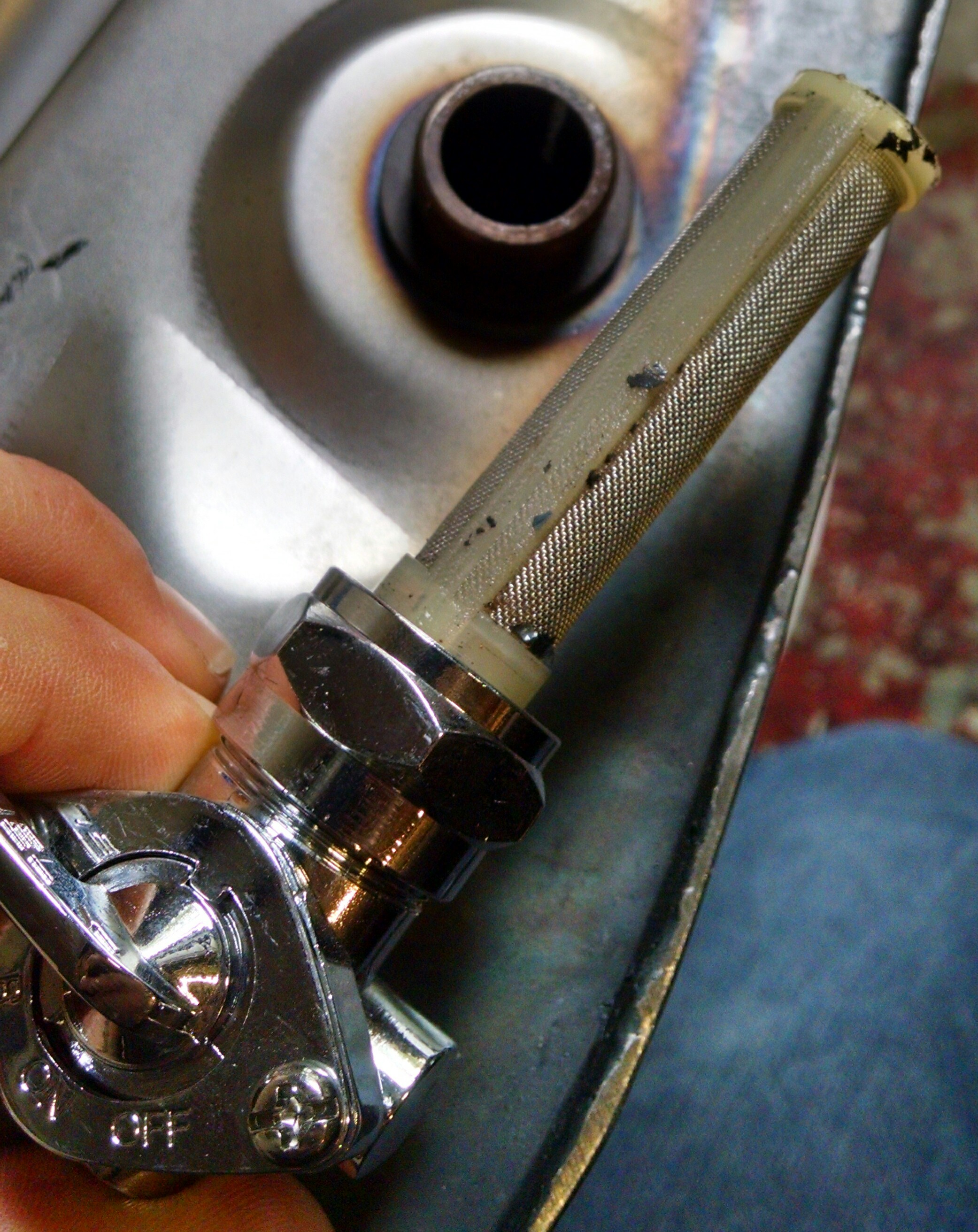

Boogieman Senior Member Offline Bang! Bang! Posts: 284 NORCAL Gender:	Re: dies in 5th Reply #24 - 05/26/15 at 17:18:14 im still not convinced rust is the entire prob. Serowbot is onto something. I've never run more than the screen on the fuel valve. the last tank I had was freaking full of rust and I never had a problem with rust.
Back to top	IMG_20150526_171038.jpg '03 LS 650 bobber - Highly modified...crashed it. IP Logged

Boogieman Senior Member Offline Bang! Bang! Posts: 284 NORCAL Gender:	Re: dies in 5th Reply #25 - 05/26/15 at 17:21:26 where is the screen on top of the float bowl located. your specific but i guess not specific enough for me haha. nah i'll look for it here in a min
Back to top	IMG_20150526_170933.jpg '03 LS 650 bobber - Highly modified...crashed it. IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28884 L.A. California Gender:	Re: dies in 5th Reply #26 - 05/26/15 at 19:53:25 you'll need to remove the float then the valve seat and the screen will come out with it.
Back to top	Versey's Place Tech Section Index IP Logged

Dave

YaBB Moderator
ModSquad

Offline

SuzukiSavage.com
Rocks!

Posts: 18098
Camp Springs, Kentucky
Gender: male

Re: dies in 5th
Reply #27 - 05/27/15 at 05:13:16

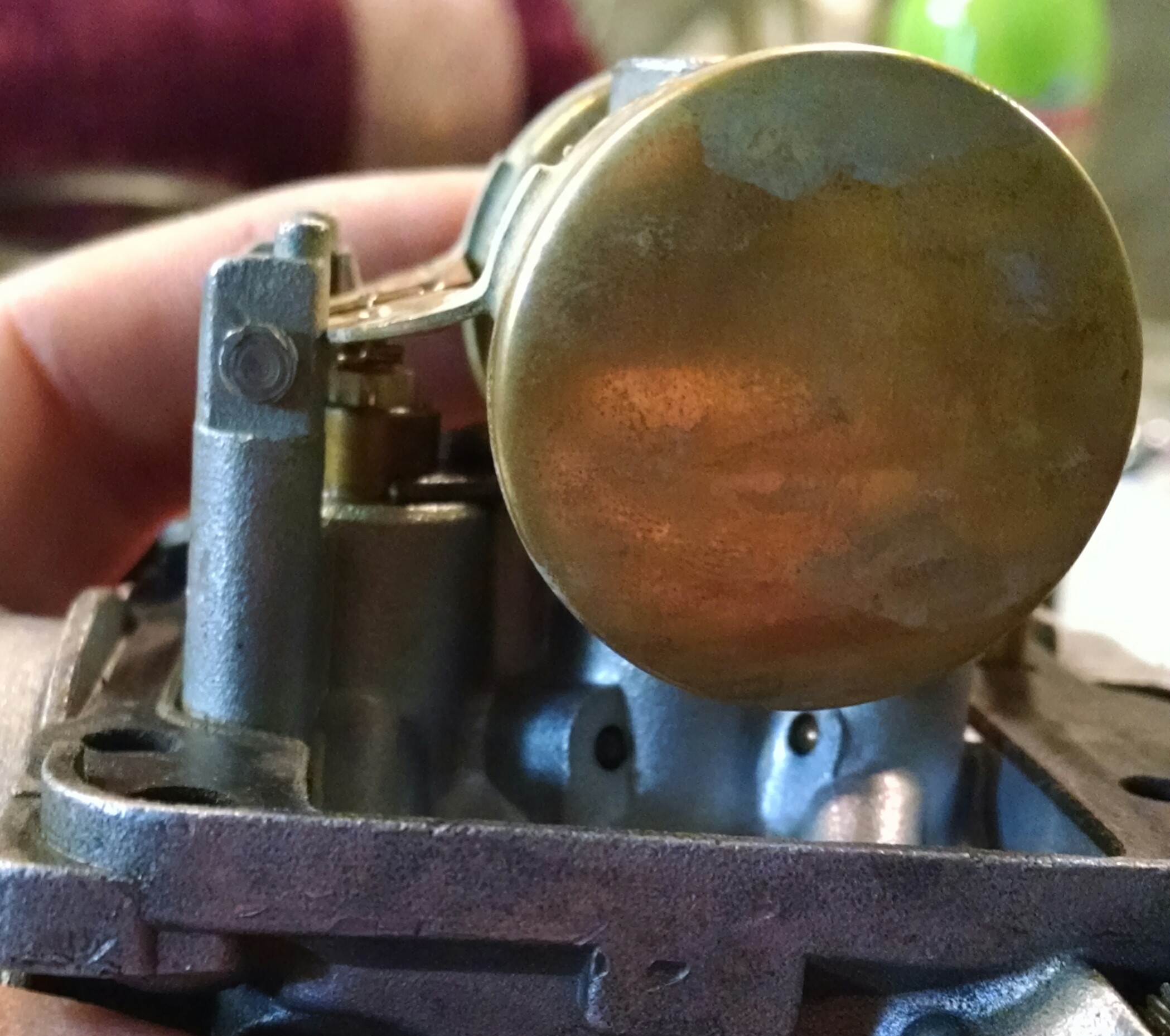

Are you holding the float up with your fingers when you took the picture?

The float looks like it is not at the proper elevation....I am used to seeing the mounting hinge more parallel with the gasket surface.

You need to check the float level (and clean the screen on top of the needle seat).

http://suzukisavage.com/cgi-bin/YaBB.pl?num=1367212825

Back to top

Someday I will be old......But not today!

IP Logged

Boogieman

Senior Member

Offline

Bang! Bang!

Posts: 284
NORCAL
Gender: male

Re: dies in 5th
Reply #28 - 06/07/15 at 05:29:46

ok.. i cleaned out the carb nice and good, still starved for gas. was out testing it and all of a sudden it stopped...and thats wheb i realized my gas cap was about to fly off. IT WAS THE STINKING GAS CAP! It's a vented one but seals completely with this tank, or doesn't vent enough, or is broken. One slice of the rubber gasket gives me enough vent...hauls balls! It was a vacuum type thing. Serowbot!

I replaced the fuel hose with clear hose and installed a clear inline filter...all kinds off very small debris get caught in there.

Dave: Ya im holding the float all the way up. ¿Mounting hinge parallel to gasket surface? that wud mean mine is way off. Ur saying that when i pick tye float all tye way up it shud be parallel with gasket that seals the bowl?

Back to top


'03 LS 650 bobber - Highly modified...crashed it.

IP Logged

Dave YaBB Moderator ModSquad Offline SuzukiSavage.com Rocks! Posts: 18098 Camp Springs, Kentucky Gender:	Re: dies in 5th Reply #29 - 06/07/15 at 07:14:03 No....when the float is not lifted up....generally the mounting flange is close to parallel with the gasket surface. The float height is measured when the weight of the float is on the needle.
