WTF?!? Found this...now what?
08/17/14 at 10:13:34

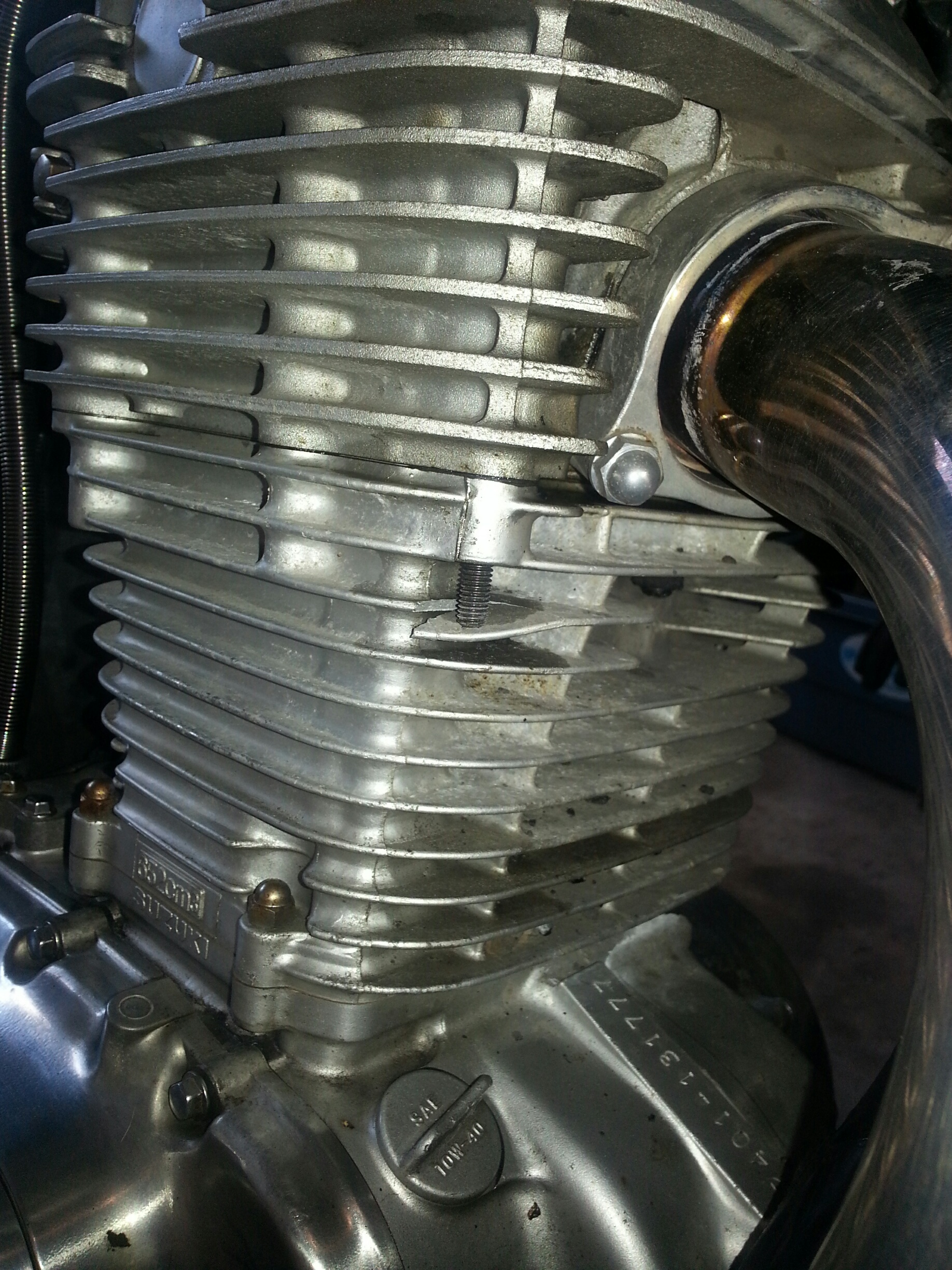

Discovered this the other day while working on the bike. I guess someone used the wrong sized bolt, and wasn't paying attention to what they were doing. Is this something I can leave alone without it causing any damage?
It seems like changing this out will take some significant time and effort, and if's purely a cosmetic thing I'll just leave it until I need a winter project. Thoughts? Suggestion?
Thanks!
Back to top
IP Logged
Yoshi
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 874
LongIsland, N.Y.
Gender:
Re: WTF?!? Found this...now what?
Reply #1 -
08/17/14 at 10:18:58
I don't think that bolt actually secures anything...
The 4 inside bolts hold the head on
Back to top
IP Logged
verslagen1
YaBB Moderator
ModSquad
Offline
Where there's a
will, I want to be
in it.
Posts: 28884
L.A. California
Gender:
Re: WTF?!? Found this...now what?
Reply #2 -
08/17/14 at 10:22:34
Yoshi wrote
on 08/17/14 at 10:18:58:
I don't think that bolt actually secures anything...
The 4 inside bolts hold the head on
6 studs, 4 pointing up, 2 pointing down.
can't tell where that stud is... another pic please.
Back to top
Versey's Place
Tech Section Index
IP Logged
bobthekerr
Junior Member
Offline
SuzukiSavage.com
Rocks!
Posts: 73
Re: WTF?!? Found this...now what?
Reply #3 -
08/17/14 at 10:29:07
verslagen1 wrote
on 08/17/14 at 10:22:34:
Yoshi wrote
on 08/17/14 at 10:18:58:
I don't think that bolt actually secures anything...
The 4 inside bolts hold the head on
6 studs, 4 pointing up, 2 pointing down.
can't tell where that stud is... another pic please.
The acorn bolt just up and to the right of it is one of the the exhaust header bolts, if that helps.
Back to top
IP Logged
Serowbot
YaBB Moderator
ModSquad
Offline
OK.... so what's the
speed of dark?
Posts: 28642
Tucson Az
Gender:
Re: WTF?!? Found this...now what?
Reply #4 -
08/17/14 at 10:33:06
Looks like somebody did some head work and put the wrong length bolt in...
If it ain't leaking, I'd just leave it alone... (maybe clean up that broken fin with a dremel)...
Back to top
Ludicrous Speed !... ...
...
IP Logged
verslagen1
YaBB Moderator
ModSquad
Offline
Where there's a
will, I want to be
in it.
Posts: 28884
L.A. California
Gender:
Re: WTF?!? Found this...now what?
Reply #5 -
08/17/14 at 10:50:25
yep, too long of a head cover bolt
when you stick a bolt in, about 3/8" should stick out, and if it takes more than 10 turns start worrying.
Back to top
Versey's Place
Tech Section Index
IP Logged
bobthekerr
Junior Member
Offline
SuzukiSavage.com
Rocks!
Posts: 73
Re: WTF?!? Found this...now what?
Reply #6 -
08/17/14 at 11:09:10
Serowbot wrote
on 08/17/14 at 10:33:06:
Looks like somebody did some head work and put the wrong length bolt in...
If it ain't leaking, I'd just leave it alone... (maybe clean up that broken fin with a dremel)...

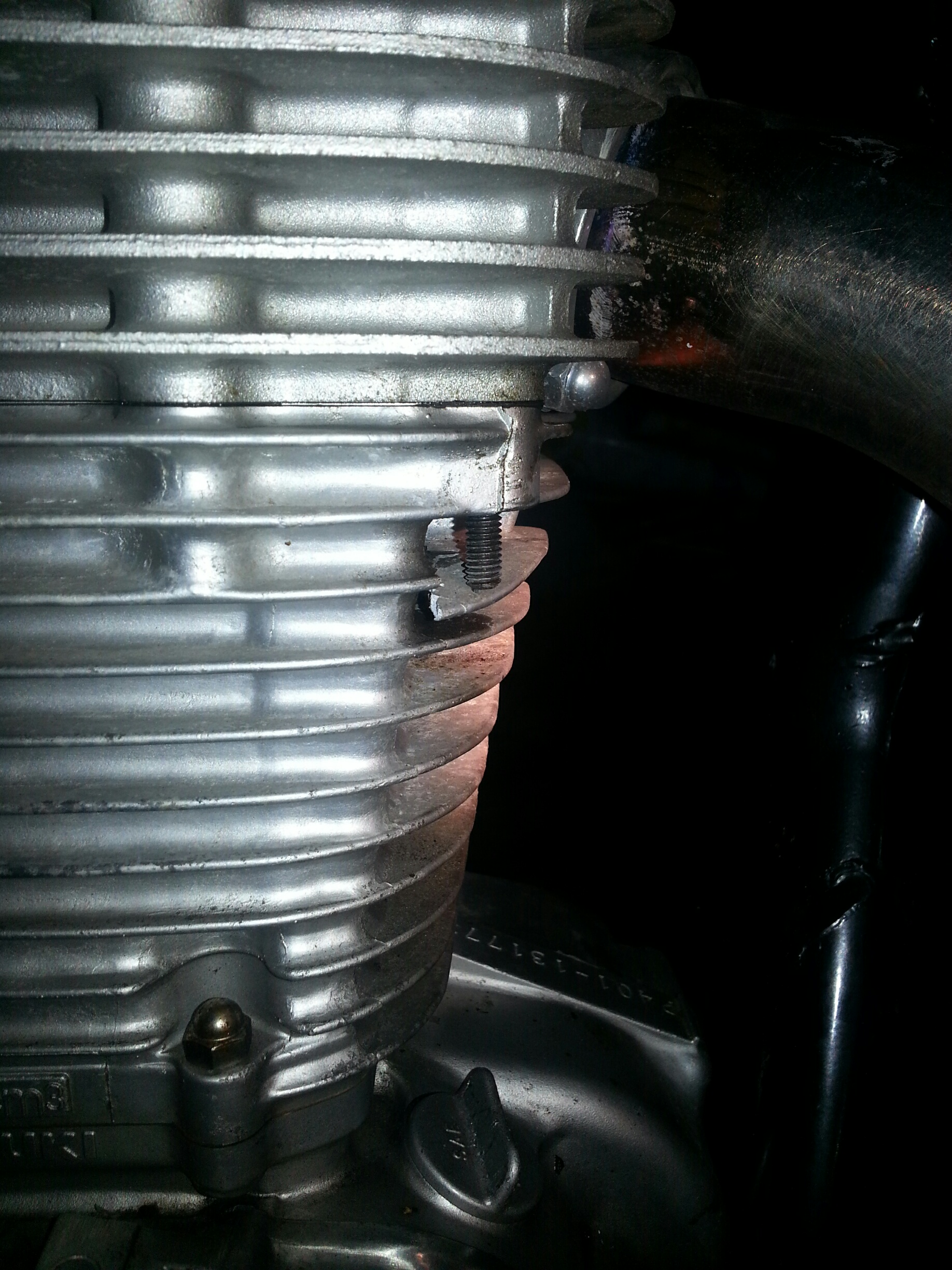

Sounds good. Here's another pic if it helps. Suggest just cutting the fin with a dremel? Like cut it off around where the bolt comes down?
Back to top
IP Logged
bobthekerr
Junior Member
Offline
SuzukiSavage.com
Rocks!
Posts: 73
Re: WTF?!? Found this...now what?
Reply #7 -
08/17/14 at 11:09:51
....Or cut the bolt with the dremel, then heat the fin and bend it back up?
Back to top
IP Logged
Seaweednh
Full Member
Offline
SuzukiSavage.com
Rocks!
Posts: 132
Newbury, MA
Gender:
Re: WTF?!? Found this...now what?
Reply #8 -
08/17/14 at 11:29:55
Personally I wouldn't cut the bolt in place. The rough cut could damage the alum if you ever have to take it out.
Back to top
IP Logged
bobthekerr
Junior Member
Offline
SuzukiSavage.com
Rocks!
Posts: 73
Re: WTF?!? Found this...now what?
Reply #9 -
08/17/14 at 11:31:21
Seaweednh wrote
on 08/17/14 at 11:29:55:
Personally I wouldn't cut the bolt in place. The rough cut could damage the alum if you ever have to take it out.
Good point. I guess cut the broken part of the fin off then.
Back to top
IP Logged
oldNslow
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 2683
Rochester, NY
Gender:
Re: WTF?!? Found this...now what?
Reply #10 -
08/17/14 at 11:38:49
betcha there's another bolt in the headcover that's in the wrong place. And if it's the one that belongs where the one in the picture is, it aint holdin' much.
Back to top
IP Logged
bobthekerr
Junior Member
Offline
SuzukiSavage.com
Rocks!
Posts: 73
Re: WTF?!? Found this...now what?
Reply #11 -
08/17/14 at 14:01:10
oldNslow wrote
on 08/17/14 at 11:38:49:
betcha there's another bolt in the headcover that's in the wrong place. And if it's the one that belongs where the one in the picture is, it aint holdin' much.
Well, I am gonna have to remove the cylinder head assy anyway in a couple days anyhow, I guess I'll check all these bolts anyways just to be sure.
Is Yamabond 4 the best product to seal the cylinder head assy? My guy at the local bike shop recommended it, but I wanted to make sure.
Back to top
IP Logged
justin_o_guy2
Serious Thumper
Offline
What happened?
Posts: 55279
East Texas, 1/2 dallas/la.
Re: WTF?!? Found this...now what?
Reply #12 -
08/17/14 at 16:55:22
I dunno how I'd fix it,but whoever did that is one KRAPTASTIC Mechanic.
I'd be afraid of everything that clown touched to get In that far.
I can't help but wonder if that was the work of a dealership mechanic.
Back to top
The people never give up their liberties but under some delusion.- Edmund Burke.
IP Logged
Seaweednh
Full Member
Offline
SuzukiSavage.com
Rocks!
Posts: 132
Newbury, MA
Gender:
Re: WTF?!? Found this...now what?
Reply #13 -
08/17/14 at 17:41:27
Best I can tell by the parts breakdown, that's a stud. (Well suppose to be). Chances are you can't fix the fin totally but I would try and be d it back. I personally wouldn't use heat on it either, you would only be asking for trouble.
Back to top
IP Logged
Dave
YaBB Moderator
ModSquad
Offline
SuzukiSavage.com
Rocks!
Posts: 18096
Camp Springs, Kentucky
Gender:
Re: WTF?!? Found this...now what?
Reply #14 -
08/17/14 at 17:54:53
bobthekerr wrote
on 08/17/14 at 14:01:10:
oldNslow wrote
on 08/17/14 at 11:38:49:
betcha there's another bolt in the headcover that's in the wrong place. And if it's the one that belongs where the one in the picture is, it aint holdin' much.
Well, I am gonna have to remove the cylinder head assy anyway in a couple days anyhow, I guess I'll check all these bolts anyways just to be sure.
Is Yamabond 4 the best product to seal the cylinder head assy? My guy at the local bike shop recommended it, but I wanted to make sure.
I use SuzukiBond...but Hondabond or Yamabond work fine. I prefer them over the other the other RTV gasket products as it seems to set up a bit slower and it allows more time to work, and it appear to have a bit more body to it. The best part is that it is just black..not copper, not orange.....not bright blue. Nothing screams 'This Engine has been worked on!" more than a glob of orange gasket goo squeezing out the seam.
Use the Yama/Suzi/Hondabond, and take a small wooden scraper and remove whatever has oozed out, then a light wipe with a rag wetted with some mineral spirits. It is the stuff between the flat mating surfaces that does the sealing...not the goo that has oozed out.
Neatness counts.
Dave
Dave
