Second mounting point for sissy bar (Read 122 times)
JohnsonLager
Full Member
Offline
SuzukiSavage.com
Rocks!
Posts: 121
Second mounting point for sissy bar
07/16/14 at 09:05:41
I'm looking to make a sissy bar and mount it to the swingarm point where the shocks meet the swingarm, but I believe I need a second mounting point and I'm looking for suggestions. Is there a technique, besides just tightening the hell out of it, that I can utilize where I only use one mounting point, but prevents it's from pivoting. I can't mount it to the fender since I'm running shocks.
Thanks
Back to top
IP Logged
Dave
YaBB Moderator
ModSquad
Offline
SuzukiSavage.com
Rocks!
Posts: 18098
Camp Springs, Kentucky
Gender:
Re: Second mounting point for sissy bar
Reply #1 -
07/16/14 at 09:16:46
I have never seen anyone mount a sissy bar to the swingarm.....unless they are running struts in place of the shocks. The sissy bar will bounce around all over the place....it will move up and down with every bump.
On bikes with shocks....the sissy bar is mounted to the frame.
Dave
Back to top
Someday I will be old......But not today!
IP Logged
JohnsonLager
Full Member
Offline
SuzukiSavage.com
Rocks!
Posts: 121
Re: Second mounting point for sissy bar
Reply #2 -
07/16/14 at 09:19:57
Thanks for the reply. Can you tell me more about how they mounted it to the frame? Pictures would be greatly appreciated, at the moment I'm falling short on finding resources for s40 sissy bar mounting.
Thanks
Back to top
IP Logged
JohnsonLager
Full Member
Offline
SuzukiSavage.com
Rocks!
Posts: 121
Re: Second mounting point for sissy bar
Reply #3 -
07/16/14 at 09:23:47
What's going on here?
Back to top
IP Logged
Dave
YaBB Moderator
ModSquad
Offline
SuzukiSavage.com
Rocks!
Posts: 18098
Camp Springs, Kentucky
Gender:
Re: Second mounting point for sissy bar
Reply #4 -
07/16/14 at 09:31:40
JohnsonLager wrote
on 07/16/14 at 09:23:47:
What's going on here?
Fender is mounted to the swingarm, and the sissy bar is also the rear support for the fender. Not a great design, at least not if you intend to ride on roads with bumps.
Back to top
Someday I will be old......But not today!
IP Logged
JohnsonLager
Full Member
Offline
SuzukiSavage.com
Rocks!
Posts: 121
Re: Second mounting point for sissy bar
Reply #5 -
07/16/14 at 09:51:47
Here's an idea I'm considering: Double mounting to the fender
Back to top
IP Logged
JohnsonLager
Full Member
Offline
SuzukiSavage.com
Rocks!
Posts: 121
Re: Second mounting point for sissy bar
Reply #6 -
07/16/14 at 09:53:13
Or mounting to the top of the shock and the fender
Back to top
IP Logged
Demin
Serious Thumper
Offline
We need more
chlorine in the gene
pool
Posts: 2435
Warren,Ohio
Gender:
Re: Second mounting point for sissy bar
Reply #7 -
07/16/14 at 17:55:06
That last pic will not work for 2 up.It will pivot on the front mount and just bend the fender.

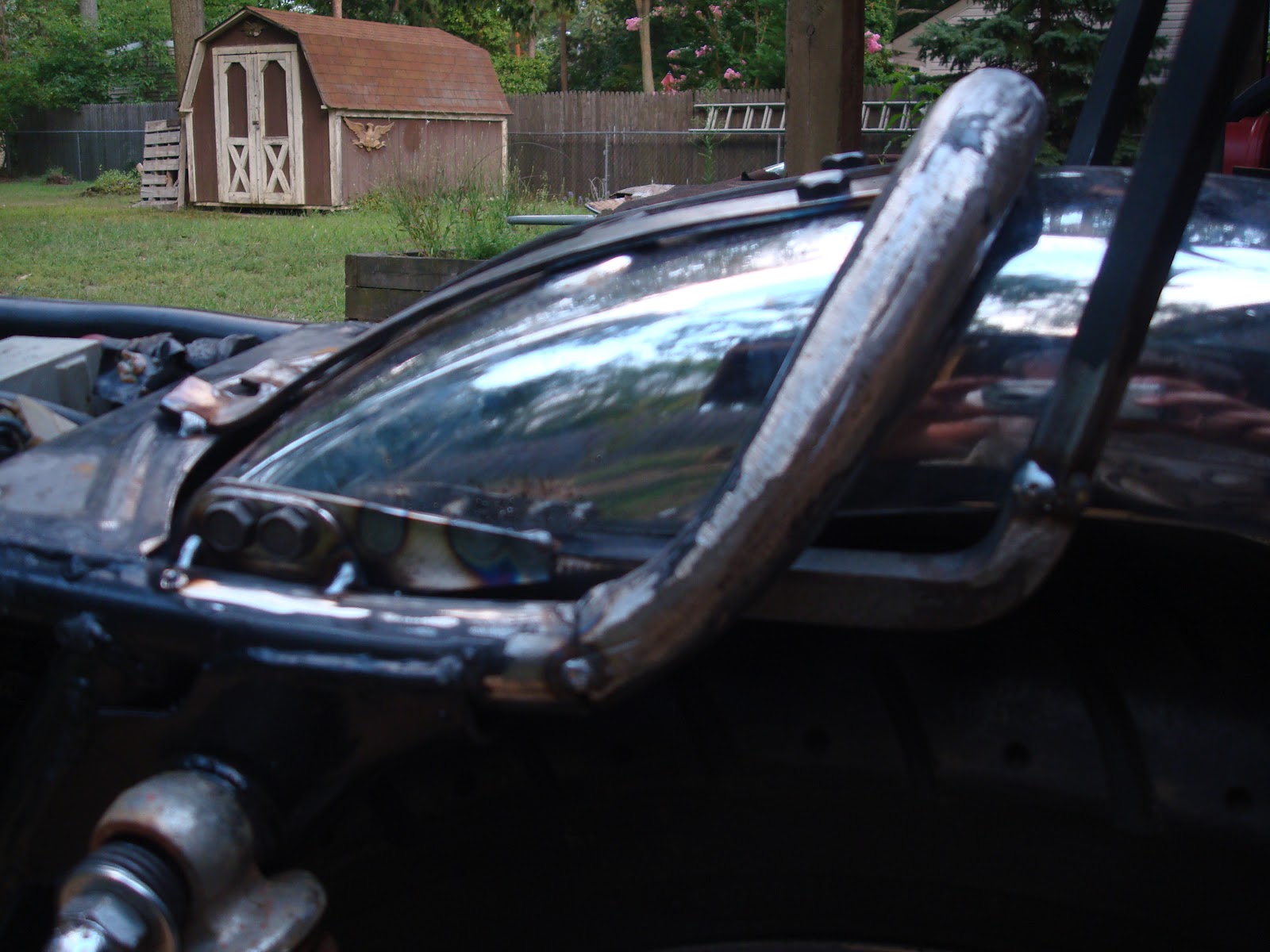

Here is my Shovel I'm doing.There will be a fender strut that goes over both bolt holes in the frame and the fender will be bolted to the struts.
Here it is with the sissybar I was going to use.It works on the same principle as our stock fender struts.
Back to top
Next project:finish '87 Savage custom/bobber/CHOP STYLE***DONE
finish '77 Yamaha XS650 bobber Bought another one
finish'79 Harley custom bobber(NEXT)
IP Logged
WD
Serious Thumper
2005 No Login
Offline
Professional
"scooter
trash".
Posts: 5207
Rosemark TN
Gender:
Re: Second mounting point for sissy bar
Reply #8 -
07/16/14 at 23:33:53
...the red bike is what was left of my 1957 Panhead barhopper.
Sissybar bolts to the fender. Came off a 1970s UJM, most likely a CB550-750 four cylinder, could have also been off a KZ650-1000 four. Might put it on Sam once Lisa (my wife) has her bike running again so Caitlyn (grandniece) doesn't tumble off the back.
Back to top
On 2 wheels since 7/87
Black and Chrome 2003 1950s style custom
IP Logged
JohnsonLager
Full Member
Offline
SuzukiSavage.com
Rocks!
Posts: 121
Re: Second mounting point for sissy bar
Reply #9 -
07/16/14 at 23:40:48
Demin,
Thank that is basically one option I'm considering right now
WD
I can't really see how the sissy bar is attached. Do you have any pictures w/o the bags
Right now I'm considering welding the rack on to the fender. Bending it and welding it to the bottom side of the fender.
Does anyone have an opinion on using electrical conduit as a sissy bar?
I know it's not the strongest stuff out there, but I used it for a luggage rack and I think it might be strong enough for a sissy bar.
