TheProduct2007 Junior Member Offline SuzukiSavage.com Rocks! Posts: 90	Repositioning rectifier, any ideas? 09/25/13 at 09:10:54 I want to move the rectifier that's below the rear seat because I'm taking the rear seat and sissy bar off, any ideas on where it will fit or is it safe to ride where it's at?
Back to top	I'm going to ride whether I have to push this bike or not! IP Logged

ALfromN.H. FSO Serious Thumper Alliance Member Offline Dragon Slayer Posts: 1421 Rochester, New Hampshire Gender:	Re: Repositioning rectifier, any ideas? Reply #1 - 09/25/13 at 10:18:42 I moved mine to under the front seat. The wires were long enough and there is plenty of room under there. It was there for 5 years without having any problems. AL
Back to top	2006 Harley Electra Glide 2014-Present 2009 Suzuki C50 2010-2014 2005 Suzuki S40 2006-2013 IP Logged

TheProduct2007

Junior Member

Offline

SuzukiSavage.com
Rocks!

Posts: 90

Re: Repositioning rectifier, any ideas?
Reply #2 - 09/25/13 at 10:23:15

Thanks I appreciate it, did you have to drill it into the frame? I also was wondering about putting a pod air filter on mine and getting rid if the air box, but I noticed the drain plug and occasionally the air box will get some kind of oil and/or gas mix into it and was wondering if that would cause a huge issue with a pod filter

Back to top

I'm going to ride whether I have to push this bike or not!

IP Logged

HondaLavis Senior Member Offline It's nothing personal; the other one came first. Posts: 451 Plano, TX	Re: Repositioning rectifier, any ideas? Reply #3 - 09/25/13 at 11:33:44 I've had mine mounted like this for well over a year now with no problems - even in the hottest Texas summers. It's just zip-tied to one of the rear fender mount brackets. No evidence of melting or overheating. Gets plenty of airflow, and it's sitting right against another big hunk-o-metal.
Back to top	"You ride a single cylinder motorcycle??" "When you're good, one is all you need." I guess that means I'm no good anymore; I've got 4 more cylinders! '08 Yamaha FJR1300 and still '01 Savage IP Logged

TheProduct2007 Junior Member Offline SuzukiSavage.com Rocks! Posts: 90	Re: Repositioning rectifier, any ideas? Reply #4 - 09/25/13 at 11:59:58 What about the air box to pod filter conversion? I see you have a pod filter.
Back to top	I'm going to ride whether I have to push this bike or not! IP Logged

HondaLavis

Senior Member

Offline

It's nothing
personal; the other
one came first.

Posts: 451
Plano, TX

Re: Repositioning rectifier, any ideas?
Reply #5 - 09/25/13 at 12:20:21

I used a K&N 1250 and just put it on the carb at first. I read somewhere that having a longer straight intake track was a good thing, (don't ask me how. I've slept since then and thus don't remember) so I decided to modify the rubber intake track to the airbox to work with my K&N. I shaved down the inner diameter on the filter side of the rubber track, and my K&N actually fits INTO the track. It looks like this:

For the airbox, I chopped it up because I wanted to keep my side covers. The left side of my box is just a mounting bracket for my black box and solenoid:

The right side is an unfinished storage box. My plan is to use fiberglass to complete the shape and use the box to store tools. I'll have a screwdriver taped under my seat to take off the cover, though I normally have my Leatherman on me anyways.

It's unfinished, but it looks like this:

All closed up, it looks like this (minus the sissy bar that I traded for a stock one):

***EDIT***

One thing I DON'T have pictured is the inside of my K&N. I had to support the inside in order to mount it into the rubber I took a large hose clamp and I cut the gear screw off so that it was just a big metal band. Then I put it inside the rubber throat of the filter so that it pressed against the rubber track clamping down on it. Without this, it just tries to fall off.

Back to top

"You ride a single cylinder motorcycle??"

"When you're good, one is all you need." Wink

I guess that means I'm no good anymore; I've got 4 more cylinders! '08 Yamaha FJR1300 and still '01 Savage

IP Logged

WD

Serious Thumper
2005 No Login

Offline

Professional
"scooter
trash".

Posts: 5207
Rosemark TN
Gender: male

Re: Repositioning rectifier, any ideas?
Reply #6 - 09/25/13 at 12:47:22

Mine is on the rear fender forward mount. It was in the airbox from 1999 until 2007. Bike has changed again since this pic 2 weeks ago or so, went to low bars off a Police Road King. Starter relay is in the battery box so called tool compartment, push button will be as well.

Yes that is a front drum, yes I'm insane, no, don't do the swap yourself.

Looks a lot more like a motorcycle with the low bars. The apes made it look like a toy.

Back to top

On 2 wheels since 7/87

Black and Chrome 2003 1950s style custom

IP Logged

TheProduct2007 Junior Member Offline SuzukiSavage.com Rocks! Posts: 90	Re: Repositioning rectifier, any ideas? Reply #7 - 09/25/13 at 12:47:29 Thanks for the information, I appreciate the detail you put into that. Do you ever have problems with gas getting into your k&n?
Back to top	I'm going to ride whether I have to push this bike or not! IP Logged

HondaLavis Senior Member Offline It's nothing personal; the other one came first. Posts: 451 Plano, TX	Re: Repositioning rectifier, any ideas? Reply #8 - 09/25/13 at 13:26:15 It can kinda smell like gas sometimes, but I just attributed it to the uneven vacuum pulses of a big single. I've never had any noticeable amount of gasoline in it.
Back to top	"You ride a single cylinder motorcycle??" "When you're good, one is all you need." I guess that means I'm no good anymore; I've got 4 more cylinders! '08 Yamaha FJR1300 and still '01 Savage IP Logged

HondaLavis Senior Member Offline It's nothing personal; the other one came first. Posts: 451 Plano, TX	Re: Repositioning rectifier, any ideas? Reply #9 - 09/25/13 at 13:27:02 Hey, WD, you left your keys in the lock. Do you want somebody to steal your bike?!?!
Back to top	"You ride a single cylinder motorcycle??" "When you're good, one is all you need." I guess that means I'm no good anymore; I've got 4 more cylinders! '08 Yamaha FJR1300 and still '01 Savage IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28887 L.A. California Gender:	Re: Repositioning rectifier, any ideas? Reply #10 - 09/25/13 at 13:54:42 HondaLavis wrote on 09/25/13 at 13:27:02: Hey, WD, you left your keys in the lock. Do you want somebody to steal your bike?!?! They keep the neighbors out of the vegetable patch by shootin' off a hand cannon... so no, he's not worried about that.
Back to top	Versey's Place Tech Section Index IP Logged

TheProduct2007 Junior Member Offline SuzukiSavage.com Rocks! Posts: 90	Re: Repositioning rectifier, any ideas? Reply #11 - 09/25/13 at 14:04:01 When I get home I'll take some pics of my bike and y'all tell me what y'all think, advice, tips, tricks, issue resolutions, etc
Back to top	I'm going to ride whether I have to push this bike or not! IP Logged

WD Serious Thumper 2005 No Login Offline Professional "scooter trash". Posts: 5207 Rosemark TN Gender:	Re: Repositioning rectifier, any ideas? Reply #12 - 09/25/13 at 19:45:20 HondaLavis wrote on 09/25/13 at 13:27:02: Hey, WD, you left your keys in the lock. Do you want somebody to steal your bike?!?! I often leave them in it when it runs... enough mods that your average joyrider wouldn't even be able to start it. Not like it's worth anything, just a beat to death commuter bike.
Back to top	On 2 wheels since 7/87 Black and Chrome 2003 1950s style custom IP Logged

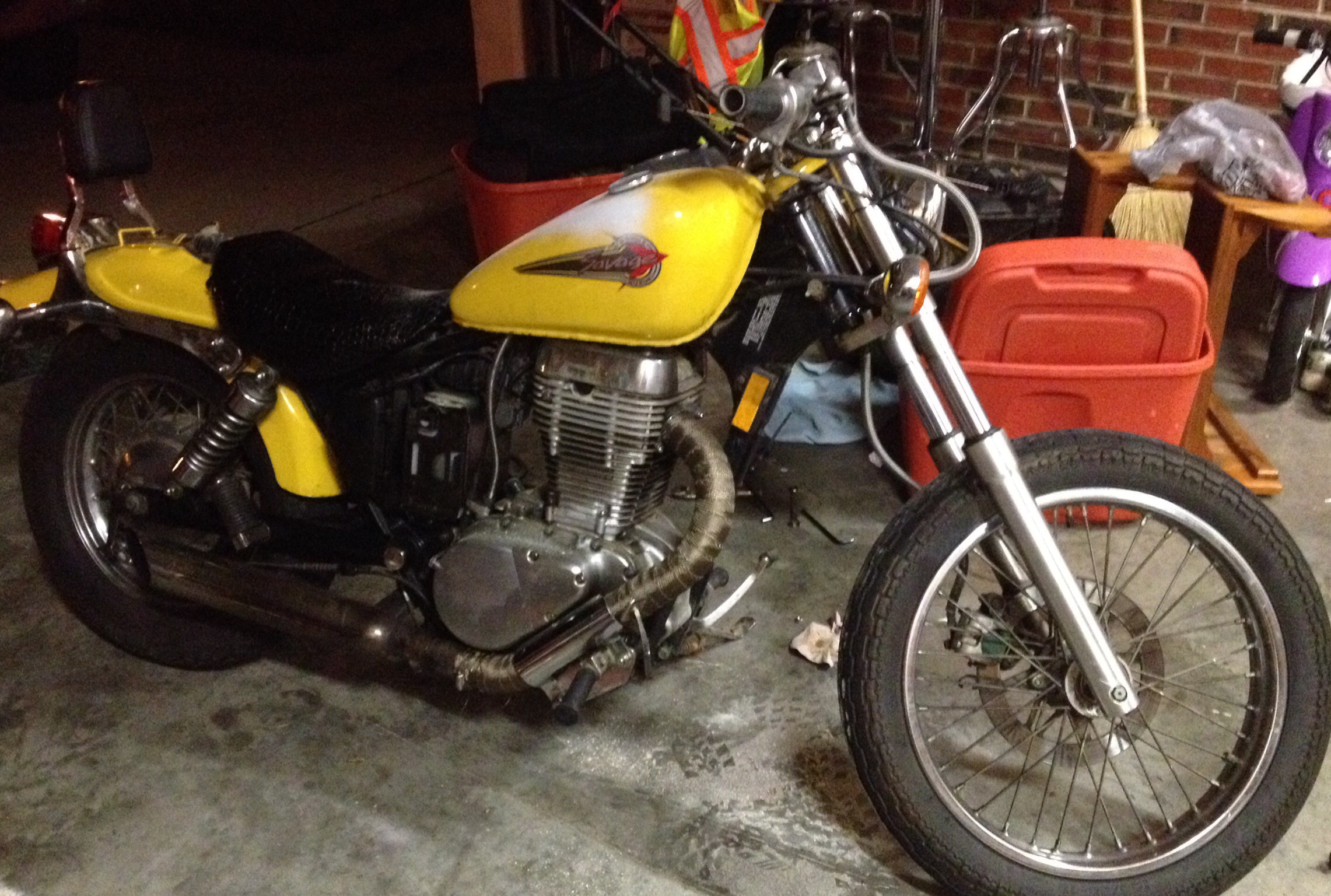

TheProduct2007 Junior Member Offline SuzukiSavage.com Rocks! Posts: 90	Re: Repositioning rectifier, any ideas? Reply #13 - 09/26/13 at 06:42:18 Bike
Back to top	image_115.jpg I'm going to ride whether I have to push this bike or not! IP Logged
