cleaning up frame welds..
07/20/12 at 18:42:26

If I take my grinder and smooth out the welds will it affect the strength of the frame overall? Or should I just leave it be?
Back to top



00' raptor - supertrapp - 52.5 - 155 - half spacer - versaved
  IP Logged
justin_o_guy2
Serious Thumper
*****
Offline

What happened?

Posts: 55279
East Texas, 1/2 dallas/la.
Re: cleaning up frame welds..
Reply #1 - 07/20/12 at 20:01:24

Theres a guy who just posted pics of such a job. He did some grinding & some bondo. I suspect just grinding would be a mistake, knock off the Big Ugly & fill in,,
Back to top



The people never give up their liberties but under some delusion.- Edmund Burke.
  IP Logged
teabowl13
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 535

Re: cleaning up frame welds..
Reply #2 - 07/21/12 at 12:18:18

Here's the thread I think Justin is talking about.
This guy went pretty extreme; he even cut off some of the structural bits and re-did them. It looks great to me; I might be a little worried about the strength of some of his joints, but it's really hard to judge that sort of thing just from photos. Over-all, the work looks super professional, so I'm sure it's solid.

http://suzukisavage.com/cgi-bin/YaBB.pl?num=1342255366
Back to top


  IP Logged
Dave
YaBB Moderator
ModSquad
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 18097
Camp Springs, Kentucky
Gender: male
Re: cleaning up frame welds..
Reply #3 - 07/22/12 at 04:17:08

The weld provides strength in two ways.  One is the penetration where it melts down into the metal and the two pieces flow together for some depth.  On this metal this can actually go clear through to the other side.  The other is the "fillet" - the portion of the weld that is "proud" of the surface.....and it does provide strength.  On thick metal the depth of penetration usually is no where near completely through, and the fillet is a considerable amount of the strength.

I would not grind the entire weld away - but there is nothing wrong with grinding a little bit to get them a bit smoother.
Back to top



Someday I will be old......But not today!

  IP Logged
Routy
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 2280
Winston Oregon
Gender: male
Re: cleaning up frame welds..
Reply #4 - 07/22/12 at 04:55:52

These frame welds have a bad case of the uglies,.....even tho most seem to be penatrated well. They could be improved 75% just by knocking off the high spots....w/o weakening them one bit.

I have often wondered what happened w/ quality control when it come to welding these frames,......and the amazing part, their ALL the same !
Back to top



Rich
'07 S40 Blvd stocker, except drilled OEM exhaust and white spacer mod...1/2 (.055)
  IP Logged
LANCER
Serious Thumper
Alliance Member
*****
Offline

Savage Beast
Performance Parts

Posts: 10661
Oklahoma
Gender: male
Re: cleaning up frame welds..
Reply #5 - 07/22/12 at 05:05:41

Routy wrote on 07/22/12 at 04:55:52:
These frame welds have a bad case of the uglies,.....even tho most seem to be penatrated well. They could be improved 75% just by knocking off the high spots....w/o weakening them one bit.

I have often wondered what happened w/ quality control when it come to welding these frames,......and the amazing part, their ALL the same !



Maybe due to "job security" for the guy doing  the welding at whatever Suzuki plant makes the frames.  I wonder if the same dude who welded the first frames back in the 80's is still working the same job today ... his welds are on every frame that comes off the mfg. line.
Just a thought ...
Back to top


  IP Logged
justin_o_guy2
Serious Thumper
*****
Offline

What happened?

Posts: 55279
East Texas, 1/2 dallas/la.
Re: cleaning up frame welds..
Reply #6 - 07/22/12 at 05:27:55

You guys can pick on the welding,, I cant..My particular approach to welding usually requires a few seconds of welding, followed by a minute or so of grinding, then more welding & on & on, till I get whatever Im working on stuck together,,

But with a Mig? Ohh, Im suddenly decent! Of course the rig could be part of it I guess. I have a $150.00 HF stick welder,,& I was using a MIG in a well equipped Body Shop, a pretty big Miller unit.
Back to top



The people never give up their liberties but under some delusion.- Edmund Burke.
  IP Logged
Routy
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 2280
Winston Oregon
Gender: male
Re: cleaning up frame welds..
Reply #7 - 07/22/12 at 06:29:58

Being a welder by trade, I know that it is just as easy to make a nice looking weld as an ugly weld... w/ most any machine,...not that we don't all have an "oops" once in a while, whether it be human or machine error.
I too would maybe think that the same guy welded all the frames, except that after welding that many, seems like he would accidently get better if not on purpose ! And then add the quality control issue on top of it, I just don't get it, especially from a major MC company. One thing for sure, quality control sure wasn't high on their priority list,......at least in the welding shop.
Back to top



Rich
'07 S40 Blvd stocker, except drilled OEM exhaust and white spacer mod...1/2 (.055)
  IP Logged
sparkie
YaBB Newbies
*
Offline

SuzukiSavage.com
Rocks!

Posts: 46

Re: cleaning up frame welds..
Reply #8 - 07/22/12 at 10:47:28

Hi

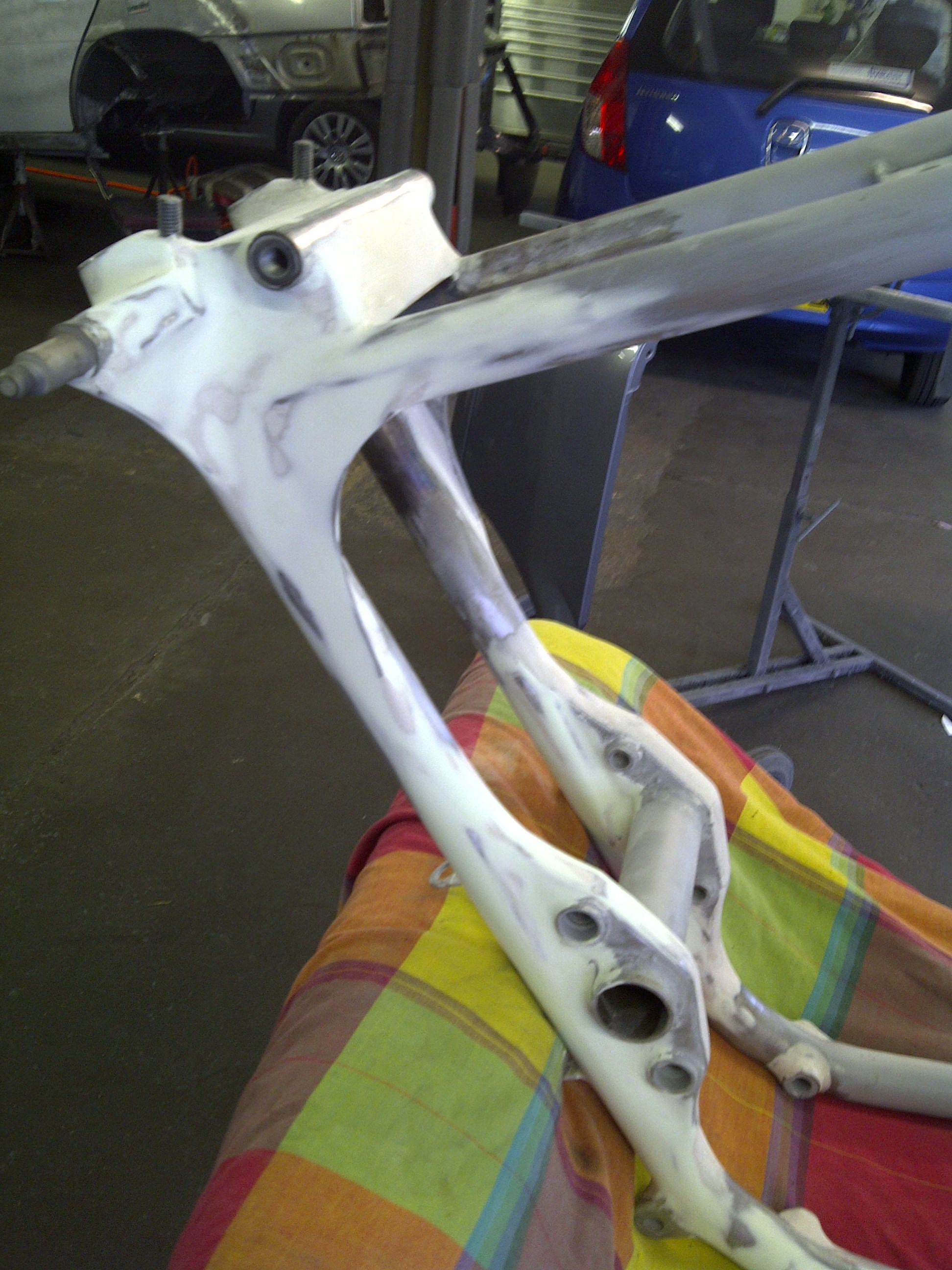

Its my blue savage that i ground down the welds on and yes i only smoothed them and then put a bit of filler over them.
If there was some that looked a bit crap then i re welded them with a tig.
The main bits i cut off was under the seat area where they looked really agricultural but then made new strengthening braces so there was no loss in strength more probably.I think the original strengthening ones were welded in the middle between the two tubes but i cut them off and re-welded them on the outside and ground flat which looks better.So long as you don't take too much off cant see there being a problem.
Cheers Sparkie
Back to top


  IP Logged
Paraquat
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 2206

Re: cleaning up frame welds..
Reply #9 - 07/22/12 at 19:30:06

Routy wrote on 07/22/12 at 06:29:58:
I too would maybe think that the same guy welded all the frames, except that after welding that many, seems like he would accidently get better if not on purpose !


I almost spit my tea on myself reading this.


--Steve
Back to top


  IP Logged
Cavi Mike
Serious Thumper
*****
Offline

Thumper n00b

Posts: 1005
Rochester, NY
Gender: male
Re: cleaning up frame welds..
Reply #10 - 07/22/12 at 21:09:42

A fillet weld is as strong as a weld needs to be (a proper fillet weld is slightly concave). If it bulges up and becomes convex, that is extra material. It doesn't make the weld any stronger and it can be safely ground off. Now that's not to say the weld wasn't too small and weak to begin with but that bulging material will do nothing for its strength. It's how wide the weld is that matters.
Back to top


  IP Logged
rfw2003
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 1108
Yantis, TX
Re: cleaning up frame welds..
Reply #11 - 07/22/12 at 21:23:02

Cavi Mike wrote on 07/22/12 at 21:09:42:
A fillet weld is as strong as a weld needs to be (a proper fillet weld is slightly concave). If it bulges up and becomes convex, that is extra material. It doesn't make the weld any stronger and it can be safely ground off. Now that's not to say the weld wasn't too small and weak to begin with but that bulging material will do nothing for its strength. It's how wide the weld is that matters.

+1
totally agree here.

Over welding can actually weaken the area depending on the type of metal that is being welded.
Back to top



1996 Savage, Corbin Seat, K&N filter, Slip Streamer Enterprise II windshield, LED bullet signals, Cat's eye LED tail light Ryca reverse cone long muffler
  IP Logged
heroicseven
Full Member
***
Offline

oops, I broke it.

Posts: 245
San Diego
Gender: male
Re: cleaning up frame welds..
Reply #12 - 07/22/12 at 23:04:46

I'm thinking about buying my own welder to try and persue my fabrication fantasies.. Any suggestions on a good welding machine to start with?
Back to top



00' raptor - supertrapp - 52.5 - 155 - half spacer - versaved
  IP Logged
rfw2003
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 1108
Yantis, TX
Re: cleaning up frame welds..
Reply #13 - 07/22/12 at 23:13:00

I would recommend a MIG welder.  Not a wire fed with flux core but a real MIG with the Gas.  Myself I have a Hobart Handler 180 and it has served me well for several years. Once you really learn how to weld well with MIG and also any Oxy/Actyl setup then you can try your luck with a TIG unit later on down the road if you want to get into welding aluminum.

R.F.
Back to top



1996 Savage, Corbin Seat, K&N filter, Slip Streamer Enterprise II windshield, LED bullet signals, Cat's eye LED tail light Ryca reverse cone long muffler
  IP Logged
Cavi Mike
Serious Thumper
*****
Offline

Thumper n00b

Posts: 1005
Rochester, NY
Gender: male
Re: cleaning up frame welds..
Reply #14 - 07/23/12 at 00:02:13

Hobarts are really nice, they're owned by the same company that makes Millers. Recently Miller has put out some welders that I'm almost certain are Hobart welders underneath. If you look at the Miller Diversion 165 it's almost indistinguishable from a Hobart EZ-tig 165 to a color-blind person.
