Re: Reupholster or different handle bars
Reply #30 -
04/27/12 at 10:06:21
Ohh!... Ignore my post above... I think the bottom clamp does come off from the riser...
So,.. you can just use that without the riser... (my bad)...
...
Back to top
Ludicrous Speed !... ...
...
IP Logged
Savage_Rob
Serious Thumper
Alliance Member
Offline
Mechanically
Inclined Amateur
Posts: 6972
Texas (Dallas area)
Gender:
Re: Reupholster or different handle bars
Reply #31 -
04/27/12 at 10:06:34
http://en.wikipedia.org/wiki/Motorcycle_handlebar
Back to top
1998|MAC muffler|ceramic coated header|K&N air filter|Amal Mk2 carb|Odyssey battery|iridium plug|NC windshield|Dunlop 491s|Superbrace|EBC brake rotor|12.5" Progressive shocks|Kuryakyn ISO grips
IP Logged
EJID
Serious Thumper
Offline
Work to ride and
ride to work.
Posts: 1536
Pocatello, ID
Gender:
Re: Reupholster or different handle bars
Reply #32 -
04/27/12 at 10:16:59
Yes the riser comes apart at that line you have circled.
I recently changed my stock bars that looked exactly like yours to mini-apes and reused that potion of the riser as shown in the pic below...
You will have to get a new bolt to go through that portion of the riser and the triple trees, but otherwise they work great.
Back to top
05 S40 15" Memphis Slim, FXDWG Bars, Moved Rear Signals, Saddlebags, Fork Bag, Mini-Tach, Raptor, Cone Filter, Fishtail Muffler, Mix Screw Out 2.5 Turns, 4" Fwd Controls, 147.5 Main/55 Pilot @ 4500
IP Logged
John
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 32
Re: Reupholster or different handle bars
Reply #33 -
04/27/12 at 11:00:44
EJID, where did you get the bolt from? Does it "simply" go through the bottom of the riser, or did you have to drill?
Good to know that all of the above works
. Hopefully I can get the bars soon. I assuming that you didn't have to buy any extenders...is that correct?
Back to top
IP Logged
verslagen1
YaBB Moderator
ModSquad
Offline
Where there's a
will, I want to be
in it.
Posts: 28884
L.A. California
Gender:
Re: Reupholster or different handle bars
Reply #34 -
04/27/12 at 11:58:55
Take it apart not much to it.
Back to top
Versey's Place
Tech Section Index
IP Logged
EJID
Serious Thumper
Offline
Work to ride and
ride to work.
Posts: 1536
Pocatello, ID
Gender:
Re: Reupholster or different handle bars
Reply #35 -
04/27/12 at 12:56:13
John wrote
on 04/27/12 at 11:00:44:
EJID, where did you get the bolt from? Does it "simply" go through the bottom of the riser, or did you have to drill?
Good to know that all of the above works
. Hopefully I can get the bars soon. I assuming that you didn't have to buy any extenders...is that correct?
Like Vers said, it comes apart very easily. (Remove bars and you will see the bolt that has to come out) I picked up a bolt that would work from either ACE or Lowes, I don't remember. My bars are much taller and wider than before, and I had to extend wiring, and swap cables & brake hose. From what it sounds like you want to do, I would be surprised if you have to go to that extent.
Back to top
05 S40 15" Memphis Slim, FXDWG Bars, Moved Rear Signals, Saddlebags, Fork Bag, Mini-Tach, Raptor, Cone Filter, Fishtail Muffler, Mix Screw Out 2.5 Turns, 4" Fwd Controls, 147.5 Main/55 Pilot @ 4500
IP Logged
John
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 32
Re: Reupholster or different handle bars
Reply #36 -
04/27/12 at 13:36:01
EJID, I'm assuming that you had to swap out bolts for a shorter one...is that correct?
Back to top
IP Logged
arteacher
Serious Thumper
Offline
Ride as if your
naked and invisable!
Posts: 2581
London ontario
Gender:
Re: Reupholster or different handle bars
Reply #37 -
04/27/12 at 15:25:53
Longer. Take it apart and take the pieces to a hardware store and get new bolts. Don't forget to get lock nuts for them as well. You don't want the nuts vibrating loose and the handlebars coming off. The stock bolts actually have holes in them to safety wire them. Not needed with lock nuts and locktite. You will need 10 mm Allen head bolts 75mm long.
Back to top
white '07, Raask exh, Corbin seat, slipstreamer shie, Raptor, Routy's fwd controls, Baron tach, Frisco bars, Isogrips, Headlight and taillight modulators, Dial-a- jet, AME 9 deg chop kit, K&N air flt
IP Logged
John
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 32
Re: Reupholster or different handle bars
Reply #38 -
05/10/12 at 10:31:26
EJID, I got them today via ups...and Ironically, I don't think they'll have enough rise or height for me. I'm looking at what you have...it looks like these....
http://www.jpcycles.com/product/500-939...is
that close or something else? Right now, I have these ...
http://www.jpcycles.com/product/502-210
Thanks.
Back to top
IP Logged
EJID
Serious Thumper
Offline
Work to ride and
ride to work.
Posts: 1536
Pocatello, ID
Gender:
Re: Reupholster or different handle bars
Reply #39 -
05/10/12 at 12:51:30
John wrote
on 05/10/12 at 10:31:26:
EJID, I got them today via ups...and Ironically, I don't think they'll have enough rise or height for me. I'm looking at what you have...it looks like these....
http://www.jpcycles.com/product/500-939
...is that close or something else? Right now, I have these ...
http://www.jpcycles.com/product/502-210
Thanks.
John,
I think you are right... these ones
http://www.jpcycles.com/product/500-939
are much closer to the ones that I have. Someone else on the board listed those XLX bars as another great option that worked for him.
Mine were used HD takeoffs that I got from eBay. Seller stated they were the stock bars off a Dyna Wide Glide (FXDWG). I haven't ever measured the height of the bars, but I do know that the total width is right about 33" if I had to guess, I would say they are either 10" or 12" rise (I can measure later today if you really want to know)
Another option might be to use those XLX bars on top of the current pull-back risers
Might just work for you, or even turn around the risers so they go more up and forward with those bars...lots of options available
keep us in the loop as to what you decide to do.
Back to top
05 S40 15" Memphis Slim, FXDWG Bars, Moved Rear Signals, Saddlebags, Fork Bag, Mini-Tach, Raptor, Cone Filter, Fishtail Muffler, Mix Screw Out 2.5 Turns, 4" Fwd Controls, 147.5 Main/55 Pilot @ 4500
IP Logged
SuperSavage
Senior Member
Offline
SuzukiSavage.com
Rocks!
Posts: 341
Re: Reupholster or different handle bars
Reply #40 -
05/10/12 at 12:53:59
John wrote
on 05/10/12 at 10:31:26:
EJID, I got them today via ups...and Ironically, I don't think they'll have enough rise or height for me. I'm looking at what you have...it looks like these....
http://www.jpcycles.com/product/500-939...is
that close or something else? Right now, I have these ...
http://www.jpcycles.com/product/502-210
Thanks.
Those are the same bars that I have. I used 2 inch risers which allowed me to keep the stock cables. If you want more height, just reverse the stock risers.
BTW, I love the control and comfort theses bars afford me.
Back to top
IP Logged
John
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 32
Re: Reupholster or different handle bars
Reply #41 -
05/10/12 at 13:27:19
Super, not to ask a redundant questions...but by reversing them...you mean to literally take them apart and flip? Will I have to get any new cables if i take off the current bars, leave the current risers as they are, and put new one's on? The new bars have a 5" rise from what i can tell.
thanks!
Back to top
IP Logged
EJID
Serious Thumper
Offline
Work to ride and
ride to work.
Posts: 1536
Pocatello, ID
Gender:
Re: Reupholster or different handle bars
Reply #42 -
05/10/12 at 15:10:55
John wrote
on 05/10/12 at 13:27:19:
Super, not to ask a redundant questions...but by reversing them...you mean to literally take them apart and flip? Will I have to get any new cables if i take off the current bars, leave the current risers as they are, and put new one's on? The new bars have a 5" rise from what i can tell.
thanks!
All you have to do is take the top clamps off & pull out the bar. Take the 2 bottom nuts off the current risers. Pull the risers out of the triple tree and flip them around then reassemble. The stock drag bar should work that way no problem, and those XLX bars might too, if you switch to other bars though you will probably have to change cables/hose/wiring.
Back to top
05 S40 15" Memphis Slim, FXDWG Bars, Moved Rear Signals, Saddlebags, Fork Bag, Mini-Tach, Raptor, Cone Filter, Fishtail Muffler, Mix Screw Out 2.5 Turns, 4" Fwd Controls, 147.5 Main/55 Pilot @ 4500
IP Logged
John
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 32
Re: Reupholster or different handle bars
Reply #43 -
05/12/12 at 11:26:40
Okay, did the swap today. Had to rerun some of the cables to make them fit. I'll have to get a new front brake line, as this one is a foot short. There's a shot in memphis that will make me a new one with braided steel for less then $70...I assume that a good deal (ft long). Even though I can ride it (no front brake line), I sat on it and can already tell a HUGE difference in comfort. I can already tell that whenever I obtain some more money, getting some fc's will be massive to this bike.

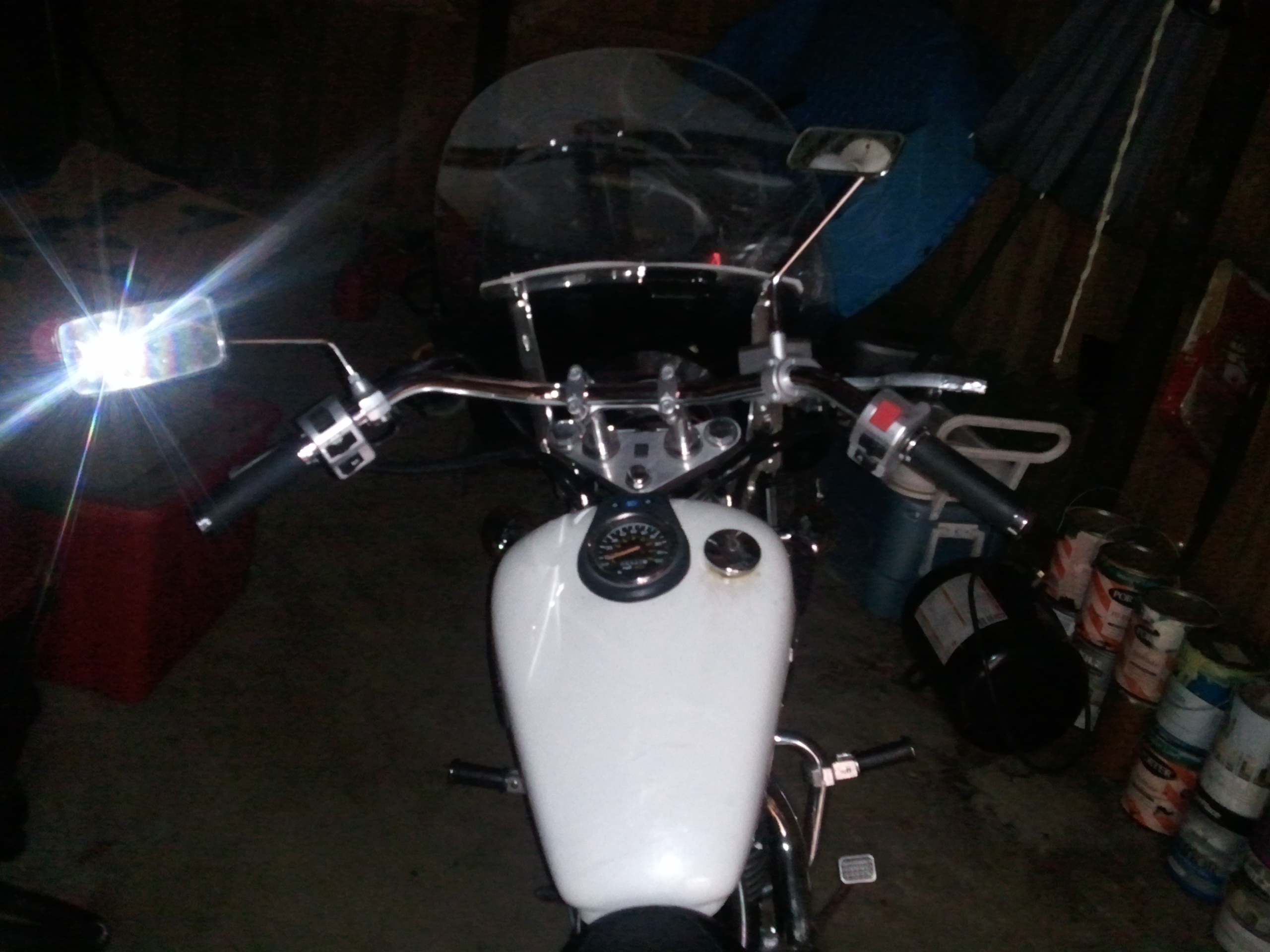

Attached is a pic of the new bars. I've got the brake on it, but obviously not in the right location. Getting the grips and such wasn't the hard part...it was getting the lines right and making sure they'd reach when fully left and right.
Back to top
IP Logged
John
YaBB Newbies
Offline
SuzukiSavage.com
Rocks!
Posts: 32
Re: Reupholster or different handle bars
Reply #44 -
05/16/12 at 14:51:59
Thanks again to all. Got the new brake line installed last night, bled the line, took it for a test drive. What a difference...it even changed the seat comfort, which I didn't expect. Now to get some fc's and more toys!
Rock on!
Back to top
