help! savage newbie carb question
01/27/12 at 21:46:57

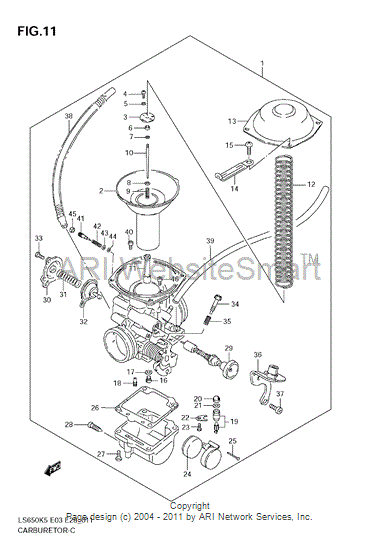

I just bought a 1986 savage and have noticed while trying to fix this back firing issue that I may be missing a hose or 2. The new nipples that I expect should have hoses are on opposite sides of the Carb in almost the same location just opposite sides of the Carb. I found an illustration that shows one but it won't allow me to post it since I am new if it allows the pic I posted it looks to connect to line 39 . The other is in the almost exact location on the other side of the Carb. Can anyone tell me where these are supposed to connect and what harm they are doind disconnected? Please any help would be appreciated. If u can't view the image they are high on the Carb at the rear facing rearward. Thank you and if there are any savage owners near the Chattanooga are give me a shout. 423-582-1266. If I don't answer a text will usually come thru when service is too crappy for calls. Thank you so much, chris.

Back to top


IP Logged

Oldfeller--FSO Serious Thumper ModSquad Offline Hobby is now "concentrated neuropany" Posts: 12671 Fayetteville, NC Gender:	Re: help! savage newbie carb question Reply #1 - 01/27/12 at 22:02:42 They are vents for the float area, there are two of them, they are twisted tied to the frame rail inside the gas tank and they are supposed to be open on one end. Likely what you found is perfectly normal .....
Back to top	Former Savage Owner IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: help! savage newbie carb question Reply #2 - 01/27/12 at 23:45:56 &thinking somethings wrong? Also, nerfectly pormal..
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

Serowbot YaBB Moderator ModSquad Offline OK.... so what's the speed of dark? Posts: 28637 Tucson Az Gender:	Re: help! savage newbie carb question Reply #3 - 01/28/12 at 09:14:15 It'sa lika' dis'...
Back to top	Ludicrous Speed !... ... ... IP Logged

thumperclone Serious Thumper Alliance Member Offline PGR rider riding with respect Posts: 6047 Grand Junction Colorado Gender:	Re: help! savage newbie carb question Reply #4 - 01/28/12 at 09:28:34 open end of those tubes need to be higher than the carb!!
Back to top	standing for those who stood for US IP Logged

lividias

YaBB Newbies

Offline

SuzukiSavage.com
Rocks!

Posts: 3
Chattanooga, TN
Gender: male

Re: help! savage newbie carb question
Reply #5 - 01/28/12 at 10:05:16

That was my next question because yesterday which was the first time I ever used the choke I had fuel coming out of them, after it ran a bit it stopped but yes was the first day my bike had running problems, ir spit and sputtered under any kind of acceleration and eventually died, I got it restarted after running my battery nearly dead, it sputtered and popped (backfired) some more until finally guess it cleared itself out and ran fine. Any suggestions? The whole trip may have been 3 miles tops and I never got over 50 so. My guess is today it will start and run fine assuming I don't use the choke but who knows...

Back to top

IP Logged

Serowbot YaBB Moderator ModSquad Offline OK.... so what's the speed of dark? Posts: 28637 Tucson Az Gender:	Re: help! savage newbie carb question Reply #6 - 01/28/12 at 10:26:09 Livid,... very important,.. do this test... It'll likely be your problem... Very common... ... http://suzukisavage.com/cgi-bin/YaBB.pl?num=1251932429/1
Back to top	Ludicrous Speed !... ... ... IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28884 L.A. California Gender:	Re: help! savage newbie carb question Reply #7 - 01/28/12 at 10:29:55 Float is sticking, take a plastic screwdriver and rap the side of the carb a couple of times. put an ounce or two of seafoam in the tank. what jets are you running that you never have to run it on choke?
Back to top	Versey's Place Tech Section Index IP Logged

lividias

YaBB Newbies

Offline

SuzukiSavage.com
Rocks!

Posts: 3
Chattanooga, TN
Gender: male

Re: help! savage newbie carb question
Reply #8 - 01/28/12 at 10:53:16

I just bought the bike and the choke will not stay pulled out so I just sit with the bike until it got warm onough to idle or idled it up slightly til it is warm. It was probably very stupid of me but I wrapped a small rubberbeand around the choke and used it to allow me to but the choke in open or closed position. It worked great as far as starting and warming the bike but when I road it I had sputtering trouble etc. Seemed to run great by the time I got it back to the house Las night. I'm fixing to go buy the lines the Carb is missing now at auto one, my local Suzuki all in one shop said they are prob pretty close to 1/4 in but couldn't tell me for sure. As far as jets I have no clue, I was getting ready to do the back firing fixes listed on here assuming I can find the spacer and needle and I've looked and looked but have no brass plug. I do have a maybe 3/4 in deep hole with a small flatheaded brass screw in it on the high right side of my Carb. Guessing that is it. Also planned to replace the spark plug today too. This is why I asked if there was anyone local around. I know very little about bikes period but am maintenance inclined and learn quickly lets just hope I can get this right lol thank you all for the help and I'll check back here as often as possible

Back to top

IP Logged

kuri77

Full Member

Offline

SuzukiSavage.com
Rocks!

Posts: 127
Rancho Santa Margarita, Ca
Gender: male

Re: help! savage newbie carb question
Reply #9 - 01/28/12 at 11:04:14

What Verslagen1 said. I was out riding on my 2011 yesterday with only 1100 miles on it and, while filling it up, started draining all over the ground. Took the mini flashlight from my pocket and rapped the carb several times. Stopped leaking right away. So doesn't have to be old or worn out to happen. This solution-trick is old though and a proven one as many including me have found out.

Back to top

Big Sur

IP Logged

Routy Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 2280 Winston Oregon Gender:	Re: help! savage newbie carb question Reply #10 - 01/30/12 at 04:23:25 A good fuel filter tween tank and carb would probably illiminate 99.9% of all carb problems. The one in the tank is not fine enuff.
Back to top	Rich '07 S40 Blvd stocker, except drilled OEM exhaust and white spacer mod...1/2 (.055) IP Logged
