New bike, New member, New forum, New project (Read 1604 times)

FunnyBikePhil

Junior Member

Offline

SuzukiSavage.com
Rocks!

Posts: 71

Re: New bike, New member, New forum, New project
Reply #105 - 12/02/18 at 05:42:57

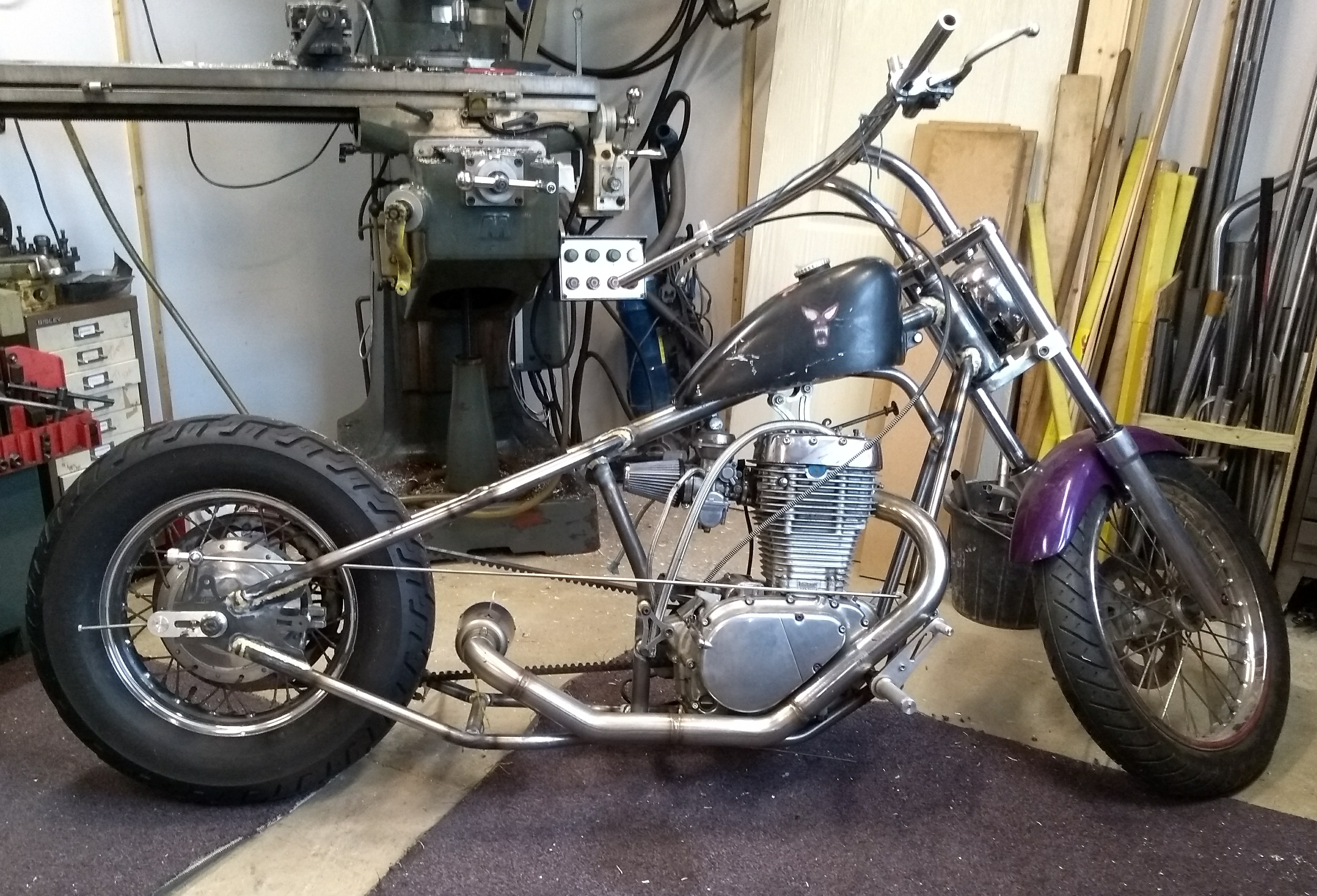

Forward controls and footpegs all fabricated, rear brake is now flipped round 180 degrees and pulled by a 6mm stainless rod. I have a really nice rear fender which I forgot to photograph, and I've had a bigger rear tyre fitted which has improve the stance no end (150/90). Fender fitting is integrated with the sissy bar, so that's next I think.


IP Logged

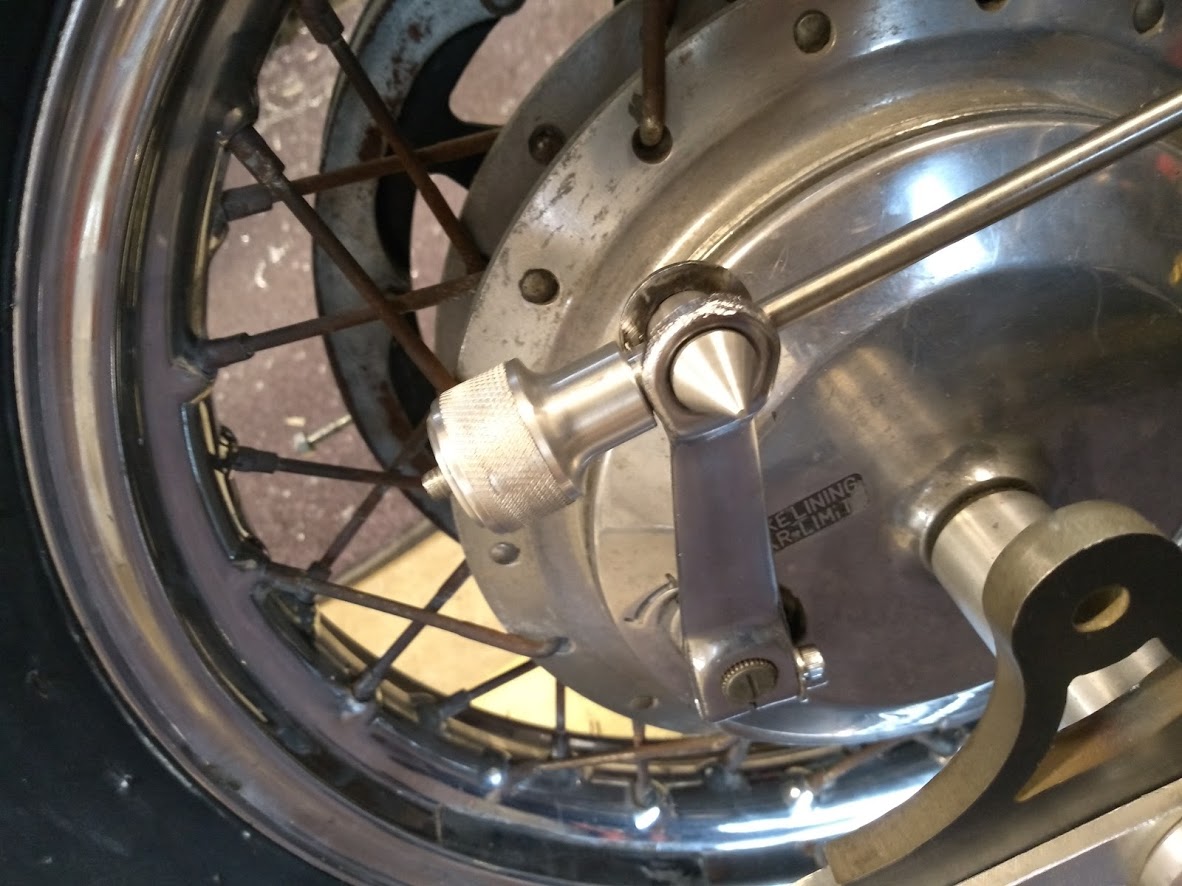

FunnyBikePhil Junior Member Offline SuzukiSavage.com Rocks! Posts: 71	Re: New bike, New member, New forum, New project Reply #106 - 12/02/18 at 05:53:29 rear brake thingy
Back to top	IMG_20181202_130022918.jpg IP Logged

sandmanred Senior Member Offline SuzukiSavage.com Rocks! Posts: 284	Re: New bike, New member, New forum, New project Reply #107 - 12/04/18 at 03:43:09 Looking good! Keep the pics coming
Back to top	IP Logged

batman Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 3806 osceola new york Gender:	Re: New bike, New member, New forum, New project Reply #108 - 12/04/18 at 07:19:36 The bike looks great! But you may have to rethink the rear brake rod a bit , you've changed the brake arm 180 degrees ,so that it needs to be pushed rearward to apply the brake, so the adjustment nut on the end of the rod needs to be forward of the brake arm, and the rod must be stiff enough not to flex.
Back to top	my old work mates called me MacGyver IP Logged

verslagen1

YaBB Moderator
ModSquad

Offline

Where there's a
will, I want to be
in it.

Posts: 28905
L.A. California
Gender: male

Re: New bike, New member, New forum, New project
Reply #109 - 12/04/18 at 07:21:55

batman wrote on 12/04/18 at 07:19:36:

The bike looks great! But you may have to rethink the rear brake rod a bit , you've changed the brake arm 180 degrees ,so that it needs to be pushed rearward to apply the brake, so the adjustment nut on the end of the rod needs to be forward of the brake arm.

The brake arm is attached to a flat cam that spreads the shoes any time it is turned. Up or down, pull on it and it will brake.

Versey's Place
Tech Section Index

IP Logged

batman Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 3806 osceola new york Gender:	Re: New bike, New member, New forum, New project Reply #110 - 12/04/18 at 07:27:39 Vercy, OOPS! YOUR CORRECT! (NEVER MIND!)
Back to top	my old work mates called me MacGyver IP Logged

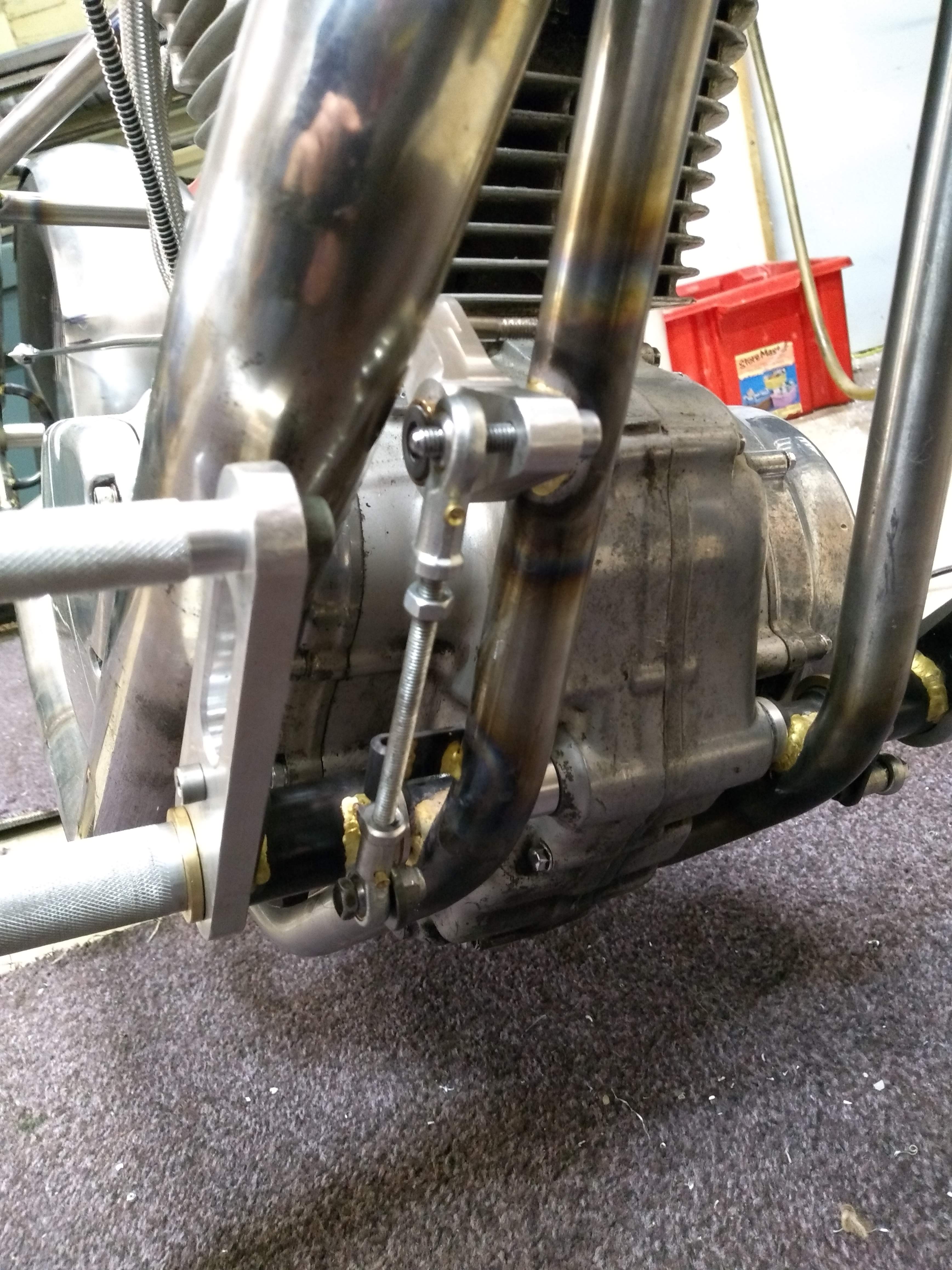

FunnyBikePhil Junior Member Offline SuzukiSavage.com Rocks! Posts: 71	Re: New bike, New member, New forum, New project Reply #111 - 12/04/18 at 14:41:53 I'm Glad you folks got that figured Couple more pics coming, the first is more of the rear brake linkage. which you can see has a smaller arm mounted behind the exhaust, this is to get the mechanism up and over the engine, and maintains the leverage of the standard brake so it has the same amount of feel.
Back to top	lever.jpg IP Logged

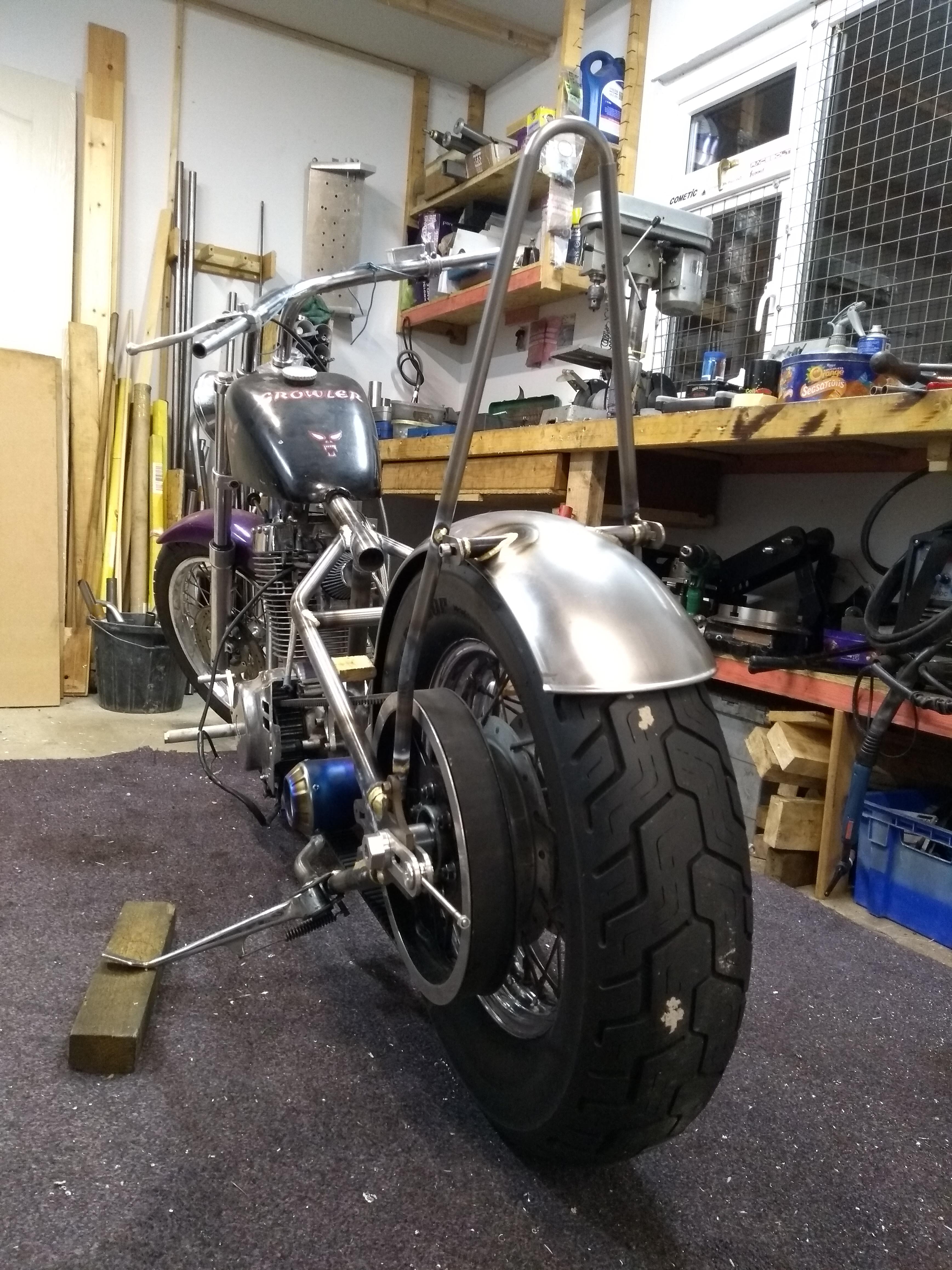

FunnyBikePhil Junior Member Offline SuzukiSavage.com Rocks! Posts: 71	Re: New bike, New member, New forum, New project Reply #112 - 12/04/18 at 14:52:30 And another pic of the half made sissy bar and rear fender mount.
Back to top	sissy.jpg IP Logged

ohiomoto Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 2784	Re: New bike, New member, New forum, New project Reply #113 - 12/05/18 at 08:00:43 Nice work on those fender mounts.
Back to top	IP Logged

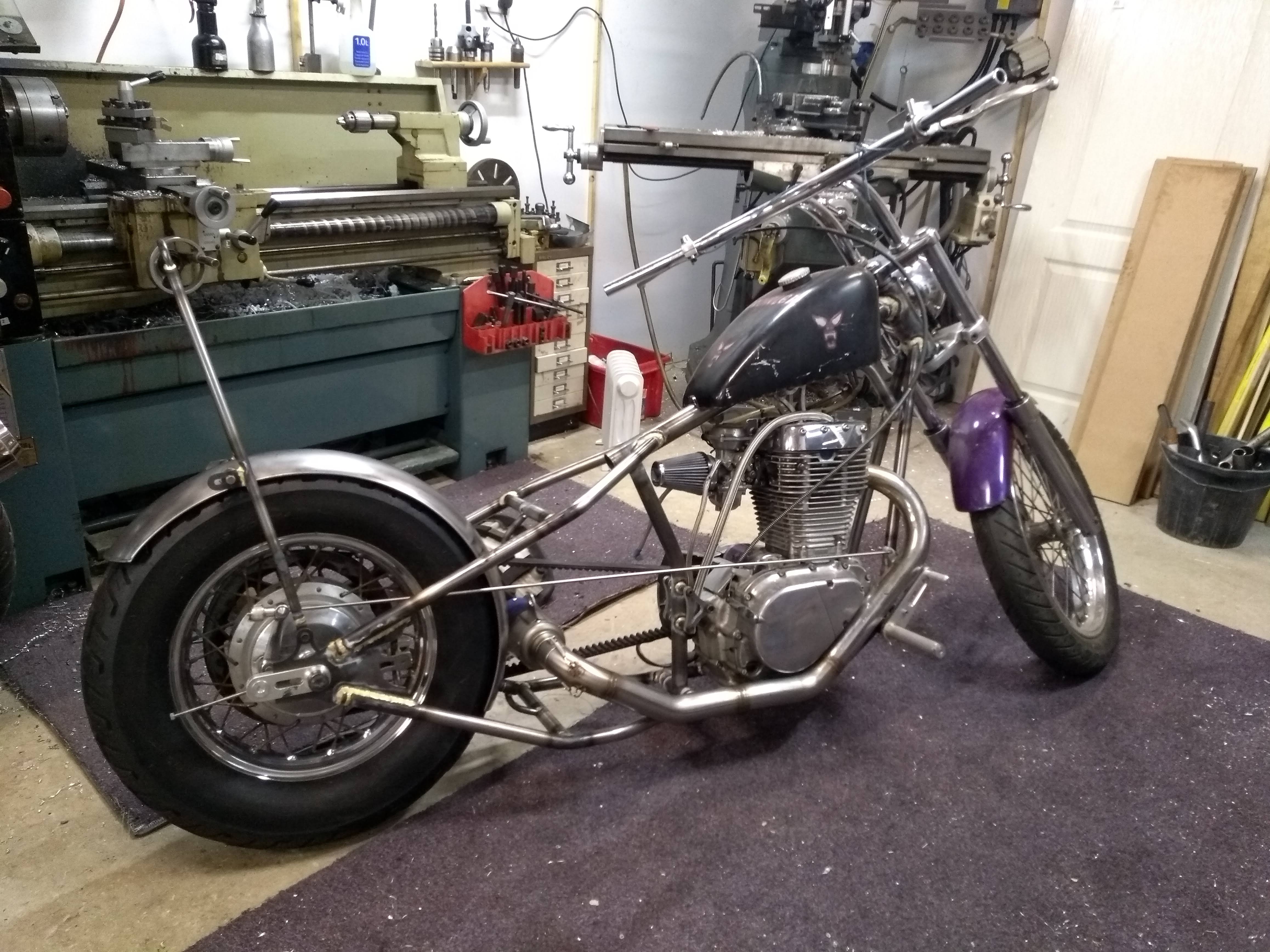

FunnyBikePhil Junior Member Offline SuzukiSavage.com Rocks! Posts: 71	Re: New bike, New member, New forum, New project Reply #114 - 12/06/18 at 14:41:38 Thanks Ohio Another pic. Next up is battery box, any ideas anyone? i looked at ammo boxes n such like but they are all too big really. I need to fit the battery in and the CDI and thats it. Might have to make one out of stainless and brass maybe.
Back to top	IMG_20181206_204345426.jpg IP Logged

sandmanred Senior Member Offline SuzukiSavage.com Rocks! Posts: 284	Re: New bike, New member, New forum, New project Reply #115 - 12/06/18 at 15:20:47 Still looking good! As far as hiding the battery there's always the fake oil tank. I did one big enough to hide a rats nest of wires, connectors, fuses and starter solenoid. Scroll down on the link and you'll get the idea http://suzukisavage.com/cgi-bin/YaBB.pl?num=1500819916/375
Back to top	IP Logged

Dave YaBB Moderator ModSquad Offline SuzukiSavage.com Rocks! Posts: 18139 Camp Springs, Kentucky Gender:	Re: New bike, New member, New forum, New project Reply #116 - 12/06/18 at 15:23:10 If you go with one of the Li-ion batteries.....you can get really small and light. It will be easier to keep it from detracting from the simple and clean look.
Back to top	Someday I will be old......But not today! IP Logged

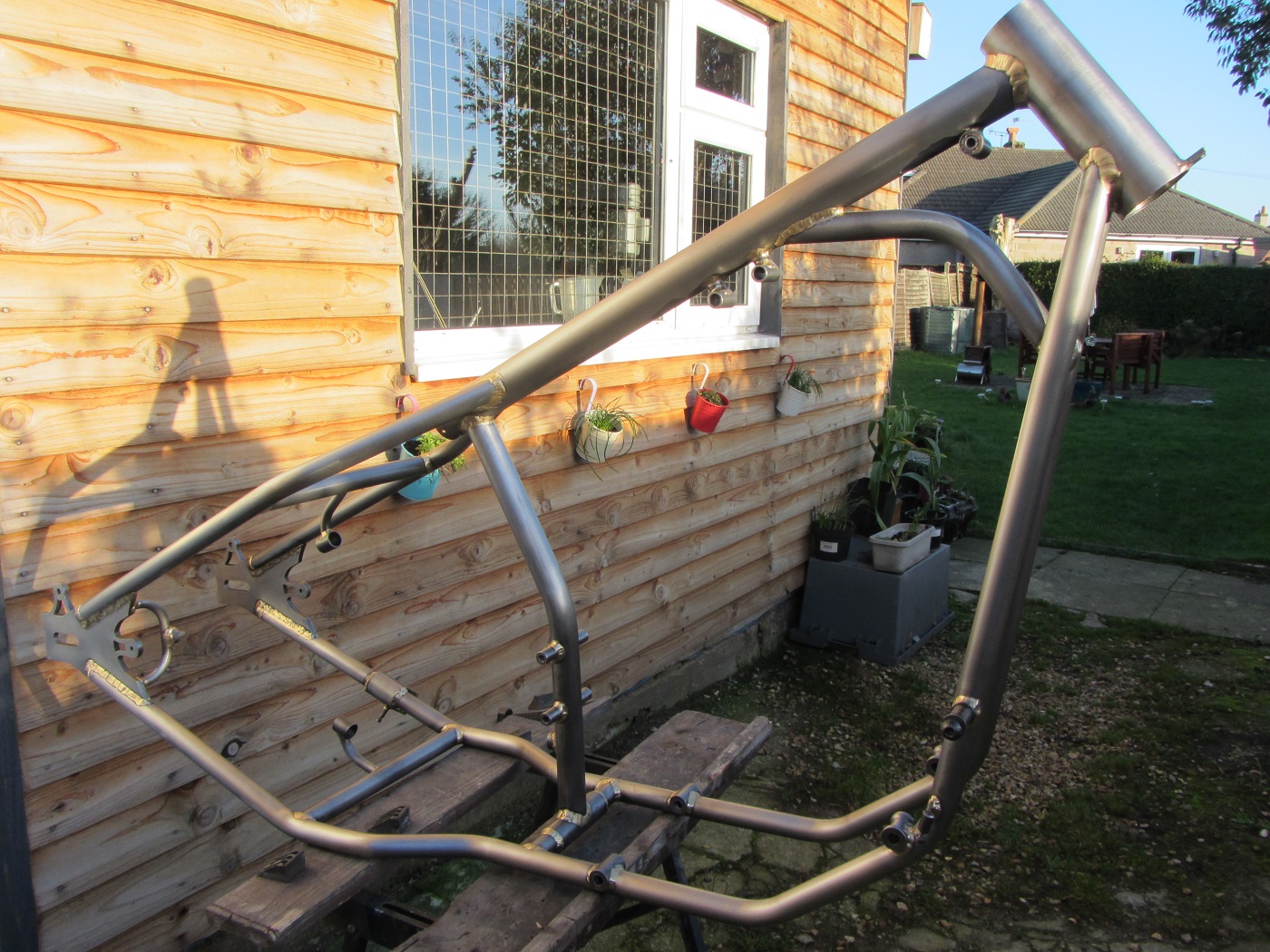

FunnyBikePhil Junior Member Offline SuzukiSavage.com Rocks! Posts: 71	Re: New bike, New member, New forum, New project Reply #117 - 01/01/19 at 15:21:49 My frame is now ready for clear powder coat.
Back to top	chop_frame.jpg IP Logged

ohiomoto Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 2784	Re: New bike, New member, New forum, New project Reply #118 - 01/02/19 at 17:55:10 Looks great! Love the brazed look. As for small batteries, I've been using an Antigravity AG-801 for a couple of seasons now and love it. It's pretty small, very light and cranks really strong with no maintenance required.
Back to top	IP Logged

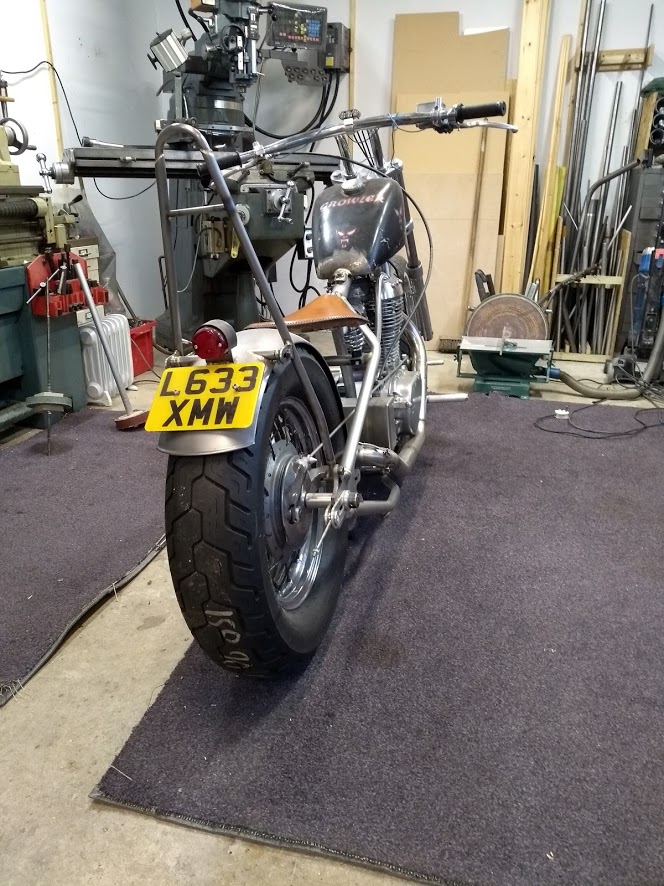

FunnyBikePhil Junior Member Offline SuzukiSavage.com Rocks! Posts: 71	Re: New bike, New member, New forum, New project Reply #119 - 07/02/19 at 16:53:00 It's not stopped completely, i keep doing odd bits. wiring and paint left to do.
Back to top	IMG_20190701_214949946.jpg IP Logged
