Replacing the front brake hose on my 1986 Savage LS650-P, so ordered new union bolts P/N 9360-10017 per the parts list, from Partzilla. But, they don't fit! They only screw in about 1/3 or 1/2 way into the master cylinder and the disc casting. The new ones look to have the same thread pitch as the originals, so I'm struggling to figure out wassup.
Is there another part number I should be using??

Thumper Paul - thanks for your response!
I measured the new union bolt dimensions, they are identical to the originals (M10 x 1.0 x 24mm). Both the 9360-10017 bolts I purchased from Partzilla have the same problem. I purchased a couple of 10mm x1.0 SS nuts from Ace and confirmed the issue. OK, so wassup?

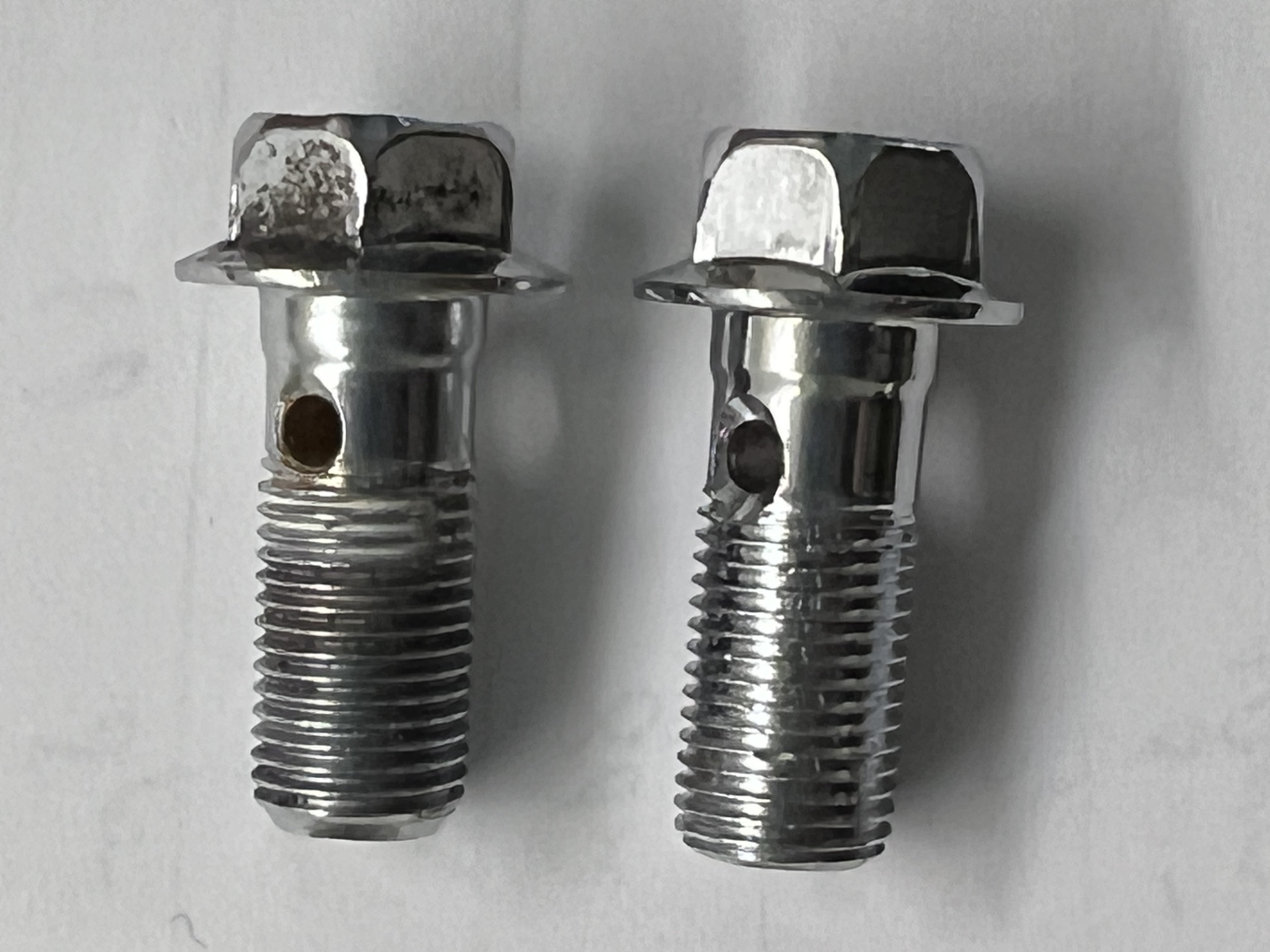

On close inspection, the Partzilla-supplied bolts look to be chromed, not stainless, and they have a lot of irregularities in the threads.
[img][/img]
They didn't come in a "Suzuki" parts bag, and I think they must be some cheap, poor quality, aftermarket product. I could chase out the threads using the SS nuts I bought, or get some better quality replacements (at two or three times the price). Given the importance of the front brake, I'll buy some better quality replacement union bolts. My take away from this - be cautious buying hardware from Partzilla.
