oil sight floaty (Read 9 times)
MonkeysSuzuki
YaBB Newbies
*
Offline

SuzukiSavage.com
Rocks!

Posts: 3

oil sight floaty
Today at 08:50:34

It looks like an 8mm section of the oil level sight glass sealant came dislodged from the seal and is floating in the oil at the sight. It`s still attached to the sight glass seal, it`s just floating there antagonizing me. I am concerned that this piece will break free and become a blockage at an oil passage. I would have to take the clutch case cover off and reinstall the sight glass. Do I do that or take a chance the "floaty" doesn`t ever break free or if it does it gets trapped by the oil filter? While I have the cover off I could check if I need to do anything to my Verslavy timing chain tensioner I put in 2 years ago when I rebuilt the clutch.
Back to top


  IP Logged
DragBikeMike
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 4597
Honolulu
Re: oil sight floaty
Reply #1 - Today at 10:56:15

Can you post a picture?

I don't see the chunk of sealant ("floaty") as much of a threat.  It should be fairly soft so it shouldn't damage any of the gears in the primary or the transmission.  It can't really get into the pressurized portion of your oil system because it can't get through the suction strainer on your oil pump.

What concerns me is that you can see the stuff in the bullseye. My observation has been that the sealant is on the inner side of the metal plate behind the clear plastic sight window. How did the sealant get between the metal plate and the clear plastic.  Is there a chance that the metal plate fell off?  That would concern me.  Can you still see the metal plate behind the clear plastic?

See how the bead of sealant is on the inner side of the metal plate.
Back to top



Knowledge is power.
  IP Logged
DragBikeMike
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 4597
Honolulu
Re: oil sight floaty
Reply #2 - Today at 11:01:28

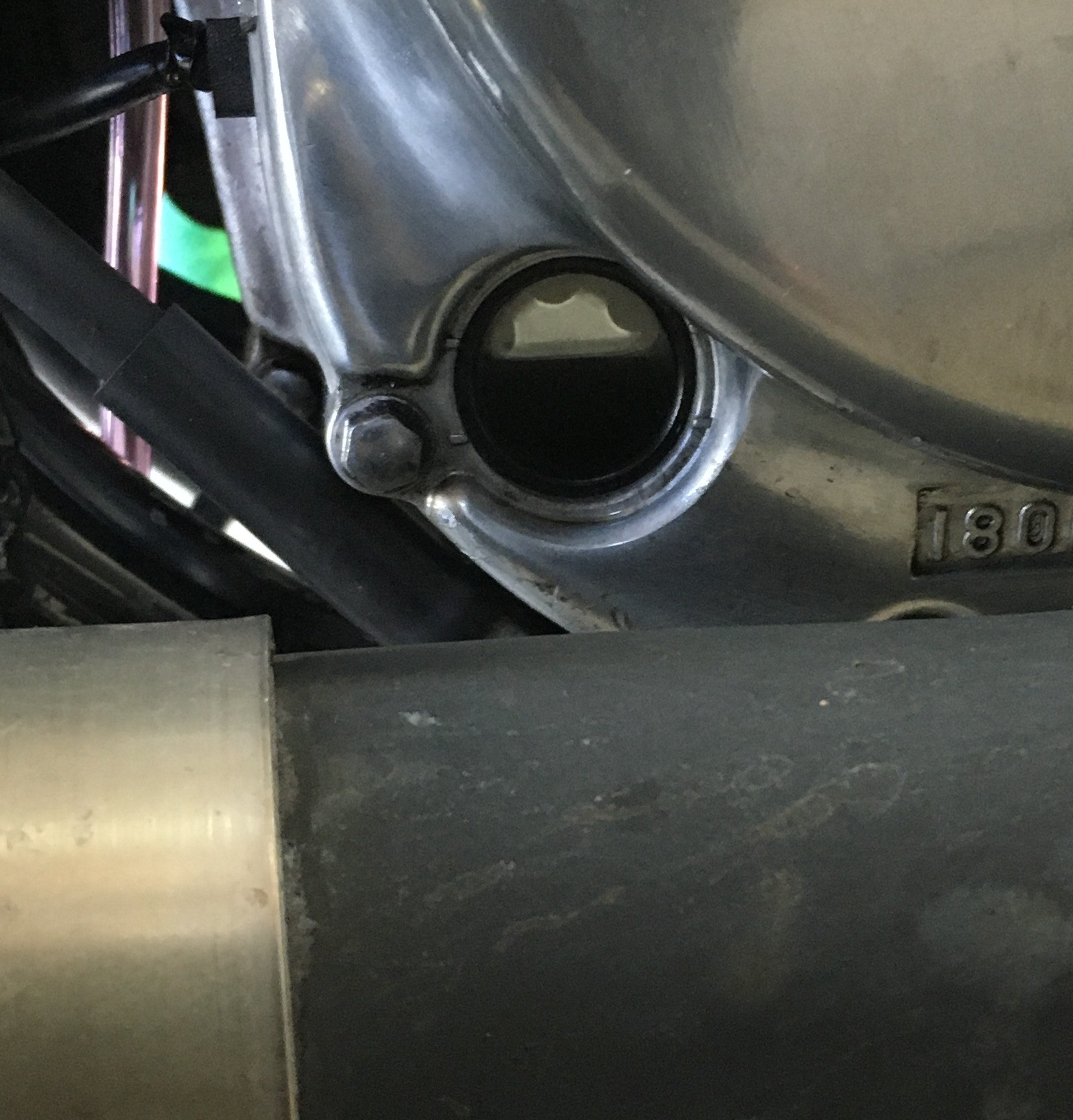

Can you see this perforated metal plate behind the clear plastic sight window?  If that metal plate is no longer there, I suggest you remove the clutch cover and find the metal plate.
Back to top



Knowledge is power.
  IP Logged
