Ignitech ignition modules (Read 16 times)
FinnHammer
Senior Member
****
Offline



Posts: 290
Denmark
Gender: male
Ignitech ignition modules
Yesterday at 11:57:02

I asked the guys at Ignitech https://ignitech.cz/en/ which of their offerings would be a good one for the Savage, and this is the one they recommended: https://ignitech.cz/en/vyrobky/tcip/tcip.htm.

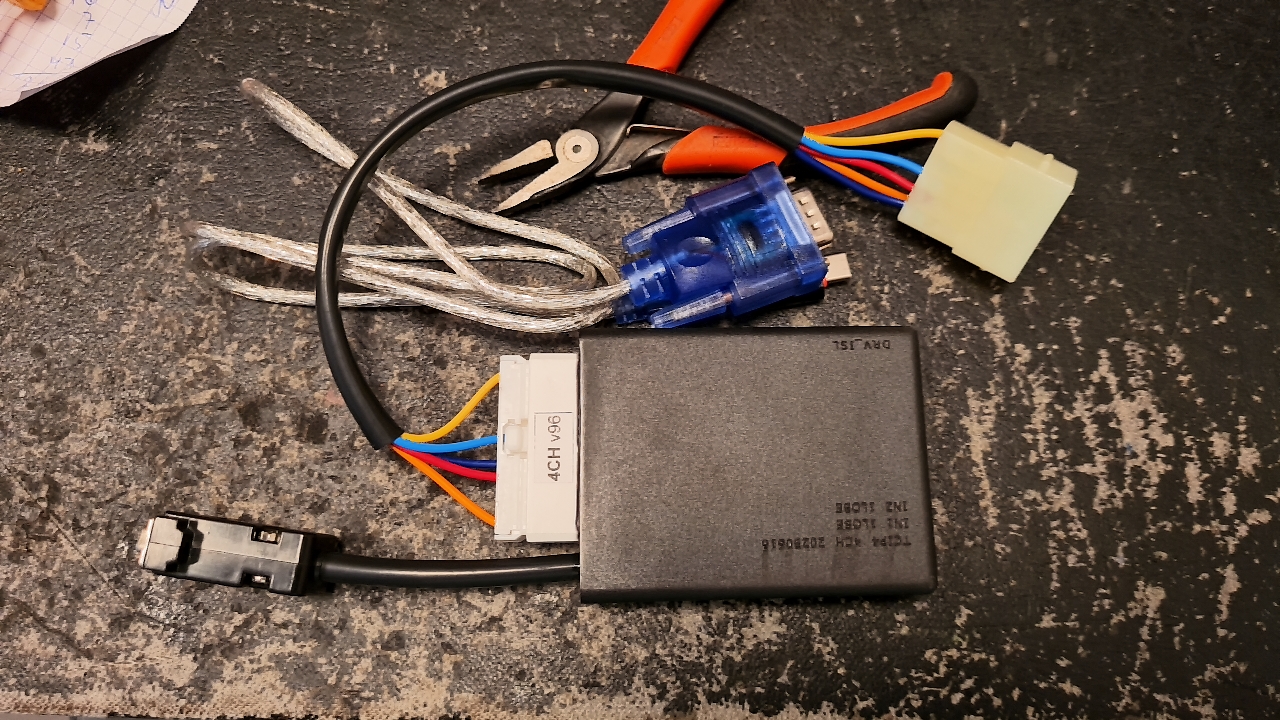

I ordered one and it is on my desk right now:

The price is very reasonable, 175USD, so if it functions there is no longer any reason to hunt for the original Igniter anymore, unless if you are a purist who wants to keep everything original. (if this description fits your profile, shoot me a PM, I have one for sale Wink  )

The staff is easy to communicate with and they take pride in delivering a plug and play solution, which they did.

It plugs right into the harness with the right connector and the bike starts up as it should and it runs like it did with the original ignition module.

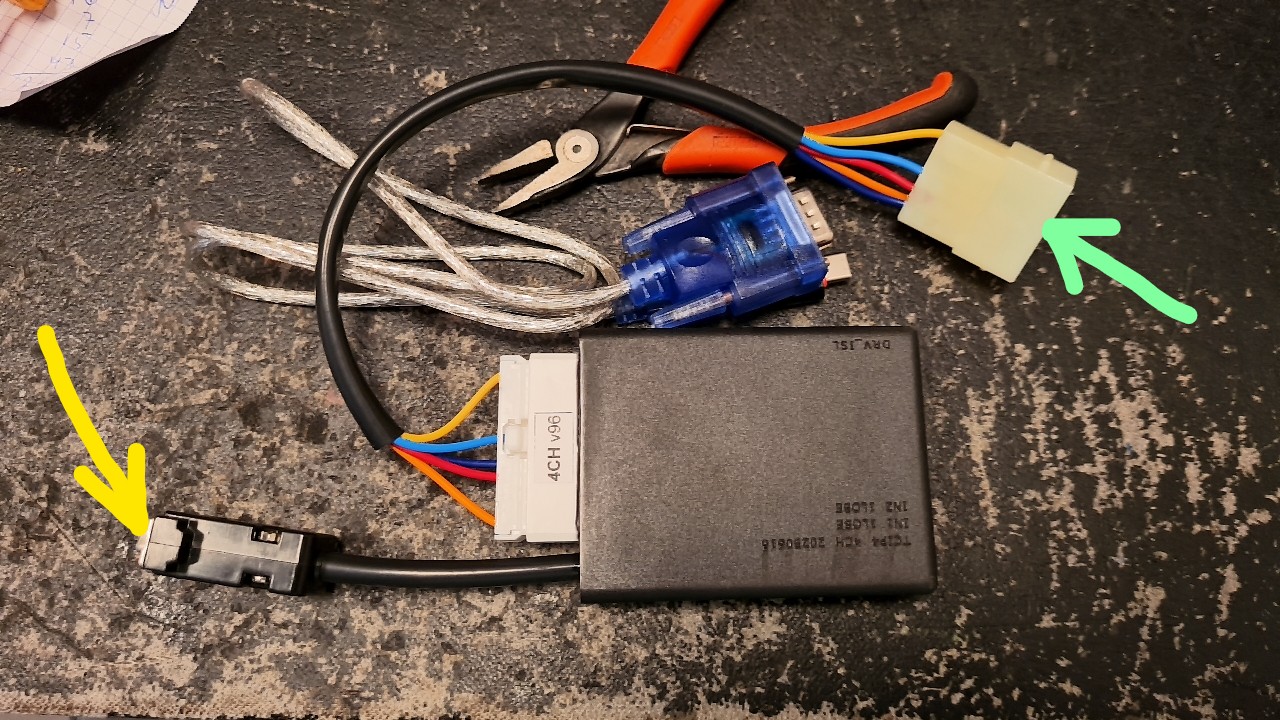

As you see, apart from the connector to the harness, it also has a cable protuding with a serial interface connector. this is used to progran the unit.

If you want to purchase one of these modules, be sure to have a way to connect your pc to it, with either a pure serial interface, or the USB to serial. In the latter case you will need a PL2303 Prolific driver installed.
This driver is notoriously tricky, and in my case, I could not get it to work on my trusty WIN7 machine, but on the WIN11 laptop it worked well.
Back to top



An expert is a person who has made all possible mistakes within a narrow field - Niels Bohr
WWW   IP Logged
FinnHammer
Senior Member
****
Offline



Posts: 290
Denmark
Gender: male
Re: Ignitech ignition modules
Reply #1 - Yesterday at 12:19:48

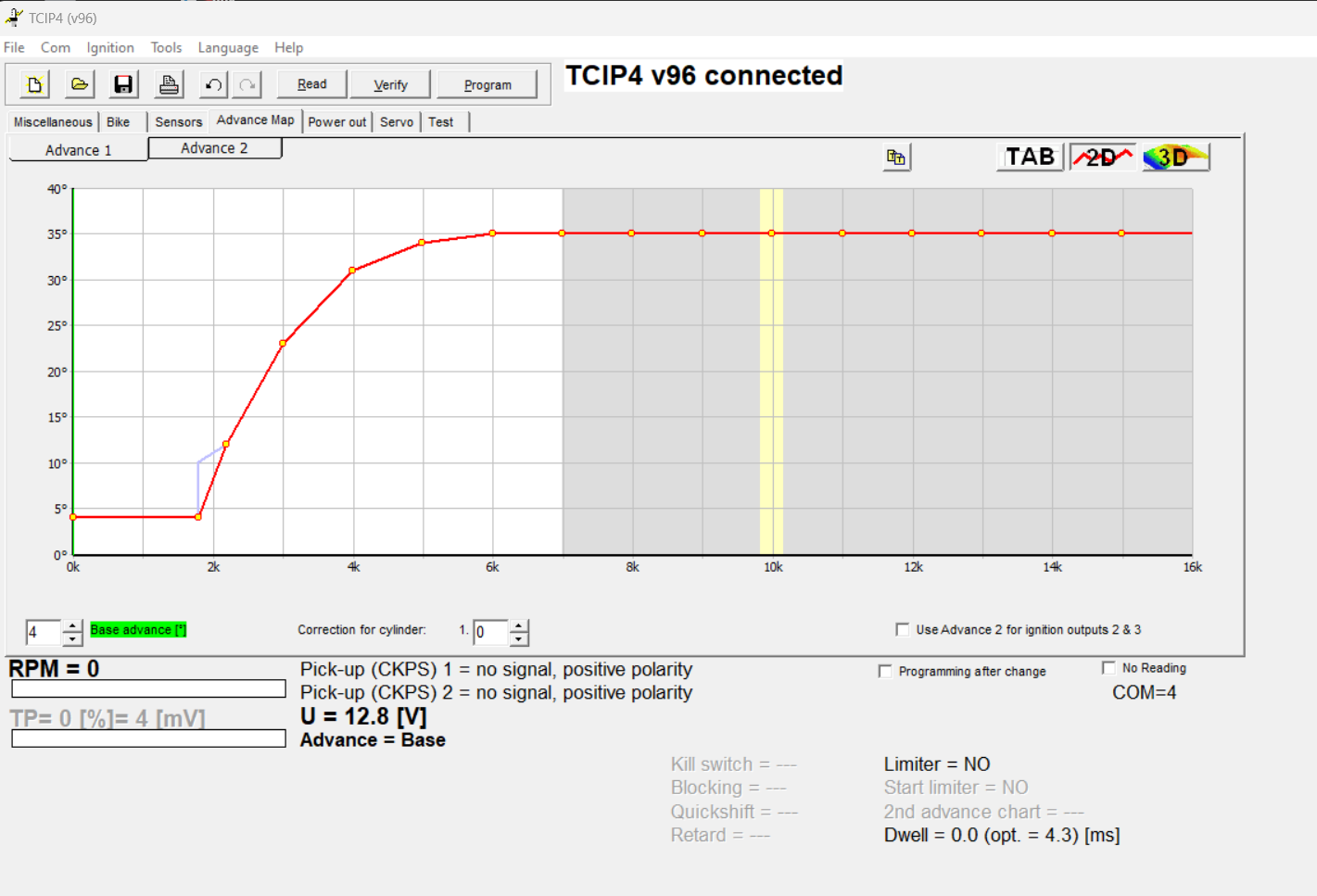

The module mates with the programming software, and the page with the advance curve looks like this:

There are other pages where the rev. limiter can be set and where it can be chosen if you want the programmable retard to be related to the throttle position or a vacuum sensor.

Back to top



An expert is a person who has made all possible mistakes within a narrow field - Niels Bohr
WWW   IP Logged
FinnHammer
Senior Member
****
Offline



Posts: 290
Denmark
Gender: male
Re: Ignitech ignition modules
Reply #2 - Yesterday at 12:20:23

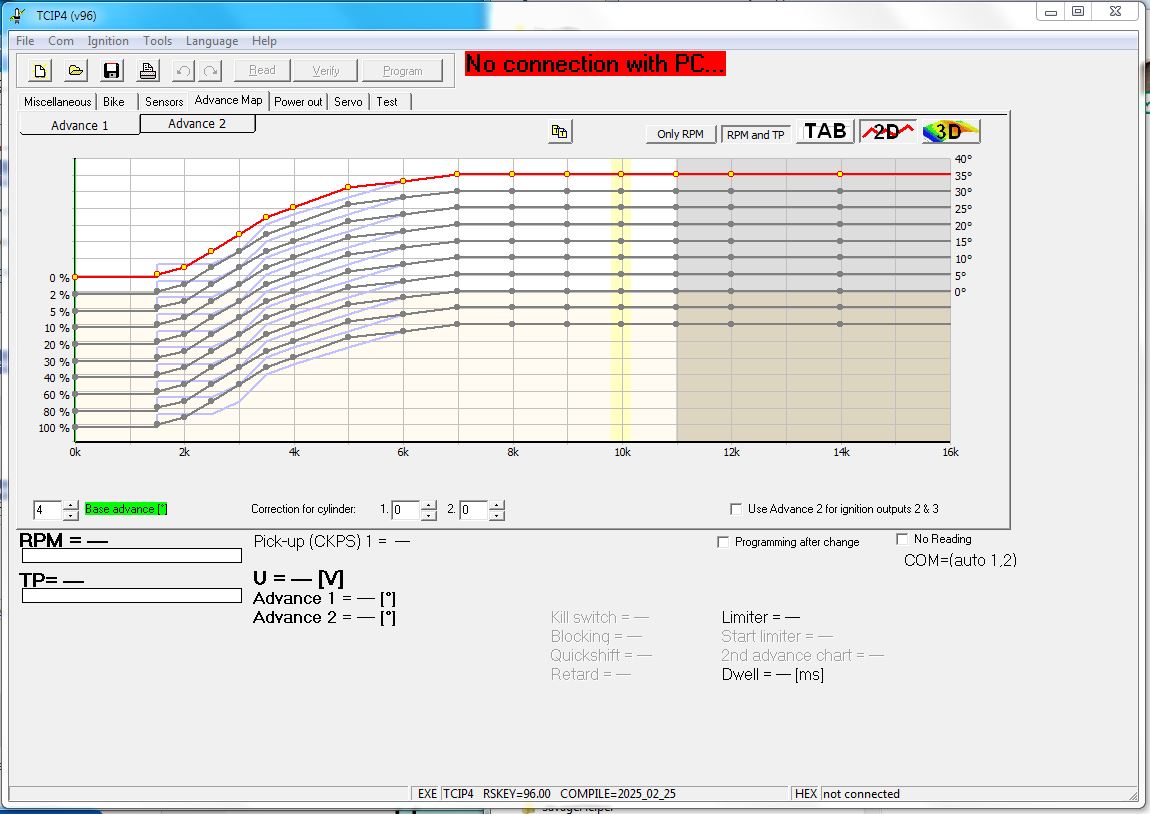

If one of these 2 ascessories are chosen, then the advance curves are dublicated relative to 10 different positions on these sensors, and curves with less advance can be programmed to take effect at or approaching to WOT.
You can modify the advance curves by pulling the dots on them, or by displaying them as a table, and edit the numbers depending on your temperament.

But it is best to try that yourself, and then we can talk about issues.

My problem is that I don't myself see a need to retard but I like the programmability and a nice toy it sure is.
