Aftermarket Carb Kits - A Case Study (Read 168 times)

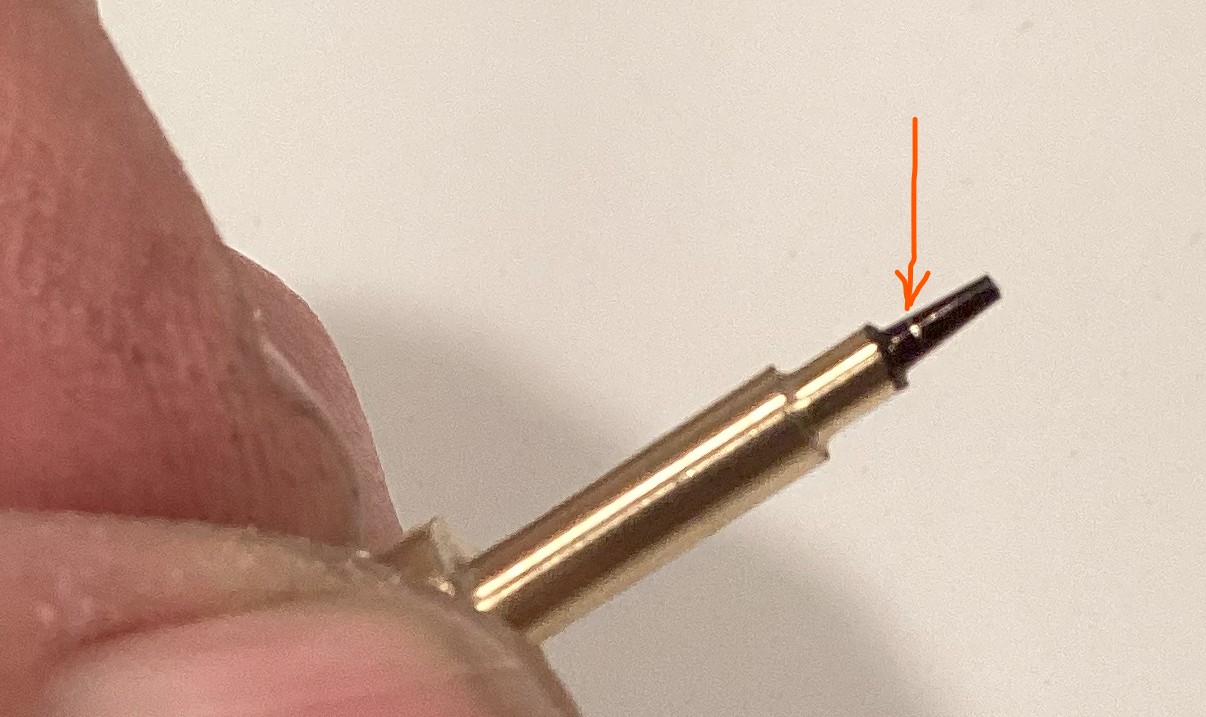

DragBikeMike Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 4531 Honolulu	Re: Aftermarket Carb Kits - A Case Study Reply #45 - 06/27/25 at 20:23:51 A quick look-see showed a nice contact line on the taper. Not perfect, but you can’t expect more given what the carb body has been subjected to. I got no way to clean up the seat in the body.
Back to top	Contact_Check.jpg Knowledge is power. IP Logged

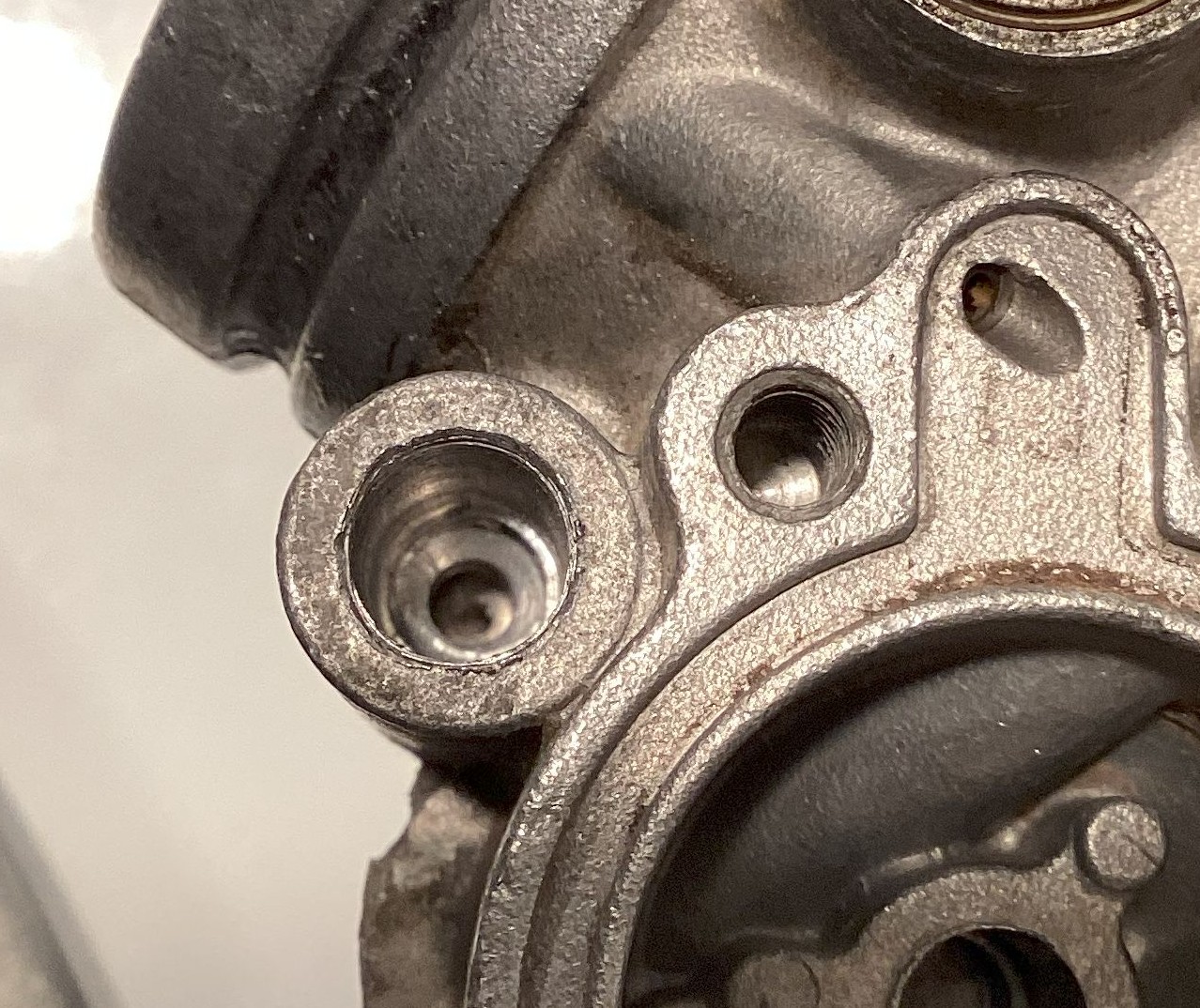

DragBikeMike Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 4531 Honolulu	Re: Aftermarket Carb Kits - A Case Study Reply #46 - 06/27/25 at 20:25:02 The bottom of the hole doesn’t look too bad. I think it will be ok. Look at the surface texture of the body. I think this baby has been in some of that old-school Gunk. Man, that stuff was good. Those days are LG (long gone).
Back to top	ORing_Seat.jpg Knowledge is power. IP Logged

DragBikeMike

Serious Thumper

Offline

SuzukiSavage.com
Rocks!

Posts: 4531
Honolulu

Re: Aftermarket Carb Kits - A Case Study
Reply #47 - 06/27/25 at 20:28:47

After thorough cleaning and blow-out, I put it back together and installed it on the bike. The carb runs fine. Note that the mixture screw can control the idle mixture smoothly. I suspect that it was more like an on/off switch with the bogus screw since the tapered tip was so small that it couldn’t throttle flow.

https://www.youtube.com/watch?v=fKIl_bczY24

ThumperLife, go ahead and order the new needle jet and slide needle. For these two parts, no aftermarket stuff, OEM parts are mandatory. Use the information I previously provided.

The aftermarket carb kit should be here in a week or two. Amazon already shipped it. If we are lucky, the TEV diaphragm will be a keeper. If not, no big deal. It seems to be working ok as-is.

Knowledge is power.

IP Logged

Dave YaBB Moderator ModSquad Offline SuzukiSavage.com Rocks! Posts: 18385 Camp Springs, Kentucky Gender:	Re: Aftermarket Carb Kits - A Case Study Reply #48 - 06/28/25 at 03:25:49 Great work as always......I am not as skilled with my lathe and likely could not have made such a small part.
Back to top	Someday I will be old......But not today! IP Logged

LANCER Serious Thumper Alliance Member Offline Savage Beast Performance Parts Posts: 10813 Oklahoma Gender:	Re: Aftermarket Carb Kits - A Case Study Reply #49 - 06/28/25 at 04:38:58 Very fine work Mike, the mixture screw you made is beautiful, and works perfectly as you demonstrated. Your training and talent are great.
Back to top	IP Logged

ohiomoto Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 2828	Re: Aftermarket Carb Kits - A Case Study Reply #50 - Today at 17:16:17 Impressive.
Back to top	IP Logged
