2003 Ryca Build (Read 53 times)
thomasoconnor19
Full Member
***
Offline

SuzukiSavage.com
Rocks!

Posts: 153

2003 Ryca Build
11/17/24 at 17:44:41

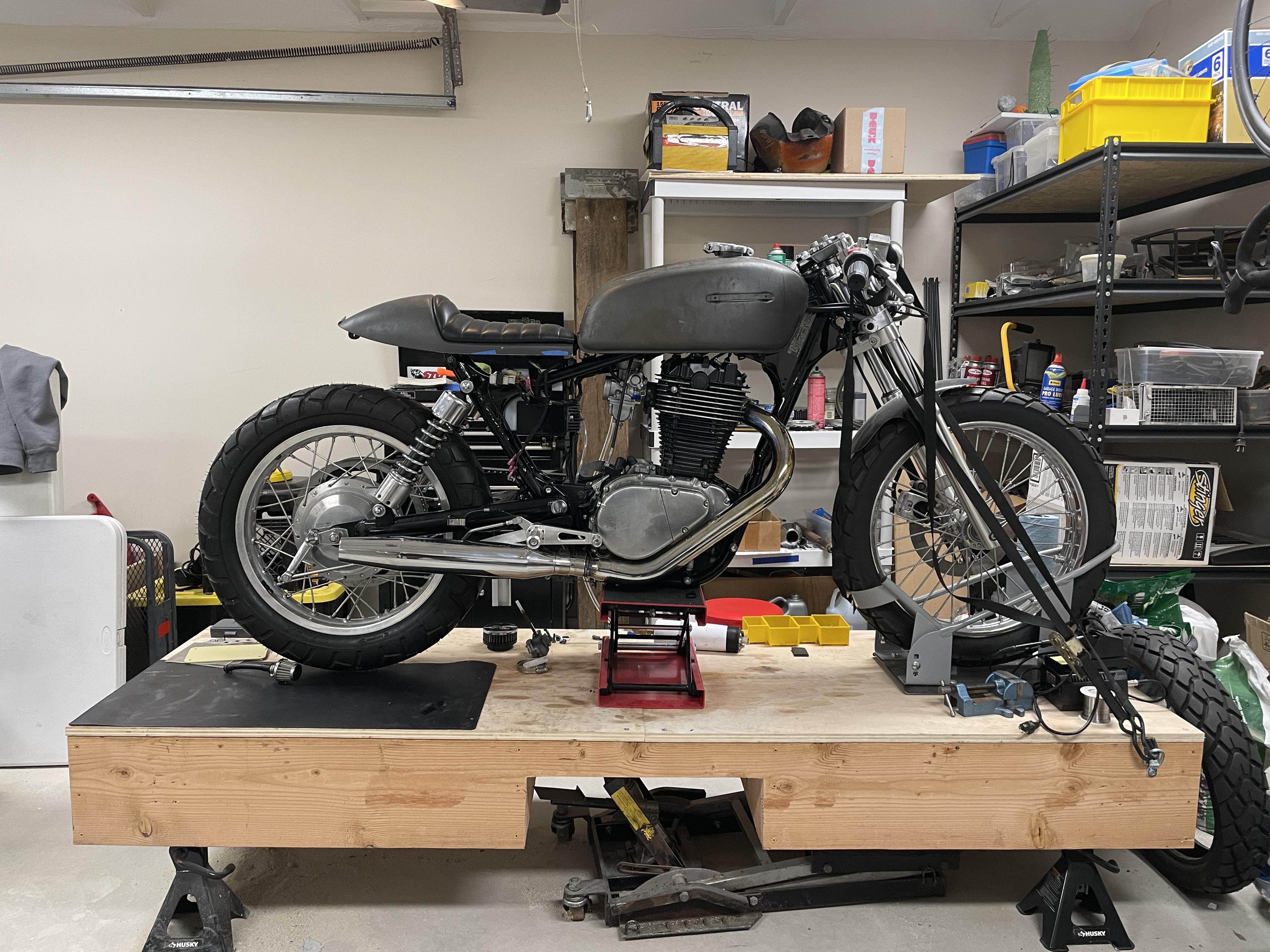

Sharing some pictures of my 2003 Savage
I bought/installed a lot of the Ryca parts back in 2013

-Ryca seat and rearsets
-GT550 Tank
-Harley Dyna muffler
-lowered front, raised rear
-shortened stock front fender
-K761 130/80-18 rear, 100/90-19 front
-Swingarm notched and support added

Never ordered the side panels from Ryca so I'm planning to make my own brackets and panels to hide all of the electronics.
Back to top
« Last Edit: Yesterday at 16:37:35 by thomasoconnor19 »

  IP Logged
Gary_in_NJ
Serious Thumper
*****
Offline

LS650 Cafe Racer

Posts: 2634
Amongst the Twisty Roads
Re: 2003 Ryca Build
Reply #1 - Yesterday at 10:33:41

Photos are entirely too large...but the garage door spring looks perfect.
Back to top



A life-time student of motorcycling.
LS650 Cafe, DRZ400SM, FZ6N, SV650S, CB900C, Ducati ST2, CB550F-SS
My LS650=> http://suzukisavage.com/yabb2.2/Attachments/Left.JPG
  IP Logged
Ruttly
Serious Thumper
*****
Offline

Thumpers Rule

Posts: 5174
Manteca , CA
Gender: male
Re: 2003 Ryca Build
Reply #2 - Yesterday at 13:12:51

He’s using a really big camera
Back to top



The Topic Terminator
  IP Logged
JOG
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 1119
Longview, Texas
Gender: male
Re: 2003 Ryca Build
Reply #3 - Yesterday at 13:16:26

A platform on Jack stands,, good move!

OK,, A Huge platform on Monstrous Jack stands..
With a GD Spring stretched out lookin a bit ominous Up there.
Back to top


  IP Logged
thomasoconnor19
Full Member
***
Offline

SuzukiSavage.com
Rocks!

Posts: 153

Re: 2003 Ryca Build
Reply #4 - Yesterday at 16:40:22

JOG wrote on Yesterday at 13:16:26:
A platform on Jack stands,, good move!

OK,, A Huge platform on Monstrous Jack stands..
With a GD Spring stretched out lookin a bit ominous Up there.


I got the idea from a guy on youtube. I had the wood already and it just uses a standard motorcycle lift to get it up, it works really well
Back to top


  IP Logged
thomasoconnor19
Full Member
***
Offline

SuzukiSavage.com
Rocks!

Posts: 153

Re: 2003 Ryca Build
Reply #5 - Yesterday at 17:06:17

I have never liked how dim the Ryca taillight LED light is, I have started to retrofit some brighter LEDs inside

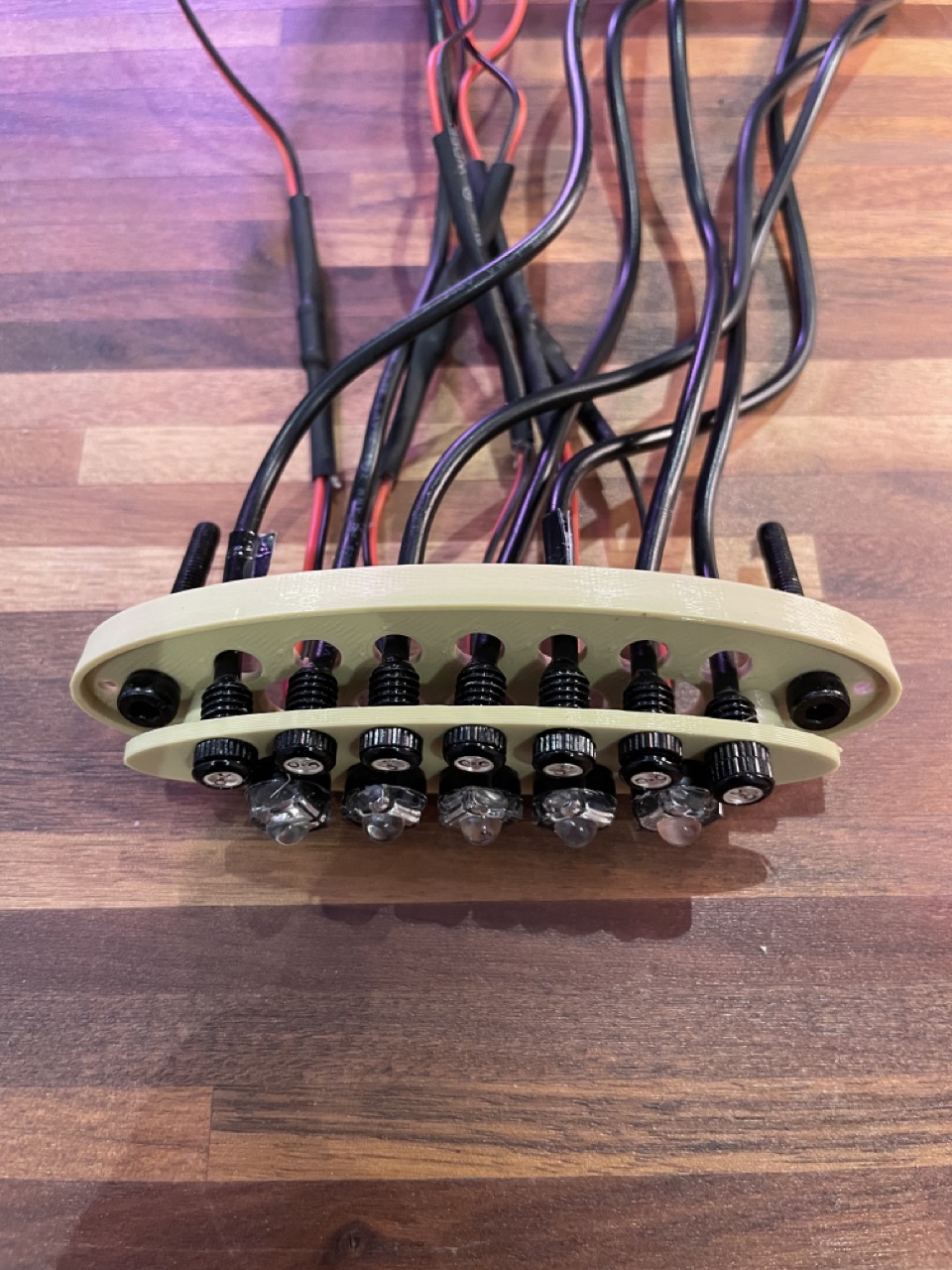

I've found some pre-wired red LEDs and have designed some parts to fit in the Ryca taillight lens, because I really like how it fits the Ryca seat

Back to top


  IP Logged
thomasoconnor19
Full Member
***
Offline

SuzukiSavage.com
Rocks!

Posts: 153

Re: 2003 Ryca Build
Reply #6 - Yesterday at 17:07:15

thomasoconnor19 wrote on Yesterday at 17:06:17:
I have never liked how dim the Ryca taillight LED light is, I have started to retrofit some brighter LEDs inside

I've found some pre-wired red LEDs and have designed some parts to fit in the Ryca taillight lens, because I really like how it fits the Ryca seat


Back to top


  IP Logged
Dave
YaBB Moderator
ModSquad
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 18143
Camp Springs, Kentucky
Gender: male
Re: 2003 Ryca Build
Reply #7 - Today at 04:20:21

thomasoconnor19 wrote on Yesterday at 17:06:17:
I have never liked how dim the Ryca taillight LED light is, I have started to retrofit some brighter LEDs inside


Good move - the RYCA tail light is not bright enough to be seen in daylight and is worthless as a brake light.  The built in turn signals are also dim and won't get anybody to notice them.

I was not creative enough to do what you are doing - instead I found the same shape tail light that was red and did not have the built in turn signals.  I added an additional brake light under the seat using a red emergency LED that is very bright, and I used yellow turn signal housings mounted on each side.
Back to top



Someday I will be old......But not today!

  IP Logged
thomasoconnor19
Full Member
***
Offline

SuzukiSavage.com
Rocks!

Posts: 153

Re: 2003 Ryca Build
Reply #8 - Today at 06:13:23

agree, I'm also going to add some real rear turn signals somewhere else

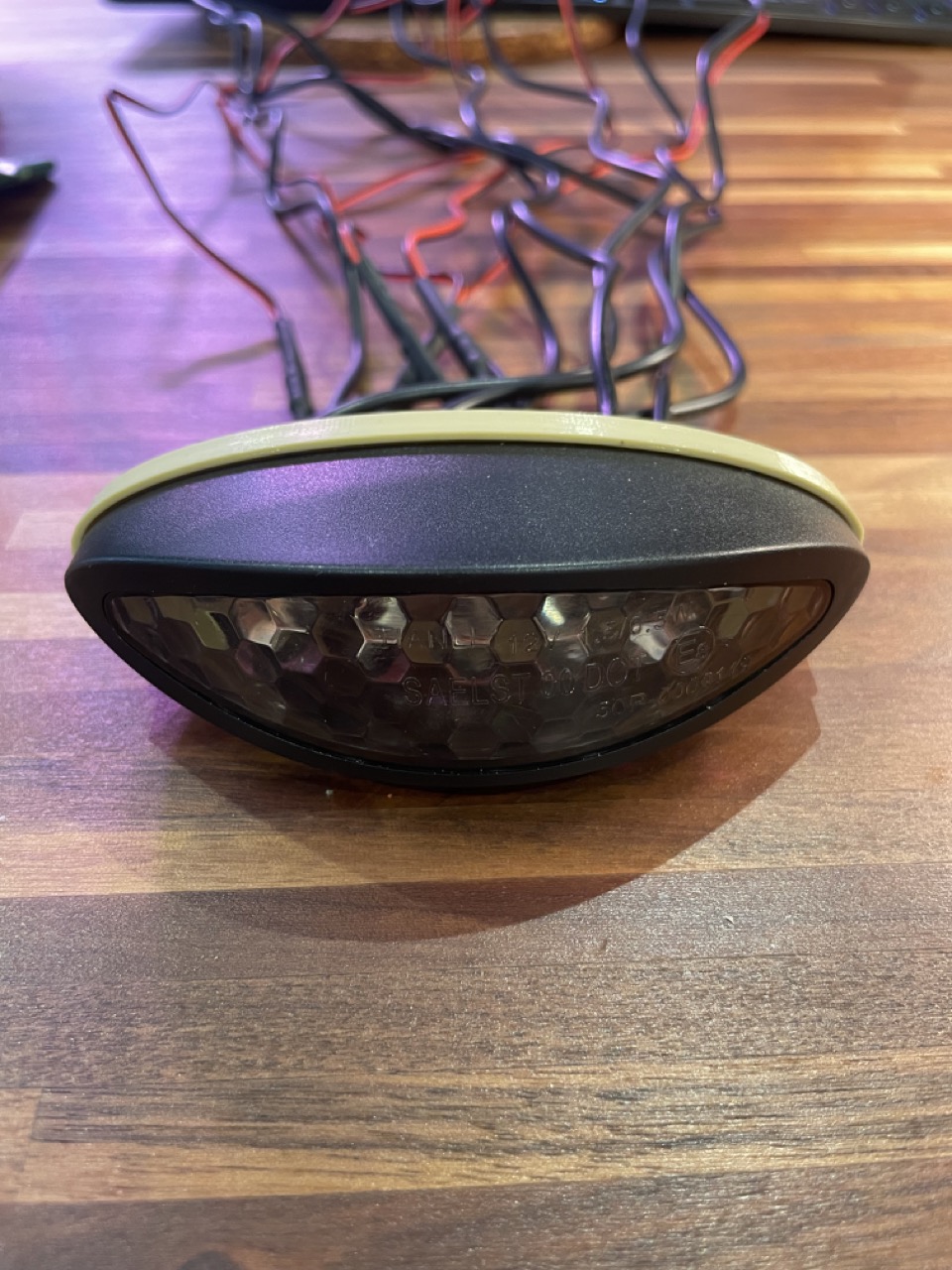

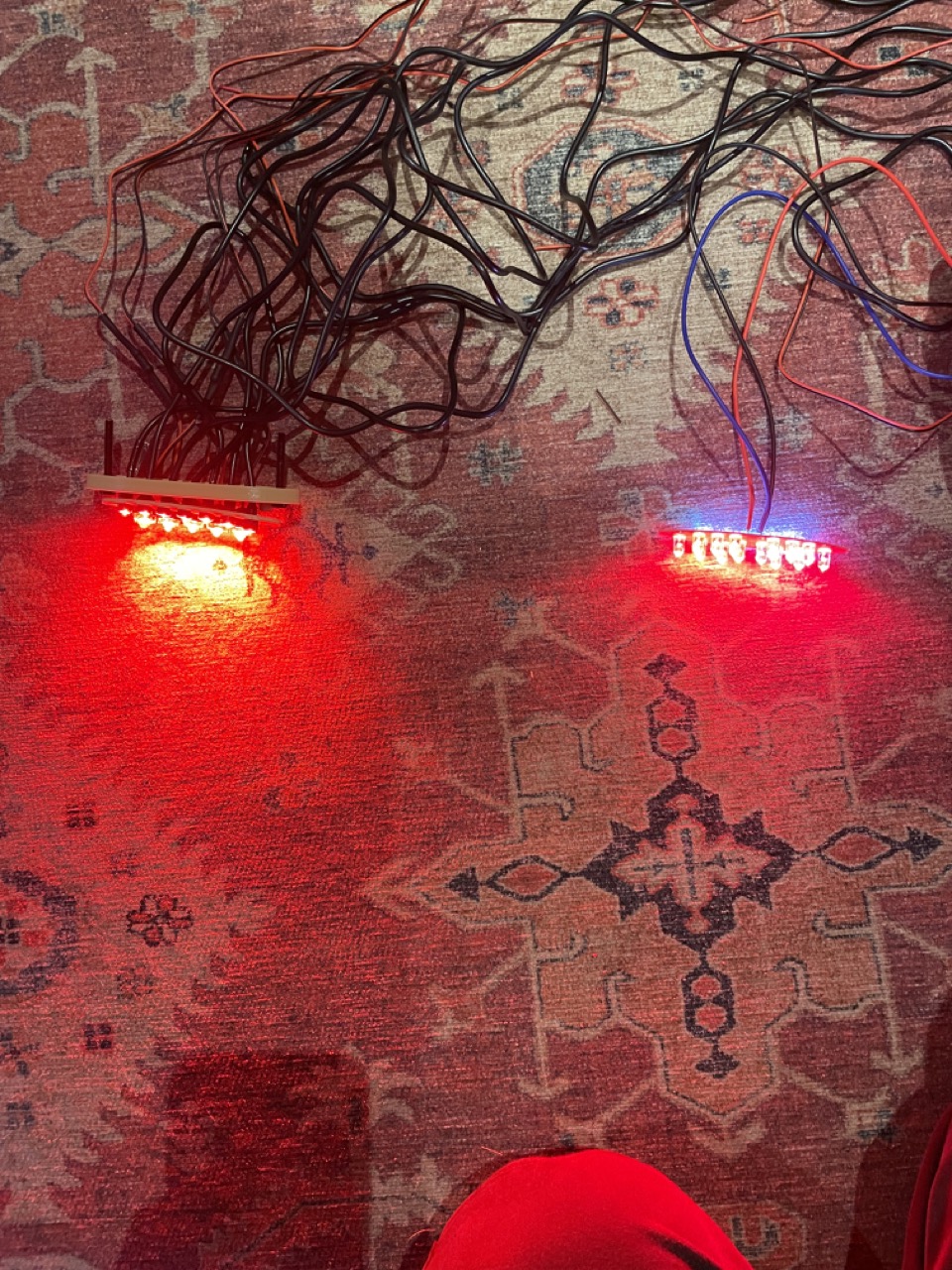

I bought another taillight that was reds only, you can see how dim it is compared to my new LEDS
Back to top


  IP Logged
