Savage Trans/Clutch Issue (Read 90 times)

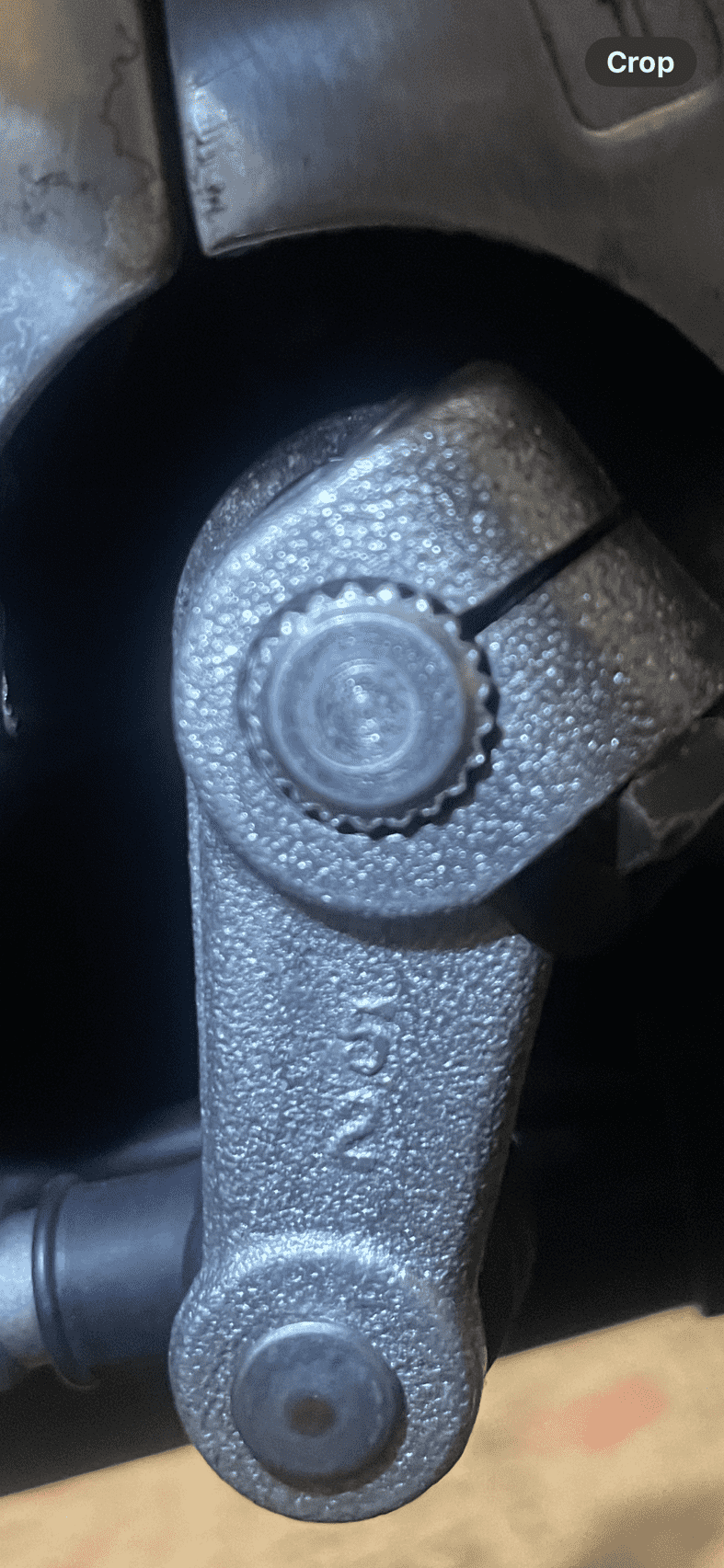

ThumperPaul Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1721 Houston, Texas Gender:	Re: Savage Trans/Clutch Issue Reply #15 - Today at 17:42:55 Cleaned, zoomed, lighted, cropped…I still can’t see no index mark. I’m blind!
Back to top	IMG_5583-compressed.png IP Logged

ohiomoto

Serious Thumper

Offline

SuzukiSavage.com
Rocks!

Posts: 2774

Re: Savage Trans/Clutch Issue
Reply #16 - Today at 18:47:37

badwolf wrote on 09/25/24 at 20:39:13:

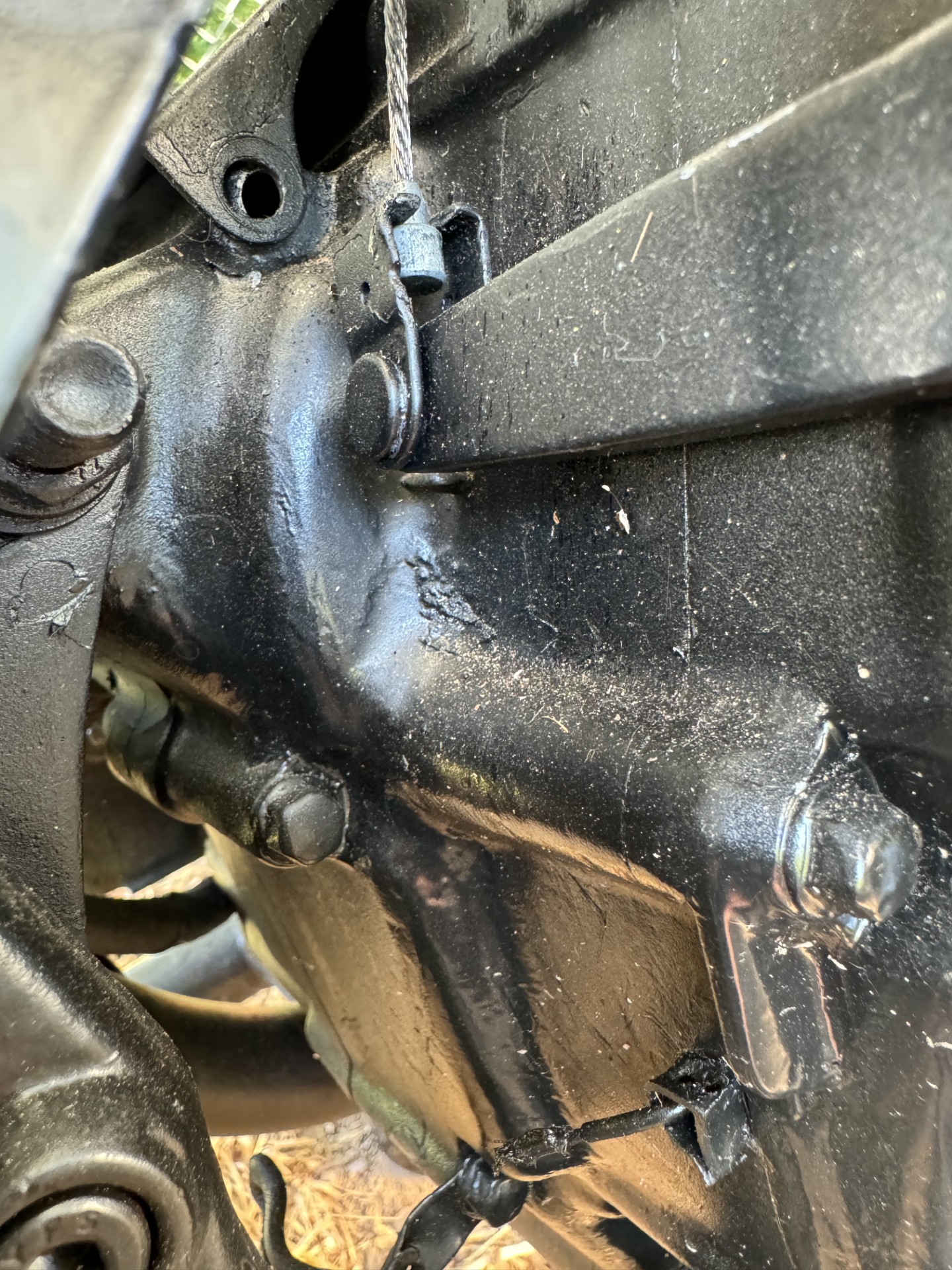

Sounds like the shifting rod is hitting the bottom of the left side case. On most bikes to change the positon of the shifter you move the shifter on the spline that comes out of the case, not so with the S40. If you move the shifter linkage on the spline the rod willl hit the case and you will have trouble. There should be a punch mark on the splined shaft and the linkage that goes on it. LINE THEM UP. To move the shifter adjust the length of the rod.

--------------------

This: ^^^

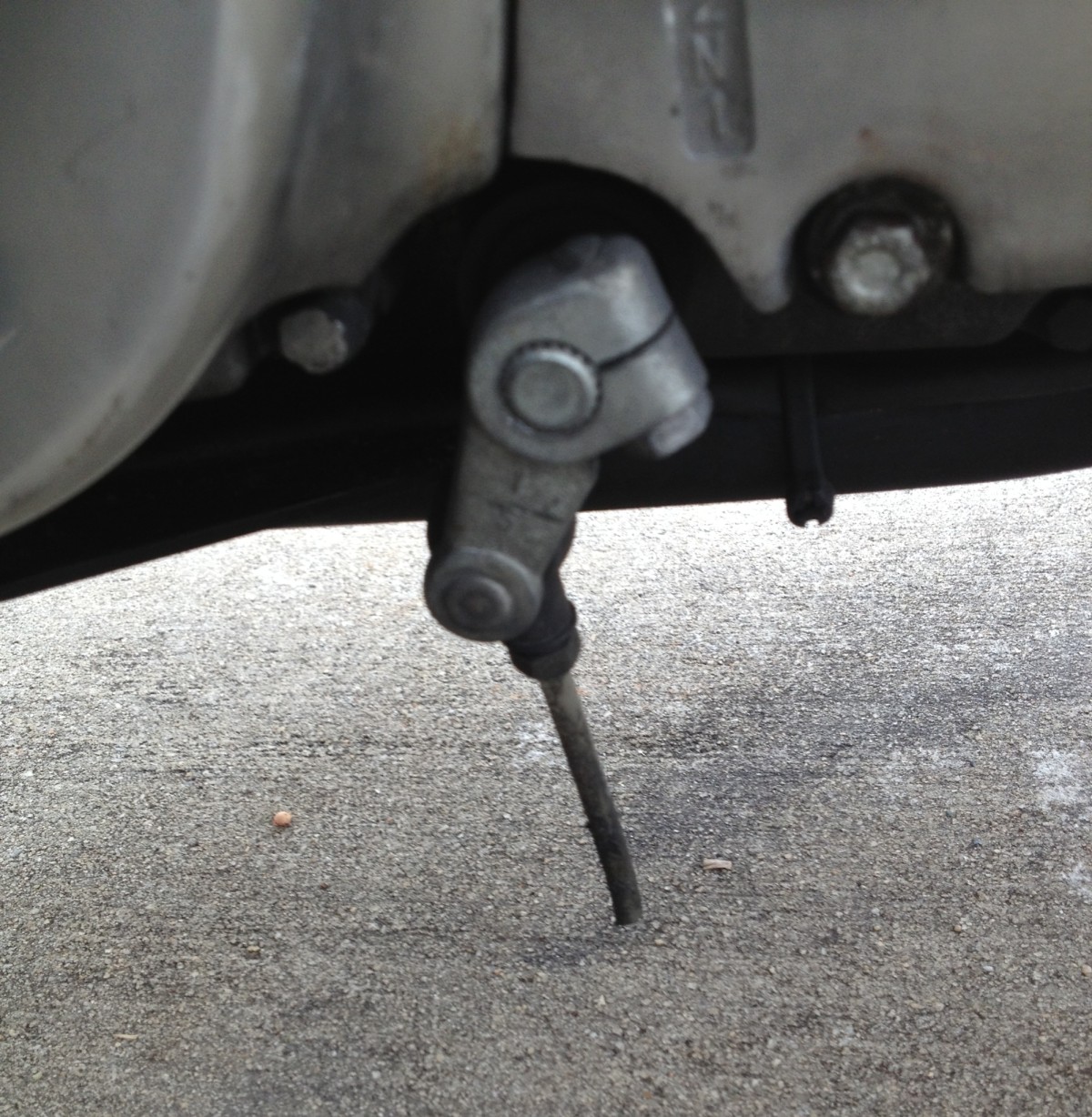

And, it looks like the shift linkage could be bent. It needs to be straight or it could break. It happened to my bike. The shifting got mushy, I couldn't get into 1st gear or neutral, and the linkage snapped.

Thankfully, the bike was in second gear and I wasn't far from home.

IP Logged
