Fender/ frame mounting bolts (Read 19 times)
Surviving Philly
Senior Member
Offline
SuzukiSavage.com
Rocks!
Posts: 265
Fender/ frame mounting bolts
07/19/24 at 10:33:33
Would anyone know the size of the bolts directly under the seat where the frame ends that mount the rear fender? I'm toying with the idea of mounting either brake/running or indicator lights there
Back to top
IP Logged
ThumperPaul
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 1633
Houston, Texas
Gender:
Re: Fender/ frame mounting bolts
Reply #1 -
07/19/24 at 11:29:58

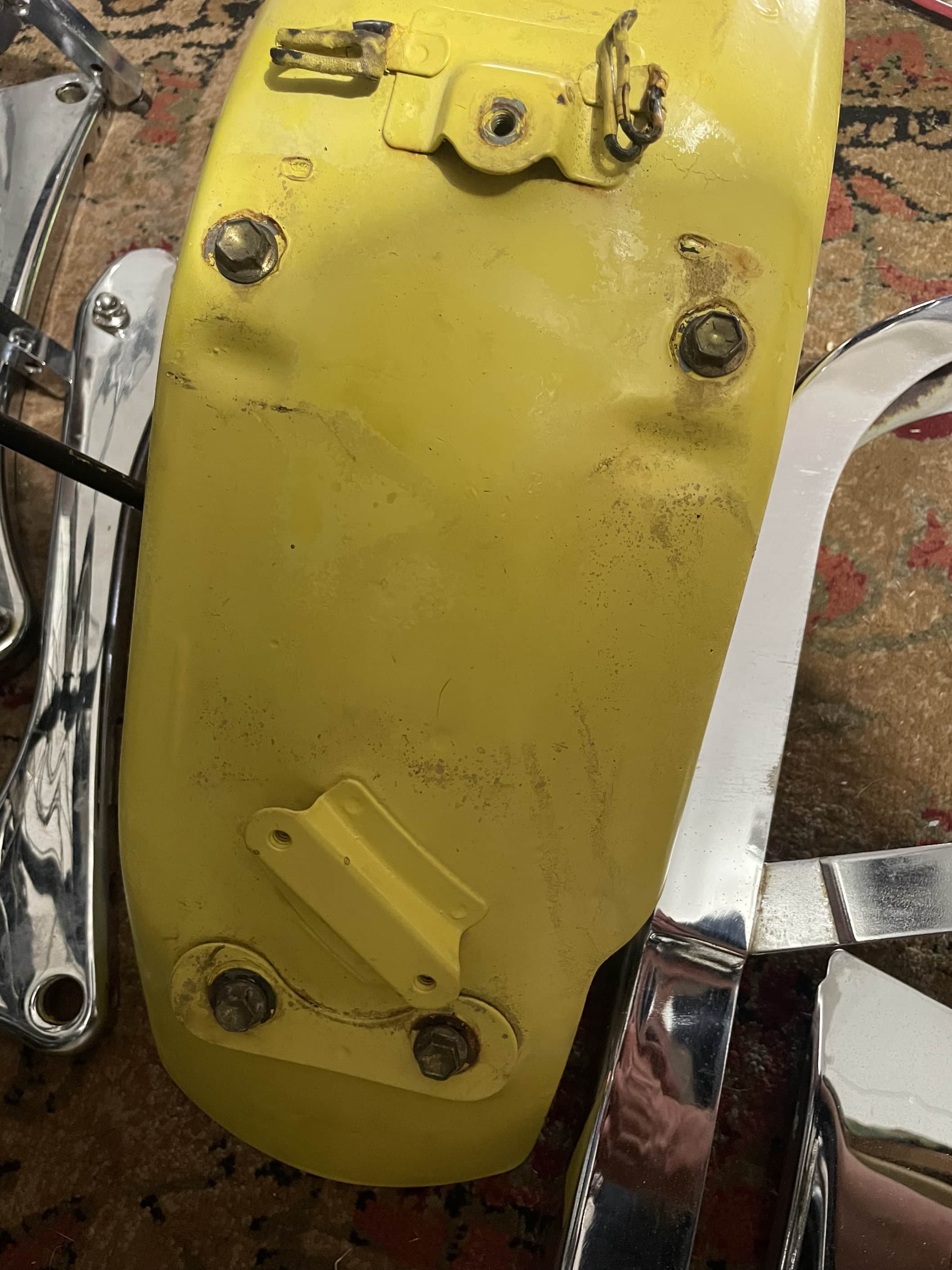

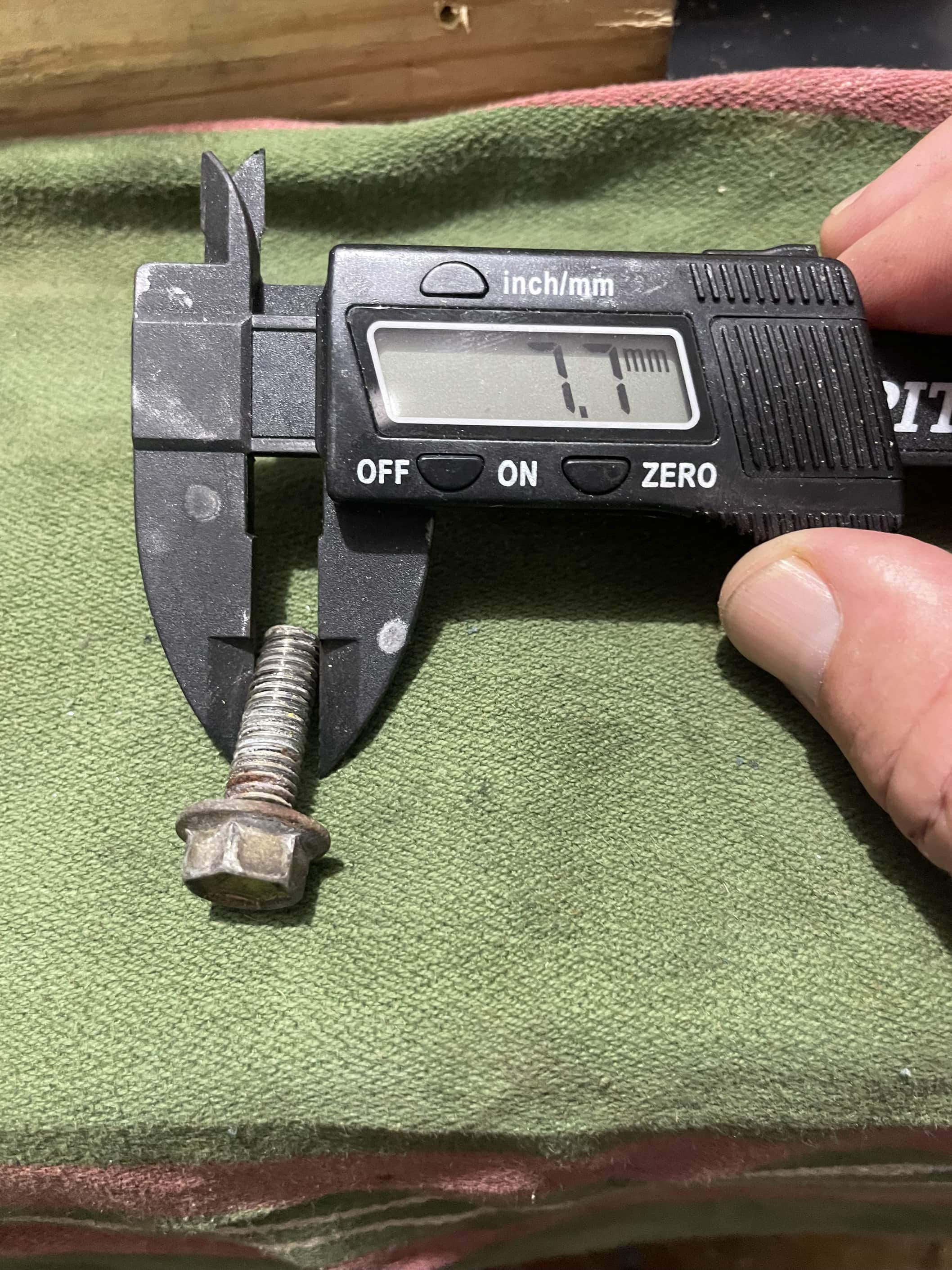

You mean these? They look like M8-1.25x24mm.
Back to top
IP Logged
ThumperPaul
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 1633
Houston, Texas
Gender:
Re: Fender/ frame mounting bolts
Reply #2 -
07/19/24 at 11:31:34
All 4 are the same.
Back to top
IP Logged
ThumperPaul
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 1633
Houston, Texas
Gender:
Re: Fender/ frame mounting bolts
Reply #3 -
07/19/24 at 11:32:17

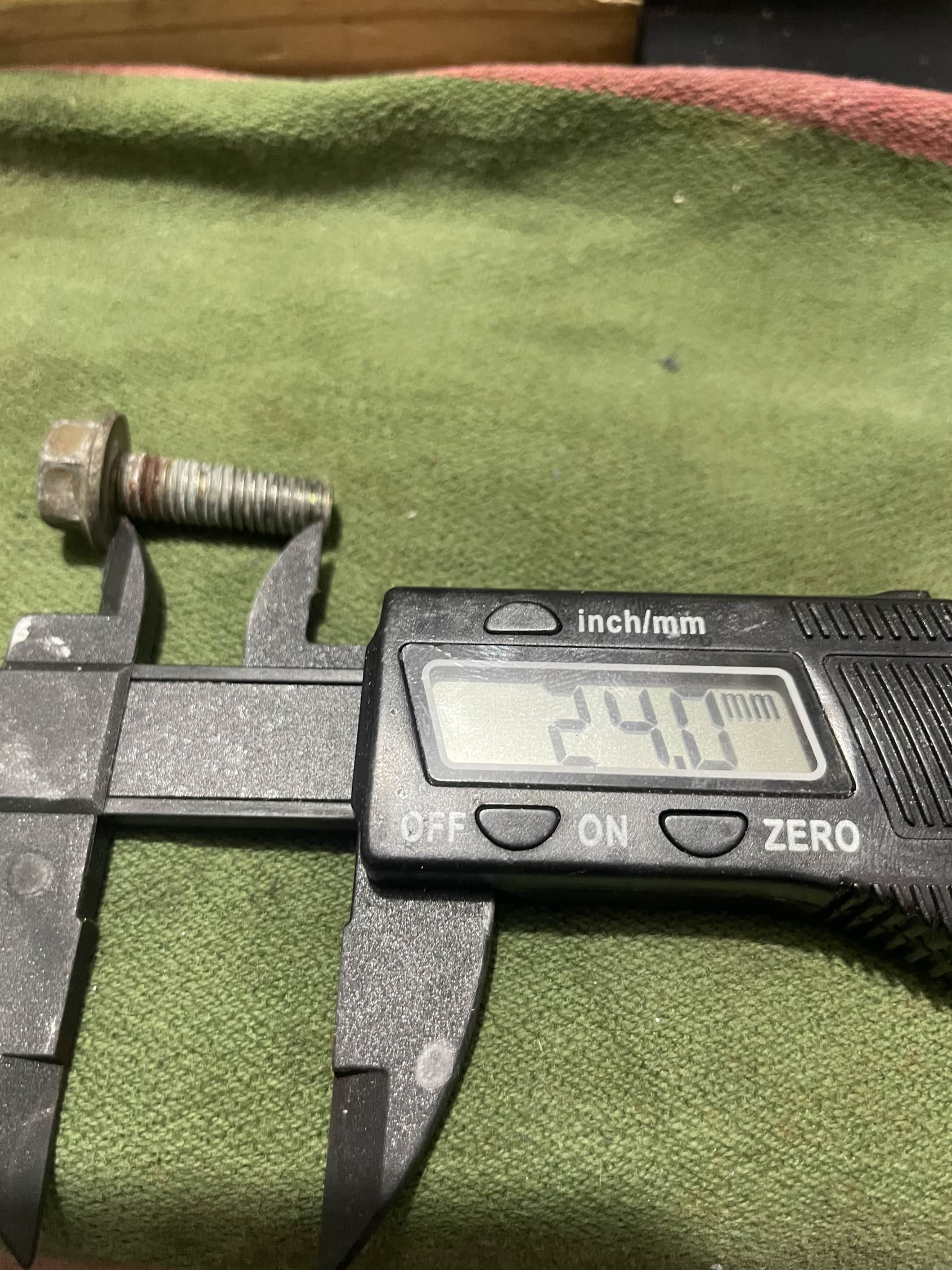

24mm long.
Back to top
IP Logged
Surviving Philly
Senior Member
Offline
SuzukiSavage.com
Rocks!
Posts: 265
Re: Fender/ frame mounting bolts
Reply #4 -
07/19/24 at 14:22:36
Jesus is that really all that holds the fender on?? M8 bolts less than an inch long?? My God.
Thanks as always thumper
Back to top
IP Logged
ThumperPaul
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 1633
Houston, Texas
Gender:
Re: Fender/ frame mounting bolts
Reply #5 -
07/19/24 at 14:41:40
They don’t come out easy either! A good layer of road grim and rust acts like loctite. Lol. There’s a good amount of engagement into the frame. Like 3/4”. They ain’t coming out if they’re torqued down good!
