PWK40 Knockoff with E-Tube (Read 154 times)
DragBikeMike
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 4619
Honolulu
Re: PWK40 Knockoff with E-Tube
Reply #45 -
Yesterday
at 22:28:47

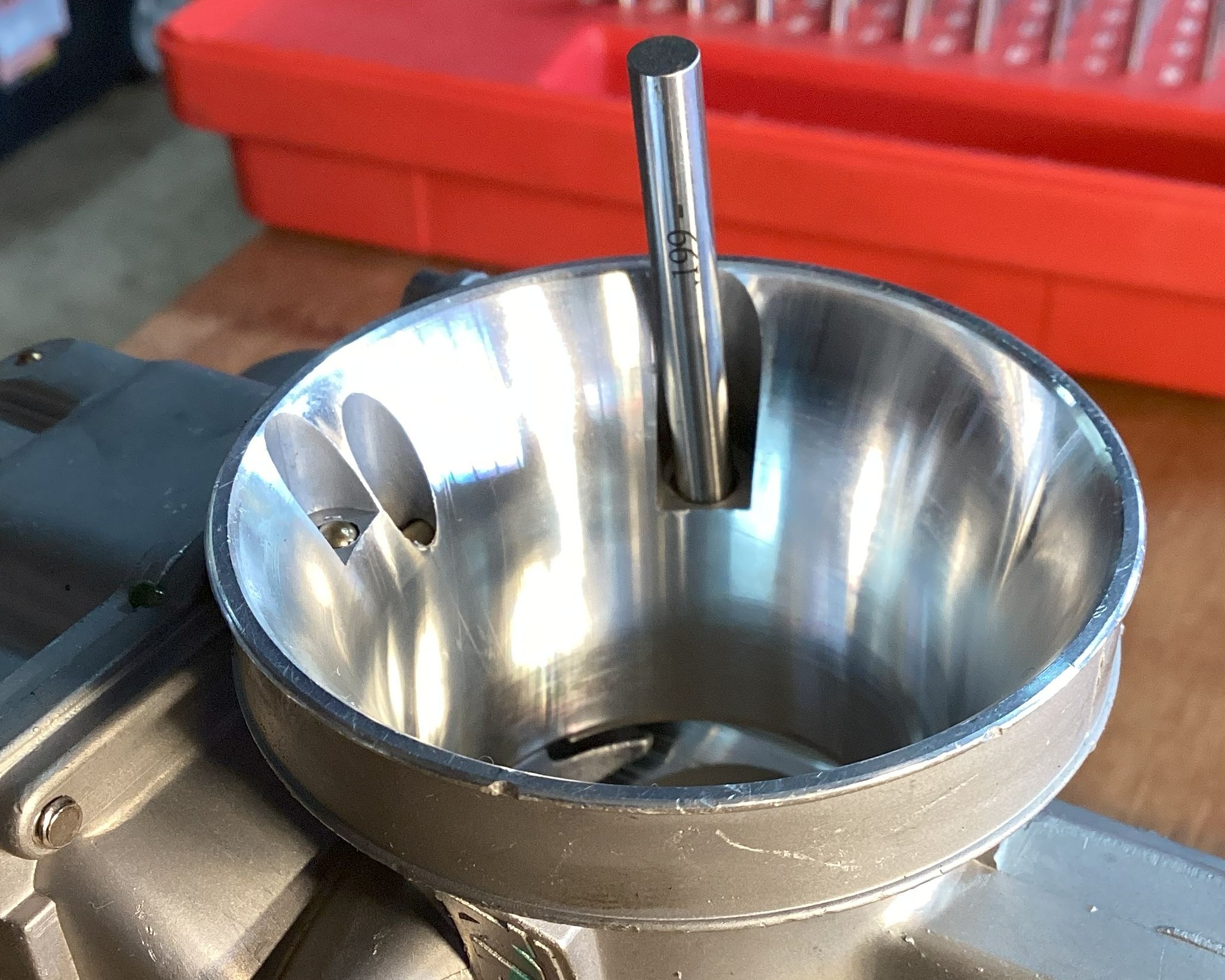

The enrichment air passage in the new E-Tube carb is smaller. It’s only .199”. So, the enrichment circuit on the new carb feeds way more fuel and less air. That explains the overly rich cold start. I think I might be able to fix that problem.
Back to top
Knowledge is power.
IP Logged
DragBikeMike
Serious Thumper
Offline
SuzukiSavage.com
Rocks!
Posts: 4619
Honolulu
Re: PWK40 Knockoff with E-Tube
Reply #46 -
Yesterday
at 22:30:03
This E-Tube carburetor is a good mixer. As it stands now, I prefer the original PWK knockoff, but the E-Tube unit runs great with only minor tweaking. I’m confident that I can iron out the few hiccups. I don’t think the overly rich starting circuit would bother most folks. I’m disappointed that I didn’t see a BIG improvement in acceleration, but I intend to keep at it and see if I can achieve at least a small improvement. I’m also gonna see if I can change that enricher jet to a .014”. That should be a fun project.
If you order a PWK knockoff and end up with one of these E-Tube carbs, have no fear, it will run just fine. I hope some of you find this information useful.
Back to top
Knowledge is power.
IP Logged
