Splicing 3 wires to one (Read 46 times)
David Necochea
YaBB Newbies
*
Offline

SuzukiSavage.com
Rocks!

Posts: 11

Splicing 3 wires to one
06/21/23 at 12:56:13

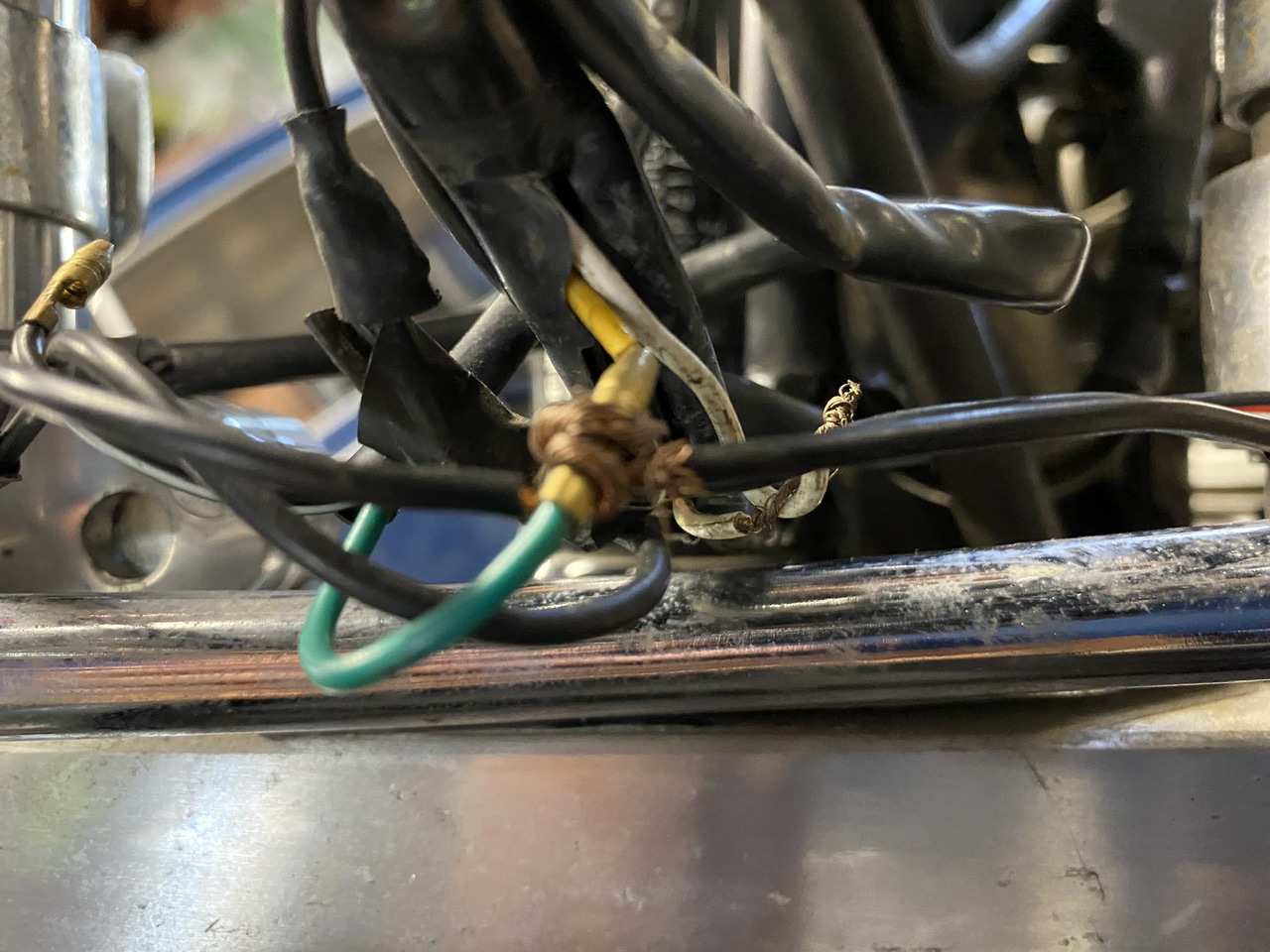

While figuring out a short with my right turn signals, which I traced to a pinched and bared turn signal wire, I discovered that the previous owner spliced the heck out of a bunch of wiring to add fog lights. I want to clean up all the splices with connectors but I’m not sure what to use to splice three wires to one. I added the pic of the wires. Thanks for the help!
Back to top


  IP Logged
youzguyz
Serious Thumper
*****
Offline



Posts: 2527
San Antonio, Texas
Gender: male
Re: Splicing 3 wires to one
Reply #1 - 06/21/23 at 13:57:43

I am a big fan of these:
https://www.amazon.com/haisstronica-Connectors-Marine-Connectors-Heat-Connect...

Put two wired in one end and one wire in the other end.

You will need a decent heat gun to use them.
Back to top



2002 - Silver (Thumper)
2000 - Green (Mad Hamish)
Most motorcycle problems are caused by the nut between the seat and the handlebars. Make sure yours isn't too tight or too loose.
  IP Logged
Dave
YaBB Moderator
ModSquad
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 17824
Camp Springs, Kentucky
Gender: male
Re: Splicing 3 wires to one
Reply #2 - 06/22/23 at 03:42:14

It appears the splice was made into the headlight wiring.  White is the low beam, yellow is the high beam.....black is ground.

I bought a kit from Vintage Motorcycle Connectors.  It works very well and you cannot tell the crimped connections you make fro the factory ones.....the bullet connectors are well made and the crimping tool works great and is quick to master.
http://www.vintageconnections.com/Products/Kits

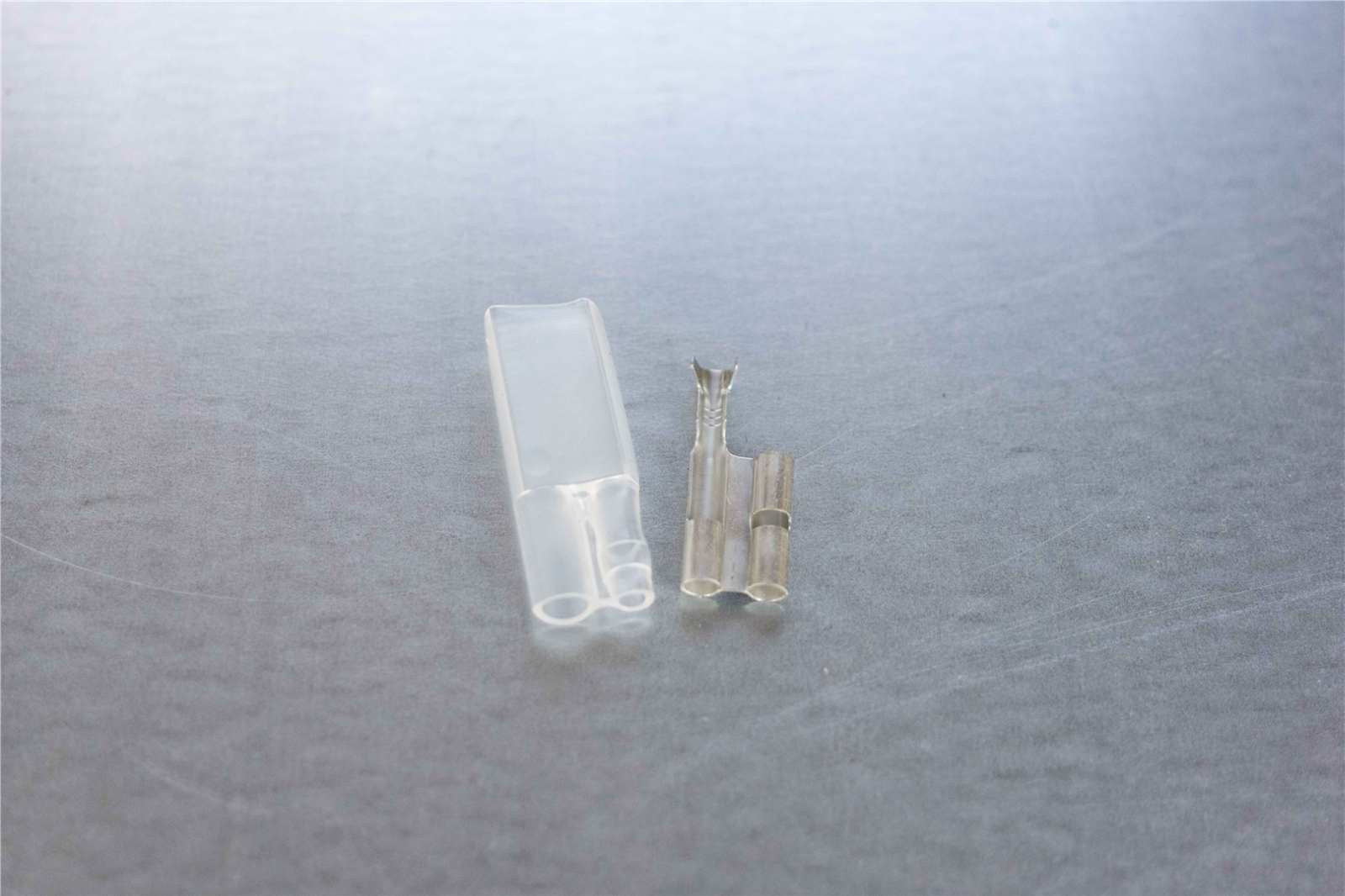

For connecting multiple wires you can either crimp a few of them together, or install female connectors with multiple places to plug wires in:
Back to top



Someday I will be old......But not today!

  IP Logged
David Necochea
YaBB Newbies
*
Offline

SuzukiSavage.com
Rocks!

Posts: 11

Re: Splicing 3 wires to one
Reply #3 - 06/22/23 at 10:56:53

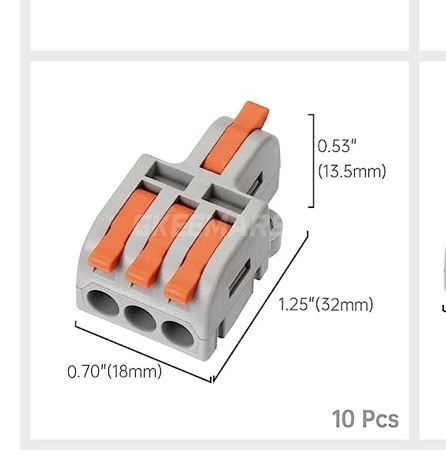

Thanks for the help! I appreciate your time. Had no clue about the world of electrical connectors. I found a three into one connector on Amazon. Would these be safe to use on a bike?
