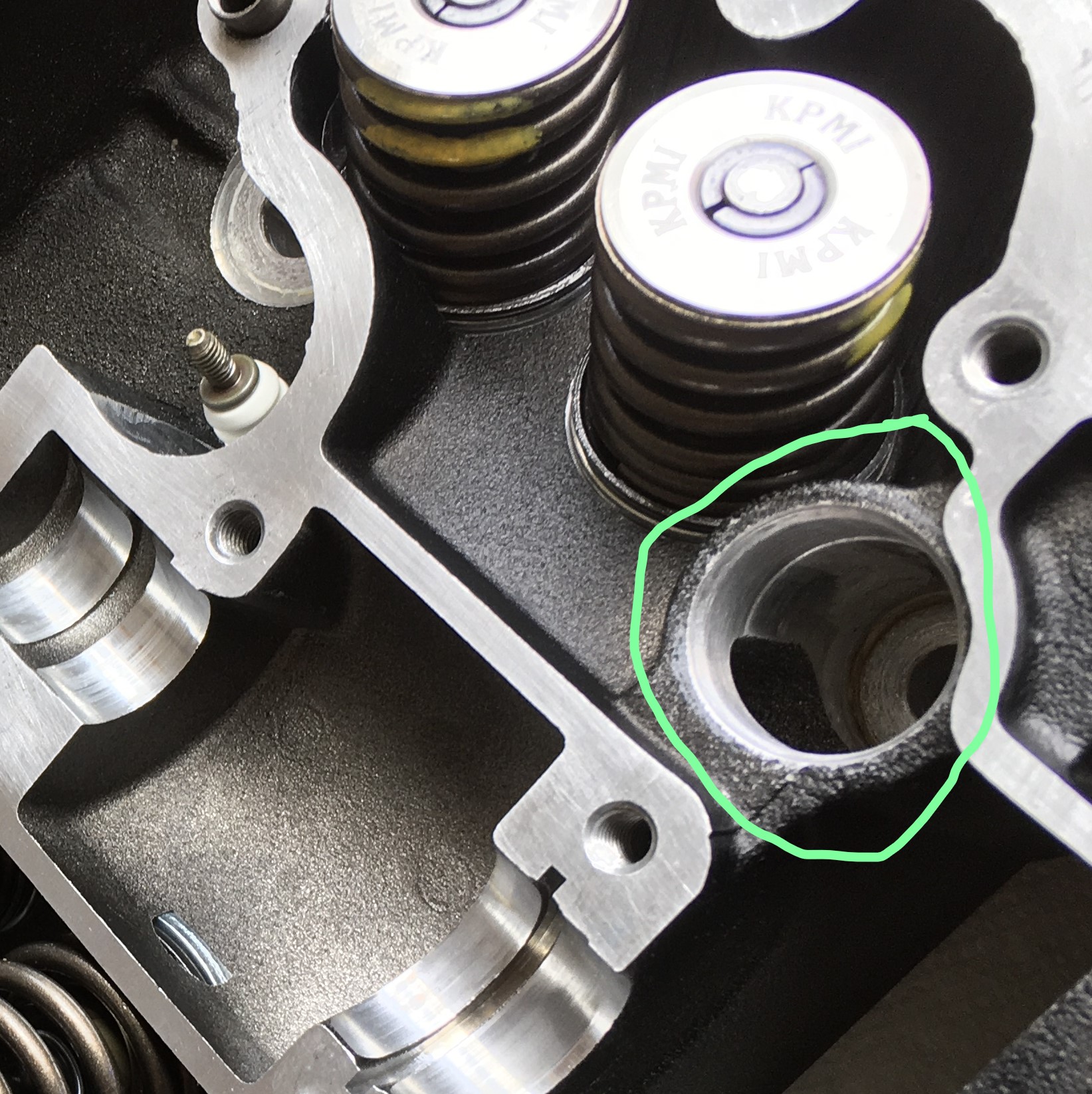

While returning the cam cover after re torqueing the head bolts and replacing the head seal. I forgot the little rubber gromet that sits in the recessed bolt hole, it does have make a gasket around the entire hole. I'm hoping this has been done before without issue.

That thing is a common problem. There is an after market unit available, but IDK from where. The installation instructions may not agree with the Suzuki maintenance manual. I don't have the answers, I'm just aware that if you just poke it in there and start putting stuff back together you're very likely to have a bothersome oil leak.

Well I decided I had nothing to lose if I try it. Hopefully it holds up for a season or 2. What exactly does that port do?

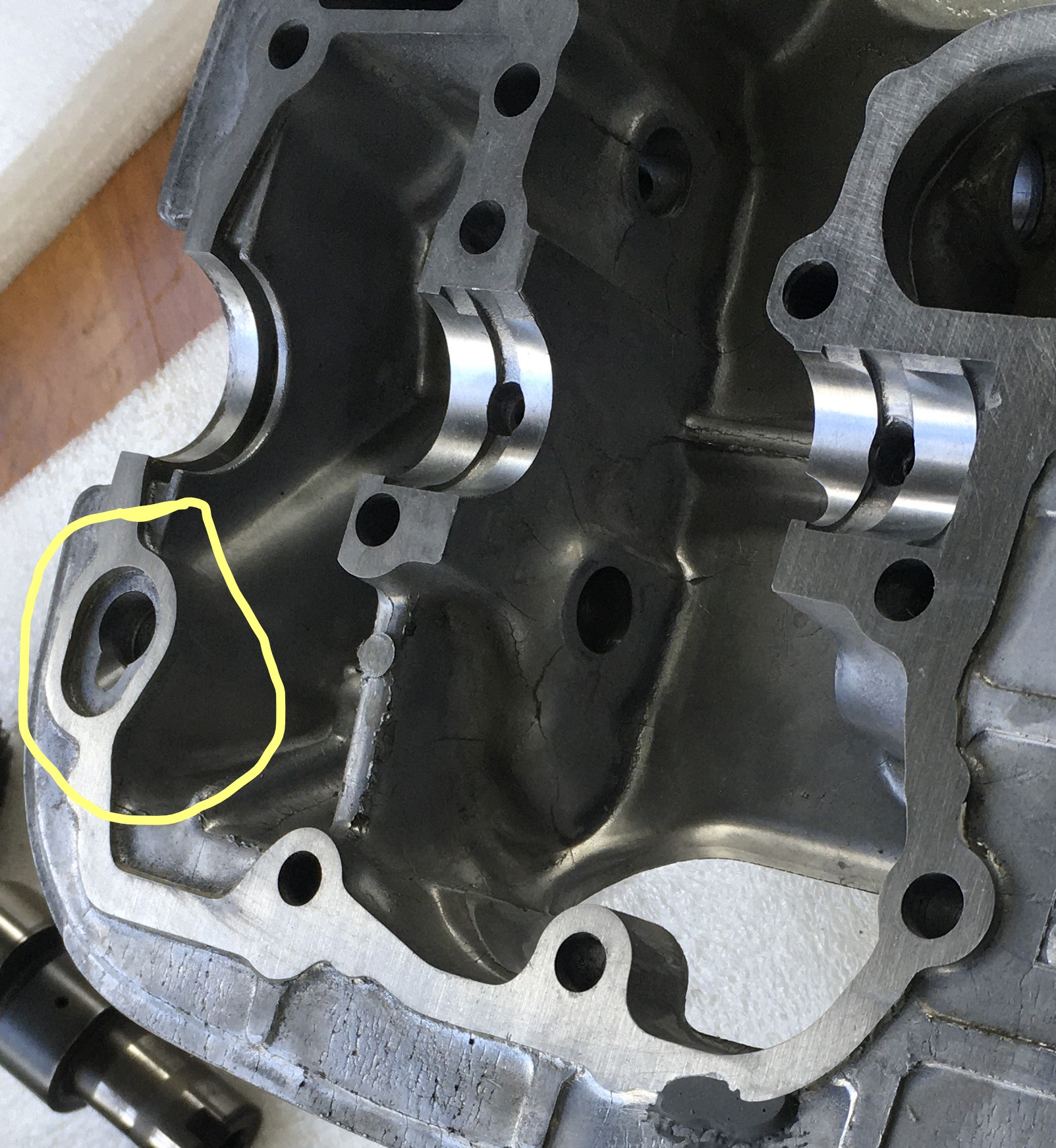

Goin on memory,which in my case means take it with a five pound grain of salt, I'm thinking that machined surface is where the head and cover come together. Since the head and cover are a pair because they put them together and bore the hole for the cam. If, when you put it together, you use too heavy of a dose of the Suzuki Bond sealer it makes the gap between the cam and bearing surfaces loose. The stuff the maintenance manual calls for there is the kind that doesn't actually harden. IDK what happens if RTV is used.
Now I'm going Waay on out on a skinny, dead limb, but the way I'm seeing it that goofy looking oring is keeping the oil pressure from working on that sealer that doesn't quite harden.
Change my mind!!
