Longtime reader, first time poster...

I recently bought the following Mikuni carb for '17 S40:

https://www.amazon.com/dp/B000GZK7LG?psc=1&ref=ppx_yo2ov_dt_b_product_details

After two long days, it's finally on (this is my most ambitious project yet) with the accompanying new throttle cable and flange.

Although I tried to stay organized, I'm left with a couple questions:

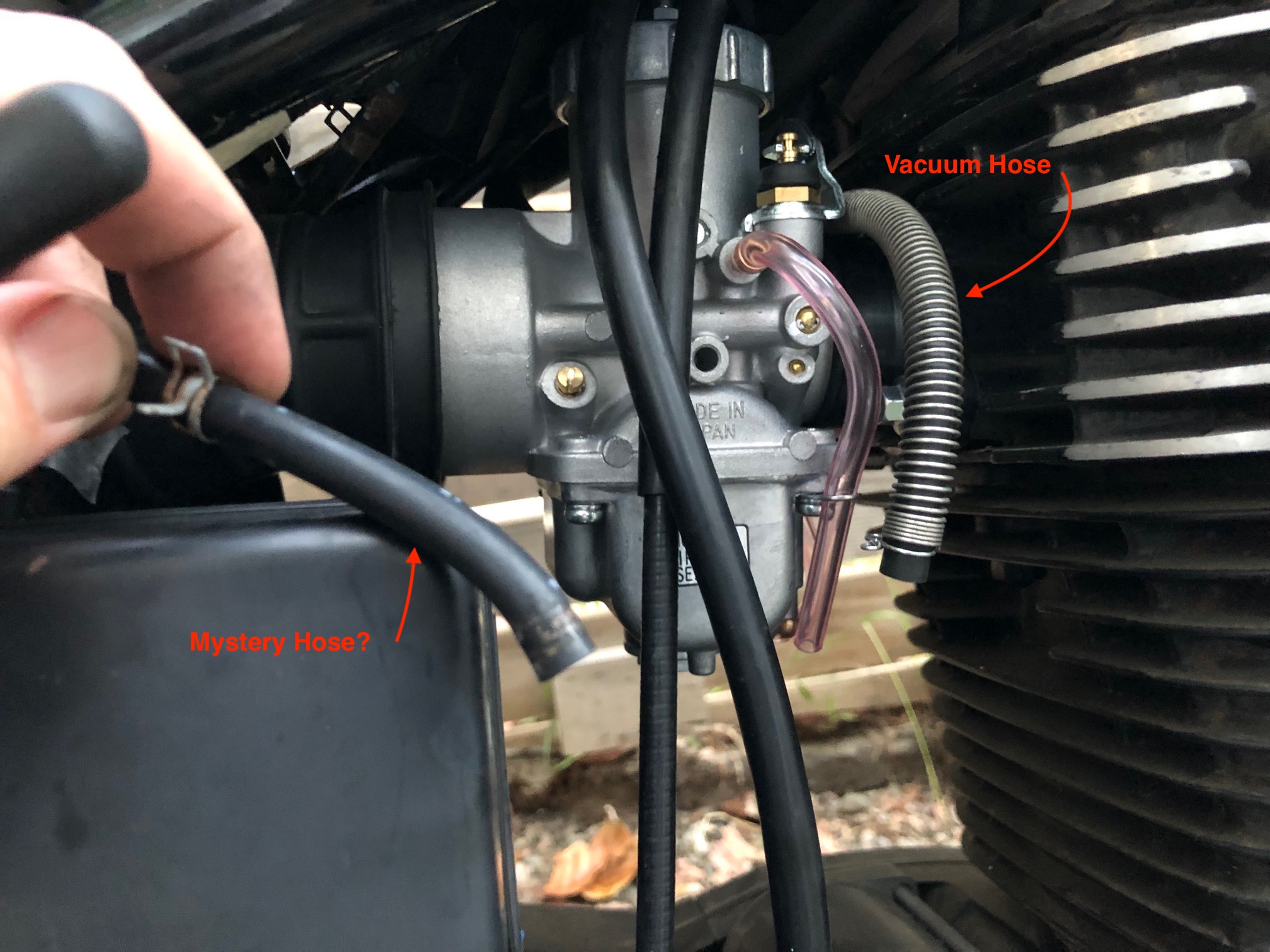

In the picture, you'll find two hoses (the vacuum hose and a mystery hose). I cannot for the life of me figure out where they're supposed to connect to the new Mikuni carb.

The funny thing is that the bike runs beautifully now and I'm left wondering if these two components are superfluous? But the rational side of me thinks that Suzuki engineers wouldn't leave anything extraneous on one of their machines.

What am I meant to do with these?

Thank you!

Best,

Tomato

P.S. I broke the two hose clamps for the Air Box / Carb connection and the Engine / Carb connection. New ones arrive today and will be installed.

Good choice , it gonna run great. Those hoses need to be plugged or removed and capped or plugged at the other end. If you don’t have a Raptor petcock , get one. Only buy the OEM from Yamaha. A Raptor petcock with Mikuni carb are the $hit for these bikes , just make sure you have no vacuum leaks. Your on the right track.

No, not a "Raptor Compatible" for $8.  They're too narrow. Get the real deal.  Should be about $30.
This is the Raptor part no.  5LP-24500-01-00
2003 Yamaha Raptor 660 YFM660R
