Theduderino Full Member Offline The dude abides… Posts: 216 Looziana Gender:	PWK FLOAT HEIGHT 01/22/22 at 05:32:48 Hey all, Keihin says height should be 16mm. Staring to think thats horseshoot… im aware of the jet closeness to bowl…not running those style jets..does anyone know where the liquid level should be? This is why i bought this plastic bowl..genuine 35 pilot, bike wont start smells like fuel when cranking.
Back to top	1D3A90C7-7452-4BAE-BB34-AFBE544A87BF.jpeg 2000 Savage LS650P. Bobber kit, PWK CARB, air box mod. Rear bearing/spacer mod.. Do not fear mistakes, there are none. IP Logged

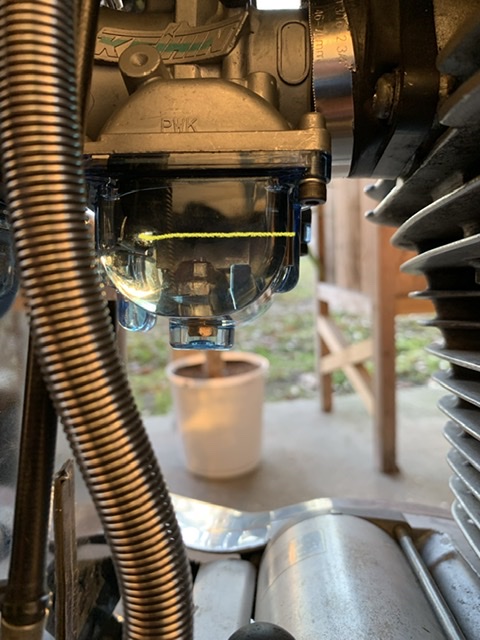

ckahleer Full Member Offline SuzukiSavage.com Rocks! Posts: 121	Re: PWK FLOAT HEIGHT Reply #1 - 01/22/22 at 08:54:27 I am assuming the yellow line is the fuel height? If so, it is too low. On my bike, using a clear tube the fuel comes to the heads of the float bowl screws. I'm also assuming the bike is straight up and not on the kickstand.
Back to top	IP Logged

Theduderino Full Member Offline The dude abides… Posts: 216 Looziana Gender:	Re: PWK FLOAT HEIGHT Reply #2 - 01/22/22 at 09:08:17 Yellow line is the bottom of the float if you will, fuel level is about a quarter inch below the gasket of the bowl
Back to top	2000 Savage LS650P. Bobber kit, PWK CARB, air box mod. Rear bearing/spacer mod.. Do not fear mistakes, there are none. IP Logged
