Theduderino Full Member Offline The dude abides… Posts: 216 Looziana Gender:	Rear wheel spacer mod 12/18/21 at 11:36:16 just wanted to publicly think Mr. Armen for shipping me a modified spacer! Installing it now. I’ll keep y’all posted..
Back to top	506BE70C-3F6C-455A-92D4-250A10BB6AA0.jpeg 2000 Savage LS650P. Bobber kit, PWK CARB, air box mod. Rear bearing/spacer mod.. Do not fear mistakes, there are none. IP Logged

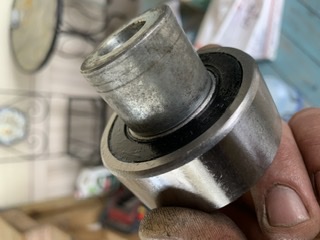

Theduderino Full Member Offline The dude abides… Posts: 216 Looziana Gender:	Re: Rear wheel spacer mod Reply #1 - 12/18/21 at 11:42:22 In my best ace Ventura Voice, like a glove…..
Back to top	AB3EFBC4-0862-4421-A1F8-F3B85F95A2AB.jpeg 2000 Savage LS650P. Bobber kit, PWK CARB, air box mod. Rear bearing/spacer mod.. Do not fear mistakes, there are none. IP Logged

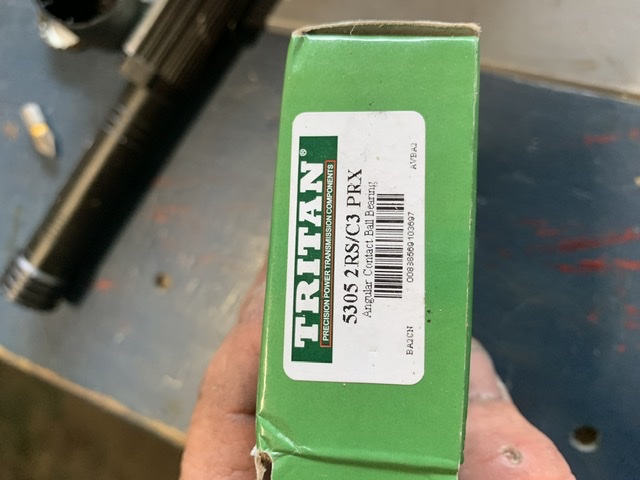

Theduderino Full Member Offline The dude abides… Posts: 216 Looziana Gender:	Re: Rear wheel spacer mod Reply #2 - 12/18/21 at 11:44:28 Here is the bearing info, on Amazon for like 18 bucks.
Back to top	3139AEB0-9EC6-48B2-9C8E-EE925E9E4E6F.jpeg 2000 Savage LS650P. Bobber kit, PWK CARB, air box mod. Rear bearing/spacer mod.. Do not fear mistakes, there are none. IP Logged

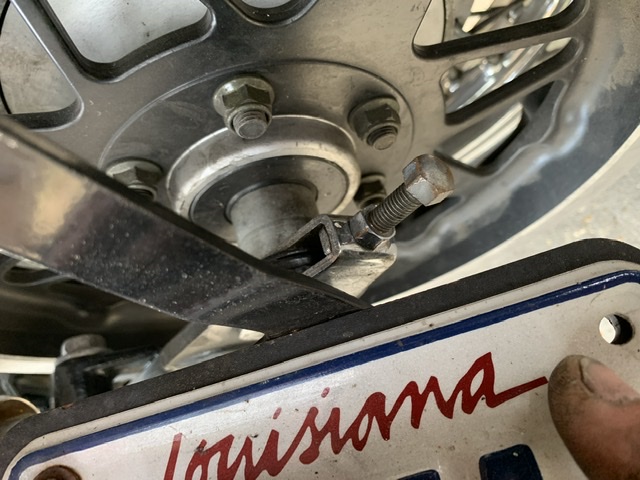

Theduderino Full Member Offline The dude abides… Posts: 216 Looziana Gender:	Re: Rear wheel spacer mod Reply #3 - 12/18/21 at 11:46:38 Before…
Back to top	503F1D70-8D80-4BE3-A83A-4CF318C3E752.jpeg 2000 Savage LS650P. Bobber kit, PWK CARB, air box mod. Rear bearing/spacer mod.. Do not fear mistakes, there are none. IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: Rear wheel spacer mod Reply #4 - 12/18/21 at 11:57:19 I've lived in quite a few places. Never had more fun than being in Louisiana. What part of Louisiana are you in?
Back to top	The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

Theduderino Full Member Offline The dude abides… Posts: 216 Looziana Gender:	Re: Rear wheel spacer mod Reply #5 - 12/18/21 at 12:58:37 Gonzalez about 20 minutes south of Baton Rouge
Back to top	2000 Savage LS650P. Bobber kit, PWK CARB, air box mod. Rear bearing/spacer mod.. Do not fear mistakes, there are none. IP Logged

Theduderino Full Member Offline The dude abides… Posts: 216 Looziana Gender:	Re: Rear wheel spacer mod Reply #6 - 12/18/21 at 12:59:11 GO TIGERS!
Back to top	2000 Savage LS650P. Bobber kit, PWK CARB, air box mod. Rear bearing/spacer mod.. Do not fear mistakes, there are none. IP Logged

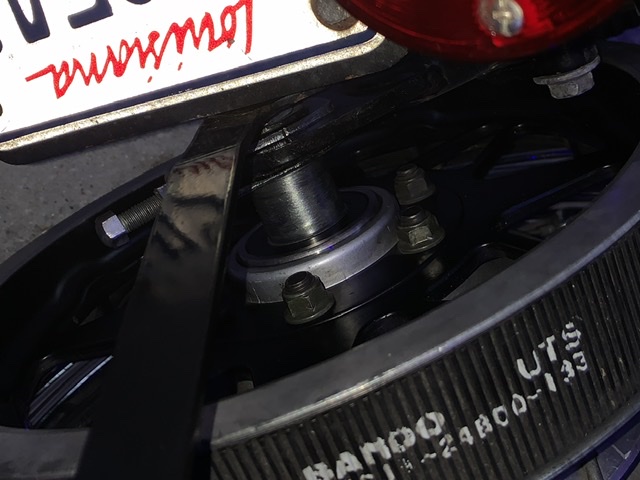

Theduderino Full Member Offline The dude abides… Posts: 216 Looziana Gender:	Re: Rear wheel spacer mod Reply #7 - 12/18/21 at 15:02:04 Hey all, if you want your rear pulley to stop wobbling you need to get a hold of Mr. Armen! Ordered a modified spacer, everything went as we discussed shipped on time everything went well I installed it guess what? No squeak no movement that I can tell by the human eye anyway. Thanks again boss!
Back to top	25CDF403-C527-4FDA-8866-4B4DA73FA49E.jpeg 2000 Savage LS650P. Bobber kit, PWK CARB, air box mod. Rear bearing/spacer mod.. Do not fear mistakes, there are none. IP Logged

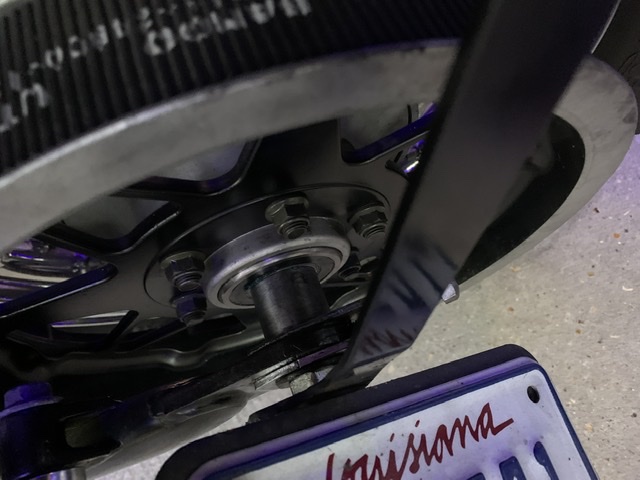

Theduderino Full Member Offline The dude abides… Posts: 216 Looziana Gender:	Re: Rear wheel spacer mod Reply #8 - 12/18/21 at 15:02:55 Pulley
Back to top	D8F2A25C-D0A4-4D4E-9C26-0D1FB2074678.jpeg 2000 Savage LS650P. Bobber kit, PWK CARB, air box mod. Rear bearing/spacer mod.. Do not fear mistakes, there are none. IP Logged

Dave YaBB Moderator ModSquad Offline SuzukiSavage.com Rocks! Posts: 18117 Camp Springs, Kentucky Gender:	Re: Rear wheel spacer mod Reply #9 - 12/19/21 at 02:48:12 Looks good! Keep the pressure washer off that bearing and rubber seal!
Back to top	Someday I will be old......But not today! IP Logged

Theduderino

Full Member

Offline

The dude abides…

Posts: 216
Looziana
Gender: male

Re: Rear wheel spacer mod
Reply #10 - 12/19/21 at 04:27:13

Yes sir Mr. Dave. When you get a second I have a look at the PKW thread if you don’t mind. In the beginning I did some bonehead moves with jet sizes. It’s 630 here in Louisiana Sunday morning, I had a 50 pilot jet and a 160 Main. But last night, I did is drag bike Mike suggested, installed a 35 pilot and 142 Main. I can’t wait to turn the key and adjust it. Hopefully it will.

Back to top

2000 Savage LS650P. Bobber kit, PWK CARB, air box mod. Rear bearing/spacer mod..

Do not fear mistakes, there are none.

IP Logged

Armen Serious Thumper Offline Half-Witted Wrench-Jockey from Jersey Posts: 1452	Re: Rear wheel spacer mod Reply #11 - 12/19/21 at 08:56:40 Hey Duderino, So glad it worked out for you! Again, the real credit goes to Drag Bike Mike for figuring this out. If anyone is interested, I should have more ready pretty soon. Waiting for two stock spacers to come back from folks who installed the modified ones. Glad to be of service! -Armen
Back to top	In theory, theory and reality are the same. In reality, they aren't... IP Logged

edgwoodri Junior Member Offline SuzukiSavage.com Rocks! Posts: 57	Re: Rear wheel spacer mod Reply #12 - 12/23/21 at 07:15:04 Im a rookie here. What's the purpose of the spacer Mod? Theduderino wrote on 12/18/21 at 11:42:22: In my best ace Ventura Voice, like a glove…..
Back to top	IP Logged

Armen

Serious Thumper

Offline

Half-Witted
Wrench-Jockey from
Jersey

Posts: 1452

Re: Rear wheel spacer mod
Reply #13 - 12/23/21 at 07:30:29

Hi Edgwodri,
One of the problems that can develop with our bikes is that the rear pulley can develop some serious wobble. Looks wonky, can make some noise, doesn't help belt wear, and will have serious negative side effects on your dating life.
Dave came up with a solution that involved padding out the cush drive, and it worked well for him.
Drag Bike Mike took a different approach.
Realizing that the rear pulley has a huge diameter, and is supported by a single row ball bearing, he figured out that switching to a double row ball bearing, and modifying the left axle spacer to suit, gives the pulley the mechanical equivalent of a 1/2 bottle of Viagra-keeps everything stiff and straight.
To do the mod (well documented somewhere on the forum), all you have to do is remove the left side seal of the pulley carrier, warm up the carrier and remove the bearing, and install a double row/double rubber seal ball bearing (cheap and easy on Ebay).
And of course, turn down a shoulder on the left spacer.
The machining operation is pretty simple if you have a lathe.
If you don't have access to a lathe, I can modify yours for $30, which includes return shipping.
Make sense?

Back to top

In theory, theory and reality are the same. In reality, they aren't...

IP Logged

edgwoodri Junior Member Offline SuzukiSavage.com Rocks! Posts: 57	Re: Rear wheel spacer mod Reply #14 - 12/25/21 at 05:47:12 Yes, but I ride mine about 200 miles a yr.
