need some help with part numbers
12/04/21 at 13:34:26

I have a 2005 S40 that's missing a few screws. I gave my best effort but can't locate them on BikeBandit.

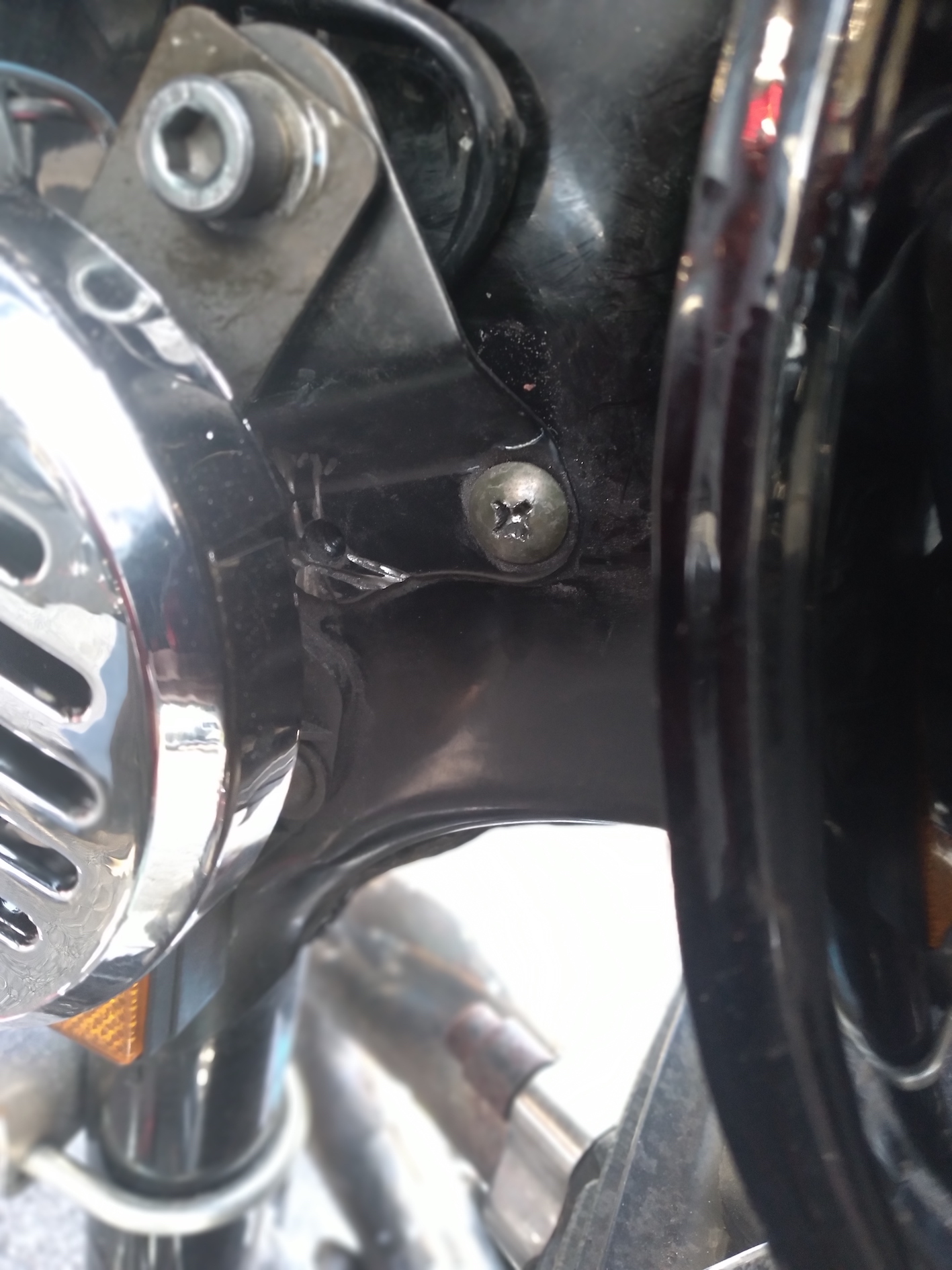

The horn on my bike is connected to a bracket. The bracket is then connected to the chassis with 2 panhead screws. You can see one in the attached photo. It's the one with the Phillips head. What's the part number for that screw?

The second is for the screws that attach the seat to the chassis. There's 1 on either side of the seat.

I'd be very grateful if someone could help me with these part numbers. Thanks very much.


IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28890 L.A. California Gender:	Re: need some help with part numbers Reply #1 - 12/04/21 at 15:19:35 Horn screw OEM Parts / Suzuki / 2009 Suzuki Boulevard S40 LS650 / WIRING HARNESS Suzuki SCREW Part # 02142-0612B Seat screw OEM Parts / Suzuki / 2009 Suzuki Boulevard S40 LS650 / SEAT Suzuki BOLT Part # 01550-0612B they are about a $1.5+ I included the location so you can find it for yourself if you want.
Back to top	Versey's Place Tech Section Index IP Logged

TZK Junior Member Offline SuzukiSavage.com Rocks! Posts: 58	Re: need some help with part numbers Reply #2 - 12/04/21 at 18:46:46 THANK YOU!!!!!!!!!!
Back to top	IP Logged

TZK

Junior Member

Offline

SuzukiSavage.com
Rocks!

Posts: 58

Re: need some help with part numbers
Reply #3 - 12/14/21 at 18:09:44

I just discovered that every turn signal lens on my 2005 S40 has a different part number. Shocked

I found this out the hard way: by trying to get the front left lens to fit in the front right housing....and breaking the small plastic piece that a screw goes in to secure it to the housing.

BikeBandit lists the part numbers for all of the lenses but doesn't specify which is left and which is right? How are you supposed to figure that out?? It's either
35610-38AA0 or
35630-38AA0
https://www.bikebandit.com/oem-parts/2005-suzuki-boulevard-s40-ls650/o/m14763...
Can someone please lend a hand and tell me what's the part # for the front left turn signal lens?

IP Logged

TZK Junior Member Offline SuzukiSavage.com Rocks! Posts: 58	Re: need some help with part numbers Reply #4 - 12/14/21 at 19:50:29 Never mind. I found the answer on Partzilla. 35610-38AA0 - front right lens 35630-38AA0 - front left lens
