Whats this and where does it go
11/24/21 at 12:52:04

Hi Guys and Gals and everyone in between.

I have been restoring my bike which was stolen and stripped. I have just about replaced all the wiring and have everything plugged in where it should it go accept for this one thing.

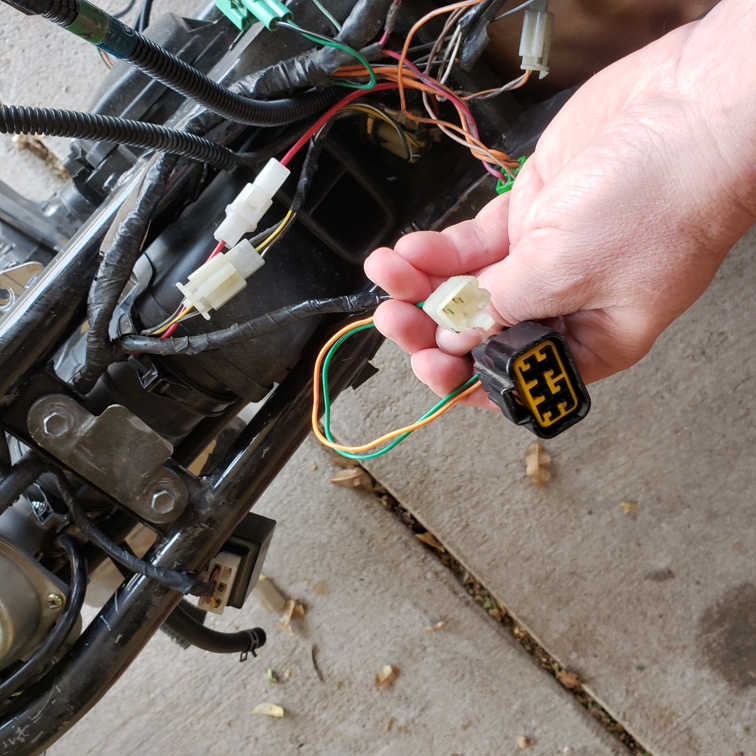

What is this? and what plugs into it?

(Just to clarify this isn't a stolen bike I'm working on, my bike was stolen from me and the cops found it but it was stripped of the ignition system and most other things. I'm trying to restore it myself.)


IP Logged

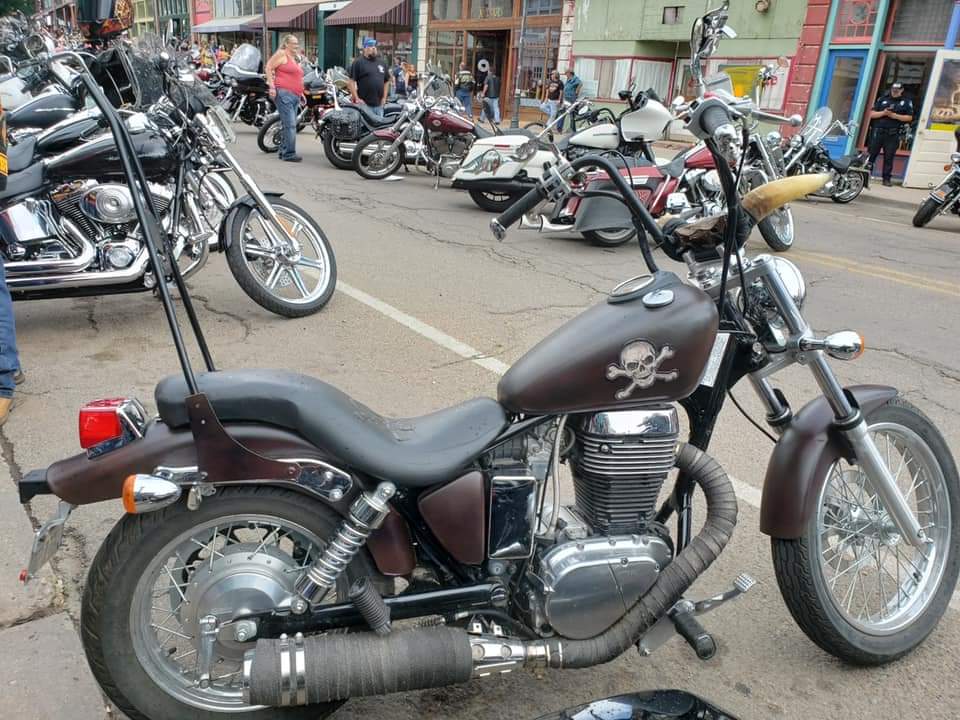

Transmania YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 11 New Mexico Gender:	Re: Whats this and where does it go Reply #1 - 11/24/21 at 12:57:39 My Bike before the theft
Back to top	FB_IMG_1617403991135.jpg IP Logged

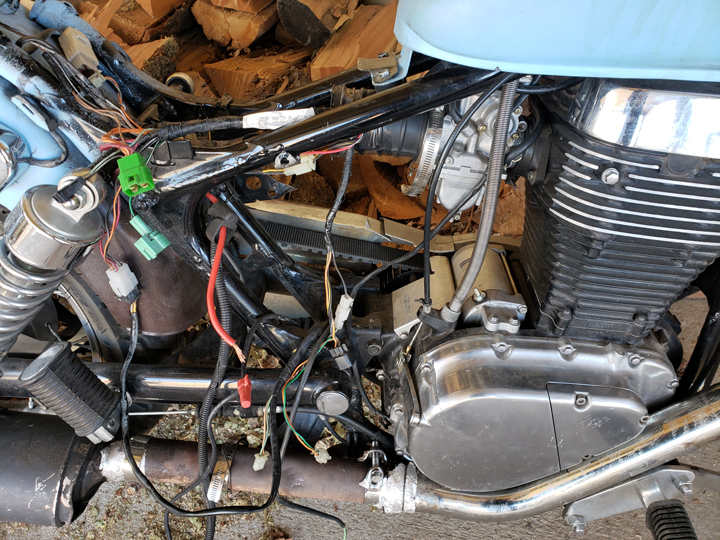

Transmania YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 11 New Mexico Gender:	Re: Whats this and where does it go Reply #2 - 11/24/21 at 12:58:10 My bike returned from the theft
Back to top	20210403_093206.jpg IP Logged

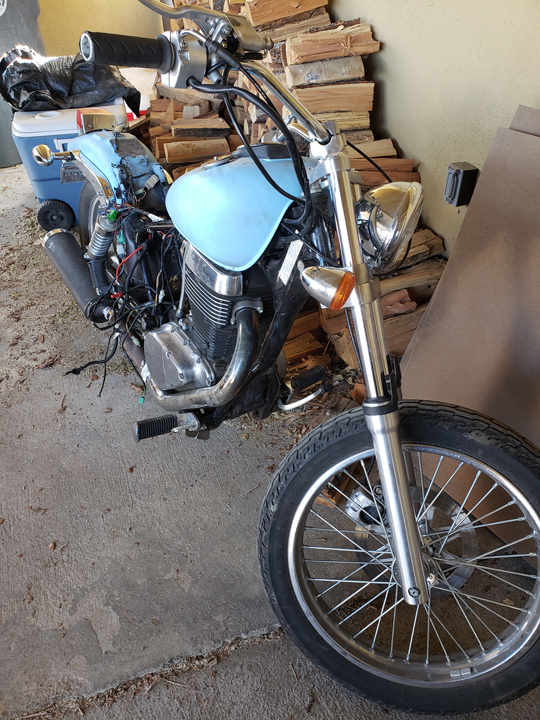

Transmania YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 11 New Mexico Gender:	Re: Whats this and where does it go Reply #3 - 11/24/21 at 13:03:58 P.S. How do I attach more than one image to a post?
Back to top	20210403_093115.jpg IP Logged

Tocsik Serious Thumper Offline the singularity Posts: 1140 Denver, CO Gender:	Re: Whats this and where does it go Reply #4 - 11/24/21 at 14:15:29 Just a question, did they paint it blue?
Back to top	'08\|Raptor\|Dyna\|Stock jets & no other carb changes @ 5280' alt\|'slavy CCT\|Kawa front pulley\|130/90 rear tire\|7" LED headlight\|3" straight risers\|FIAMM El Grande horns\|Mutazu hard bags IP Logged

verslagen1

YaBB Moderator
ModSquad

Offline

Where there's a
will, I want to be
in it.

Posts: 28804
L.A. California
Gender: male

Re: Whats this and where does it go
Reply #5 - 11/24/21 at 14:17:07

Transmania wrote on 11/24/21 at 13:03:58:

P.S. How do I attach more than one image to a post?

If you're uploading to the website, you can't. Only 1 per post.
But you can link more than one with the image button

.
You just have to copy the image address and paste it between the image brackets [ img]insert image here[/img ]

Versey's Place
Tech Section Index

IP Logged

Transmania YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 11 New Mexico Gender:	Re: Whats this and where does it go Reply #6 - 11/24/21 at 14:27:49 Yes they did paint it blue with freaking house paint. But i love to paint and the first thing i did was restore the paint job, better than before even. I'll post pics when i put the tank and fender back on. Thanks for the pic info.
Back to top	IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28804 L.A. California Gender:	Re: Whats this and where does it go Reply #7 - 11/24/21 at 14:33:17 Transmania wrote on 11/24/21 at 12:52:04: What is this? and what plugs into it? The 8 is the TCI plug for the ignition module. sorry, expensive. The 2 is for the timing sensor.
Back to top	Versey's Place Tech Section Index IP Logged

Transmania YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 11 New Mexico Gender:	Re: Whats this and where does it go Reply #8 - 11/24/21 at 14:49:30 Omg thank you so much. Good news and bad news. I got the 2 plugged in the right place but aiy yi yi that ignitor module is a 500 dollar part.
Back to top	IP Logged

TheSneeze Serious Thumper Offline Posts: 1208 Northern Nevada Gender:	Re: Whats this and where does it go Reply #9 - 11/24/21 at 15:08:37 $397 on Partzilla for an '87 model year. Shop around. Edit: your year the part is $633 on Partzilla. Found you posted it in the introductory thread.
Back to top	Every twenty minute job is a stripped thread away from being a three day ordeal. '87 LS650h Savage Street Tracker '86 LS650g Savage (parts bike) '81 Kawasaki KZ750e ELR tribute IP Logged

Transmania YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 11 New Mexico Gender:	Re: Whats this and where does it go Reply #10 - 11/24/21 at 15:13:06 Yeah looks like ebay has some options too. I'll look around. Hey maybe ill ask Santa! Thanks again. Ill update photos when things get prettier just for your all's enjoyment.
Back to top	IP Logged

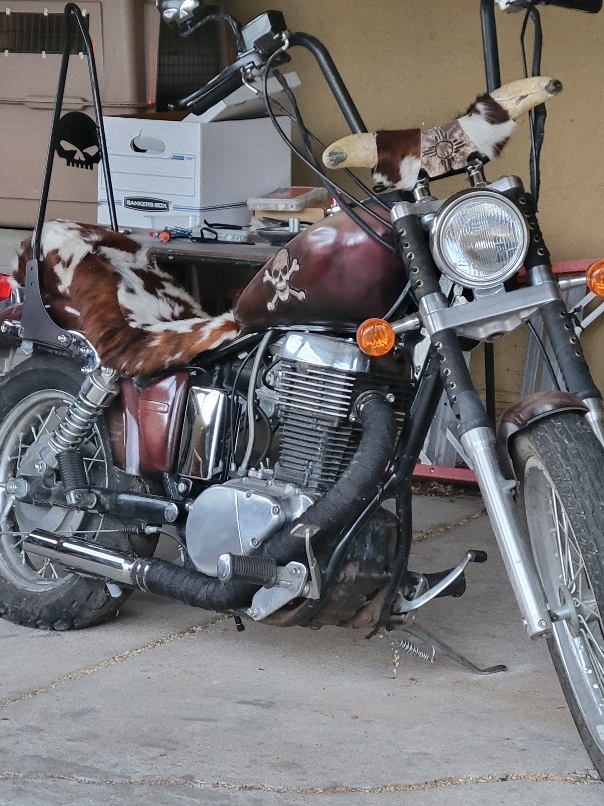

Transmania YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 11 New Mexico Gender:	Re: Whats this and where does it go Reply #11 - 07/27/22 at 13:12:24 Update. I have my bike all restored now. I gussied it a bit with a new apolstery on the seat. Sadly the engine wont turn over. But it sure it purty. Here is a pic
Back to top	20220726_191917.jpg IP Logged
