Muffler Replacement (Read 54 times)

gtenginerd

Junior Member

Offline

SuzukiSavage.com
Rocks!

Posts: 88
MO

Muffler Replacement
10/19/20 at 10:51:00

Thought I'd share how this is going.

Supplies:
Cone Engineering:
12 inch x 1.75 inch diameter Muffler
2 inch bracket
18 degree stainless bend
Aluminum Bar Stock for attaching bracket to frame

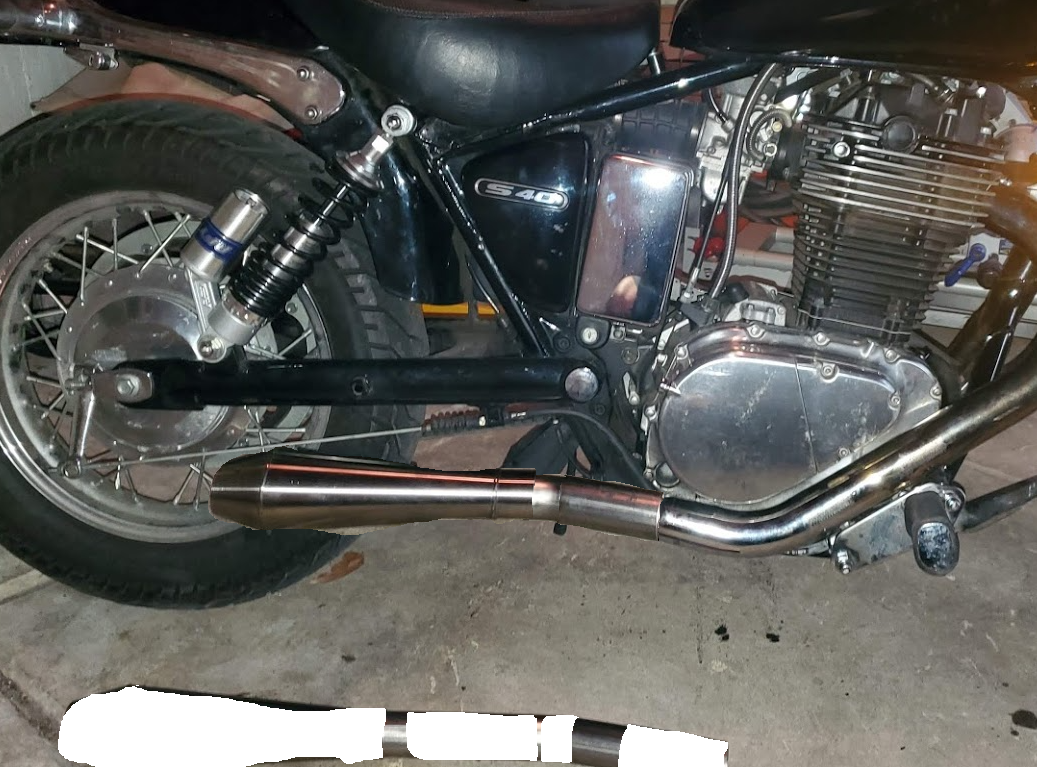

Guys at Cone suggested friction fitting along with the bracket-no welding on joint for ease of removal. Below is a pic of my amateur but effective photoshop (MS Paint) to figure out where to cut the elbow. I made a coupling out of the leftover, but think I'll try to get the correct diameter. I can't find any 1.75 inch stainless exhaust clamps. Trip to a friend with a welder planned in the next week.


IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28890 L.A. California Gender:	Re: Muffler Replacement Reply #1 - 10/19/20 at 12:20:01 I'll have to post a pic of mine. I got the quieter core from cone engr. If you like the sound level of the dyna, it's pretty close. You can tip toe thru the neighborhood w/out being too loud. I would recommend welding on a cuff and a rail to fix it to the header and bracket. I got a few 1.75" clamps from somewhere.
Back to top	Versey's Place Tech Section Index IP Logged

gtenginerd Junior Member Offline SuzukiSavage.com Rocks! Posts: 88 MO	Re: Muffler Replacement Reply #2 - 10/19/20 at 17:45:58 Yes, it's louder than I expected, which kinda sucks for what will be mostly a city bike. Can you explain what you mean by 'cuff and rail'?
Back to top	IP Logged
