Simple Engine Stand (Read 105 times)

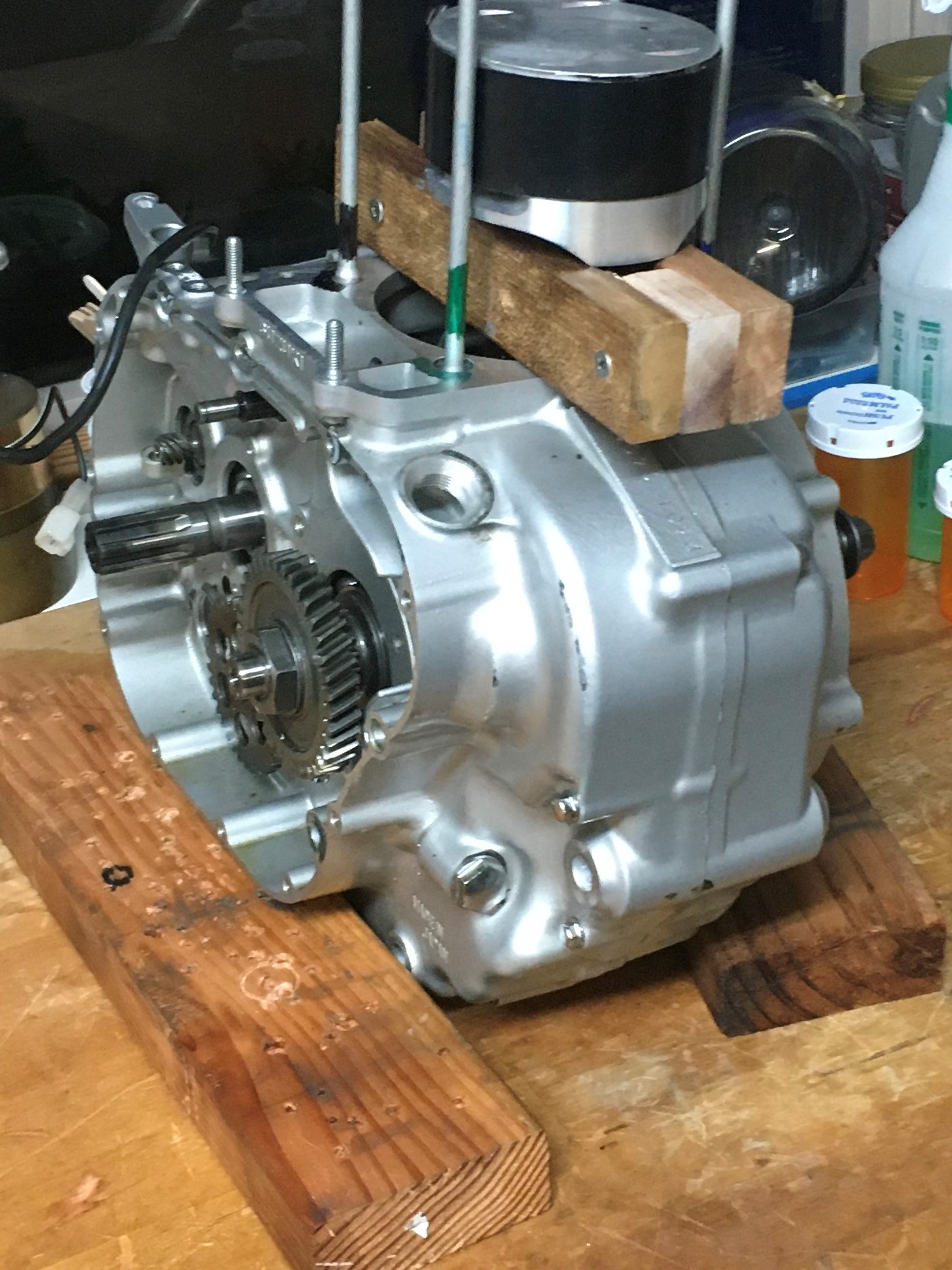

DragBikeMike Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 4166 Honolulu	Simple Engine Stand 04/05/20 at 00:52:43 I have a bad habit of putting things off. Every time I work on my engines I end up trying to support them with just about anything I can find laying around the garage. I’m sure many of you have found yourself struggling with a mess like this. It usually starts tipping over just about the time you are trying to get the cylinder past the top ring.
Back to top	Old_School_Struggle_2.jpg Knowledge is power. IP Logged

DragBikeMike

Serious Thumper

Offline

SuzukiSavage.com
Rocks!

Posts: 4166
Honolulu

Re: Simple Engine Stand
Reply #1 - 04/05/20 at 00:54:03

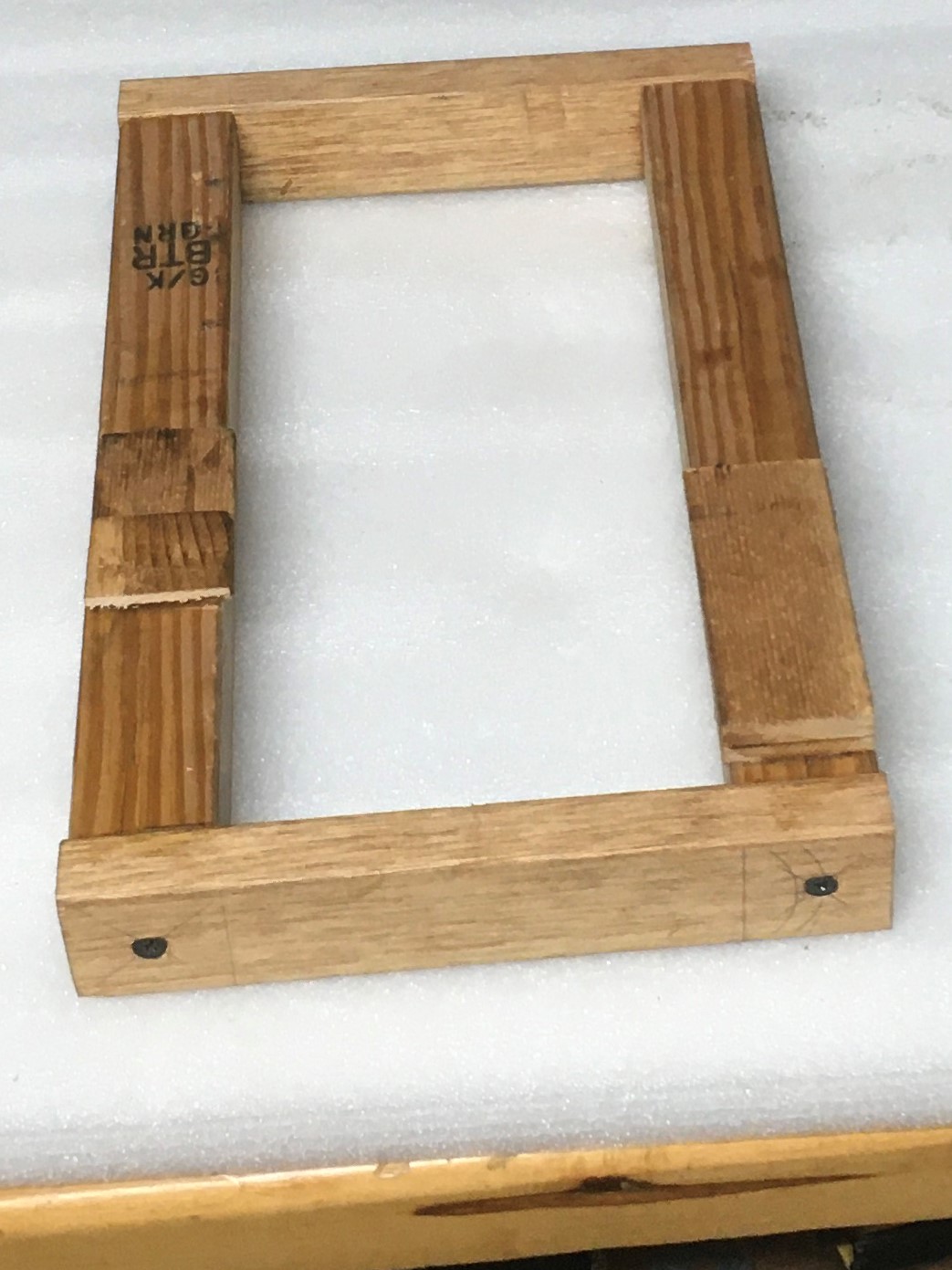

I’ve got lots of free time right now, so I decided to make a simple tool to properly support my engine. Now I can work without fear of dropping the whole shebang right off the workbench. It’s just a couple of 2” x 2” x 11” boards screwed & glued to a couple of 1” x 2” x 7-3/4” boards. Very simple. You now have all the dimensions you need to make a similar cradle that will fit like a glove. Make one before you pull your engine. You won’t regret it.


Knowledge is power.

IP Logged

DragBikeMike Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 4166 Honolulu	Re: Simple Engine Stand Reply #2 - 04/05/20 at 00:54:48 To completely stabilize the engine while it’s resting in the cradle, use a few wooden door-frame wedges. Adjust the wedges so that the engine rests solid & level in the cradle. Once the wedges are just the right fit, cut them off and glue them to the cradle.
Back to top	Benchtop_Stand_Wedges_2_2.JPG Knowledge is power. IP Logged

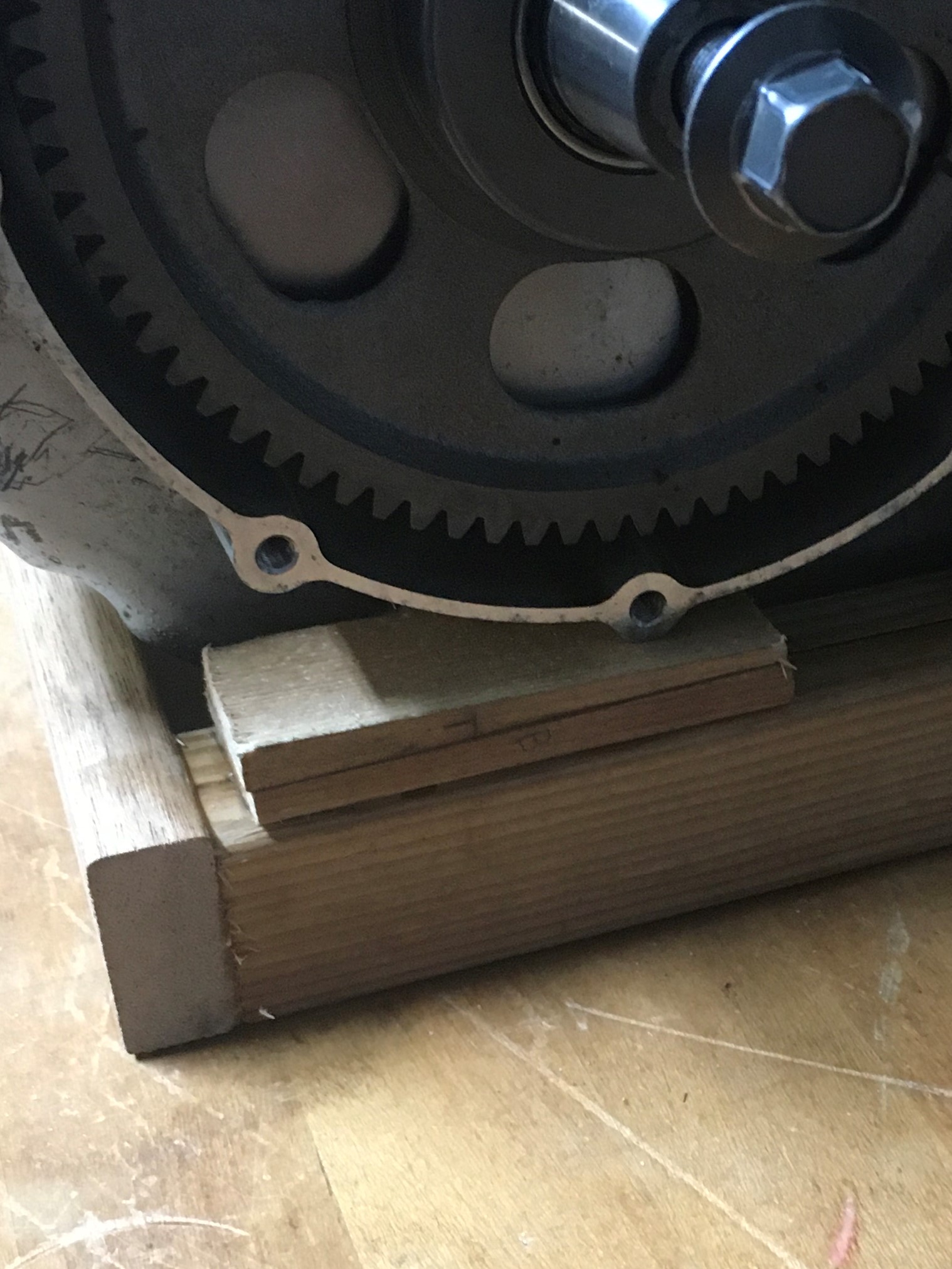

DragBikeMike Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 4166 Honolulu	Re: Simple Engine Stand Reply #3 - 04/05/20 at 00:55:27 This should give you an idea how the wedges work.
Back to top	Benchtop_Stand_Wedges_3_2.JPG Knowledge is power. IP Logged

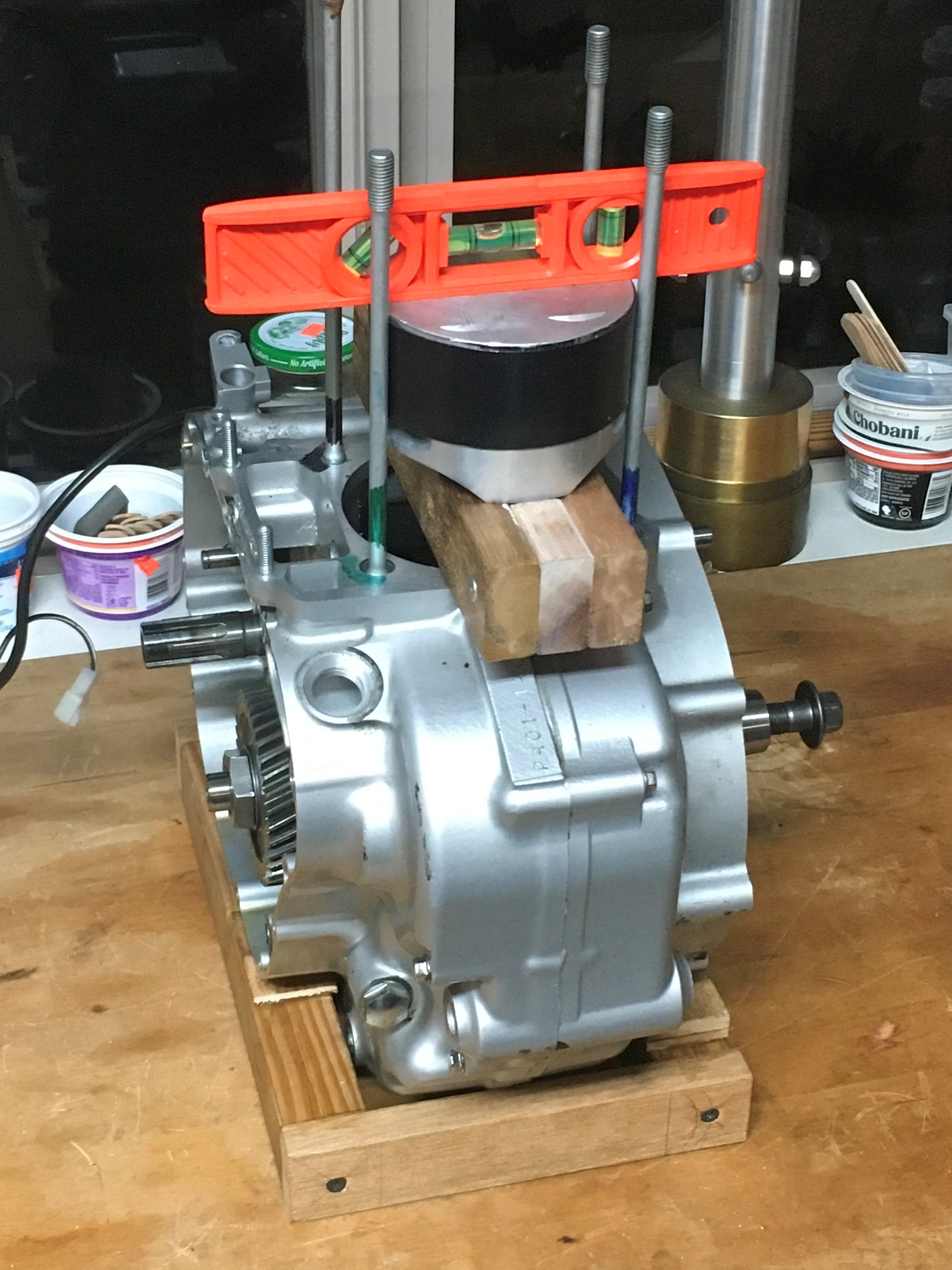

DragBikeMike Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 4166 Honolulu	Re: Simple Engine Stand Reply #4 - 04/05/20 at 00:56:04 Now you can work on your engine without worrying if it will stay upright.
Back to top	Benchtop_Stand_in_Action_2.JPG Knowledge is power. IP Logged

DragBikeMike Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 4166 Honolulu	Re: Simple Engine Stand Reply #5 - 04/05/20 at 00:56:51 Now if you really want a Cadillac engine stand, see Armen. He’s got the hot ticket.
Back to top	Engine_stand_1.JPG Knowledge is power. IP Logged

RocketScienceSmurf Senior Member Offline SuzukiSavage.com Rocks! Posts: 268 Sweden Gender:	Re: Simple Engine Stand Reply #6 - 04/06/20 at 00:46:02 I am in the middle of getting my own stand so I can start replacing the cam chain. I got some pieces of L-shaped that a friend will help me weld and another friend is making the spacers. I will try and mount everything using the two lowest frame mount holes and original 180mm bolt.
Back to top	jigg_suzuki-motor_3.png IP Logged

justin_o_guy2 Serious Thumper Offline What happened? Posts: 55279 East Texas, 1/2 dallas/la.	Re: Simple Engine Stand Reply #7 - 04/06/20 at 08:47:20 DragBikeMike wrote on 04/05/20 at 00:56:51: Now if you really want a Cadillac engine stand, see Armen. He’s got the hot ticket. He's not quite finished with it. He's gotta drill a half a million holes in it now.
Back to top	« Last Edit: 04/06/20 at 09:53:17 by verslagen1 » The people never give up their liberties but under some delusion.- Edmund Burke. IP Logged

Armen Serious Thumper Offline Half-Witted Wrench-Jockey from Jersey Posts: 1431	Re: Simple Engine Stand Reply #8 - 04/06/20 at 12:54:44 Thanks Mike and Justin
Back to top	In theory, theory and reality are the same. In reality, they aren't... IP Logged

DragBikeMike Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 4166 Honolulu	Re: Simple Engine Stand Reply #9 - 04/07/20 at 02:31:02 That looks like a nice setup Kamelryttarn. I bet a set of casters would be nice. The angles lend themselves to mounting casters and it would make the engine easy to move around in the shop.
Back to top	Knowledge is power. IP Logged
