Big Cam - Web 340b Install
12/16/19 at 18:13:34

In my never-ending search for more power, it was time to explore the merits of a big cam.  Not a bolt-in cam with a bit more duration & lift, but a true big cam.  A cam that would bring out the best in my hotrod.

An aggressive cam will complement the other modifications and help them all work together.  The ported head, bigger carburetor, free flowing airbox and exhaust, and higher compression were all yearning for a bump-stick with some decent lift & duration.

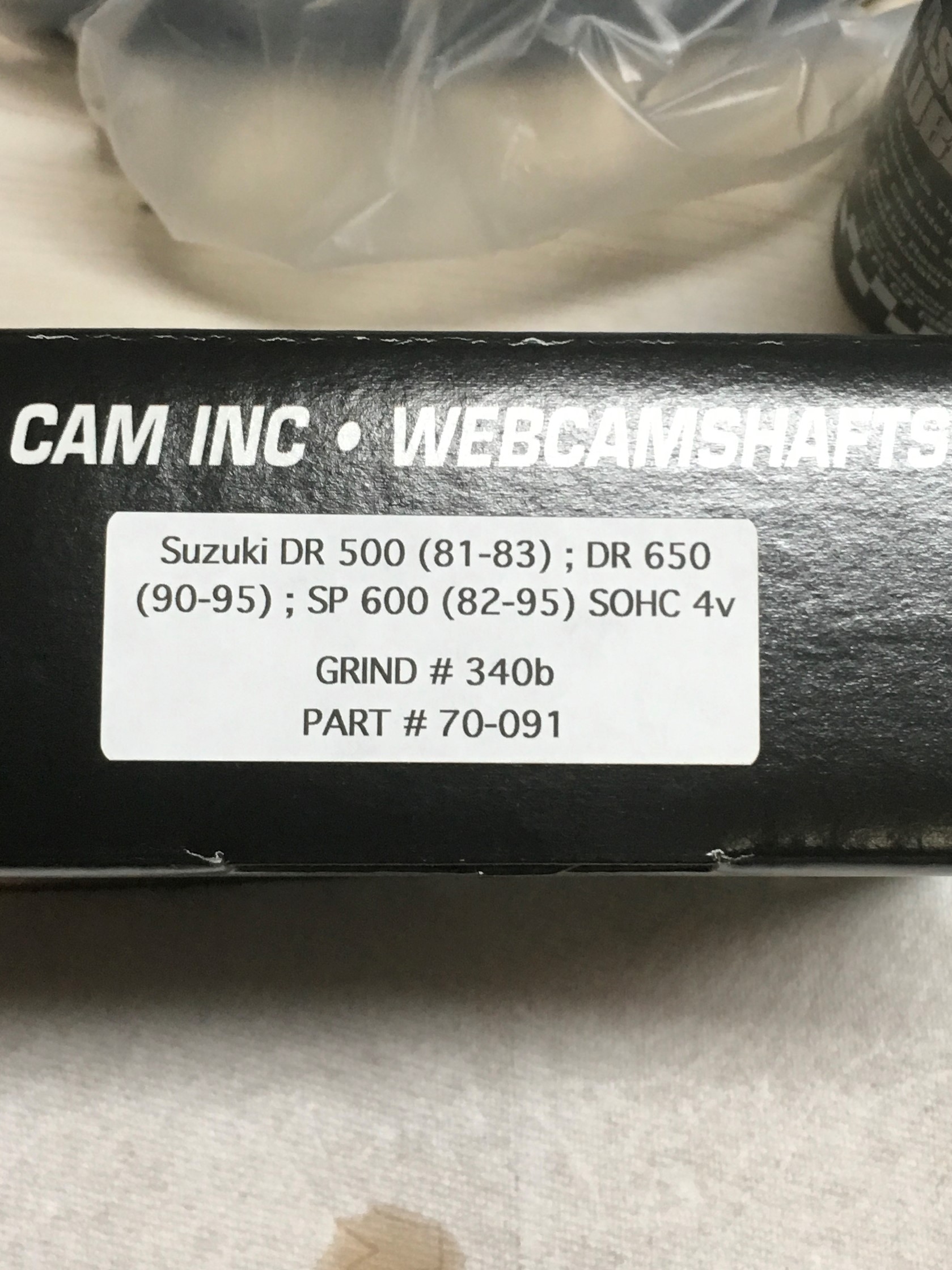

The only candidates that I could find were the Web 420 grind and the Web 340b grind.  Both cams are intended for use in the early DR650.   This post will take you through my installation of the Web 340b.  It is the hotter of the two cams.  I figured if I was gonna go through all the trouble to set up a big cam, I might as well go for the gold.
Back to top



Knowledge is power.
  IP Logged
DragBikeMike
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 4071
Honolulu
Re: Big Cam - Web 340b Install
Reply #1 - 12/16/19 at 18:14:41

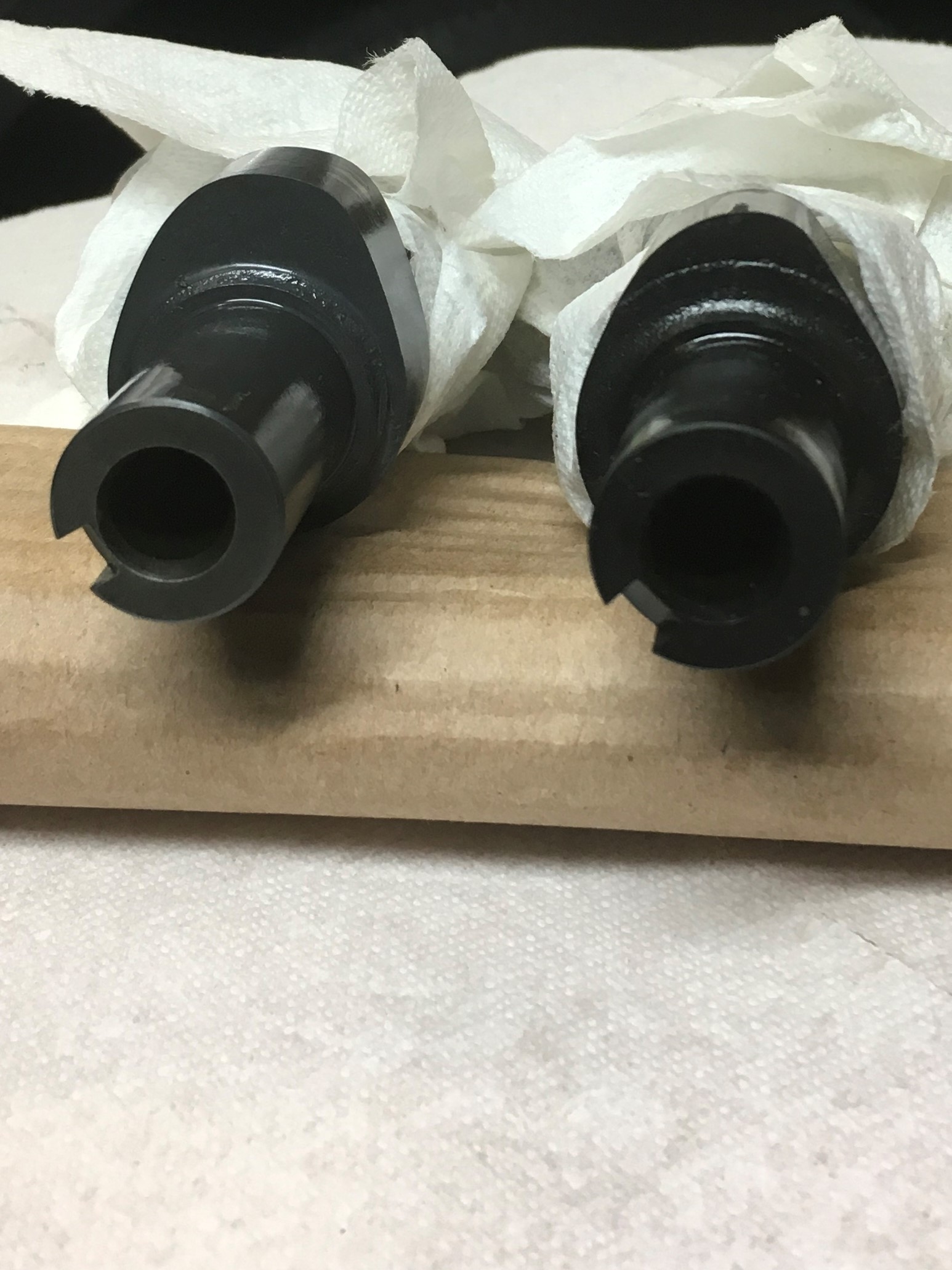

This is a shot of the stock cam and the 340b side by side.  You can see that the basic cores are identical.
Back to top



Knowledge is power.
  IP Logged
DragBikeMike
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 4071
Honolulu
Re: Big Cam - Web 340b Install
Reply #2 - 12/16/19 at 18:15:21

If you compare the lobes you will note a pretty big difference.
Back to top



Knowledge is power.
  IP Logged
DragBikeMike
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 4071
Honolulu
Re: Big Cam - Web 340b Install
Reply #3 - 12/16/19 at 18:16:45

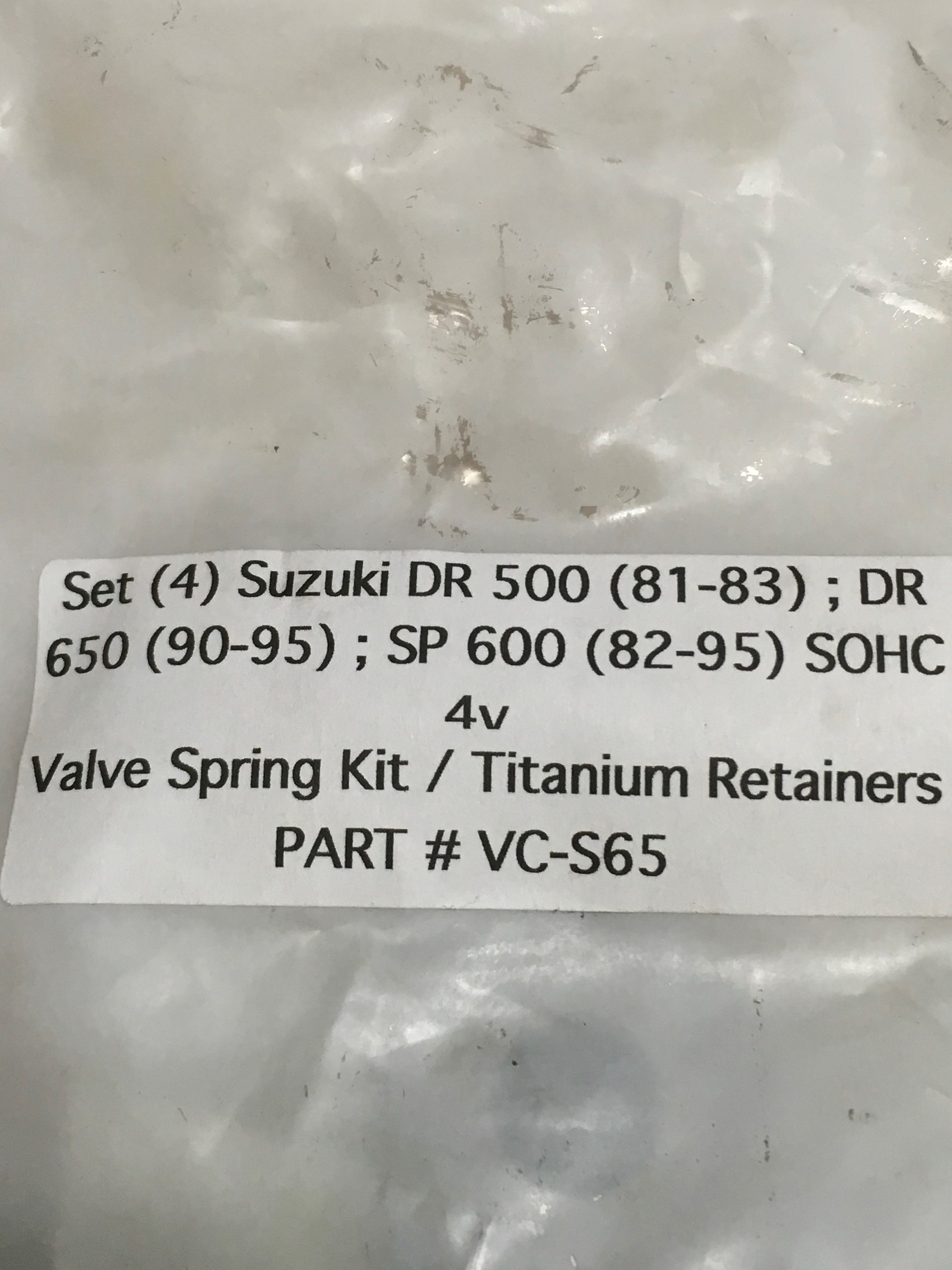

The 340b has more lift and aggressive ramps.  You must run stiffer springs with more travel.  This is the spring kit Web recommends for the DR650.
Back to top



Knowledge is power.
  IP Logged
DragBikeMike
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 4071
Honolulu
Re: Big Cam - Web 340b Install
Reply #4 - 12/16/19 at 18:17:46

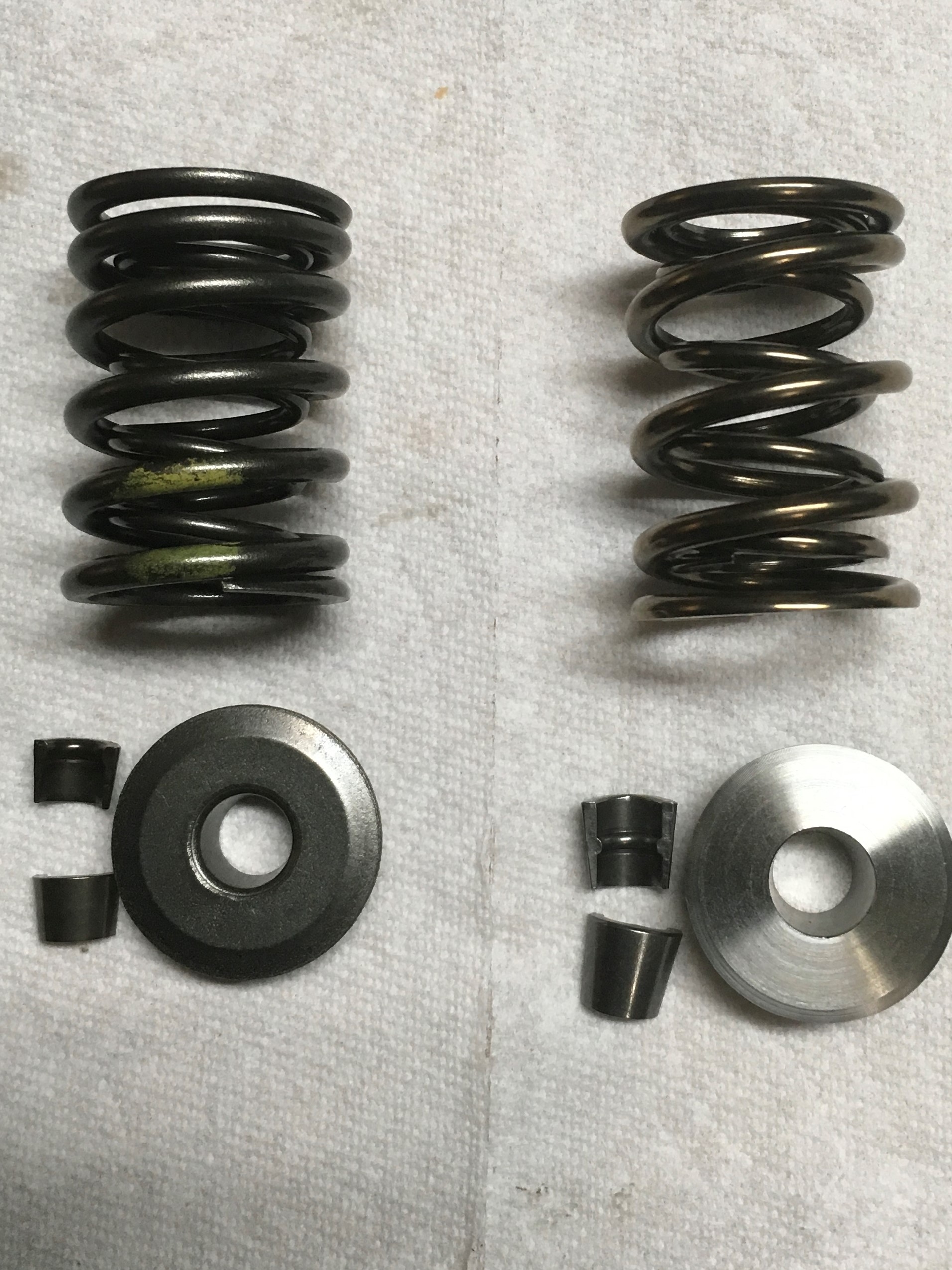

The spring kit is manufactured by RD Valve Springs.  Stock is on the left, RD is on the right.
Back to top



Knowledge is power.
  IP Logged
DragBikeMike
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 4071
Honolulu
Re: Big Cam - Web 340b Install
Reply #5 - 12/16/19 at 18:18:40

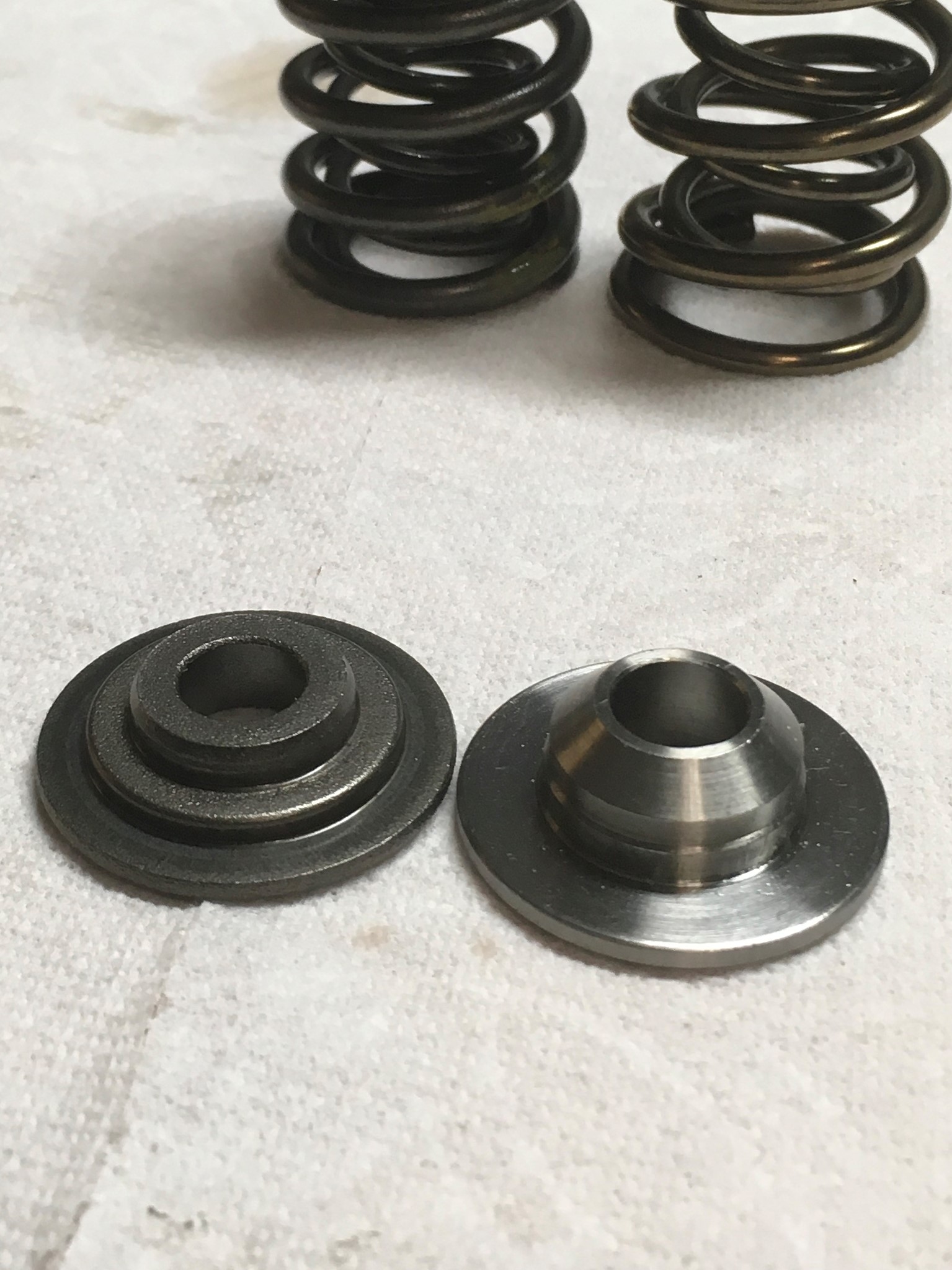

The RD retainers are titanium, and a lot different dimensionally.
Back to top



Knowledge is power.
  IP Logged
DragBikeMike
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 4071
Honolulu
Re: Big Cam - Web 340b Install
Reply #6 - 12/16/19 at 18:19:32

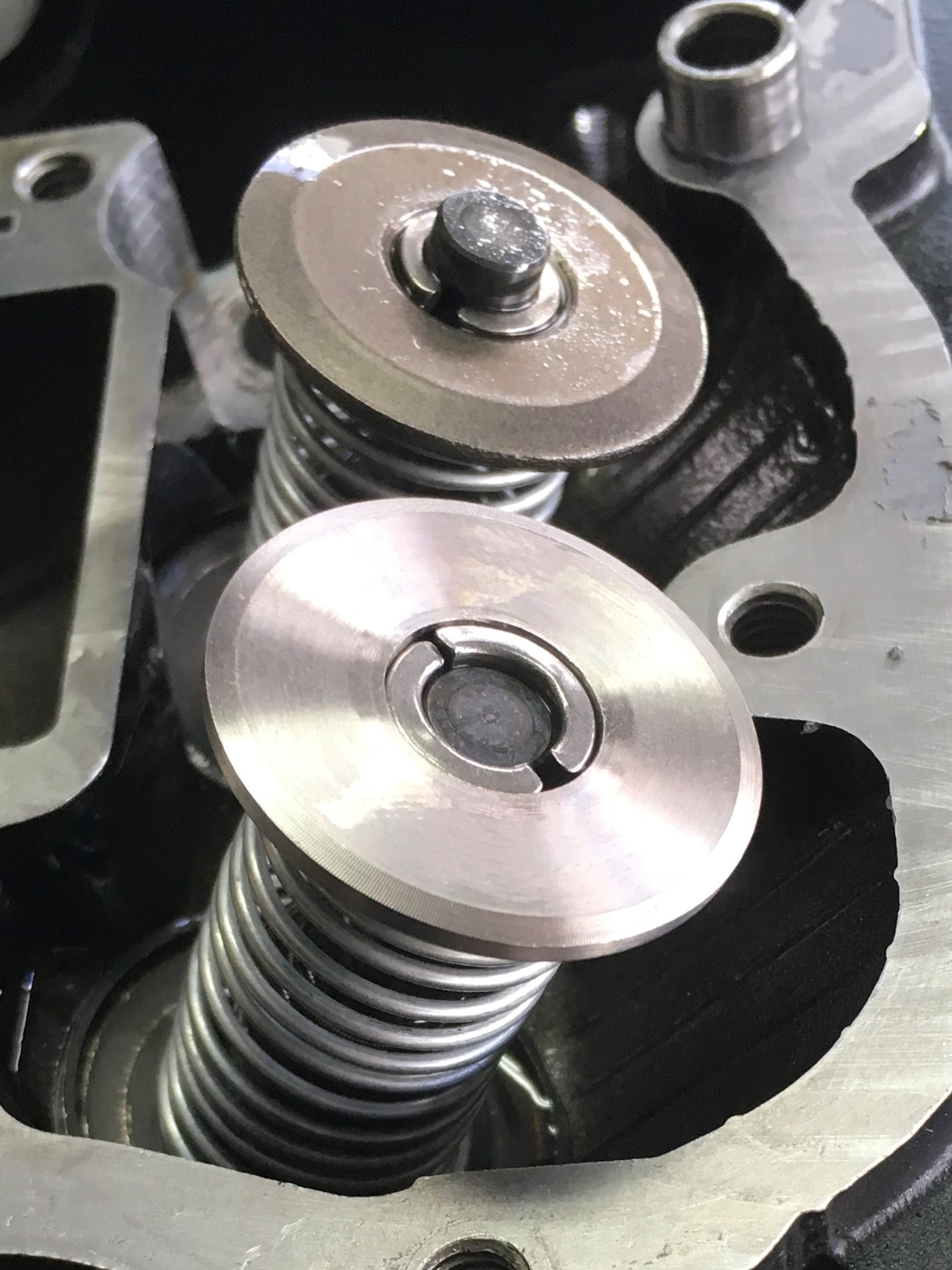

The RD retainers are designed for the DR650 valves.  They won’t work on the LS.
Back to top



Knowledge is power.
  IP Logged
DragBikeMike
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 4071
Honolulu
Re: Big Cam - Web 340b Install
Reply #7 - 12/16/19 at 18:21:56

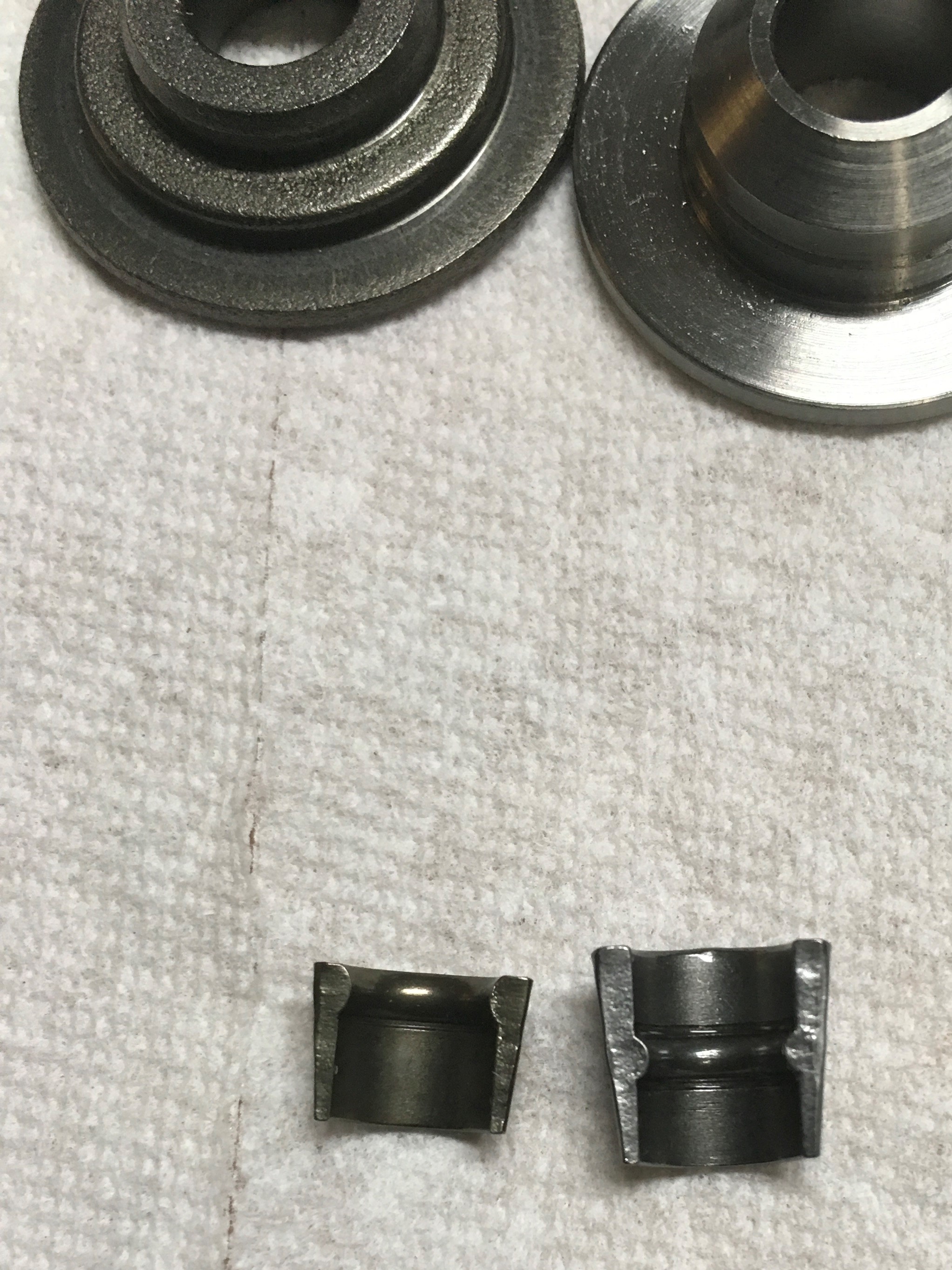

The RD cotters are also a lot different.   I tried using the stock cotters with the RD retainers.  The angle is different, so the stock cotters won’t work with the RD retainers.
Back to top



Knowledge is power.
  IP Logged
DragBikeMike
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 4071
Honolulu
Re: Big Cam - Web 340b Install
Reply #8 - 12/16/19 at 18:23:02

I decided to use the stock spring retainers with the RD springs.  I contacted RD Valve Springs to see if the springs can be purchased separately.  The spring part number is 1010 and they will set you back $38 bucks a copy for a total of $152.  You can order them direct from RD Valve Springs (760) 948-4698.  Website is www.rdvalvespring.com.  Good guys BTW.  They get right back to you.  I might also mention that the finish on their spring is much better than the stockers.  End grinds are nice & square and spring pressure vs lift was consistent on all four assemblies.
Back to top



Knowledge is power.
  IP Logged
DragBikeMike
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 4071
Honolulu
Re: Big Cam - Web 340b Install
Reply #9 - 12/16/19 at 18:23:56

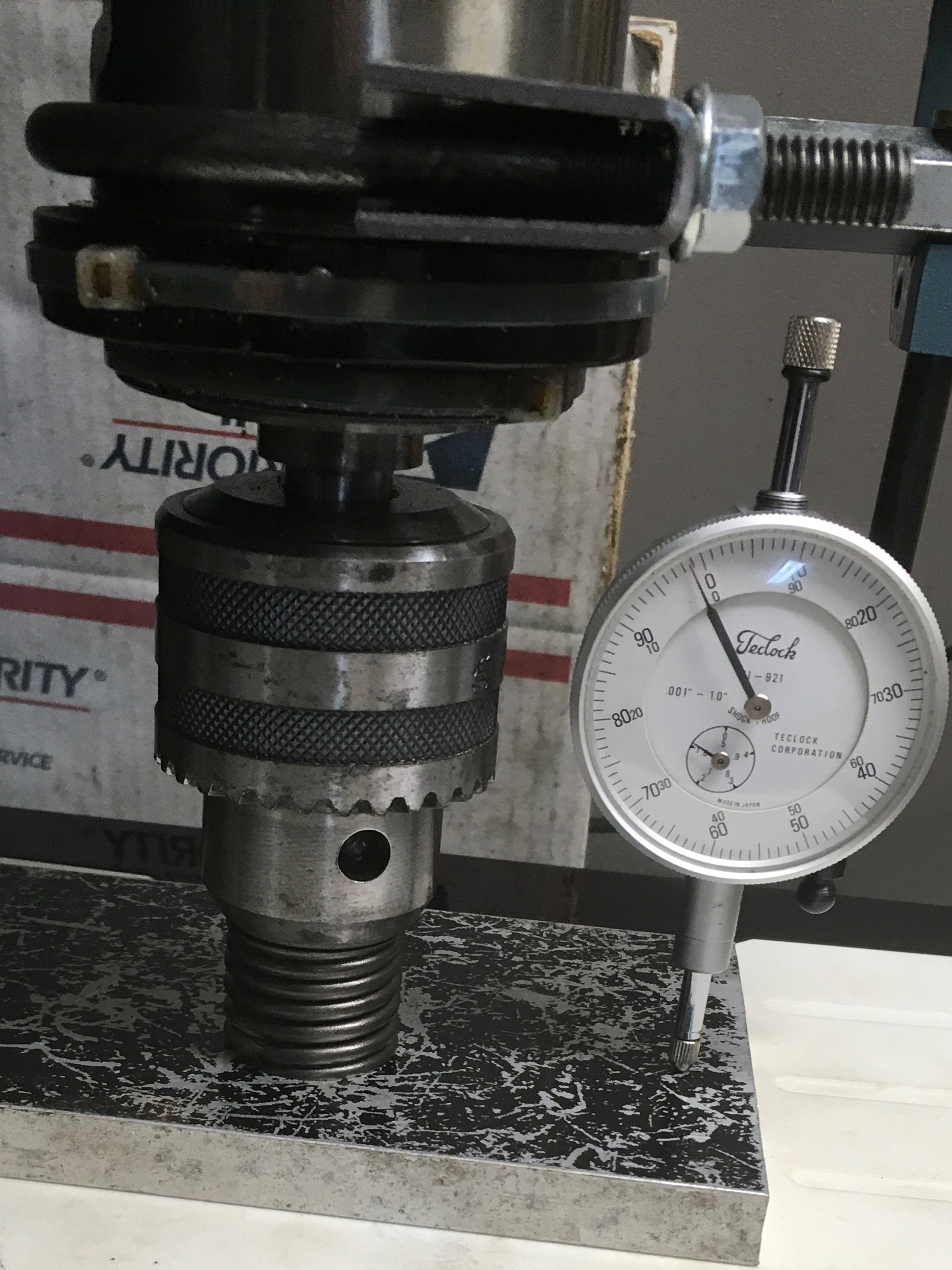

The 340b cam has .417” advertised lift.  The stock springs start coil binding at .400”.
Back to top



Knowledge is power.
  IP Logged
DragBikeMike
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 4071
Honolulu
Re: Big Cam - Web 340b Install
Reply #10 - 12/16/19 at 18:25:17

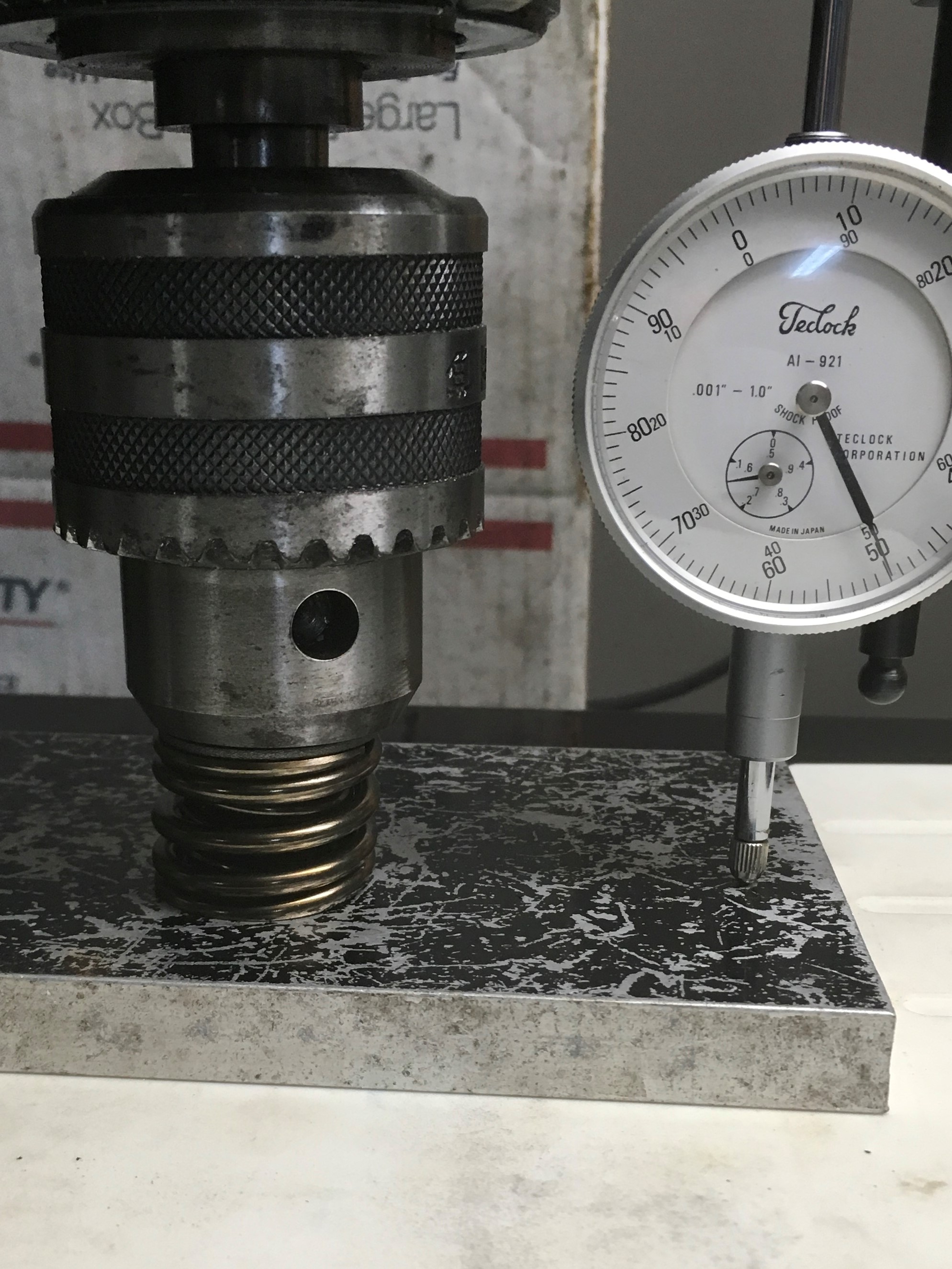

This shows the RD spring assembly at .450” lift.  Plenty of room left on this one.  Good to go.
Back to top



Knowledge is power.
  IP Logged
DragBikeMike
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 4071
Honolulu
Re: Big Cam - Web 340b Install
Reply #11 - 12/16/19 at 18:26:14

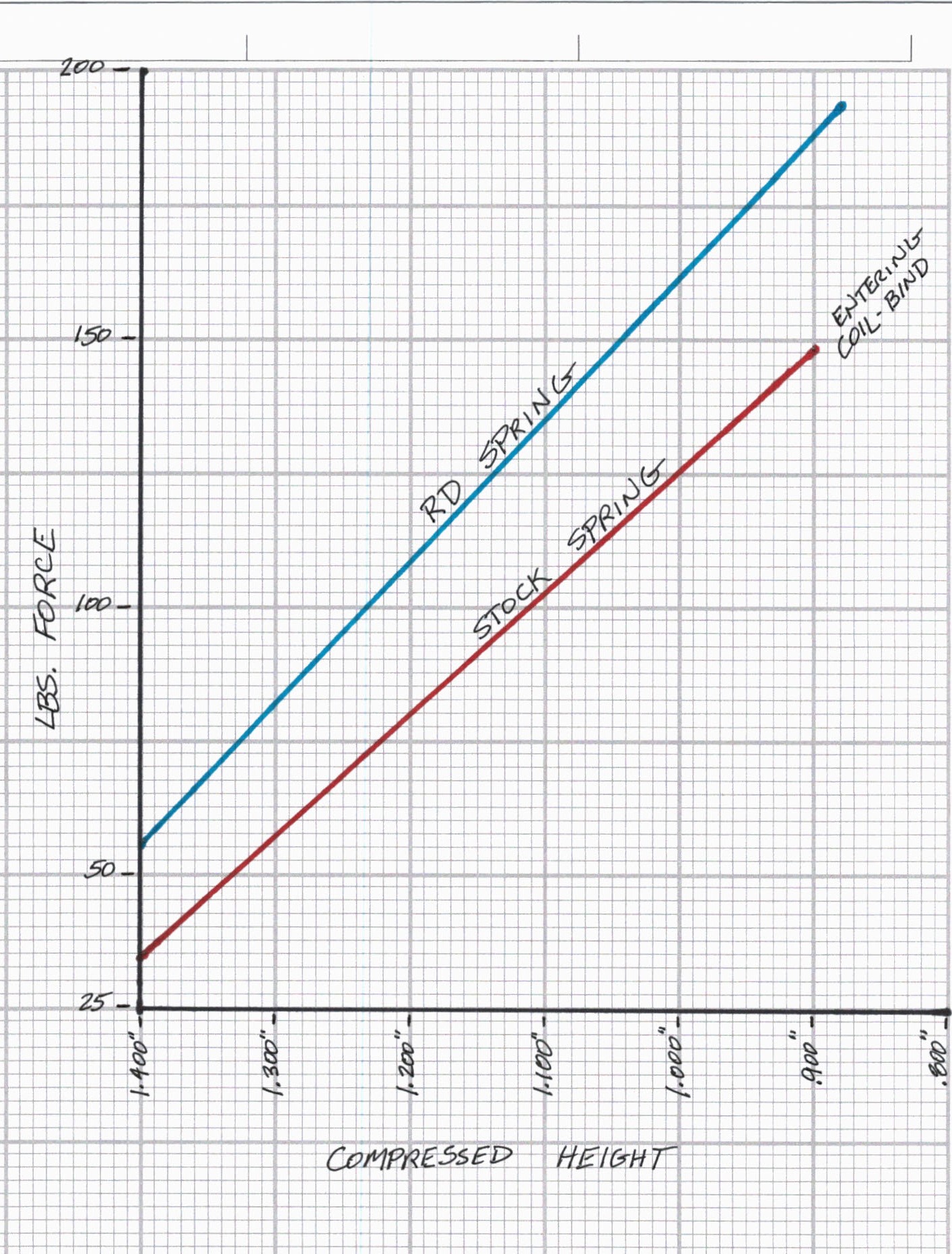

Here is a graph that compares the RD spring force to the stock spring force.
Back to top



Knowledge is power.
  IP Logged
DragBikeMike
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 4071
Honolulu
Re: Big Cam - Web 340b Install
Reply #12 - 12/16/19 at 18:27:38

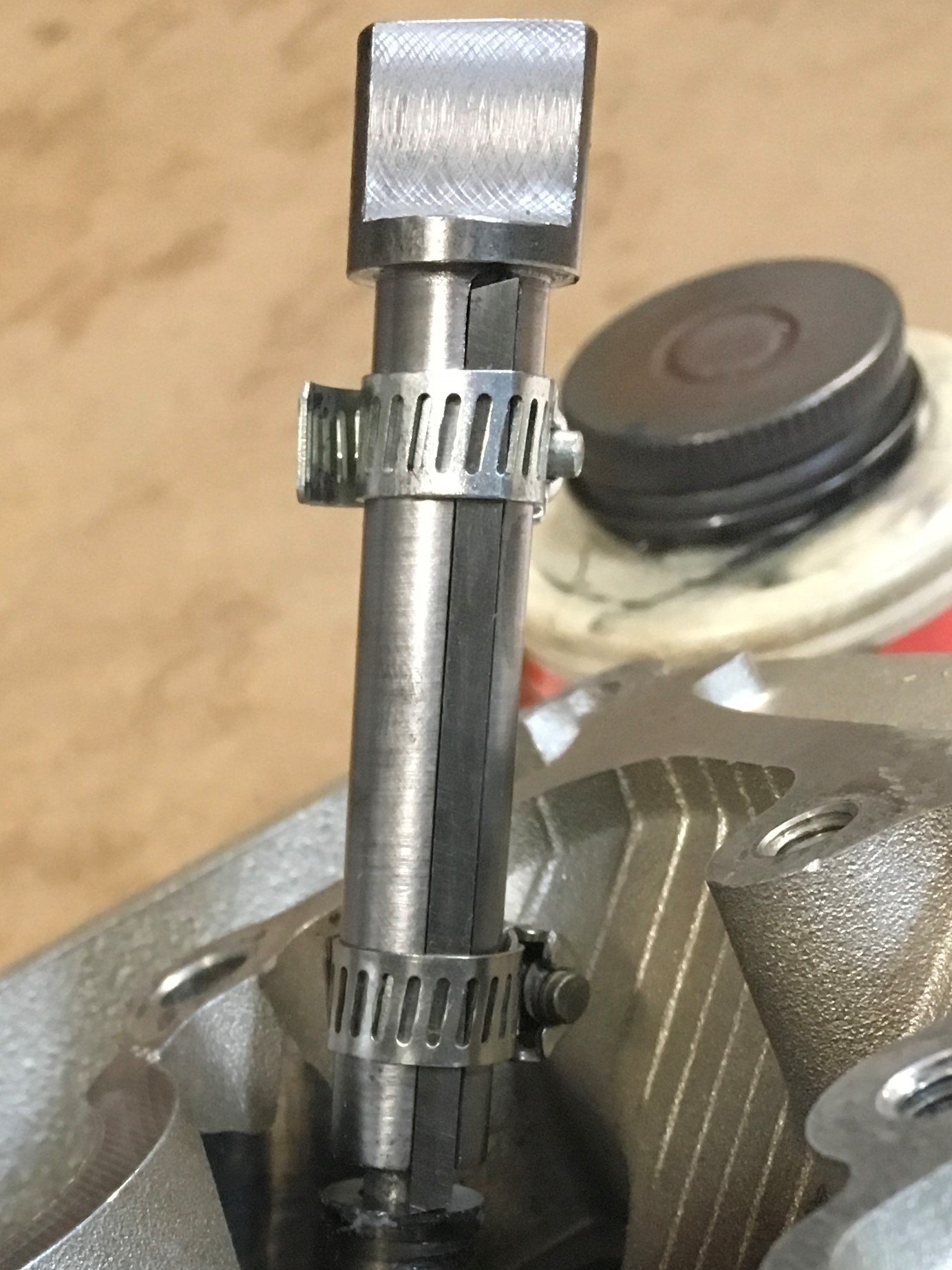

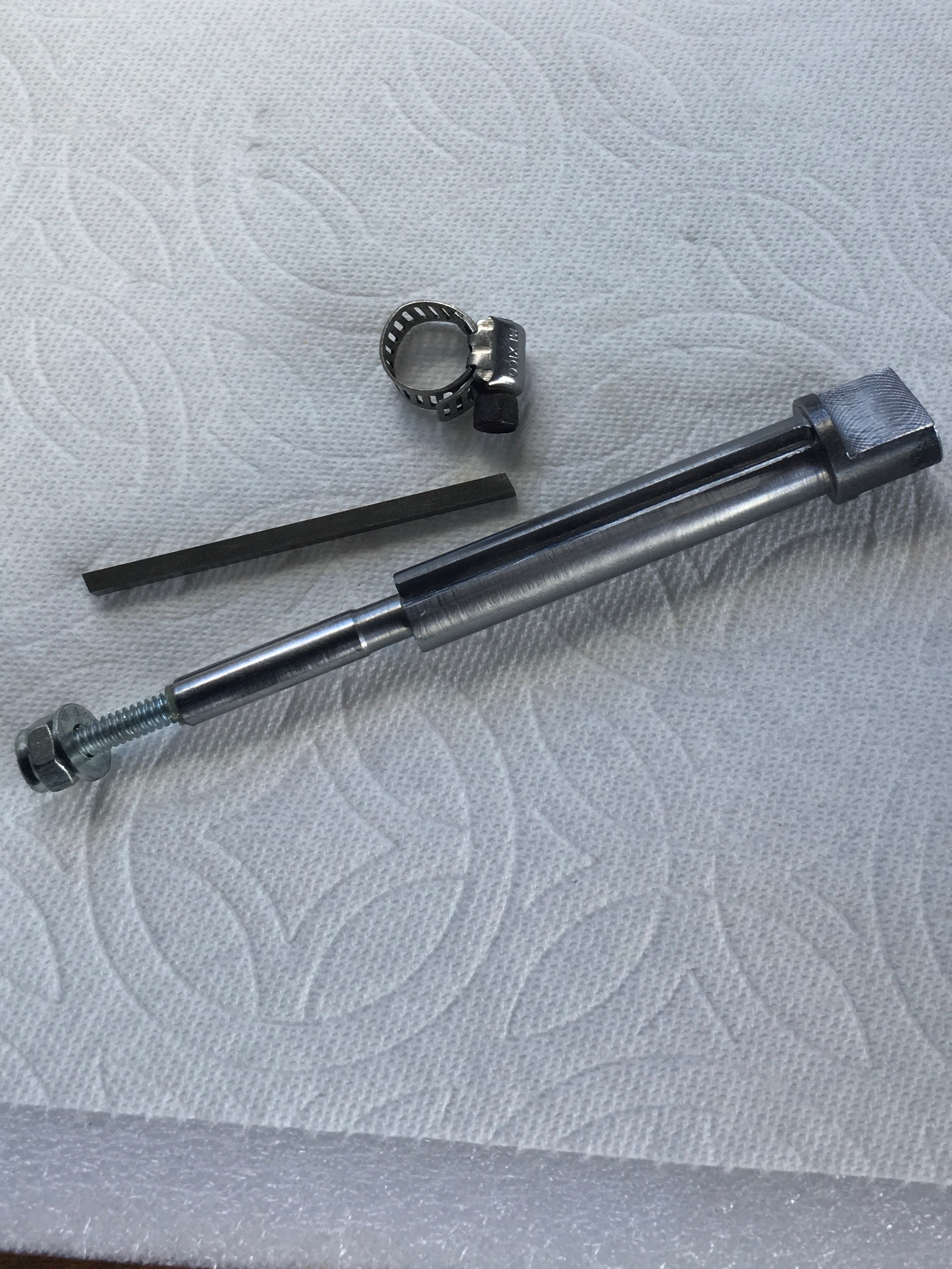

The valve guides must be shortened to accommodate the additional valve lift.  I made a tool.  It’s a simple design that uses 1/8” HSS tool bits.
Back to top



Knowledge is power.
  IP Logged
DragBikeMike
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 4071
Honolulu
Re: Big Cam - Web 340b Install
Reply #13 - 12/16/19 at 18:28:26

Takes about one-hour to do all four guides.
Back to top



Knowledge is power.
  IP Logged
DragBikeMike
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 4071
Honolulu
Re: Big Cam - Web 340b Install
Reply #14 - 12/16/19 at 18:29:41

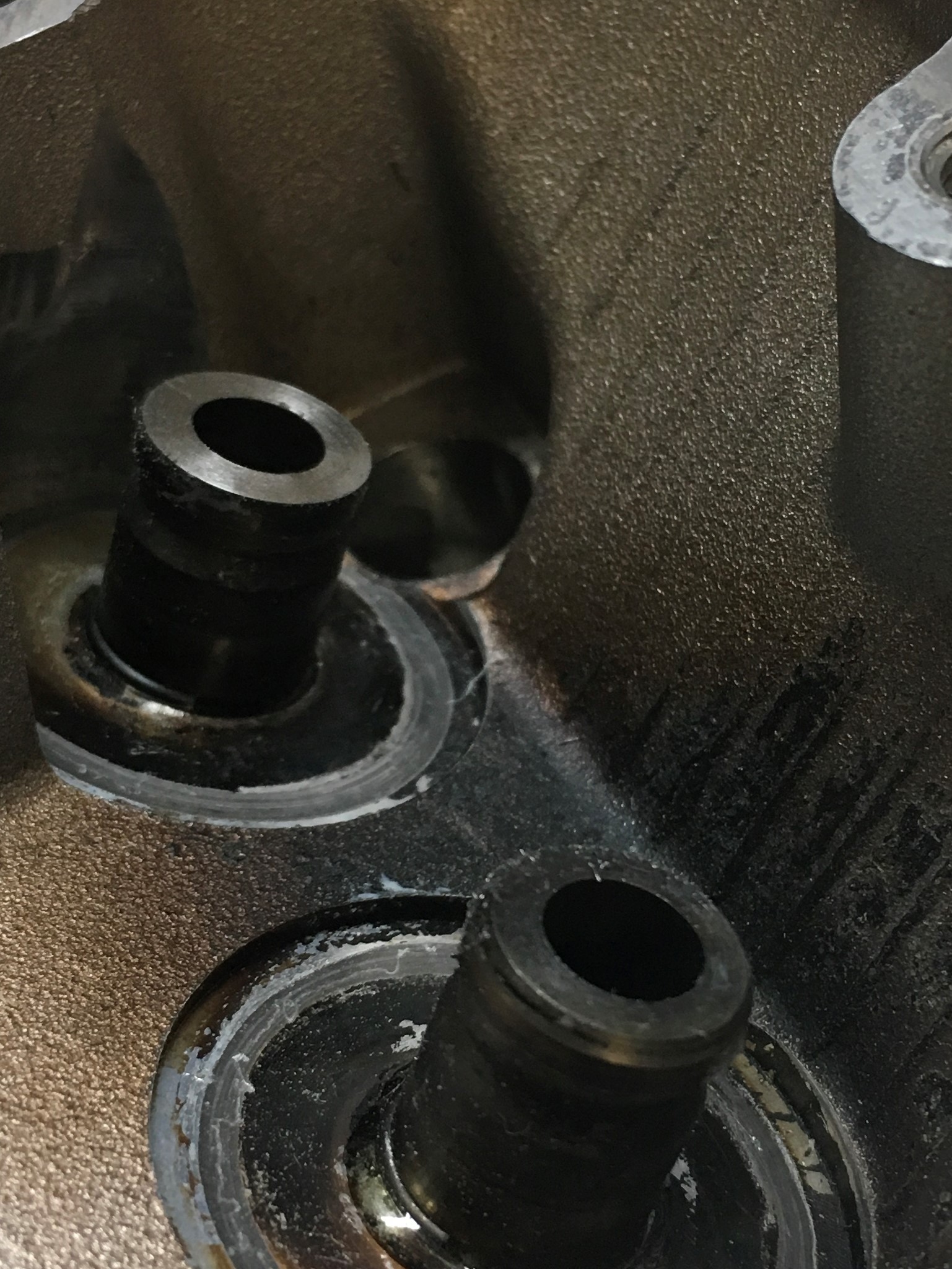

The finished product at the top of the photo.  This was a test cut on a junk head.
