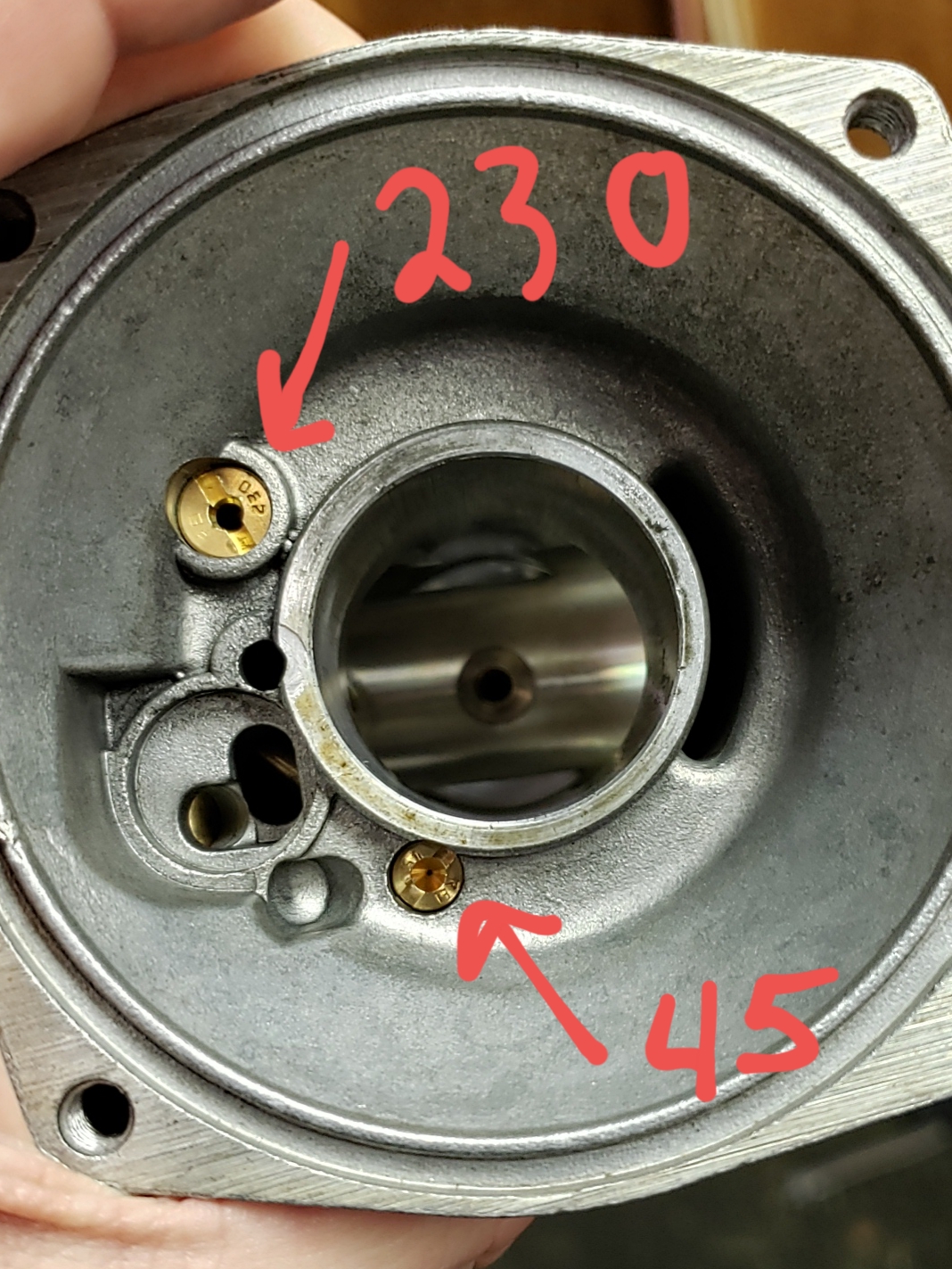

odakira YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 12	Jet size question 10/24/19 at 20:36:07 Ive got a 1999 Savage that Ive switched to a 52.5 / 155 jet combo. Just wondering if these two jets are okay at their current sizes or do I need to change them out? Figured I might be able to get an answer before putting frankenstein back together. Thanks!
Back to top	20191024_223552.jpg IP Logged

batman Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 3806 osceola new york Gender:	Re: Jet size question Reply #1 - 10/24/19 at 21:16:01 The jets in the picture, are air jets , they should be left alone.
Back to top	my old work mates called me MacGyver IP Logged

odakira YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 12	Re: Jet size question Reply #2 - 10/25/19 at 00:14:38 batman wrote on 10/24/19 at 21:16:01: The jets in the picture, are air jets , they should be left alone. Gotcha! Just wanted to be extra sure. Thank you!
Back to top	IP Logged

Gary_in_NJ Serious Thumper Offline LS650 Cafe Racer Posts: 2628 Amongst the Twisty Roads	Re: Jet size question Reply #3 - 10/25/19 at 07:04:55 Yeah, what Batman said. The 155 main is a fat jet. What jet did you have in the main prior and what modifications did you make?
Back to top	A life-time student of motorcycling. LS650 Cafe, DRZ400SM, FZ6N, SV650S, CB900C, Ducati ST2, CB550F-SS My LS650=> http://suzukisavage.com/yabb2.2/Attachments/Left.JPG IP Logged

batman Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 3806 osceola new york Gender:	Re: Jet size question Reply #4 - 10/25/19 at 18:09:12 What Gary said ,and your location (elevation above sea level) also influences main jet size.
Back to top	my old work mates called me MacGyver IP Logged

odakira

YaBB Newbies

Offline

SuzukiSavage.com
Rocks!

Posts: 12

Re: Jet size question
Reply #5 - 10/25/19 at 19:08:23

Gary_in_NJ wrote on 10/25/19 at 07:04:55:

Yeah, what Batman said.

The 155 main is a fat jet. What jet did you have in the main prior and what modifications did you make?

I bumped up the main from 145 to 155, the pilot jet from 52.5 to 55. Took out the white spacer and swapped it for some flat washers that are about half the size of the white spacer. Switched out the stock muffler for an Emgo slash cut muffler that is "baffled".

I'm in the St. Louis, Missouri area. Elevation is roughly 400-600 ft above sea level.

Back to top

IP Logged

batman

Serious Thumper

Offline

SuzukiSavage.com
Rocks!

Posts: 3806
osceola new york
Gender: male

Re: Jet size question
Reply #6 - 10/25/19 at 21:14:37

I'd start by checking your mileage , I think you'll find it's in the low to mid 40's , which would mean your jets are a bit to large. I have St. Louis as 465ft above sea level . I run between 400 and 1300 ft and run a stock 52.5 pilot , 150 main and 3 washer on the needle .with a high performance air filter and stock baffled Dyna muffler . 55/155 jets are usually only used at sea level. checking your sparkplug I think you'll find it's still pretty black. If that 's true ,I'd think about smaller jets for both better mileage and performance.

Back to top

my old work mates called me MacGyver

IP Logged

odakira

YaBB Newbies

Offline

SuzukiSavage.com
Rocks!

Posts: 12

Re: Jet size question
Reply #7 - 10/25/19 at 22:41:28

batman wrote on 10/25/19 at 21:14:37:

I'd start by checking your mileage , I think you'll find it's in the low to mid 40's , which would mean your jets are a bit to large. I have St. Louis as 465ft above sea level . I run between 400 and 1300 ft and run a stock 52.5 pilot , 150 main and 3 washer on the needle .with a high performance air filter and stock baffled Dyna muffler . 55/155 jets are usually only used at sea level. checking your sparkplug I think you'll find it's still pretty black. If that 's true ,I'd think about smaller jets for both better mileage and performance.

I do have a 150 main jet on hand. I'll go ahead and switch back to that and the 52.5 pilot and see how it does for me. I don't have much riding weather around here really so it's not a big deal if I gotta shelf the carb until the next riding season.

Thank you again for all your input!

Back to top

IP Logged

Gary in NJ YaBB Newbies Offline SuzukiSavage.com Rocks! Posts: 44	Re: Jet size question Reply #8 - 10/26/19 at 04:19:13 I think the 52.5/150 would be about right.
Back to top	A life long student of motorcycling IP Logged

Dave

YaBB Moderator
ModSquad

Offline

SuzukiSavage.com
Rocks!

Posts: 17825
Camp Springs, Kentucky
Gender: male

Re: Jet size question
Reply #9 - 10/26/19 at 05:25:32

Gary in NJ wrote on 10/26/19 at 04:19:13:

I think the 52.5/150 would be about right.

Yep.......I agree.

I live in the Cincinnati area......elevations between 500 - 800 msl. The #150 main always worked best, the #50 pilot works best on some bikes.....on other bikes a #52.5 is better.

A stock engine with a #155 or larger jet will run - but it will be overly rich and just run sloppy. The engine runs so much crisper with proper jetting!

Back to top

Someday I will be old......But not today!

IP Logged

batman Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 3806 osceola new york Gender:	Re: Jet size question Reply #10 - 10/27/19 at 17:21:05 ALL TRUE ! but I think you should do the spacer mod as well . to prevent sag in the mid range where the bike spends most of it's time.
Back to top	my old work mates called me MacGyver IP Logged

zipidachimp Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 1392 surrey, b.c. Gender:	Re: Jet size question Reply #11 - 10/27/19 at 18:11:01 +1 on the 52.5/150 jets, 152.5 is the biggest I'd try. Cheers!
Back to top	IP Logged

BrokeAss

Junior Member

Offline

SuzukiSavage.com
Rocks!

Posts: 69

Re: Jet size question
Reply #12 - 11/02/19 at 16:18:15

I've run a 160 main jet on several Savages (Central Ohio, ~1000ft above sea level) as per 6Sigmas suggestion. They also included a 165 in case the 160 wasn't big enough. Cone filter on a 90* silicone elbow, debaffled aftermarket or Harley exhaust, clipped diaphragm spring. Good mileage, clean burn, AMAZING throttle response. Your Results Clearly May Vary...

Back to top

IP Logged

batman Serious Thumper Offline SuzukiSavage.com Rocks! Posts: 3806 osceola new york Gender:	Re: Jet size question Reply #13 - 11/04/19 at 04:21:00 BrokeAss , What do you get for mileage? Got a number? what is your pilot jet size ,what did you do for the spacer mod?
Back to top	my old work mates called me MacGyver IP Logged

BrokeAss

Junior Member

Offline

SuzukiSavage.com
Rocks!

Posts: 69

Re: Jet size question
Reply #14 - 11/06/19 at 19:02:13

batman wrote on 11/04/19 at 04:21:00:

BrokeAss , What do you get for mileage? Got a number? what is your pilot jet size ,what did you do for the spacer mod?

*****************************************************

Too old and not broke enough to pay attention to mileage. My Buddy rides the last one I built and he's not complaining. When we do a day ride he stops once in 8hrs same as the rest of us. I wanna say the pilot is 52.5, but don't quote me, too many bikes go thru here to recall. It's whatever 6Sigma suggests and sends with their kit. Needle gets 2-3 washers I believe, and the slide spring gets trimmed. Bike starts so much quicker, doesn't smoke or stink or get hot.
