Sidestand silliness (Read 57 times)
Armen
Serious Thumper
*****
Offline

Half-Witted
Wrench-Jockey from
Jersey

Posts: 1452

Sidestand silliness
09/28/19 at 07:37:58

So, the stock side stand is attached to the forward controls. A steel beast of a thing.
Did the rearset thing, so the side stand had to be changed.
Did a lot of head scratching, and decided the nice aluminum unit from a 675 Triumph was a good starting point.
Ebay is my friend! Found one.

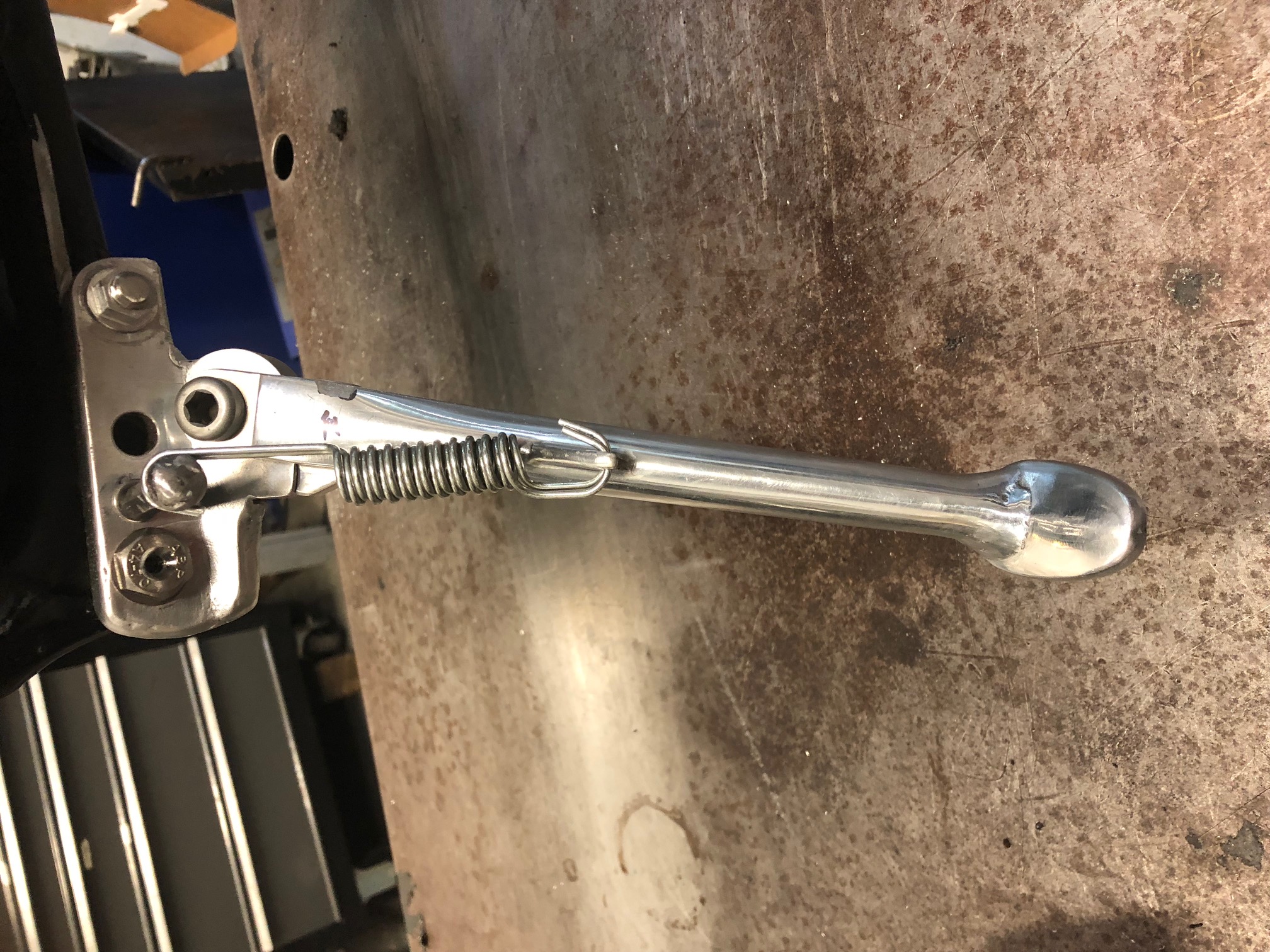

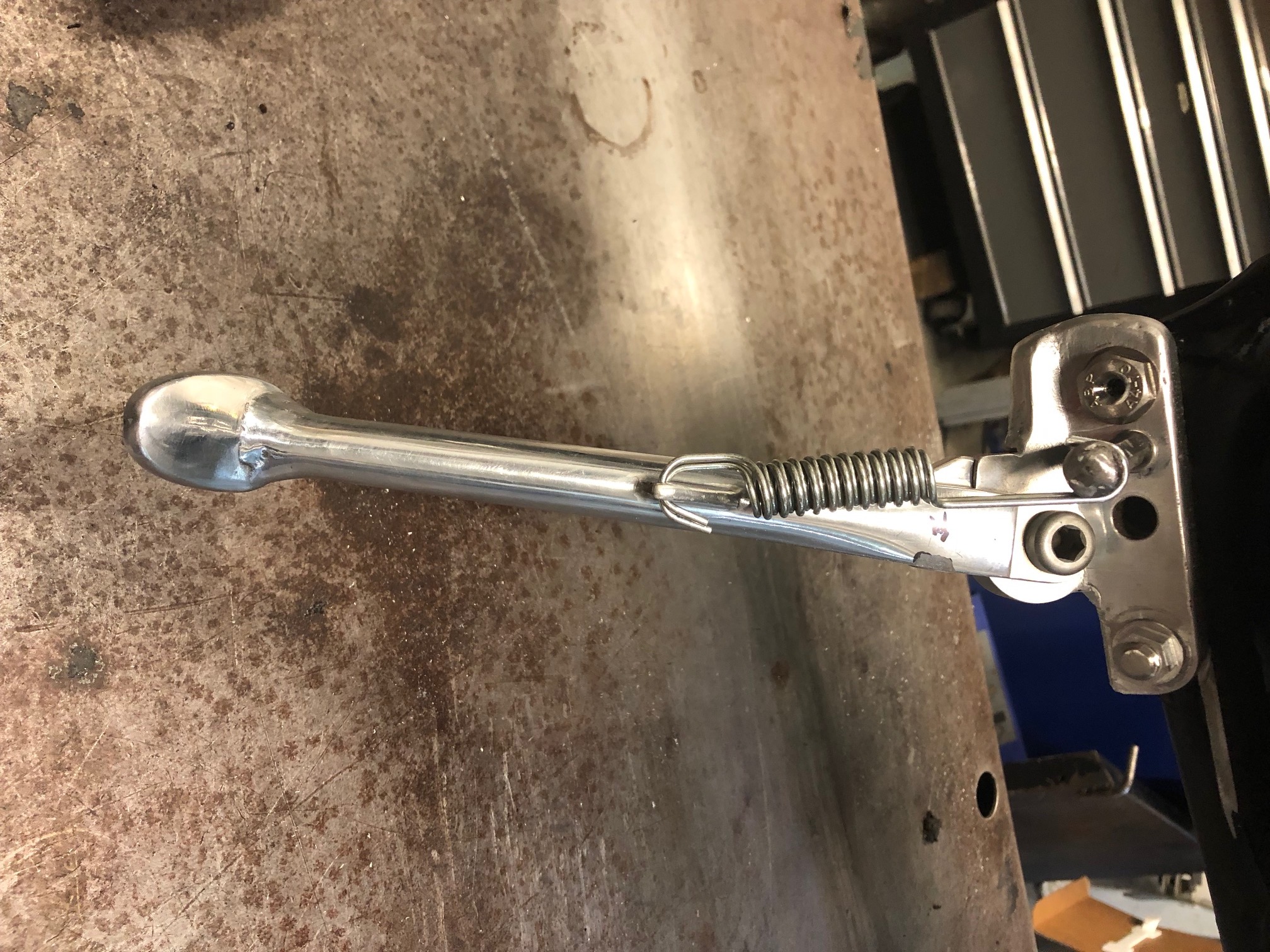

Cut the mounting plate and re-angled it. Cut off the foot, and some of the leg, reangled the foot, and TIGed it all back together.
Had to do some odd VooDoo with the upper spring anchor.
When it was almost done, I realized the stand was hitting the nut from the motor mount.
In a fit of pointlessness, I had made some 10mm nuts out of 7068 aluminum with a 13mm head. using one of those, the side stand now goes up high enough to not worry me.
The front mount was originally a bolt and nut. Drilled out the frame slightly, and installed a 10x15 Heli-Coil. Found a nice stainless hex holt, gun drilled it, and Voila!
So, prettier, lighter, nice lean angle (18" wheels F+R). Tucks out of the way.
Luckily I don't have to justify my actions to anyone  Shocked
Back to top



In theory, theory and reality are the same. In reality, they aren't...
  IP Logged
Armen
Serious Thumper
*****
Offline

Half-Witted
Wrench-Jockey from
Jersey

Posts: 1452

Re: Sidestand silliness
Reply #1 - 09/28/19 at 07:40:29

Don't know why the pics get rotated when I post them..
Back to top



In theory, theory and reality are the same. In reality, they aren't...
  IP Logged
ohiomoto
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 2770

Re: Sidestand silliness
Reply #2 - 09/28/19 at 16:51:23

Oooo, very nice! I need one.!
Back to top


  IP Logged
DragBikeMike
Serious Thumper
*****
Offline

SuzukiSavage.com
Rocks!

Posts: 4401
Honolulu
Re: Sidestand silliness
Reply #3 - 09/29/19 at 01:10:16

That is a nice lookin side stand.  Looks factory.  Excellent, as usual Armen.   Cool  Thanks for the pics.
Back to top



Knowledge is power.
  IP Logged
