Electrical Help Needed (pics)
07/24/19 at 16:40:40

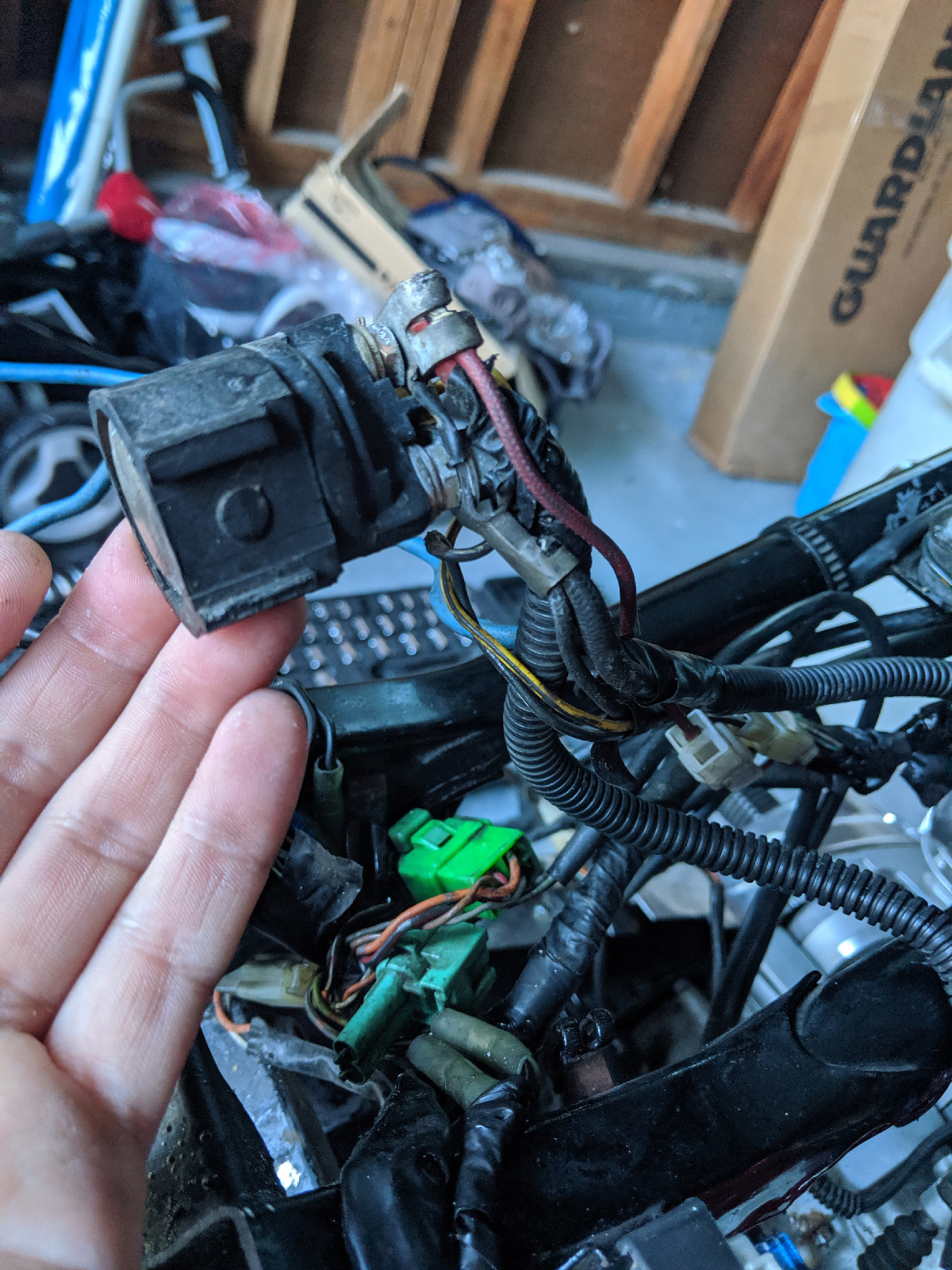

So I bought my Savage from an owner who did some not so good modifications to it. Mostly turn signals, tail light mod that was really screwed up, and some other dumb stuff. So in the attached pictures, where was the piece in the picture (solenoid?) originally on the bike? I am guessing under the seat? This guy removed the fender and passenger seat, so all of the electrical stuff was shoved under the stock seat, and it was stuffed there very poorly. There also seems to be some kind of heavy gauge blue wire coming off the piece that was cut and just taped off on the ends. I don't know what it was for. Is it a wire that goes to something or could it possibly been from some other stupid aftermarket lights he had on the bike?

I am in the process of adding the BCB seat kit. I have removed the air box (wow, what a b!tch). I am really just trying to figure out what the cut wires are and where I should relocate the piece from the first picture or if that piece is supposed to go somewhere.

Thank you!

Back to top


2000 Savage

IP Logged

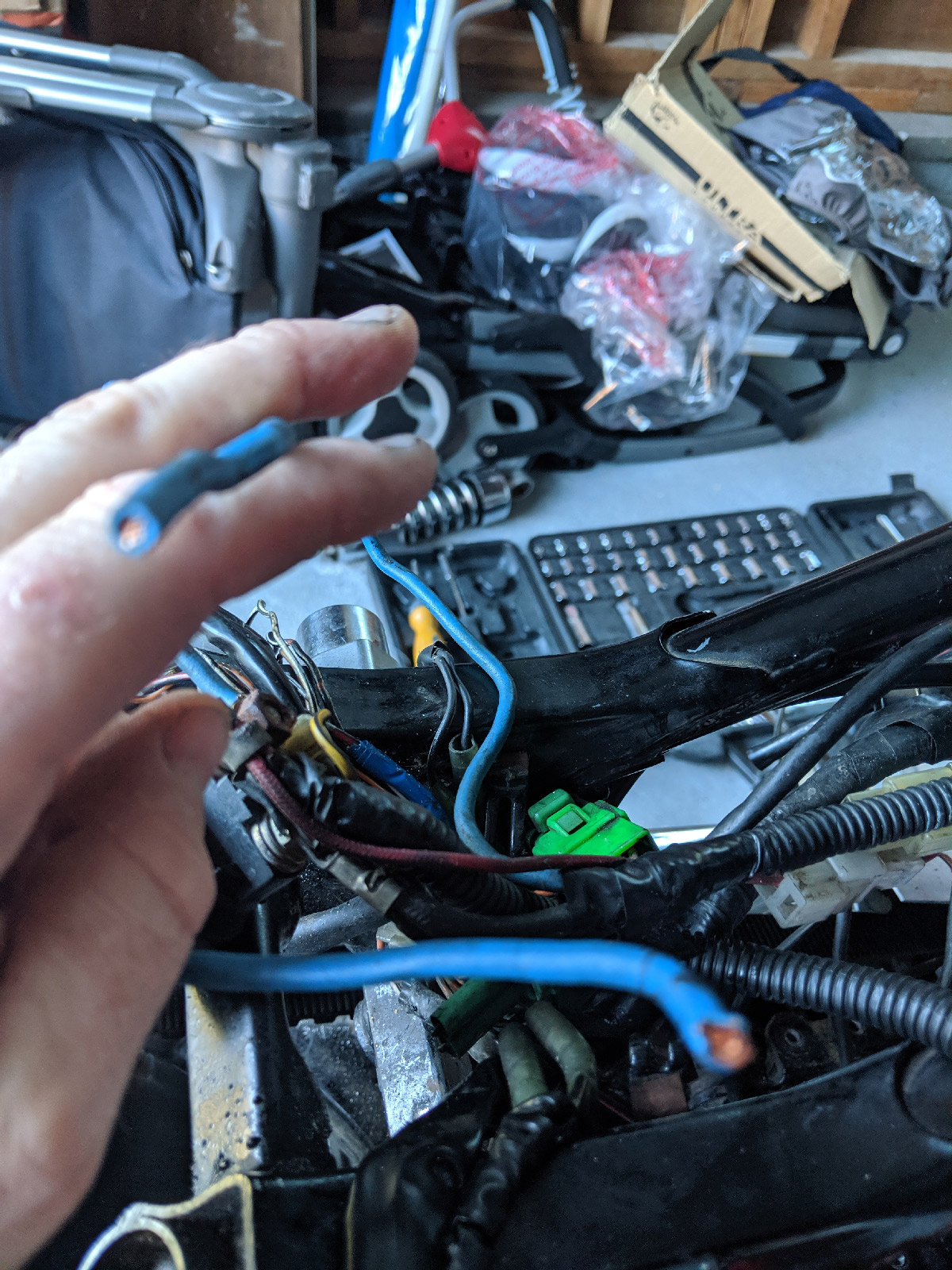

Tacopimp Full Member Offline ihatemonix.com Posts: 100 South Jersey Gender:	Re: Electrical Help Needed (pics) Reply #1 - 07/24/19 at 16:41:13 and the wires pic
Back to top	IMG_20190724_185440.jpg 2000 Savage IP Logged

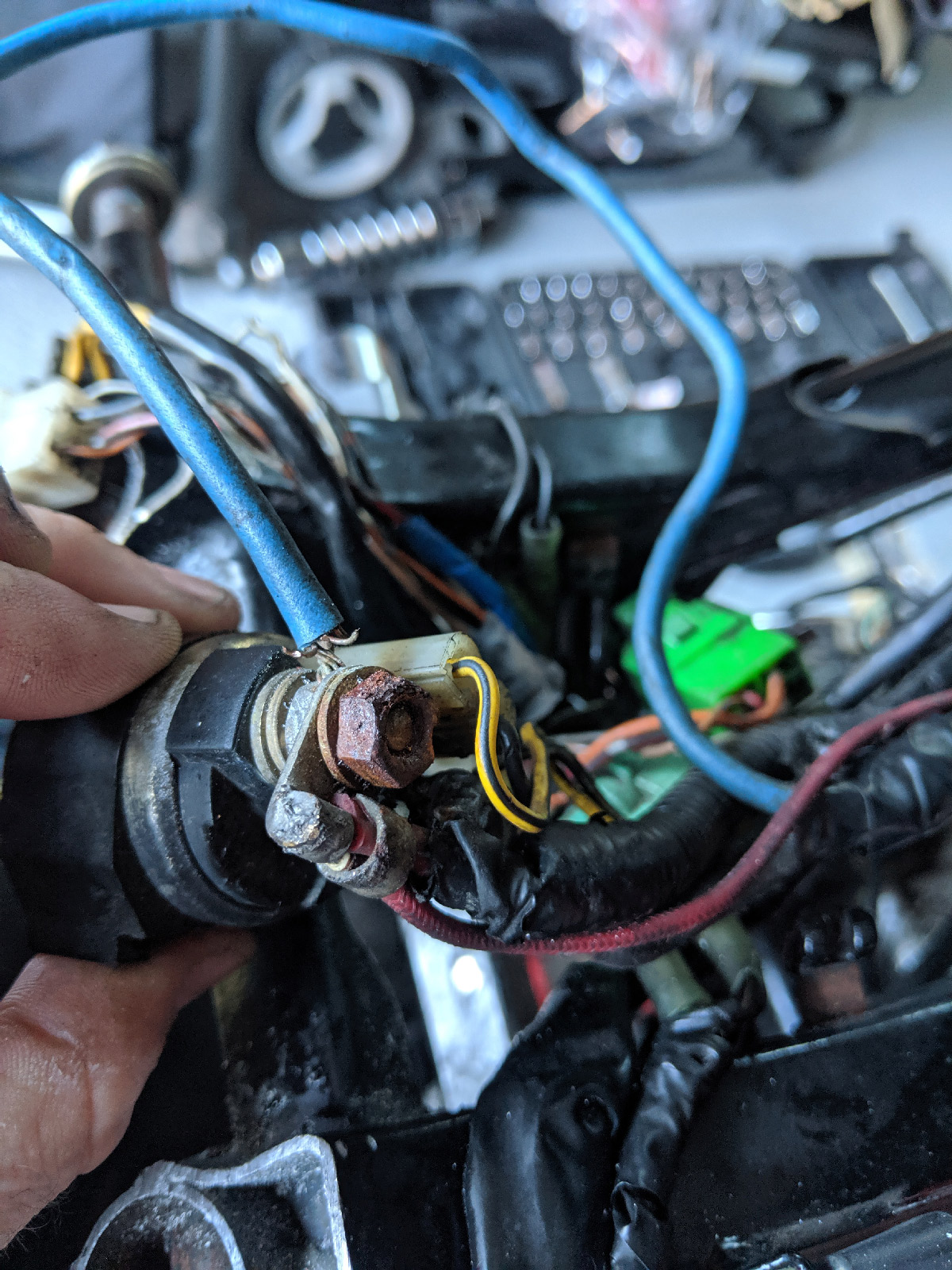

Tacopimp Full Member Offline ihatemonix.com Posts: 100 South Jersey Gender:	Re: Electrical Help Needed (pics) Reply #2 - 07/24/19 at 16:41:39 last pic
Back to top	IMG_20190724_185446.jpg 2000 Savage IP Logged

batman

Serious Thumper

Offline

SuzukiSavage.com
Rocks!

Posts: 3806
osceola new york
Gender: male

Re: Electrical Help Needed (pics)
Reply #3 - 07/24/19 at 18:59:38

The blue wire is not stock -I'd toss it. the starter solenoid was mounted to the outside of the rear fender, down in the V formed by it and the back of the air box . You can locate it anywhere the battery cables allow , the smaller wires come from the starter button (yellow- black stripe +) and the black -white strip neg . -to ground. And would be easy to lengthen if needed.

Back to top

my old work mates called me MacGyver

IP Logged

verslagen1 YaBB Moderator ModSquad Offline Where there's a will, I want to be in it. Posts: 28890 L.A. California Gender:	Re: Electrical Help Needed (pics) Reply #4 - 07/24/19 at 19:12:54 you need this... http://suzukisavage.com/cgi-bin/YaBB.pl?num=1199986392 this is helpful too... http://suzukisavage.com/cgi-bin/YaBB.pl?num=1121534397
Back to top	Versey's Place Tech Section Index IP Logged

Tacopimp

Full Member

Offline

ihatemonix.com

Posts: 100
South Jersey
Gender: male

Re: Electrical Help Needed (pics)
Reply #5 - 07/24/19 at 20:10:28

batman wrote on 07/24/19 at 18:59:38:

The blue wire is not stock -I'd toss it. the starter solenoid was mounted to the outside of the rear fender, down in the V formed by it and the back of the air box . You can locate it anywhere the battery cables allow , the smaller wires come from the starter button (yellow- black stripe +) and the black -white strip neg . -to ground. And would be easy to lengthen if needed.

Perfect. Thank you!

verslagen1 wrote on 07/24/19 at 19:12:54:

you need this...

http://suzukisavage.com/cgi-bin/YaBB.pl?num=1199986392

this is helpful too...

http://suzukisavage.com/cgi-bin/YaBB.pl?num=1121534397

This is great! Thanks

Back to top

2000 Savage

IP Logged

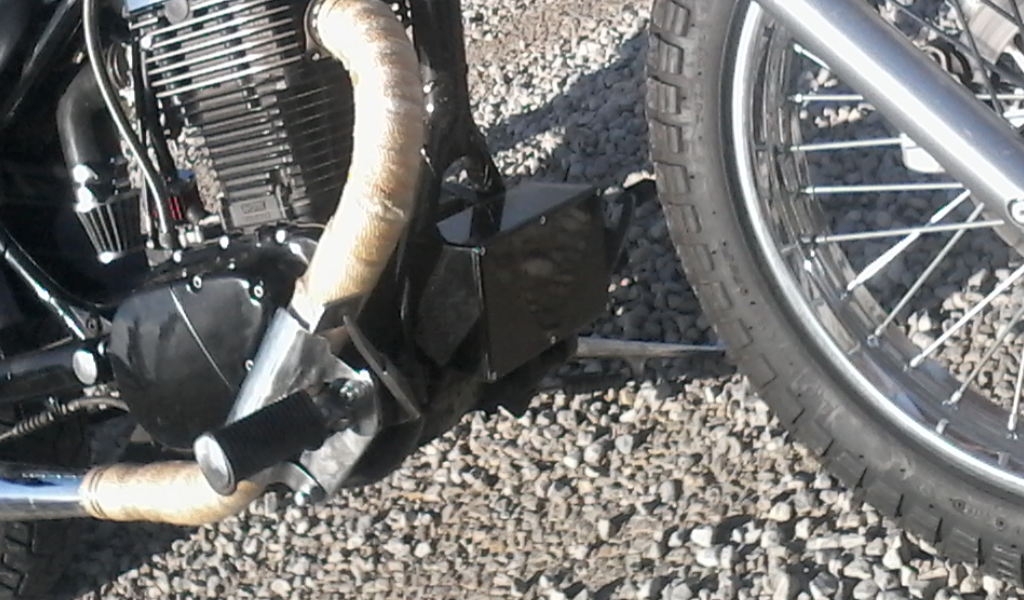

BrokeAss Junior Member Offline SuzukiSavage.com Rocks! Posts: 69	Re: Electrical Help Needed (pics) Reply #6 - 07/24/19 at 21:40:23 Stock cables to/from the starter solenoid are just the right length to relocate the battery and solenoid to a box up front. I use a battery intended for a Raptor 660, fits in the box beside the solenoid all nice and cozy:
Back to top	Screenshot_2019-05-26-17-37-16_001.png IP Logged
